Used Leistritz Corporation Process Equipment

Aaron Equipment has a large inventory of process equipment built by Leistritz Corporation. Aaron's inventory of Plastics Equipment. If you are looking to buy machinery from Leistritz Corporation submit a request for quote online and if you are looking to sell your used Leistritz Corporation equipment submit a request online or contact Michael Cohen at 630-238-7480.
Clear
https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Pelletizing-Line-Twin-Screw/Leistritz-Corporation-ZSE18HPe-P_54513001_ac.jpg
View

Stock No.:

54513001

Used Leistritz ZSE18HPe-PH-40D Twin Screw Extrusion and Pelletizing Line

Used Leistritz Model ZSE18HPe-PH-40D Co-Rotating Twin Screw Extrusion And Strand Pelletizing Line With K-Tron Feeders And Thermo Scientific Pelletizer. Laboratory and pilot-scale extrusion system designed for continuous polymer compounding, melt processing, material blending and pellet production. Line includes (1) Leistritz Model ZSE18HPe-PH-40D co-rotating twin screw extruder equipped with (2) 18 mm diameter screws, approximately 40:1 length-to-diameter (L/D) ratio and a maximum screw rotation speed of 1,200 RPM. Features (8) electrically heated, water-cooled processing zones for temperature control throughout the extrusion barrel and a 9.4 kW (approximately 12.6 HP) drive. Extruder Machine #3878, manufactured in 2009. Includes (2) K-Tron Model K-SFS-24 material feeders for controlled ingredient introduction, (2) stainless steel water bath sections each measuring approximately 9" wide x 115" long for cooling extruded strands, and (1) Thermo Scientific Model Pharma 16 Varicut pelletizer for cutting processed material into pellets. Pelletizer Serial #7.11/000094, manufactured in 2011. Possible applications include twin screw extrusion, polymer compounding, melt blending, strand pelletizing, masterbatch production, color concentrate development, additive incorporation, formulation testing and processing of compatible thermoplastic resins, polymer blends, specialty plastic compounds and other suitable extrudable materials.

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Extruders-Twin-Screw-CoRotate/Leistritz-Corporation-ZSE-100_10151570_aa.jpg
View

Stock No.:

10151570

Used – Leistritz ZSE 100 GLAAX 100mm Co-Rotating Twin Screw Extruder

Used Leistritz ZSE 100 GLAAX 100mm Co-Rotating Twin Screw Extruder, 44/1 L/D. Driven by 330 kw (442 hp), 1600 rpm DC motor with SCR control. Has 300 rpm screw speed, rated at 5000 Newton meters per shaft torque capability and electrically heated water cooled vented barrel. Has twin screw side feeder. Has 7515.6 hours on the hour meter. Includes spaghetti strand die, and temperature control panel. Serial #3092, Built 2002.

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Extruders-Twin-Screw-CoRotate/Leistritz-Corporation-ZSE-18-PH-40D_54399002_ai.jpg
View

Stock No.:

54399002

Used Leistritz ZSE 18 PH-40D Twin Screw Extruder System – Pharma Lab Scale Line with K-Tron Feeder & Pelletizer

Used Leistritz ZSE 18 PH-40D Twin Screw Extruder System Pharma Lab Scale Line with K-Tron Feeder & Pelletizer. (2) Co-Rotating 18 mm diameter side by side screws, 40:1 L/D ratio, 8 total barrel sections, (7) heated barrels, electrically heated water cooled. Driven by a 4.7 kw (6.3hp) -400/230-volt AC drive motor via a gear box. Screw speed maximum 600 RPM. On wheels. Serial# 03396, Built 2005. Includes Product Loader, K-Tron Dosing Station, String Die, Pelletizer, (3) Temp Controllers, Spare Parts. Weight 7.4 tonnes. Previously used in a pharmaceutical application. Our Freight Specialists can assist with any customs documents and forms to insure a smooth transition.

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Pelletizing-Line-Twin-Screw/Leistritz-Corporation-Micro18-GG_40425043_aa.jpg
View

Stock No.:

40425043

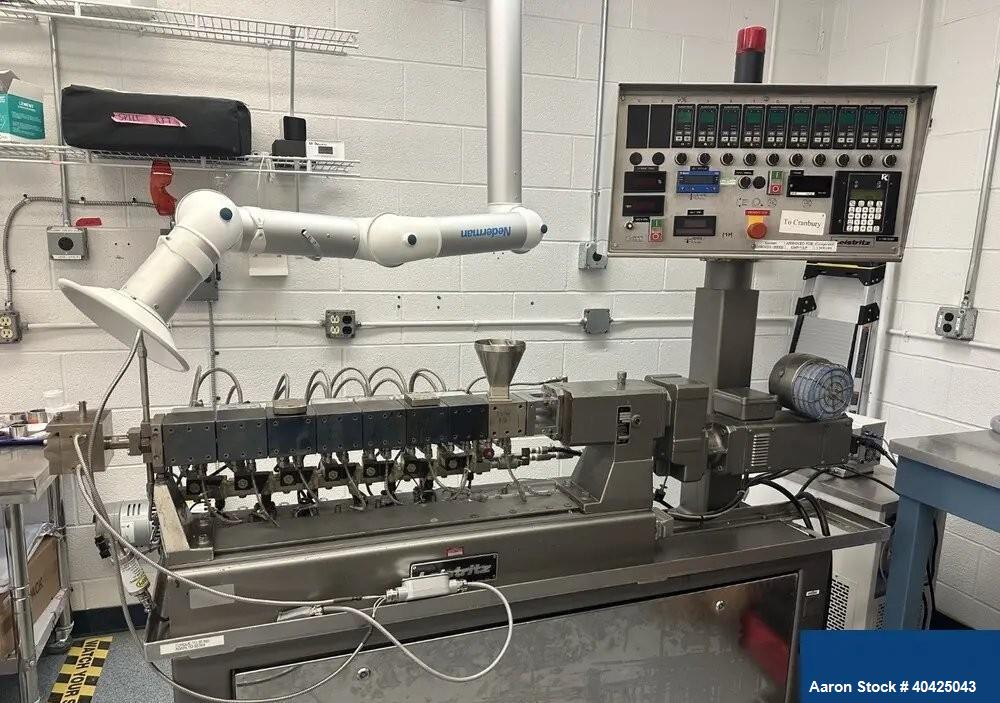

Used Leistritz Micro18-GGL Twin Screw Pelletizing Line – Industrial Polymer Extruder

Used- Leistritz Twin Screw Pelletizing Line, Model Micro18-GGL. 18 mm Screws, counter rotating screws, 40:1 1/d, 500 rpm screw speed, electrically heated, water cooled barrel, 2.3 kw, 210/260 volt, 2950 rpm de motor with SCR controller, (8) barrel sections with (1) jacketed feed, (1) vented, (1) vented and plugged, (5) non vented barrel sections, on board control panel with (10) Eurotherm controllers, with 10" wide x 96" long cooling conveyor. Leistritz Serial# 481 739. 2" Film die and a rod die for the extruder.

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Extruders-Twin-Screw-CoRotate/Leistritz-Corporation-ZSE-27-HP-PH-40D_54399003_ag.jpg
View

Stock No.:

54399003

Used Leistritz ZSE 27 HP-PH-40D Twin Screw Extruder System – Complete Pharma Line with Chiller & Granulator (2010)

Used Leistritz ZSE 27 HP-PH-40D Twin Screw Extruder System Complete Pharma Line with Chiller & Granulator (2010). Capacity 200 kgs/hr (440 lbs/hr.). Co-Rotating, (2) 27 mm diameter side by side screws, 40:1 L/D ratio, 10-barrel sections, (9) heated barrels, electrically heated water cooled. Hastelloy C-276. Driven by a 22.5HP/15 kw-400-volt 1750rpm AC drive motor via a gear box. Screw speed maximum 500 RPM. Serial# 3899, Built 2010. Includes K-Tron Unit, (3) Temp Control Units, SKA-12-W Chiller, Granulator, Electrical Cabinet, Spare Parts. Weight 1.2 tonnes. Overall dimensions: 3650 mm L x 1150 mm W x 1800 mm H. Previously used in a pharmaceutical application. Our Freight Specialists can assist with any customs documents and forms to insure a smooth transition.

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Extruders-Twin-Screw-CoRotate/Leistritz-Corporation-ZSE-27-HP-PH-40D_54399004_af.jpg
View

Stock No.:

54399004

Used Leistritz ZSE 27 HP-PH-40D Twin Screw Extruder System – Pharma Grade with K-Tron Feeders & Full Package

Used Leistritz ZSE 27 HP-PH-40D Twin Screw Extruder System Pharma Grade with K-Tron Feeders & Full Package. Capacity 200 kgs/hr (440 lbs/hr.). Co-Rotating, (2) 27 mm diameter side by side screws, 40:1 L/D ratio, 10-barrel sections, (9) heated barrels, electrically heated water cooled. Hastelloy C-276. Driven by a 22.5HP/15 kw-400-volt AC drive motor via a gear box. Screw speed maximum 500 RPM. Serial# 3778, Built 2008. Includes (2) K-Tron feeders, Control Cabinet, (3) Temp Control Units, Barrel Lift, Spare Parts. Weight 1.2 tonnes. Overall dimensions: 3650 mm L x 1150 mm W x 1800 mm H. Previously used in a pharmaceutical application. Our Freight Specialists can assist with any customs documents and forms to insure a smooth transition.

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Extruders-Twin-Screw-CoRotate/Leistritz-Corporation-ZSE-27-HP-PH-40D_54399005_aa.jpg
View

Stock No.:

54399005

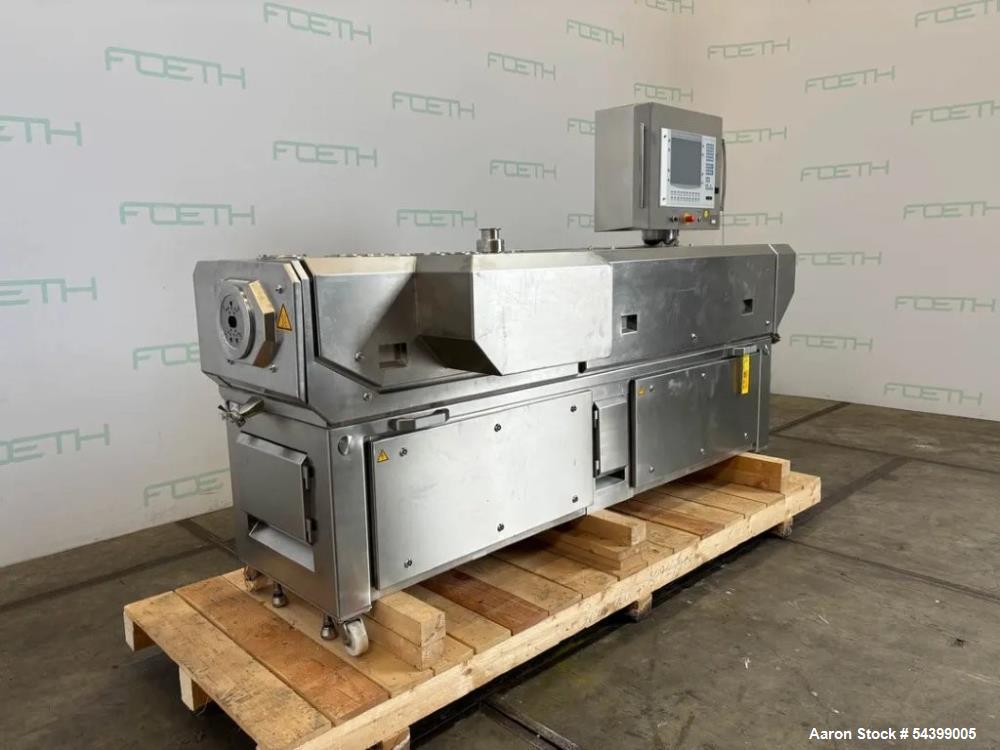

Used Leistritz ZSE 27 HP-PH-40D Twin Screw Extruder – Pharmaceutical Grade 27mm Co-Rotating Extruder System

Used Leistritz ZSE 27 HP-PH-40D Twin Screw Extruder Pharmaceutical Grade 27mm Co-Rotating Extruder System. Capacity 200 kgs/hr (440 lbs/hr.). Co-Rotating, (2) 27 mm diameter side by side screws, 40:1 L/D ratio, 10-barrel sections, (9) heated barrels, electrically heated water cooled. Hastelloy C-276. Driven by a 22.5HP/15 kw-400-volt 1750rpm AC drive motor via a gear box. Screw speed maximum 500 RPM. Serial# 3659, Built 2007. Weight 1.2 tonnes. Overall dimensions: 3650 mm L x 1150 mm W x 1800 mm H. Includes Control Cabinet, (3) Temp Control Units, Barrel Lift. Previously used in a pharmaceutical application. Our Freight Specialists can assist with any customs documents and forms to insure a smooth transition.

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Extruders-Twin-Screw-CoRotate/Leistritz-Corporation-ZSE-27MAXX-48D_54523001_aa.png
View

Stock No.:

54523001

Used Leistritz ZSE 27 MAXX/48D Twin Screw Extruder System with Feeders and Vacuum Package

Used Leistritz ZSE 27 MAXX/48D Twin Screw Extruder System with Feeders and Vacuum Package. (2) 1.05" (27 mm) diameter screws. 48:1 L/D Ratio. Co-rotating. 12-barrel housing section electrically heated, water cooled. (2) Degassing port. Maximum screw speed 1200 RPM. Via a gearbox, Incl. (2) Leistriz Twin Screw side feeders, (1) Brabender feeding system, (1) Bush vacuum pump, type Mink MM 1144BC, (1) Temperature control, (1) Control panel. Previously used in a plastic lab. Overall dimensions: 3300 mm L x 1000 mm W x 2200 mm H, Weight 1 tonnes (extruder only).

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Extruders-Twin-Screw-Counter-Rotate/Leistritz-Corporation-LSM-3034_54725001_aa.jpg
View

Stock No.:

54725001

Used Leistritz LSM 30.34 34mm Twin Screw Extruder with Watlow Controls

Used- Leistritz Model LSM 30.34 34mm Twin Screw Extruder With Watlow Temperature Controls And Spare Parts. Previously operated in an ISO 13485-certified medical device manufacturing facility. This twin screw extrusion system is configured for pellet extrusion and features a 16 kW (approximately 21.5 HP) drive rated at 380V, 60 Hz, with a maximum screw speed of 300 RPM. The barrel heating system is rated at 7 kW, 240V, and features multiple independently controlled heating zones with Watlow temperature controllers. Equipped with a Leistritz gearbox, feed hopper, barrel assembly, electrical control cabinet, and operator control panel. Serial # 330.1754.01, Built 1989. Electrical components were updated in 2020, and the gearbox seal was replaced in 2022. The machine has reportedly accumulated limited production hours since refurbishment. Siemens hour meter displays approximately 9,166 hours. Includes approximately one pallet of spare parts. Previously used in medical device manufacturing, with potential applications in polymer compounding, pellet production, specialty plastics processing, and research and development.

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Extruders-Twin-Screw-CoRotate/Leistritz-Corporation-ZSE-60-MAXX-36D_53459029_aa.jpg
View

Stock No.:

53459029

Used Leistritz ZSE 60 MAXX-36D Twin Screw Extrusion Line with Pelletizing System – 495 kW Drive – Auction Asset

Used Leistritz ZSE 60 MAXX-36D Twin Screw Extrusion Line with Pelletizing System 495 kW Drive Auction Asset. Line consists of (1) Koch Technik Feeding System & Scholz Dosiertechnik Dosing unit, (1) Leistritz Twin Screw Extruder, Type ZSE 60 MAXX-36D. (2) 60 mm) diameter screws. 36:1 L/D Ratio. Co-rotating. 8-barrel housing section electrically heated, water cooled. (2) Degassing port. Maximum screw speed 1200 RPM. Flender Gearbox is direct driven via a 742 HP/495 kW 400volt/50cycle/3Ph motor. Free standing control panel with microprocessor and interconnecting wiring. Built in 2014 Serial# 04489, (1) BD Plast Double Screen Changer, type BDL, (1) Ettinger ERF 200 melt pump, Waterbath incl 2 siflers, Stainless steel, on legs, (1) ECON Pelletizer, type EUP 600, New 2014, (1) Tredkamp Mixing Silo, type 1C-T, Stainless steel, Volumen 10 m3. New 2007, (1) Moton Mixing Silo 14 m3 volume. on legs, control panel incl. elevator, (1) Big Bag System. Part of an auction sale. Available in end of July 2026. Part of an auction event. An additional 18% Buyers Premium will added to the purchasing price.

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Extruders-Twin-Screw-CoRotate/Leistritz-Corporation-ZSE-60-MAXX-44D_53459032_aa.jpg
View

Stock No.:

53459032

Used Leistritz ZSE 60 MAXX-44D Twin Screw Extruder – 60 mm Co-Rotating Extruder – Built 2018

Used- Leistritz Twin Screw Extruder, Type ZSE 60 MAXX-44D. (2) 60 mm) diameter screws. 44:1 L/D Ratio. Co-rotating. 10-barrel housing section electrically heated, water cooled. (2) Degassing port. Maximum screw speed 1200 RPM via a Flender Gearbox is direct driven via a 400volt/50cycle/3Ph motor. Incl. control panel. Built in 2018. Serial# 04977. Part of an auction sale. Available in end of July 2026. Part of an auction event. An additional 18% Buyers Premium will add to the purchasing price.

MFR: Leistritz Corporation

https://ww2.aaronequipment.com/Images/ItemImages/Plastics-Equipment/Extruders-Twin-Screw-CoRotate/Leistritz-Corporation-ZSE-60-GL_54045001_aa.jpg
View

Stock No.:

54045001

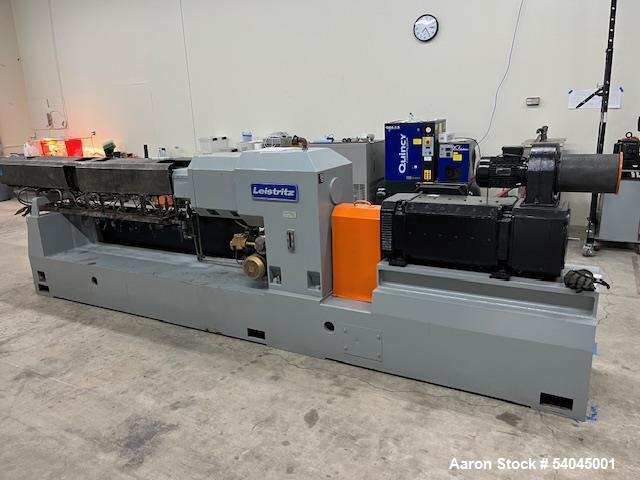

Used Leistritz ZSE-60 GL Twin Screw Extruder – 36:1 L/D, 150 HP, Side Stuffer, Strand Dies, Screws & Spares

Used Leistritz ZSE-60 GL Twin Screw Extruder 36:1 L/D, 150 HP, Side Stuffer, Strand Dies, Screws & Spares. With (9) modular barrel sections. 114 kW / 150 HP Baumueller DC motor, 500 rpm max. screw speed, Barrels are electrically heated and internally cored for liquid cooling. Includes stand-alone Electrical enclosure/control panel (controls appear non-operational), LSB-47 twin screw side stuffer, Stand-alone pump tank/heat exchanger for barrels cooling, Two (2) Complete screw sets, segmented design with splined shafts, fully assembled, Approximately 25 pairs of spare screw elements, consisting of both flighted/conveying and mixing elements, Two (2) complete swing gate-type strand die assemblies, Three (3) or four (4) spare die plates. Numerous (approx.. 8-10) spare barrel closures & inserts Yr. 2000. Includes Allen Bradley DC Motor Drive. 480 50/60hz.

MFR: Leistritz Corporation
