Used Fitzpatrick Process Equipment
Stock No.:
53264025Stainless Hammer Mill by Fitzpatrick – Screw Feeder, Mounted on Casters
Used Fitzpatrick Hammer Mill, Swinging Hammers, with Screw Feeder (no name plate). Approximate chamber 11" x 6". Swinging hammers. Motor: 575 volt, 3500 rpm. Includes feed hopper and screw feeder, stainless steel control panel. Mounted on frame with casters. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
MFR: Fitzpatrick
Stock No.:
54406001Used Fitzpatrick FitzMill DKASO6 – Stainless Steel Hammer Mill with Screw Feeder & Explosion Proof Motor
Used- Fitzpatrick Fitzmill, Model DKASO6. Stainless steel construction. Screw feeder with hopper. 15 HP explosion proof (XP) motor. Portable base on casters. Includes separate Control panel on casters. Serial# 11497.
MFR: Fitzpatrick
Stock No.:

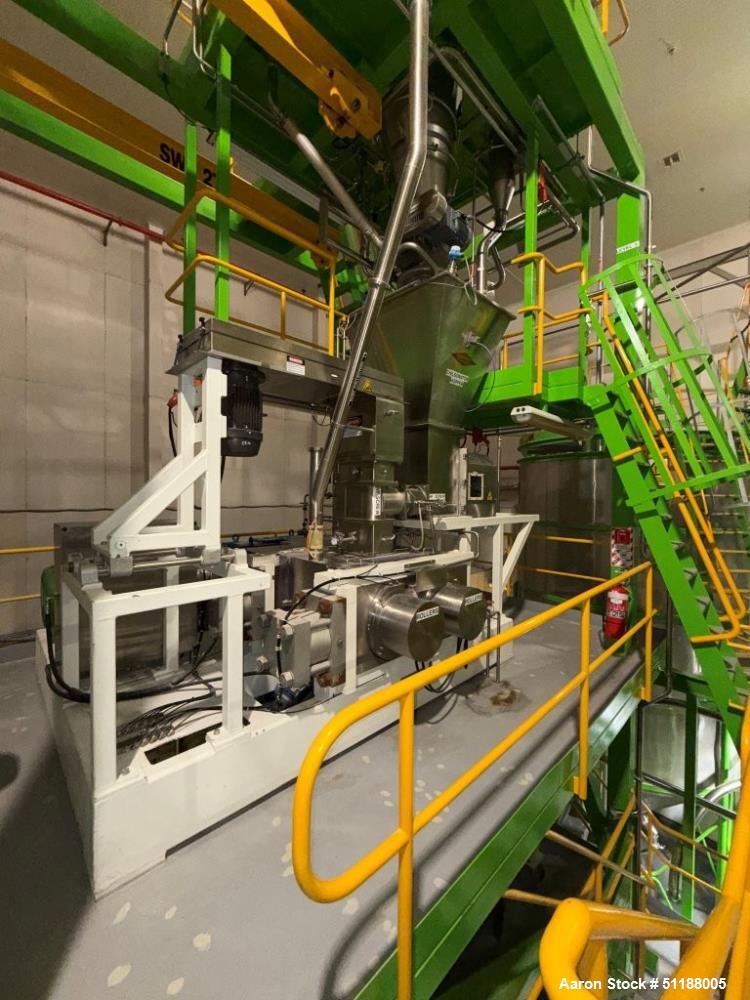

51188005Used Fitzpatrick Chilsonator Model 16Lx20D with HAS030 Comminutor Mill – Stainless Steel
Used Fitzpatrick Chilsonator Model 16Lx20D with HAS030 Comminutor Mill, All stainless-steel wetted parts. The Chilsonator uses dual 16" x 20" radial cored rolls with controlled hydraulic pressure and feed augers to compact powders into fees screws for improved flow and reduced dust. These feed screws are then processed by the HAS030 Comminutor Mill, which employs interchangeable screens and a hammer/knife design for precise particle size reduction. This integrated system delivers efficient compaction, milling, and screening for pharmaceutical, chemical, food, and specialty material applications. (A 102-1/2" , 5 DECK SCREENER IS NOT INCLUDED WITH THIS SYSTEM. AARON WILL FACILITATE LOADING INCLUDED IN THE FINAL PRICE). Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
MFR: Fitzpatrick
Stock No.:
50366004Used Fitzpatrick FitzMill DKAS012 Stainless Steel Hammer Mill – 25 HP Pharmaceutical & Food Grade Mill
Used Fitzpatrick FitzMill DKAS012 Stainless Steel Hammer Mill 25 HP Pharmaceutical & Food Grade Mill. Chamber: 12.5" wide x 15.37" long, with center screen support bar, screens not included. 32 milling blades, fixed blunt flat-edge/knife edge, reversible. 10" flange inlet. 16" x 19" oval discharge with banding groove, 75.5" above base elevation. Driven by a 25 HP, 3/60/230/460 Volt, 1770 RPM motor. Welded stainless steel portable base frame (4" box tubing), 42"W X 48"L. Serial# 9084.
MFR: Fitzpatrick
Stock No.:
10211226Used Fitzpatrick Fitzmill Model D Comminuting Machine – 3 HP, Stainless Contact, Gravity Fed
Used- Fitzpatrick Fitzmill Comminuting Machine, Model D. Stainless steel material in contact with product. 3HP. Unit is gravity fed with slanted inlet throat with an opening of 4.75"H X 5.75"W. 6" wide milling chamber with a 10" diameter rotor. Mill Rotor: 16 pivoting blades, plain bars 1" wide X 0.25" thick. Bottom discharge hopper with 7.75" flange, 42.25" above base elevation. Portable carbon steel stand with a base area of 42" X 46". 3HP two-speed v-belt drive, 1750 RPM TEFC motor. Supply power: 115/230V, 60Hz, single phase AC. Bottom sizing screens not included.
MFR: Fitzpatrick
Stock No.:
49227002Used Fitzpatrick Chilsonator – Model 4L x 10D, 10" x 4" Stainless Steel Rolls, 50–100 kg/hr Capacity
Used Fitzpatrick Chilsonator Model 4L x 10D, 10" x 4" Stainless Steel Rolls, 50100 kg/hr Capacity. Dependent on density of product and roll pressure and screw speed is 50 to 100 kg/hr. (110 to 220 lbs./hr).
MFR: Fitzpatrick
Stock No.:
54429001Used Fitzpatrick Fitzmill Model D Hammer Mill on Mobile Frame with 7.5 HP Motor
Used Fitzpatrick Fitzmill, Model D,. Stationary knives, reversible blade assembly with knives. pan fed, variable speed. Mounted on a frame with casters. Driven by a 7.5 hp, 3/60/130-460V, 1740 rpm motor. Approximate OAD 59" x 26" x 58".
MFR: Fitzpatrick
Stock No.:
409351Used Fitzpatrick Fitz-Mill Model D Hammer Mill with VFD Control
Used Fitzpatrick Fitz-Mill Model D Hammer Mill with VFD Control. 5" x 6" feed throat with top hopper. Approximately 12" diameter cutting chamber. (16) 4" long x 1" wide x 1/4" thick fixed blades. Driven by a 7-1/2hp 3/60/220/440 Volt 1750 rpm motor. Includes control panel with GS2 AC Drive. Mounted on a carbon steel frame.
MFR: Fitzpatrick
Stock No.:
11059358Used Fitzpatrick DAS06 FitzMill Hammer/Knife Mill – Explosion Proof (XP) Motor
Used- Fitzpatrick DAS06 Fitzmill Hammer/Knife Mill. Stainless Steel; Pan Feed; Driven by 7.5 HP, 230/460V, 1740 rpm Explosion Proof (XP) motor. Serial# 10321. Mounted on stainless steel cart with wheels.
MFR: Fitzpatrick
Stock No.:
53656001Used Fitzpatrick Fitzmill Model DASO6 Stainless Steel Hammer Mill
Used- Fitzpatrick Fitzmill, Model DASO6 Hammer Mill, Stainless Steel. Capacity up to 749 lbs/hr, 1000-4600rpm speed range. Approximately 15" x 15" x 10" deep feed hopper, fed by an approximate 2-1/2" diameter x 58" long screw. Driven by a .33hp 3/60/208-230/460 volt, 1725rpm gear motor, 4.88:1 ratio. Approximately 11-1/4" long x 6" wide x 16" deep milling chamber. (16) Fixed blades, Blunt & knife edge 1" wide x 3-3/4" long x 1/2" thick. Driven by a 7.5hp 3/60/230/460 volt, 1760 rpm motor. Approximately 9-1/2" long x 5-1/2" wide bottom discharge, with screen. Mounted on a stainless steel frame with casters. Serial# 7964.
MFR: Fitzpatrick
Stock No.:
53778001Used Fitzpatrick Fitzmill VFS-D6A Hammer Mill for Sale – 1000 kg/hr
Used- Fitzpatrick Fitzmill, Model VFS-D6A-PCS-LB / VFS D6-PCS-0401 Hammer Mill. Throughput rates of 200 - 1,000 kg/hr (depending on product). 10" gravity Feed hopper with 3" diameter x 18" long metering screw. 6" wide x 10" diameter Chamber with (16) 4" long x 1" wide x 3/16" thick blades on a fixed blade rotor. Direct drive. XP Controls, Allen Bradley SLC 5/03 PLC, A/B HMI, A/B Powerflex 70 drive. Stainless steel construction. Mounted on casters. Serial# 11839.
MFR: Fitzpatrick
