Used PTI Process Equipment
Stock No.:

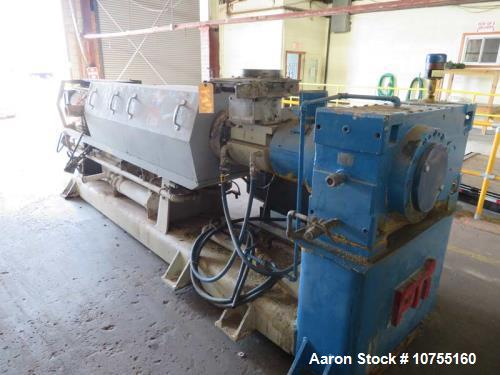

10755160Used PTI TS4500 4.5" Pelletizing Line – 200 HP Extruder, Water Ring Pelletizer
Used- PTI Pelletizing Line, Model TS4500, 4.5" Diameter. 30:1 L/D Extruder having an electrically heated, water cooled (closed loop), and side vented barrel at a nominal 42? center-line height. The gearbox is a Flender model SZNE250 having a reduction ratio of 13.88:1 and has a service rating of 200 HP and a catalogue rating of 325 HP. The gearbox is belt driven in a wraparound manner by a 200 HP D/C motor with Safetronics SCR control. Over-sized on center oblong feed throat with water cooling. Free-standing temperature control panel has ten (10) zones of temperature controls. SCR is mounted inside the control panel. 480/3/60 400 amps. S/N 1832. Mounted on the extruder discharge is a model HSC-45 hydraulic slide plate screen changer having two (2) nominal 4.5" diameter breaker plates with oversized 5 HP hydraulic power pack. S/N H45-204. Downstream is a PTI model CPF1000S water ring pelletizing system with 3 HP cutter head, die, sluiceway, water system, Gala model 8.1BF spin dryer and control panel. S/N 2780. 460/3/60 30 amps.
MFR: PTI
Stock No.:
54506011Used PTI 6000 6" Single Screw Extruder – 400 HP, 30:1 L/D, WEG Drive & Flender Gearbox
Used PTI 6000 6" Single Screw Extruder 400 HP, 30:1 L/D, WEG Drive & Flender Gearbox. Features a 30:1 L/D ratio with an air-cooled barrel, seven barrel heating zones, and sixteen downstream heating zones. Driven by a 400 HP WEG AC motor with WEG CFW-11 inverter drive and a Flender Model SZNF 390 gearbox featuring a 21.7:1 ratio and rated for up to 701 HP. Includes a 9" L x 7" W feed throat, 62" centerline height, 900-amp disconnect, and electrical requirements of 460 Volt, 3 Phase, 60 Hz (780 FLA). Mounted on V-groove casters for ease of positioning. Serial No. 3768. Approximate overall dimensions are 24' L x 100" W x 106" H with an estimated weight of 26,000 lbs. Built 2003.
MFR: PTI
Stock No.:

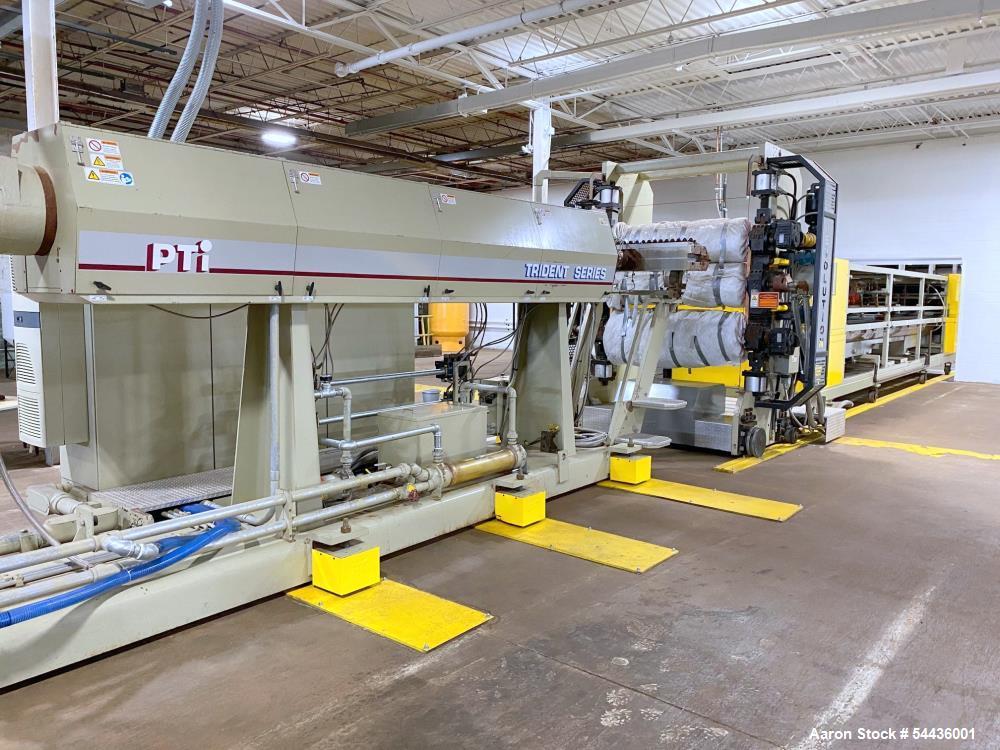

54436001Used PTI Trident 6500 Sheet Extrusion Line – 6.5" 500 HP High-Output Plastic Sheet Production System
Used- PTI Trident Sheet Extrusion Line, Model 6500. 6.5" screw diameter. 36:1 L/D. 500 HP, 1800 RPM main drive. With Flender gearbox; PTI model H6018 sheet takeoff system; Revolution Roll stand; EDI 54" W dies; Sandvik 60" stainless steel belt, water cooled dual zone cooling system; pull rolls; trim saws (capable of max. thickness of 1.25"); Vulcan automatic sheet-stacker (capable of .25-.75 thickness, up to 120" length); dust collector; granulation equipment. Titan PLC control system. 3/60/460V. Built 2006.
MFR: PTI
