Used PTI 6000 6" Single Screw Extruder – 400 HP, 30:1 L/D, WEG Drive & Flender Gearbox

Manufacturer

PTI (Processing Technologies International) is a leading manufacturer of high-performance extrusion systems for the plastics industry. PTI extrusion equipment is widely used in sheet extrusion, thermoforming, polymer processing, recycling, and specialty plastics manufacturing, offering dependable performance, precise process control, and high production output.

Description

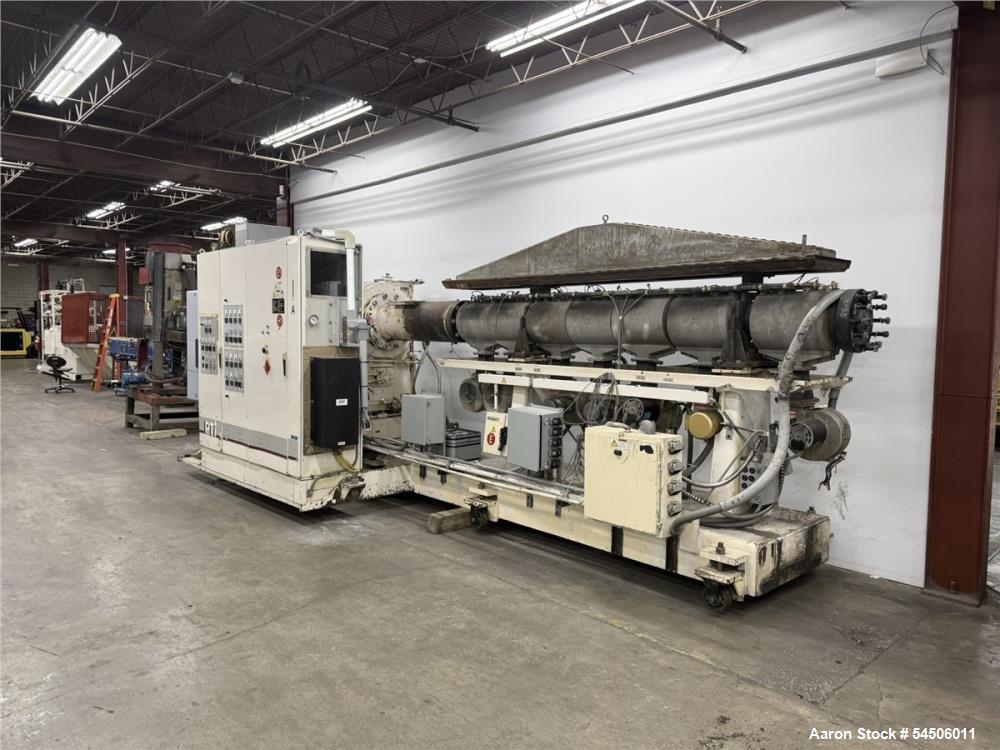

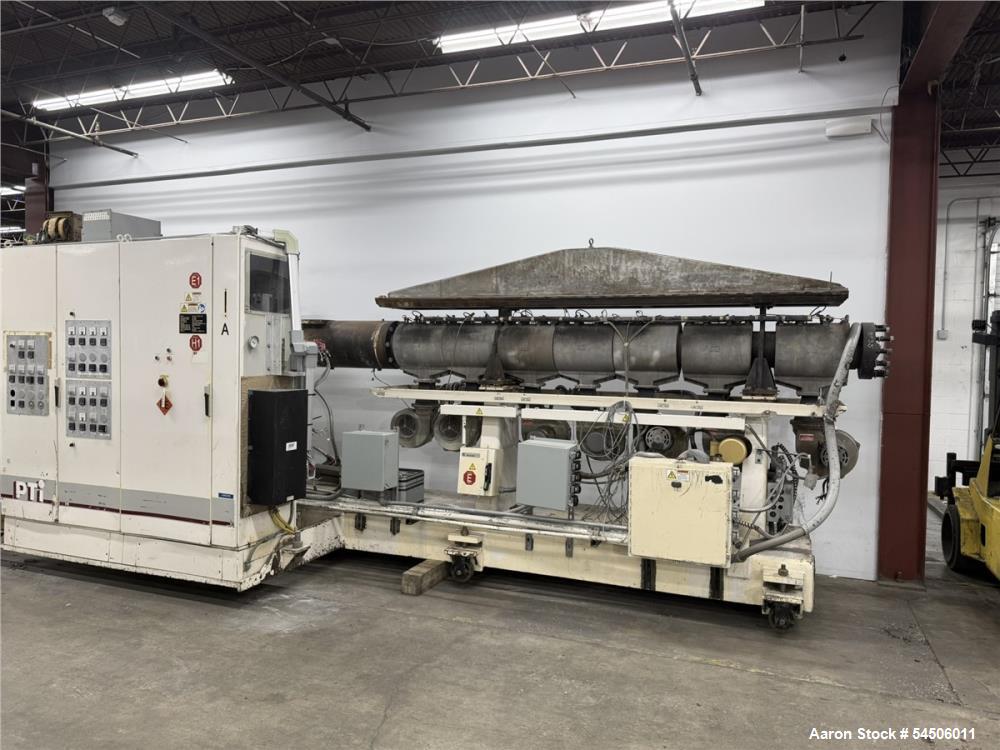

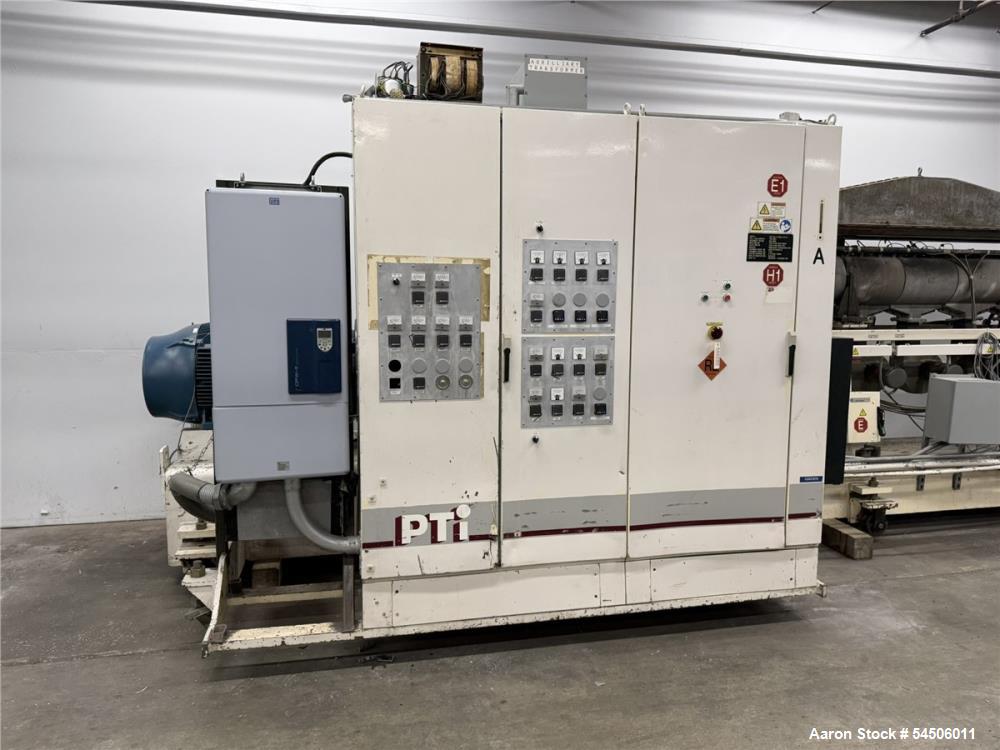

The Used PTI 6" Single Screw Extruder, Model 6000, is a heavy-duty industrial extrusion system designed for continuous thermoplastic processing applications. Built in 2003, this machine features a 6-inch single screw with a 30:1 L/D ratio, providing excellent melting efficiency, throughput, and melt homogeneity for a broad range of polymer materials.

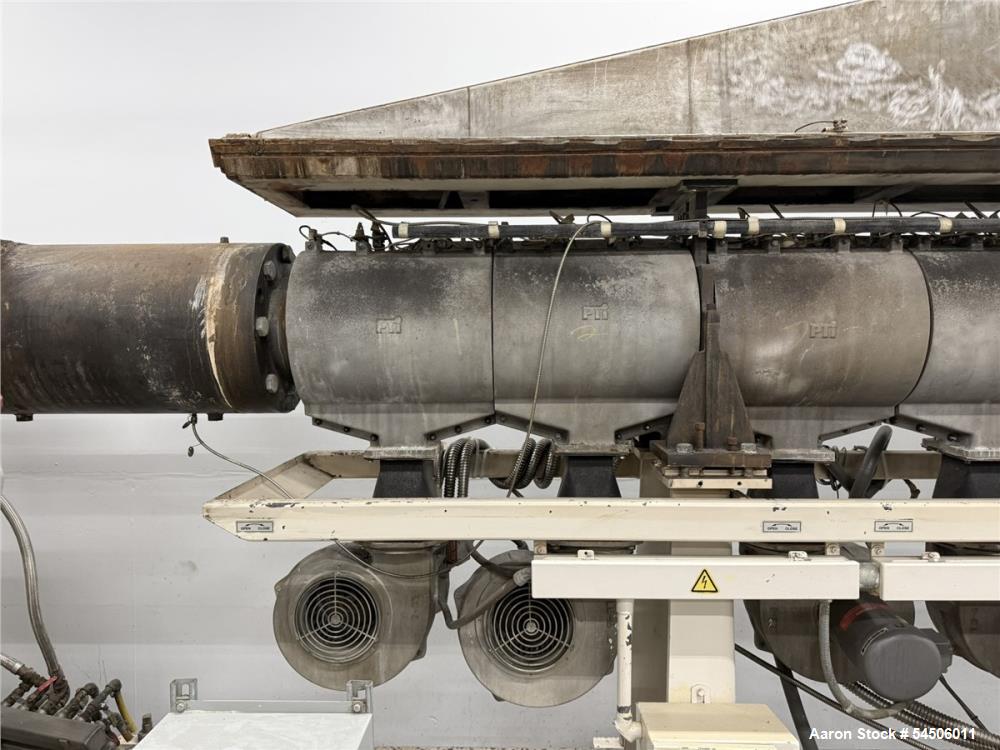

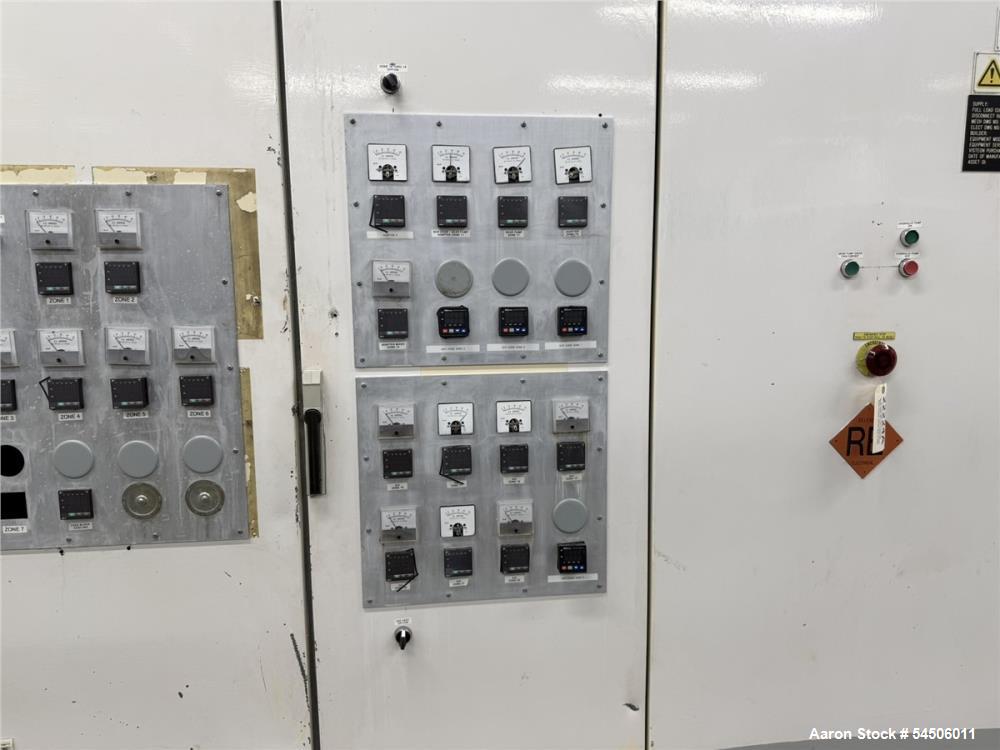

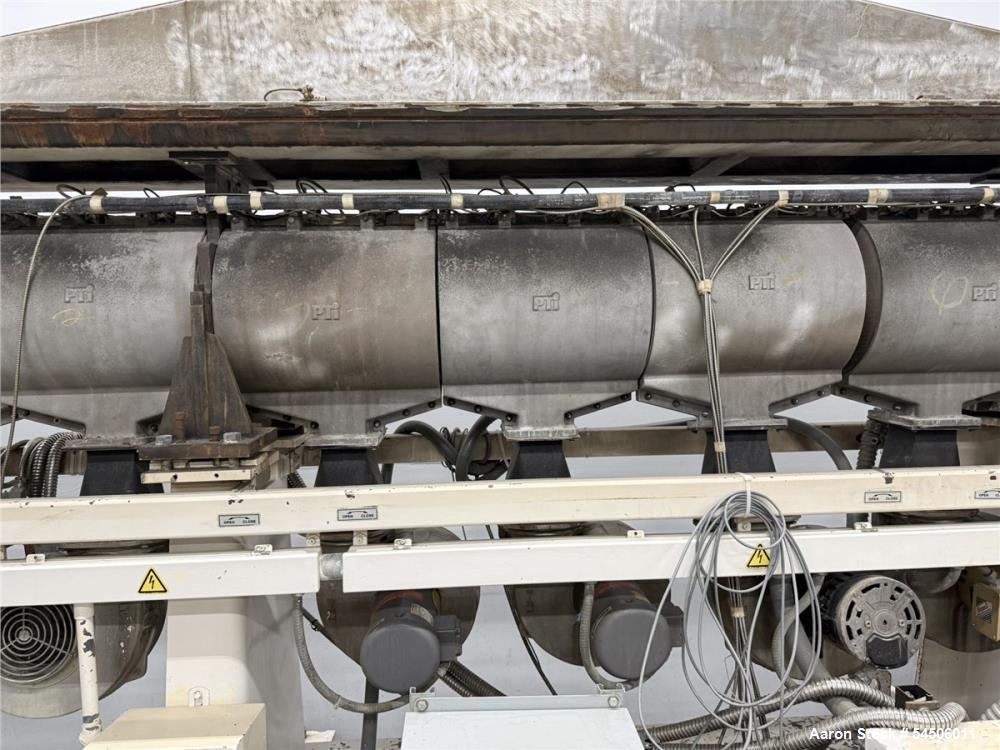

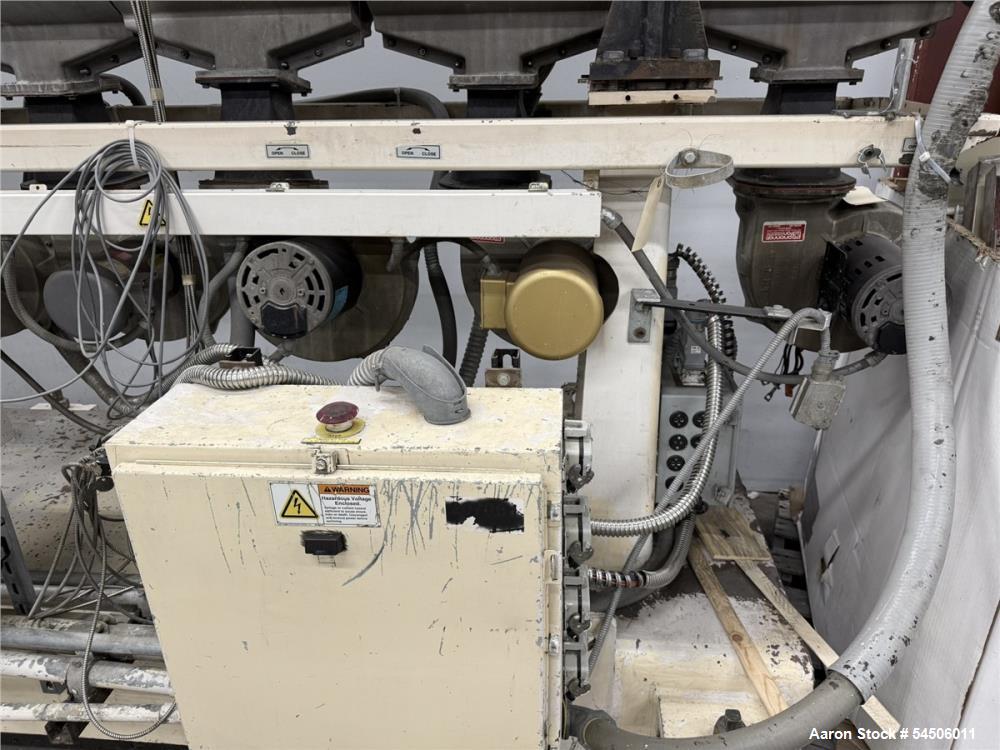

The extruder utilizes an air-cooled barrel equipped with seven barrel heating zones to maintain consistent processing temperatures. An additional sixteen downstream heating zones provide precise thermal control throughout downstream processing equipment, making this unit well suited for demanding extrusion applications.

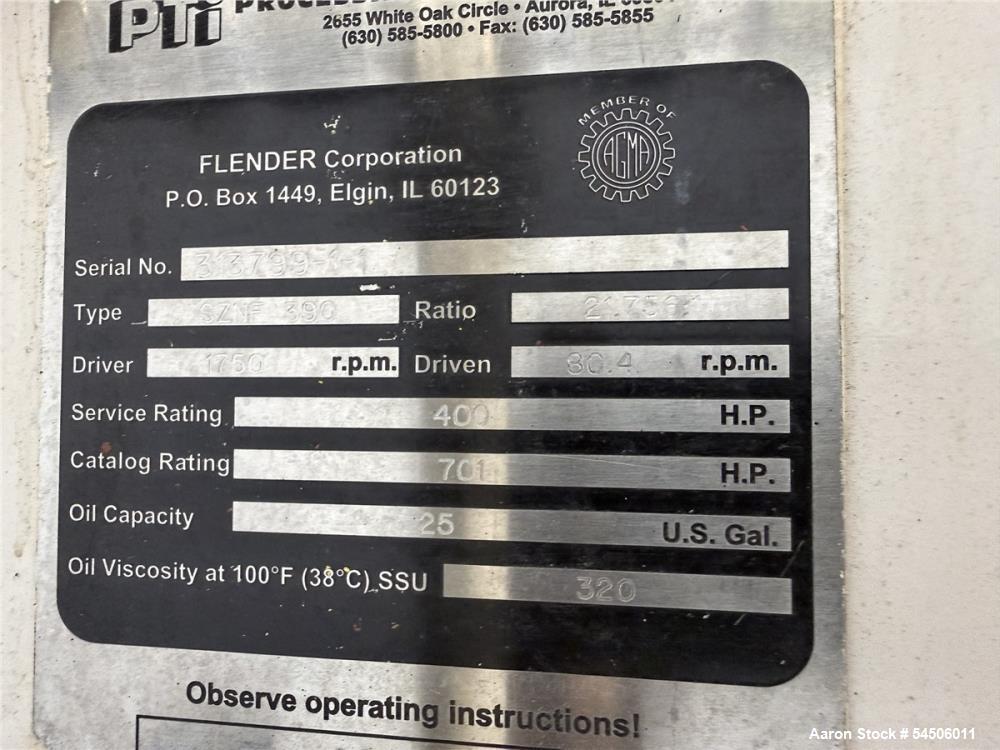

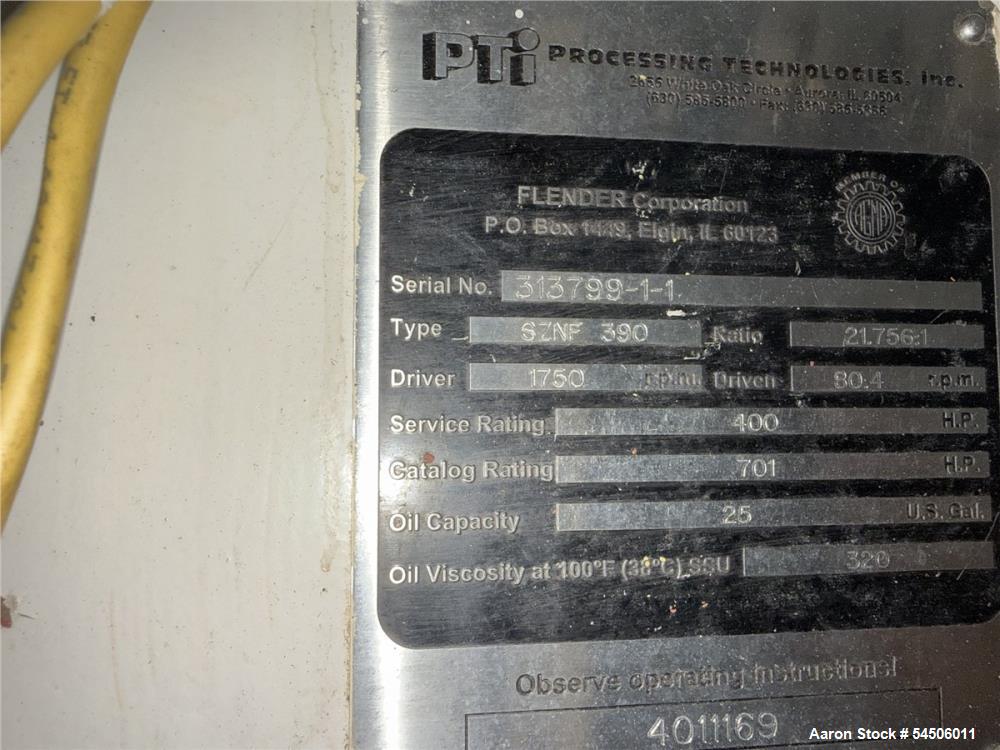

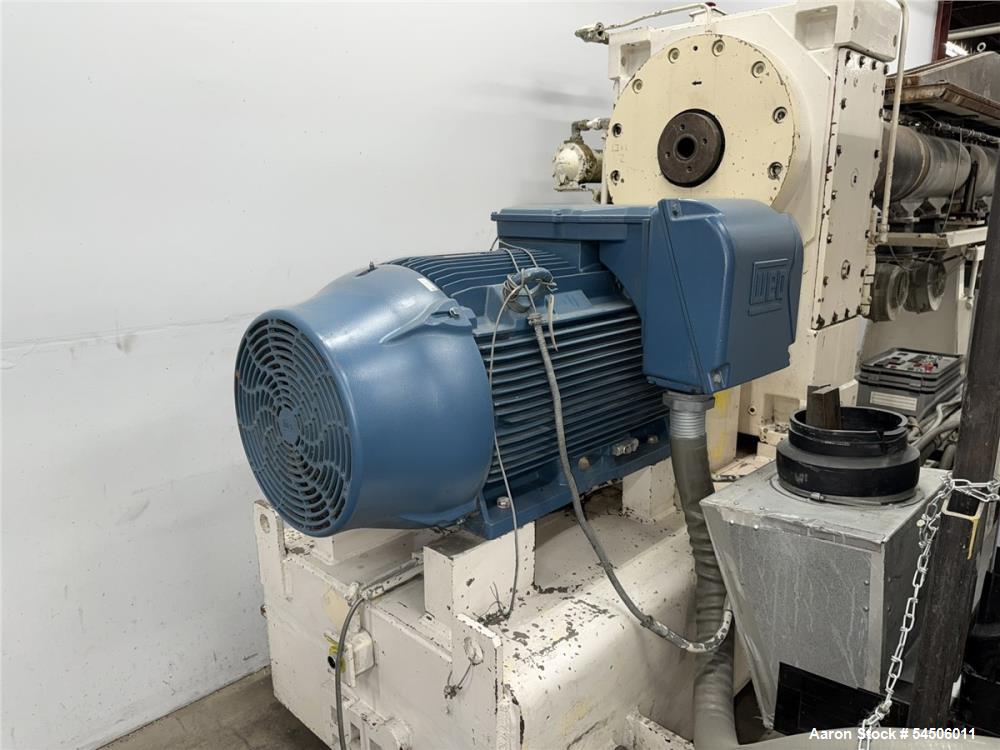

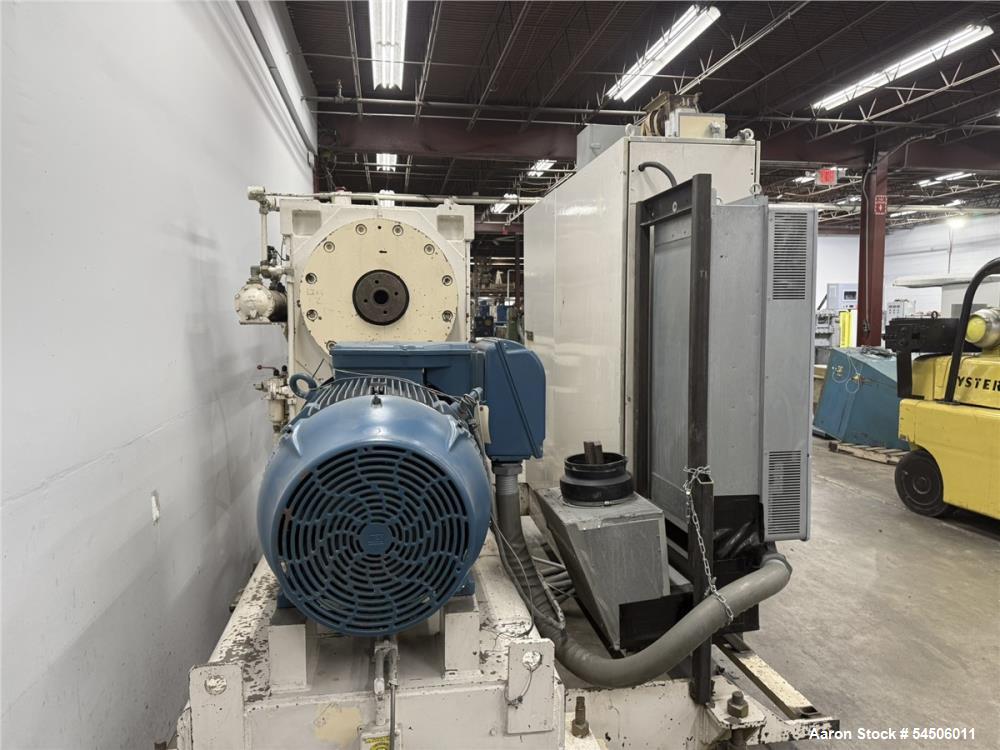

Power is supplied by a 400 HP WEG AC motor coupled with a WEG CFW-11 variable frequency inverter drive, delivering accurate speed regulation and energy-efficient operation. Torque is transmitted through a Flender Model SZNF 390 gearbox featuring a 21.7:1 reduction ratio and rated for up to 701 HP, providing exceptional durability and reserve capacity.

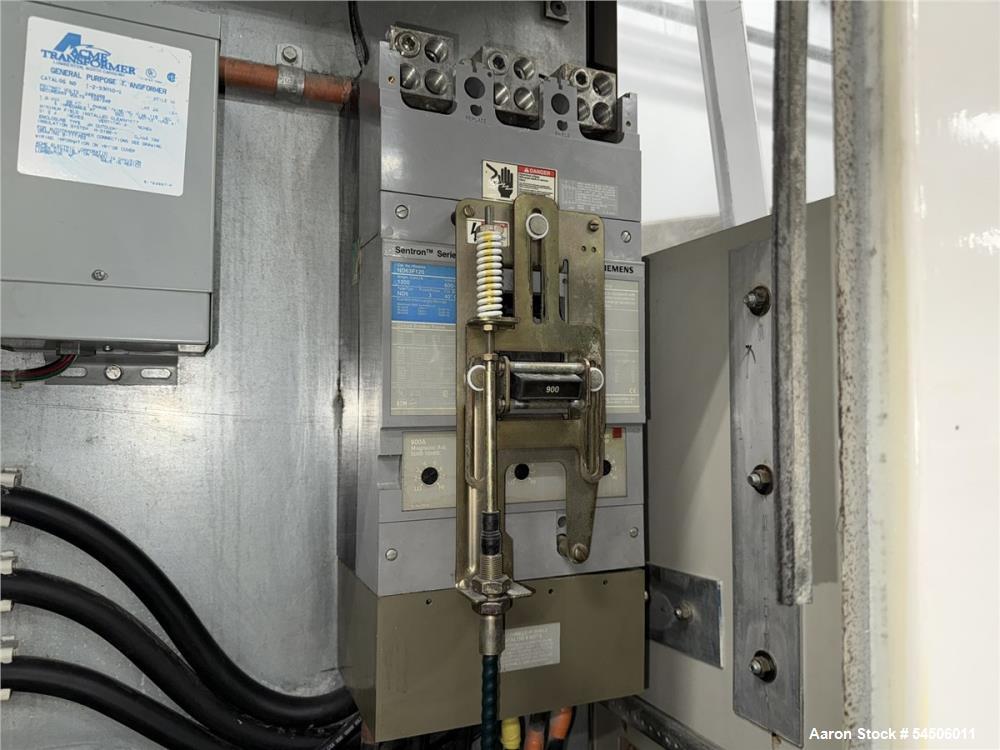

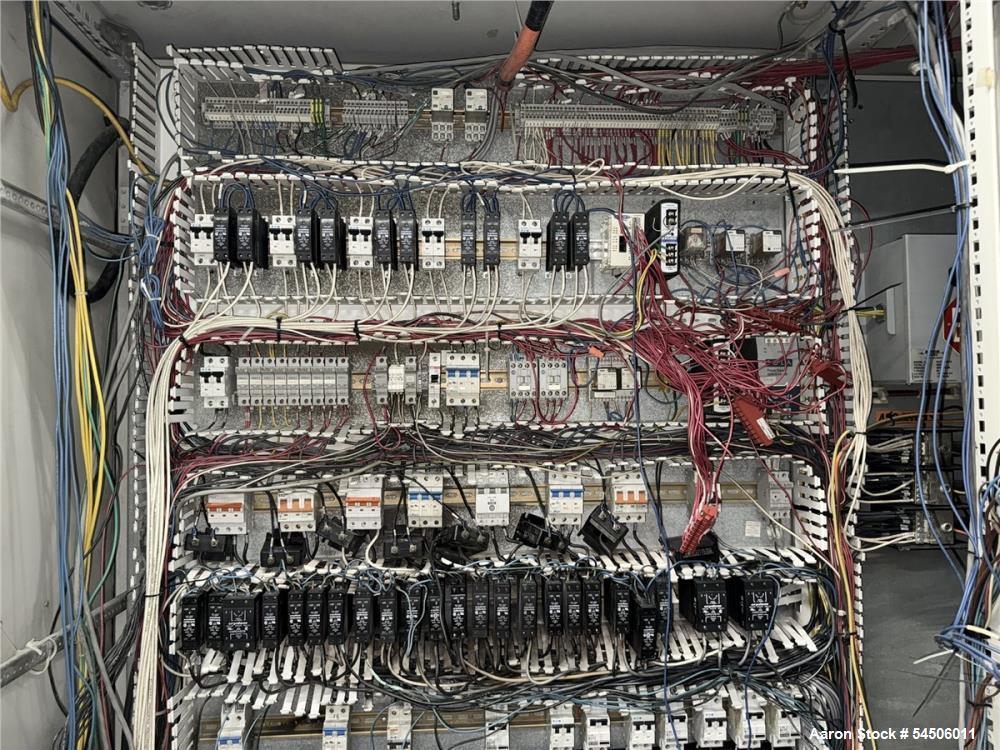

Additional features include a 9-inch × 7-inch feed throat, 62-inch centerline height, 900-amp disconnect, and V-groove casters for simplified positioning during installation or production line modifications. With an approximate footprint of 24 feet long × 100 inches wide × 106 inches high, this PTI extruder is an excellent solution for high-capacity plastics manufacturing operations.

Specifications

Applications

This PTI extruder is ideal for:

• Plastic sheet extrusion
• Thermoforming sheet production
• Polymer processing
• Plastic recycling
• Compounding operations
• Industrial extrusion
• Packaging material production
• Custom plastic manufacturing
• Engineering resin processing
• Thermoplastic sheet production
• Industrial polymer extrusion
• Continuous plastics manufacturing

Common Materials Processed

• Polypropylene (PP)
• Polyethylene (PE)
• High-Density Polyethylene (HDPE)
• Low-Density Polyethylene (LDPE)
• Polystyrene (PS)
• PET
• ABS
• Engineering thermoplastics
• Recycled plastic materials
• Polymer blends
• Filled compounds
• Specialty plastic formulations

Features & Benefits

• Heavy-duty 6-inch single screw extruder
• 30:1 L/D ratio for efficient melting and mixing
• Air-cooled barrel design
• Seven barrel heating zones
• Sixteen downstream heating zones
• Powerful 400 HP WEG AC motor
• WEG CFW-11 variable frequency inverter drive
• Heavy-duty Flender SZNF 390 gearbox rated up to 701 HP
• Large feed throat for consistent material feeding
• 62-inch centerline height
• Mounted on V-groove casters for easier positioning
• Suitable for high-output industrial extrusion applications

Frequently Asked Questions

What types of materials can this extruder process?

The PTI 6000 is suitable for processing a variety of thermoplastics including polyethylene, polypropylene, PET, ABS, polystyrene, engineering resins, recycled plastics, and custom polymer formulations.

What is the advantage of the 30:1 L/D ratio?

A 30:1 L/D ratio provides increased residence time for improved melting, mixing, homogenization, and consistent polymer processing.

What drive system is installed?

The machine is powered by a 400 HP WEG AC motor with a WEG CFW-11 variable frequency inverter drive, providing precise speed control and reliable operation.

What gearbox is included?

The extruder features a Flender Model SZNF 390 gearbox with a 21.7:1 reduction ratio, rated for up to 701 HP, offering exceptional torque capacity and durability.

How many heating zones are included?

The machine includes 23 total heating zones, consisting of 7 barrel heating zones and 16 downstream heating zones for comprehensive process temperature control.

Can Aaron Equipment assist with shipping and logistics?

Yes. Aaron Equipment provides complete domestic and international shipping coordination, heavy-haul transportation, export documentation, freight management, and logistics support for extrusion systems and complete plastics processing lines.
