Stock No.: 10755162

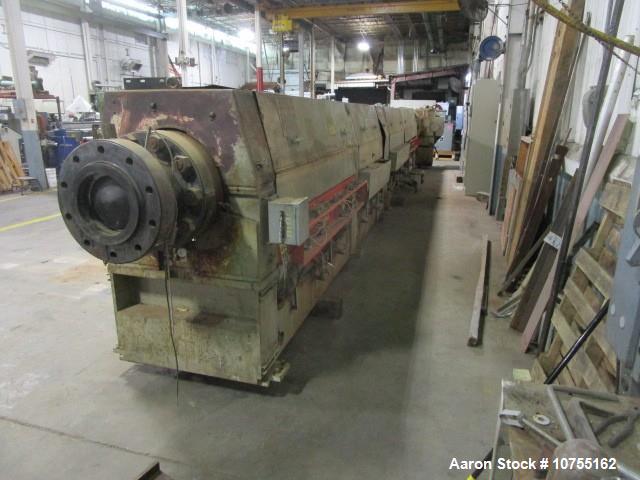

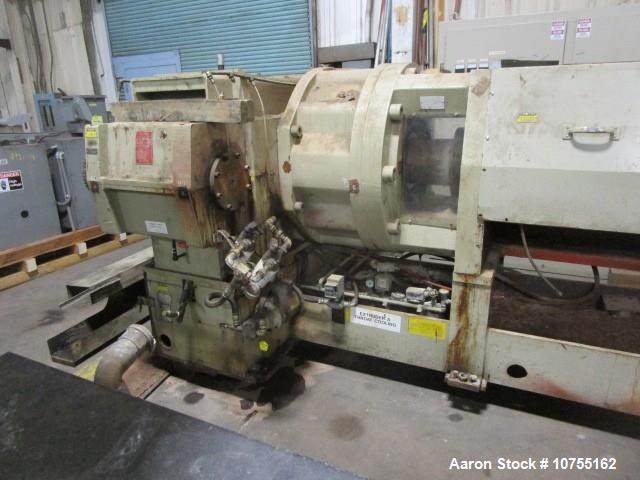

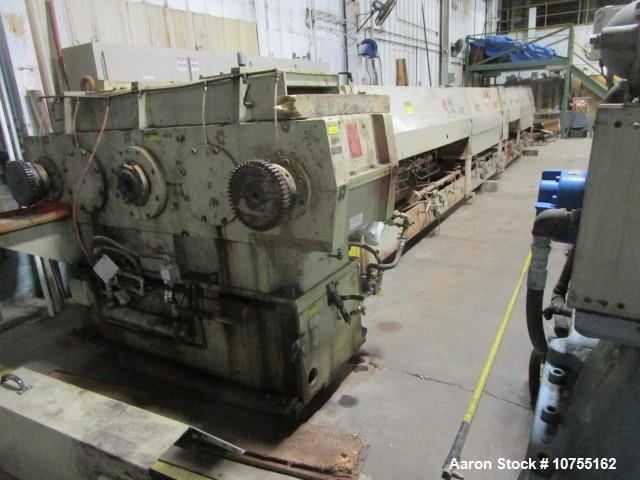

Used Davis Standard 10" Extruder, Model 100TH100D. 38:1 L/D ratio; (8) zone electrically heated, water cooled
Used- Davis Standard 10" Extruder, Model 100TH100D. 38:1 L/D ratio; (8) zone electrically heated, water cooled and non-vented barrel at nominal 44" center-line. 15.08:1 Gearbox reduction ratio; Rated at 1800 HP at a service factor of 1.5; Gearbox currently set to be dual direct driven in back of the gearbox. Last driven by two (2) 700 HP D/C motors; Liquid cooling system with heat exchanger for gearbox protection; Trendelkamp screen changer w/ stand mounted on the extruder discharge. Temperature control panel and drives included. Motors available at additional cost. Temperature controllers not included. Serial# L3201. Built 1991. Last used in the extrusion of biaxially oriented PP film.
-
ManufacturerDavis Standard
-
Model100TH100D
-

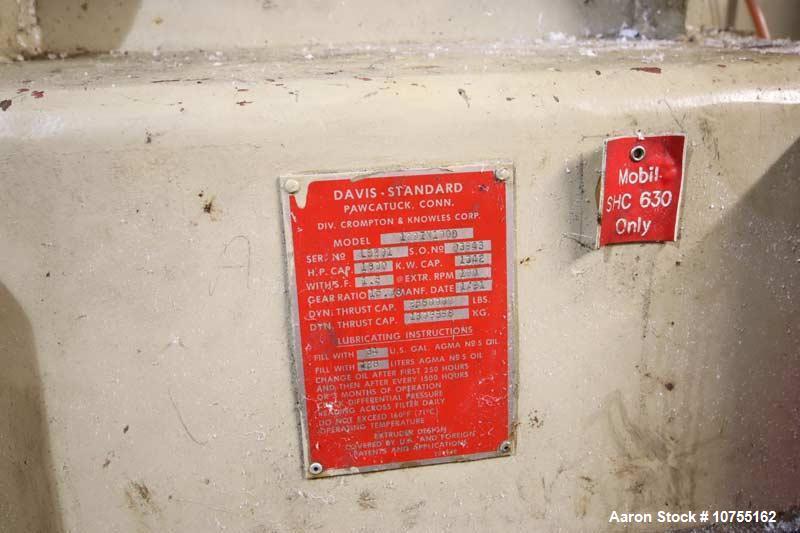

Serial #L3201
-
CategoryPlastics Equipment
-
SubcategoryExtruders - Single Screw Extruder
Used equipment facts about this machine
Manufacturer Information
Description
The Used Davis Standard 10" Extruder, Model 100TH100D, is a high-performance industrial extruder designed for large-scale polymer processing. Featuring a 38:1 L/D ratio, this extruder is built for applications requiring high melt homogeneity and precise processing control.

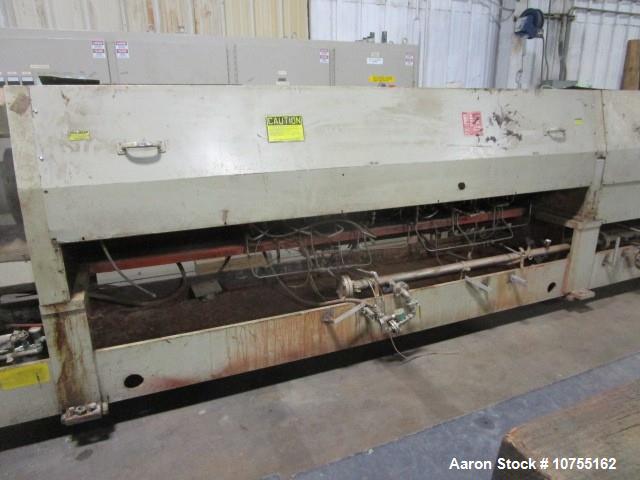

The electrically heated, water-cooled, non-vented barrel operates at a 44” nominal center-line height with 8 heating zones. The gearbox has a 15.08:1 reduction ratio and is rated for 1,800 HP at a 1.5 service factor. The extruder was previously driven by two (2) 700 HP D/C motors, which are available for purchase separately.
For optimized melt filtration, the extruder is equipped with a Trendelkamp screen changer mounted on the discharge. The system includes a liquid cooling system with a heat exchanger for gearbox protection, as well as a temperature control panel and drives. Temperature controllers are not included.
Previously used in the extrusion of biaxially oriented polypropylene (BOPP) film, this extruder is ideal for high-output film production and polymer processing.
Specifications
- Barrel Diameter: 10"
- L/D Ratio: 38:1
- Barrel Type: Non-vented, electrically heated, water-cooled
- Heating Zones: 8-zone control

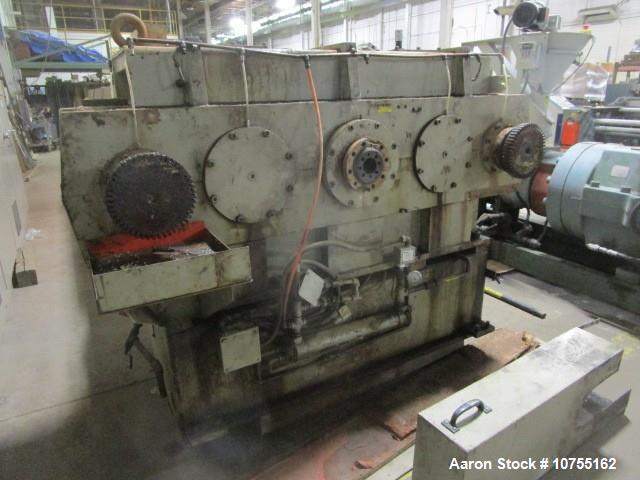

- Gearbox Reduction Ratio: 15.08:1
- Power Rating: 1,800 HP (1.5 service factor)
- Drive System:
- Previously driven by (2) 700 HP D/C motors (available separately)
- Dual direct drive gearbox configuration
- Cooling System: Liquid cooling with heat exchanger for gearbox protection

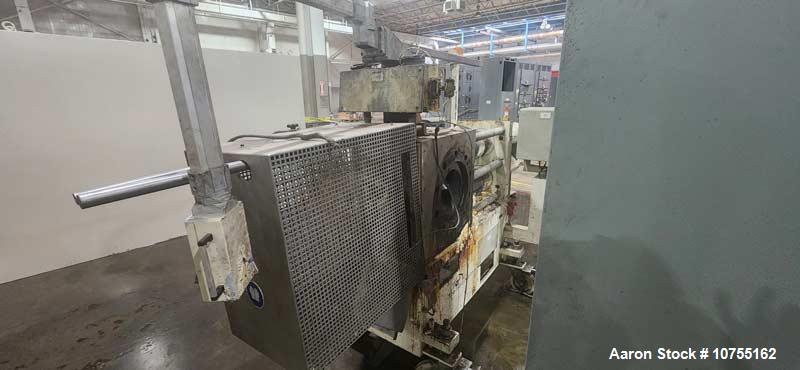

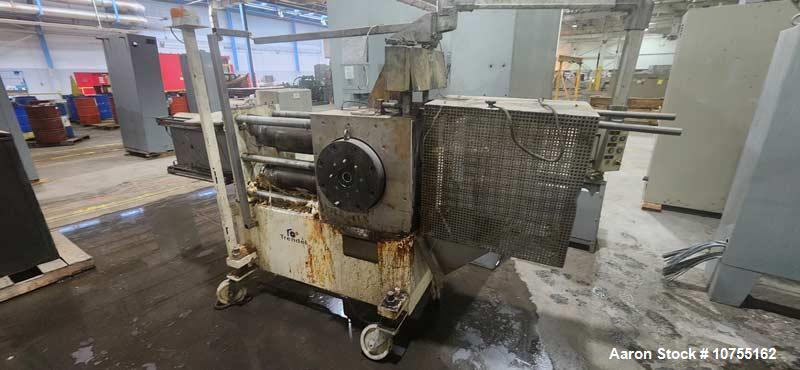

- Screen Changer: Trendelkamp screen changer with stand (mounted on extruder discharge)
- Control System:

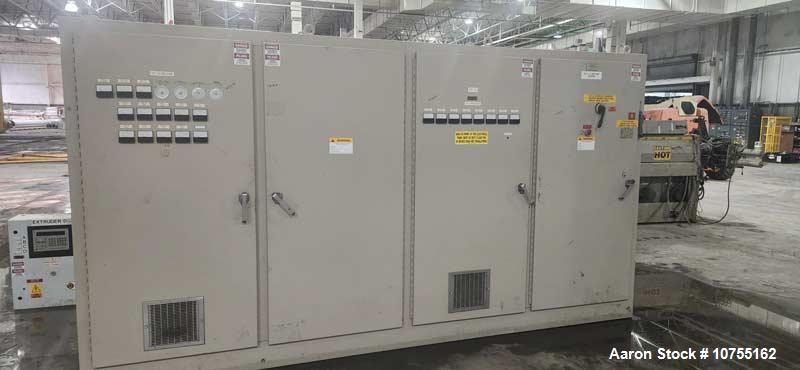

- Temperature control panel and drives included
- Temperature controllers not included
Applications
This Davis Standard 10" extruder is ideal for:
- Biaxially oriented polypropylene (BOPP) film extrusion
- Polyethylene (PE) and polypropylene (PP) extrusion
- High-output plastic sheet and film production
- Polymer compounding and pelletizing
- Industrial plastic manufacturing
What Products Would This Be Used For?
- Biaxially oriented PP (BOPP) film
- Plastic sheeting and films
- Polymer extrusion for industrial applications
- Packaging films and specialty films
- Resin and pellet manufacturing
Product Details
- Used Davis Standard extruder
- Industrial extrusion machine for sale
- 10-inch extruder with 38:1 L/D ratio
- BOPP film extrusion equipment
- High-output polymer extruder
- Used Davis Standard 10-inch extruder for plastic film manufacturing
- Industrial extrusion machine with 1,800 HP gearbox
- High-capacity extruder for BOPP film processing
- Davis Standard polymer extruder with Trendelkamp screen changer
- 10-inch extruder with liquid cooling system and heat exchanger
- Used Davis Standard 10" extruder with 38:1 L/D ratio and 1,800 HP gearbox
- Industrial polymer extrusion system with Trendelkamp screen changer and dual direct drive
- Davis Standard extruder for high-output plastic film manufacturing and polymer processing
- Heavy-duty extrusion machine with liquid cooling system and dual 700 HP motors
- Biaxially oriented polypropylene (BOPP) film extruder with temperature control panel
