Stock No.: 10755151
Gloucester Model 35250R2 3.5" Diameter Single Screw Extruder – Industrial Used

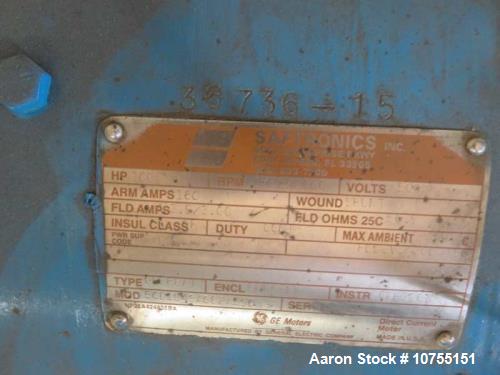

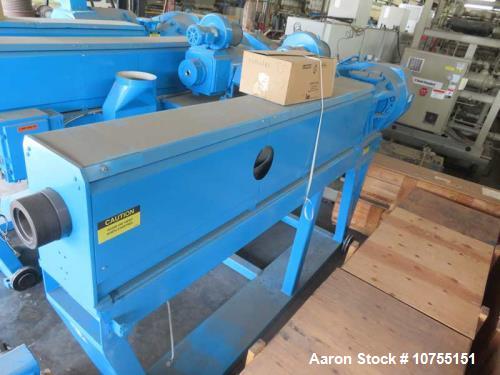

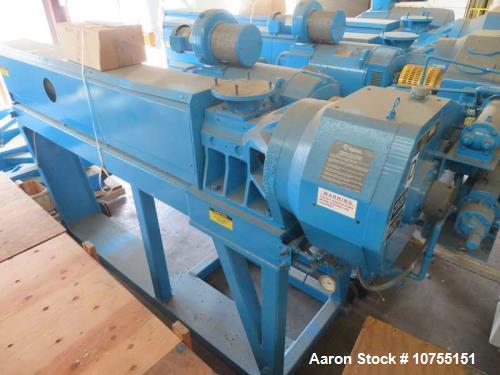

Used- Gloucester Model 35250R2 3.5" Diameter Single Screw Extruder. 3.5" diameter screw, 32:1 L/D. Has an electrically heated, air cooled, vented, and plugged barrel at approximately a 65? center line height. Barrel is set up for Contra-Cool but does not include blower. Gearbox has a reduction ratio of 18.17:1 and is direct driven in a wraparound manner by a 100 HP Baldor D/C motor with Saftronics SCR control. One (1) HP pump with heat exchanger on the gearbox. Originally manufactured in 1995 and completely reconditioned in 2011 and never put back into service. All wiring on the extruder is run to a terminal strip. New control panel has fourteen (14) zones of temperature controls. Drive control is loose. Includes three (3) new / rebuilt screws. 460/3/60. Serial# 36736/12.
-
ManufacturerGloucester
-
Model35250R2
-

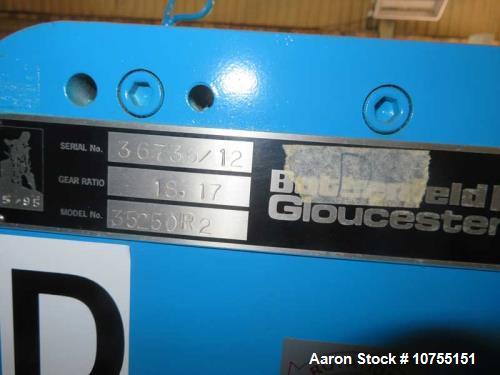

Serial #36736/12
-
CategoryPlastics Equipment
-
SubcategoryExtruders - Single Screw Extruder
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information:
- Manufacturer: Gloucester Engineering
- Model: 35250R2
- Year: Originally manufactured in 1995, reconditioned in 2011
- Serial Number: 36736/12
Description:
The Gloucester Model 35250R2 is a 3.5-inch diameter single screw extruder with a 32:1 L/D ratio, designed for industrial plastic extrusion applications. It features an electrically heated, air-cooled, vented, and plugged barrel at a 65" centerline height. The extruder is set up for Contra-Cool but does not include a blower. It has an 18.17:1 gearbox reduction ratio, directly driven in a wraparound manner by a 100 HP Baldor D/C motor with Saftronics SCR control. The extruder includes a 1 HP pump with a heat exchanger on the gearbox, and all wiring is connected to a terminal strip for easy operation.
This unit was fully reconditioned in 2011 but was never put back into service. It includes a new control panel with 14 temperature control zones, a loose drive control, and three (3) new/rebuilt screws. Operates at 460V/3PH/60Hz.
Specifications:
- Screw Diameter: 3.5 inches
- L/D Ratio: 32:1
- Barrel: Electrically heated, air-cooled, vented, and plugged
- Centerline Height: Approx. 65 inches
- Cooling System: Contra-Cool setup (blower not included)
- Gearbox Reduction Ratio: 18.17:1
- Motor: 100 HP Baldor D/C motor
- Drive Control: Saftronics SCR control
- Gearbox Cooling: 1 HP pump with heat exchanger

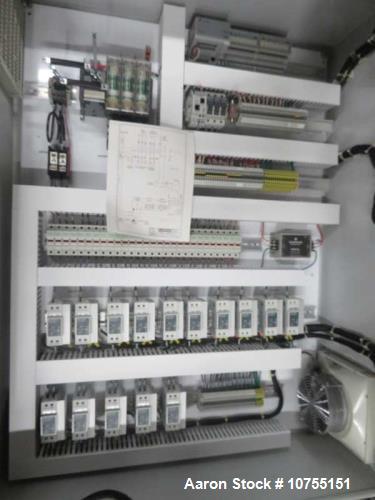

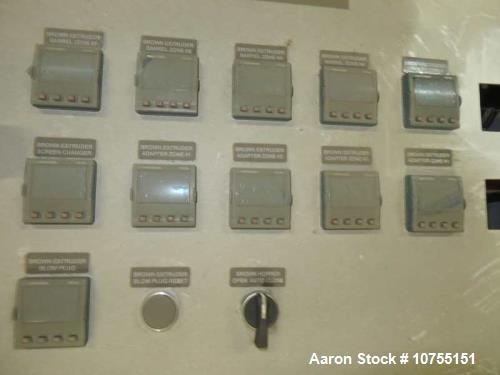

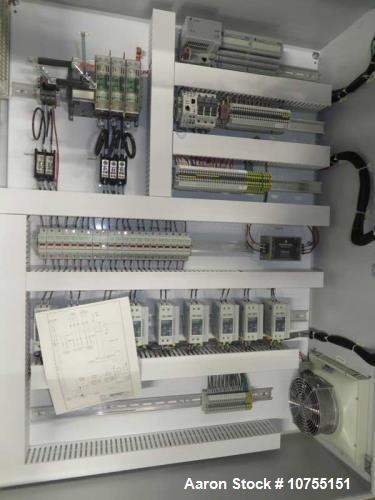

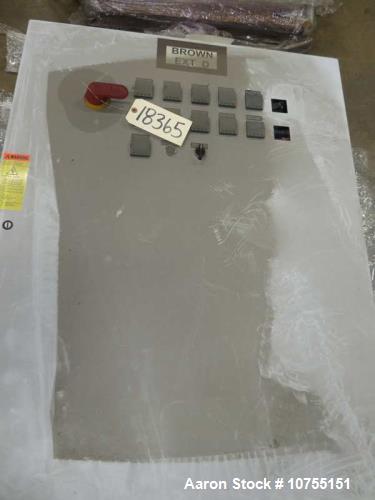

- Control Panel: 14 temperature zones, drive control is loose

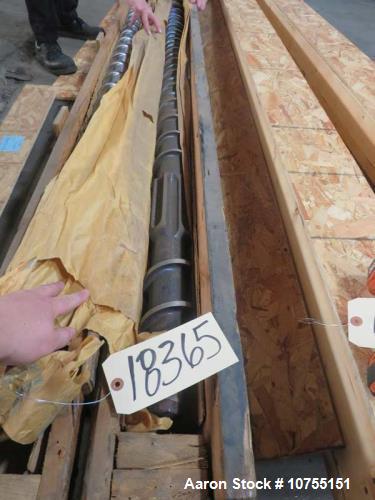

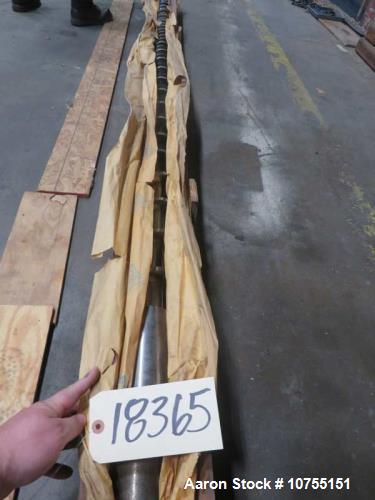

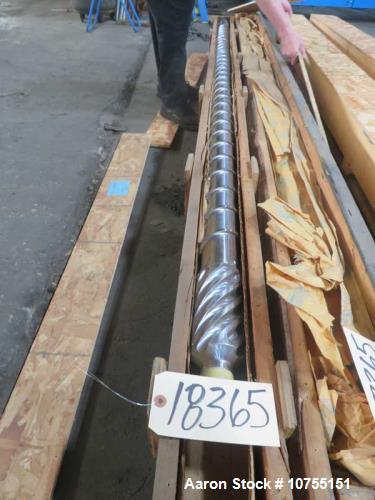

- Includes: Three (3) new/rebuilt screws
- Power Requirement: 460V/3PH/60Hz
- Manufacturing Year: 1995
- Reconditioned: 2011 (never used after reconditioning)
- Serial Number: 36736/12
Applications:
- Plastic extrusion
- Film and sheet extrusion
- Profile extrusion
- Pipe and tubing manufacturing
- Compounding and blending
- Recycling and pelletizing
Products That Would Use This Machine:
- Plastic films and sheets
- Plastic pipes and tubing
- Wire and cable coatings
- Plastic profiles
- Reprocessed plastic pellets
- Custom polymer blends
