Stock No.: 54172001
Used Huaxing Three-Stage 150mm (6") Extrusion Line – Model HXSJ 150-DWM11

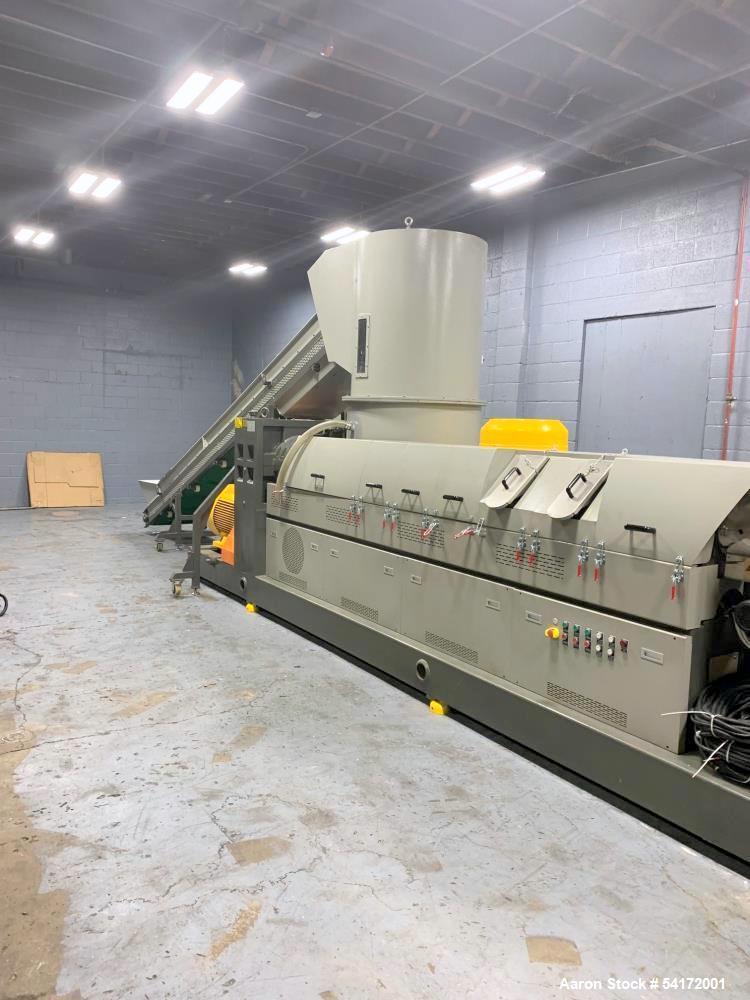

Used- Huaxing Three-Stage 150mm (6") Extrusion Line, Model HXSJ 150-DWM11. 30:1 L/D. Rated 600-1,000 kg (approx 1323-2205 lbs.) per hour. Consisting of: (1) 150mm x 4500mm (30:1) primary extruder, double vented w/ vacuum system and 2-stage filtration, and (1) 150mm x 1800mm (12:1) secondary extruder, single vented with 2-stage filtration, Driven by a 215hp 1785 rpm motor. One Crusher/compactor with infeed conveyor. Water bath strand cooling system with dewatering blowers, strand cutter, vibrating table, cooling tank, cooling tower, recirculation pumps, discharge vacuums, storage cyclone. pneumatic storage cyclone discharge. Main control panel. 60/480V. Built 2019. Previously used for PP and PE Plastics.
-
Serial #190605
-
CategoryPlastics Equipment
-
SubcategoryExtruders - Single Screw Extruder
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information
-

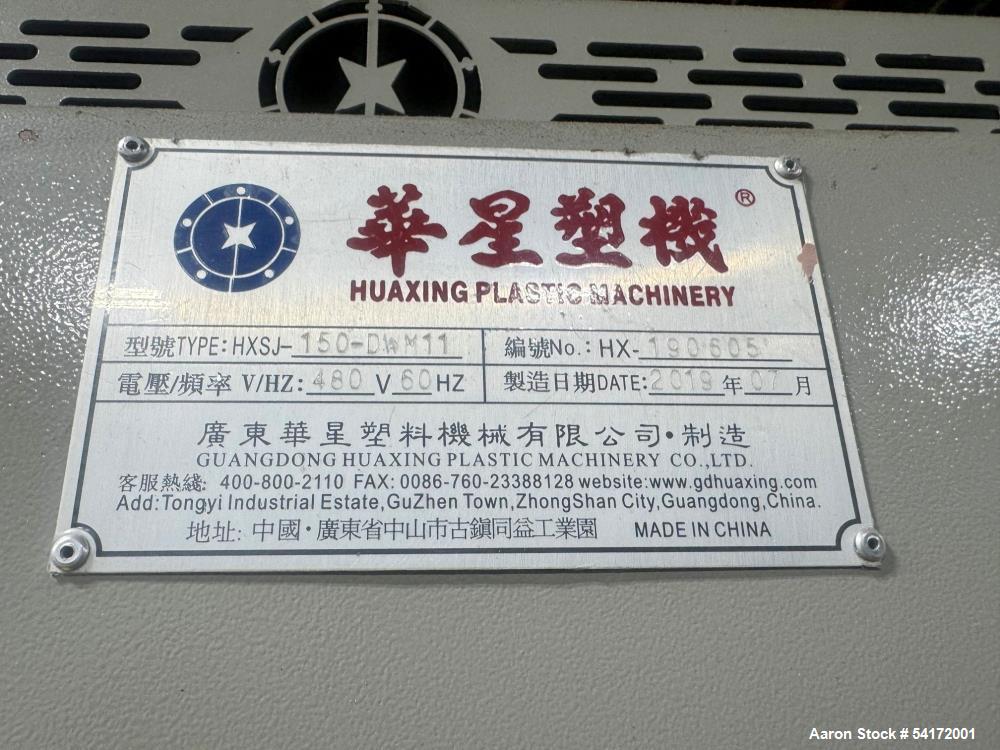

Manufacturer: Huaxing
-
Model: HXSJ 150-DWM11
-
Year Built: 2019
-
Origin: China
-
Condition: Used – Previously in PP & PE plastics service
Description
This used Huaxing three-stage 150mm (6”) extrusion line is a high-capacity, industrial-grade plastics extrusion system designed for polypropylene (PP) and polyethylene (PE) processing. The system is built for continuous strand extrusion, pelletizing, and compounding, with a rated throughput of 600–1,000 kg/hr (1,323–2,205 lbs/hr).
The line features a 150mm x 4500mm (30:1 L/D) primary extruder, double vented with vacuum system and two-stage filtration, paired with a 150mm x 1800mm (12:1 L/D) secondary extruder, single vented with two-stage filtration. Powered by a 215 HP (1785 RPM) motor, the system ensures reliable, high-volume production.
Additional downstream equipment includes a crusher/compactor with infeed conveyor, water bath strand cooling system, dewatering blowers, strand cutter, vibrating table, cooling tank, cooling tower, recirculation pumps, vacuum discharge, storage cyclone, pneumatic cyclone discharge, and a main control panel (60/480V).
This extrusion line was previously used for PP and PE plastics and remains a robust solution for compounding, reprocessing, and pelletizing applications.
Specifications
-
Line Type: Three-stage extrusion line
-
Extruder Size: 150mm (6”)
-
Primary Extruder: 150mm x 4500mm, 30:1 L/D, double vented, vacuum system, 2-stage filtration
-
Secondary Extruder: 150mm x 1800mm, 12:1 L/D, single vented, 2-stage filtration
-
Drive Motor: 215 HP, 1785 RPM
-
Throughput: 600–1,000 kg/hr (1,323–2,205 lbs/hr)
-
Power Requirement: 60 Hz / 480 VAC
-
Auxiliary Equipment:
-
Crusher/compactor with infeed conveyor
-

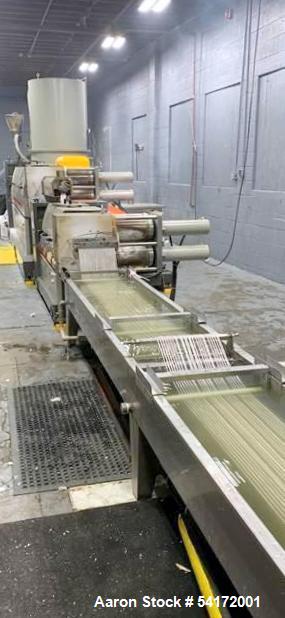

Water bath strand cooling system
-
Dewatering blowers
-
Strand cutter
-
Vibrating table
-
Cooling tank & cooling tower
-
Recirculation pumps
-
Vacuum discharge
-

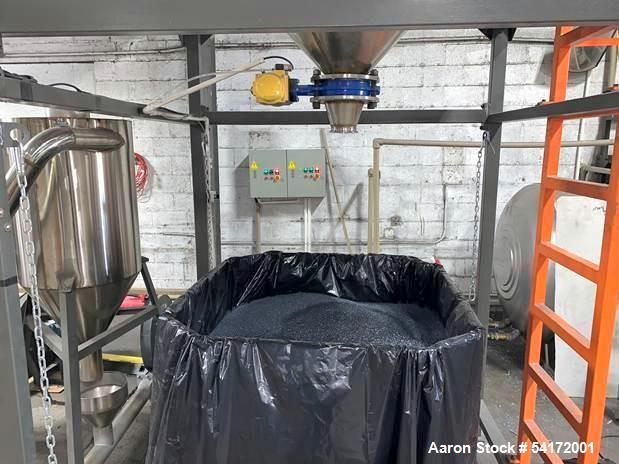

Storage cyclone with pneumatic discharge
-
-
Control: Main control panel
-
Year Built: 2019
-
Condition: Used, excellent working condition
Applications
-
PP (polypropylene) extrusion
-
PE (polyethylene) extrusion
-
Plastic recycling & pelletizing
-
Compounding and masterbatch production
-
Thermoplastic material processing
-
Plastic reprocessing for industrial waste reduction
-
Film and sheet extrusion feedstock preparation
-
Pipe and profile extrusion raw material preparation
-
Engineering plastics compounding
-
Specialty plastics formulations
What Might This Be Used For?
This extrusion line is used for processing, recycling, and compounding plastics, especially polypropylene (PP) and polyethylene (PE). It converts raw or recycled material into uniform strands or pellets for downstream manufacturing. Ideal for companies in plastics recycling, compounding, packaging, film, sheet, or injection molding supply chains.
