Used 100mm Buss Kneader System with Hot Feed Extruder & Gala Underwater Pelletizer | 200 HP | 2,000 lb/hr PVC Line

🏭 Manufacturer Information

• Primary System: Buss Kneader

• Kneader Size: 100 mm

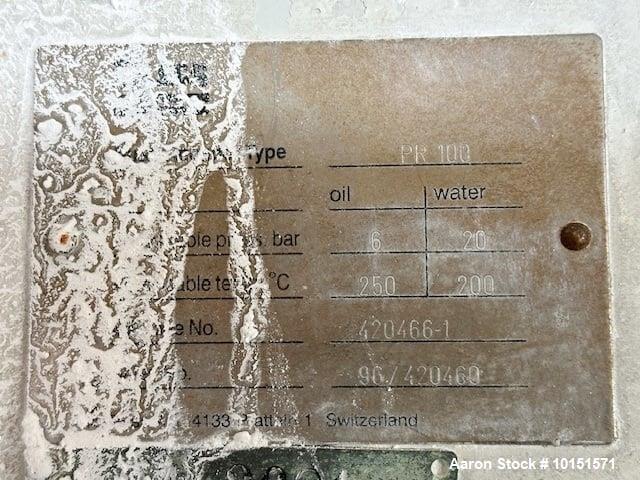

• Barrel: 9:1 L/D, jacketed, clam-shell opening

• Drive Motor: 200 HP DC motor

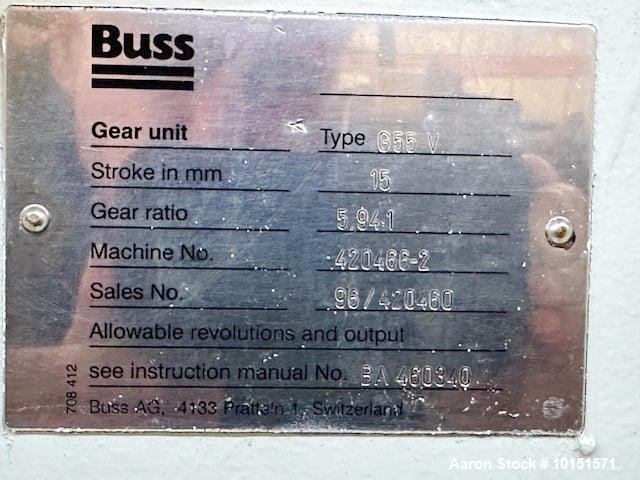

• Gearbox: 5.94:1

• Control: Operator control panel included

• Discharge Equipment: Hot Feed Extruder

  • 5.5" OD (140 mm)

  • 7:1 L/D, jacketed barrel

  • 75 HP motor

• Pelletizing System: Gala Underwater Pelletizer

  • Model: #6

  • Dryer: 12.1 ECLNBF Gala Spin Dryer

  • Extra new die plates available

• Last Product Run: Flexible PVC

• Last Known Throughput: 2,000 lb/hr

• Last Run Date: August 2022

⚙️ Product Description

This Used 100mm Buss Kneader Compounding Line is a complete, high-output material processing system ideal for compounding plastics, elastomers, and specialty materials.

The line includes a 100mm Buss kneader with a 9:1 L/D jacketed barrel, powerful 200 HP DC drive, and a clam-shell style opening for simplified maintenance, cleaning, and screw/barrel access. The 5.94:1 gearbox provides strong torque for heavy, shear-intensive formulations.

Material discharges into a 140mm (5.5") 7:1 L/D hot-feed extruder powered by a 75 HP motor, providing stable melt homogenization and pressure build.

Downstream, the system includes a Gala #6 Underwater Pelletizer with a 12.1 ECLNBF spin dryer, a robust, industry-standard pellet-making solution. Extra die plates are available.

Previously used for flexible PVC at 2,000 lb/hr, this system is suitable for medium-to-high-output compounding operations requiring consistent melt quality and robust pelletizing capability.

📏 Specifications

Buss Kneader

• Barrel Size: 100 mm

• L/D Ratio: 9/1

• Barrel: Jacketed, clam-shell opening

• Drive: 200 HP DC motor

• Gearbox: 5.94:1

• Controls: Operator control panel

Hot Feed Extruder

• Diameter: 5.5" OD (140 mm)

• L/D Ratio: 7/1

• Barrel: Jacketed

• Motor: 75 HP

Gala Pelletizer System

• Model: #6

• Dryer: 12.1 ECLNBF spin dryer

• Extras: Additional new die plates (optional purchase)

Operating Data

• Material Last Run: Flexible PVC

• Throughput: ~2,000 lb/hr

• Last Used: August 2022

🧩 Applications

• PVC compounding

• Plastic masterbatch production

• Thermoplastic elastomers

• Color concentrates

• Wire and cable compounds

• Specialty polymer blends

• Adhesives & sealants (hot melt)

• Rubber-plastic blends

• Chemical additives

• Thermoplastic processing lines

⚗️ What Might This Be Used For

• High-shear compounding of polymers

• Melt mixing and homogenization

• Continuous pellet production

• Precision blending of additives, fillers, stabilizers

• Compounding heat-sensitive and shear-sensitive materials

🧱 Materials This Line Can Process

• Flexible / rigid PVC

• Polyolefins (PE, PP)

• EVA, TPU, TPE

• Adhesives (hot melt formulations)

• Specialty plastics

• Conductive compounds

• Flame-retardant masterbatch

• Filled and reinforced plastics

• Chemical additives or carriers

• Pelletized polymer blends
