Used Welex 6.0 30D 6" Single Screw Extruder – 500 HP, 30:1 L/D, Vented Barrel with Dynisco Hydraulic Screen Changer

Manufacturer

Welex Incorporated is a respected manufacturer of industrial extrusion systems for the plastics processing industry. Welex extruders are widely used in sheet, profile, recycling, packaging, and polymer processing applications, delivering reliable performance, high throughput, and precise melt control for continuous manufacturing operations.

Description

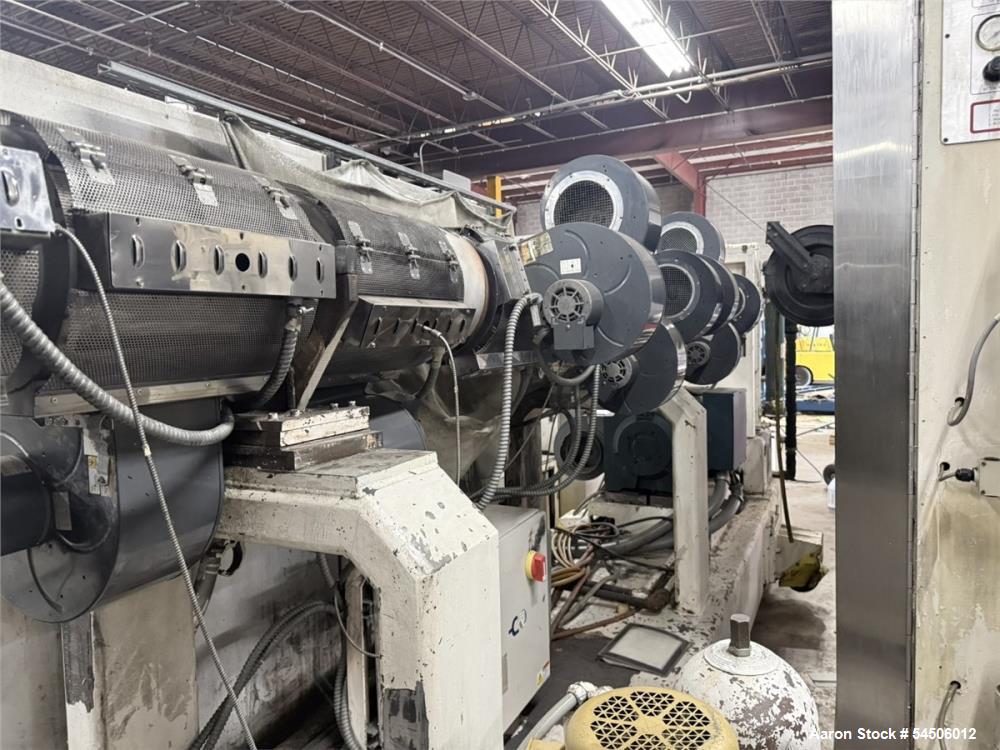

The Used Welex 6" Single Screw Extruder, Model 6.0 30D, is a heavy-duty industrial extrusion system designed for demanding thermoplastic processing applications. Previously operated on PET resin, this extruder features a 30:1 L/D ratio and an air-cooled vented barrel, providing excellent melt quality, mixing efficiency, and devolatilization capability for moisture-sensitive polymers and recycled materials.

The barrel vent, located approximately 120 inches from the center of the feed throat, is currently plugged but may be configured for venting or vacuum devolatilization as required. The extrusion barrel incorporates six heating zones fitted with Tempco Cool Touch heater bands, while the downstream die system features nine additional heating zones for precise temperature management.

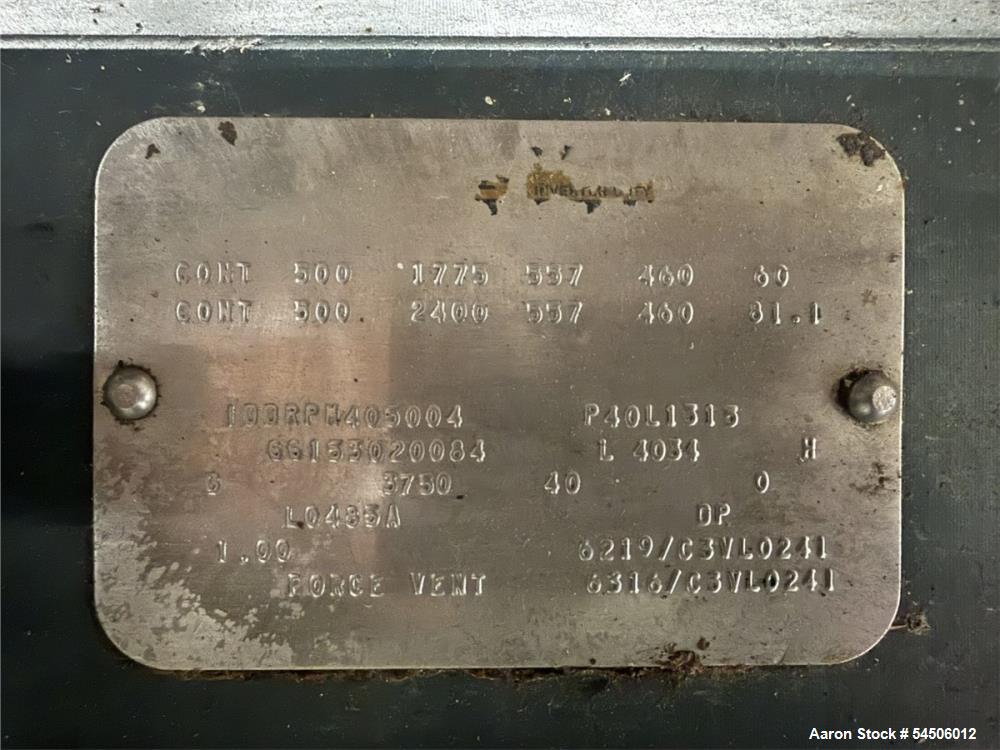

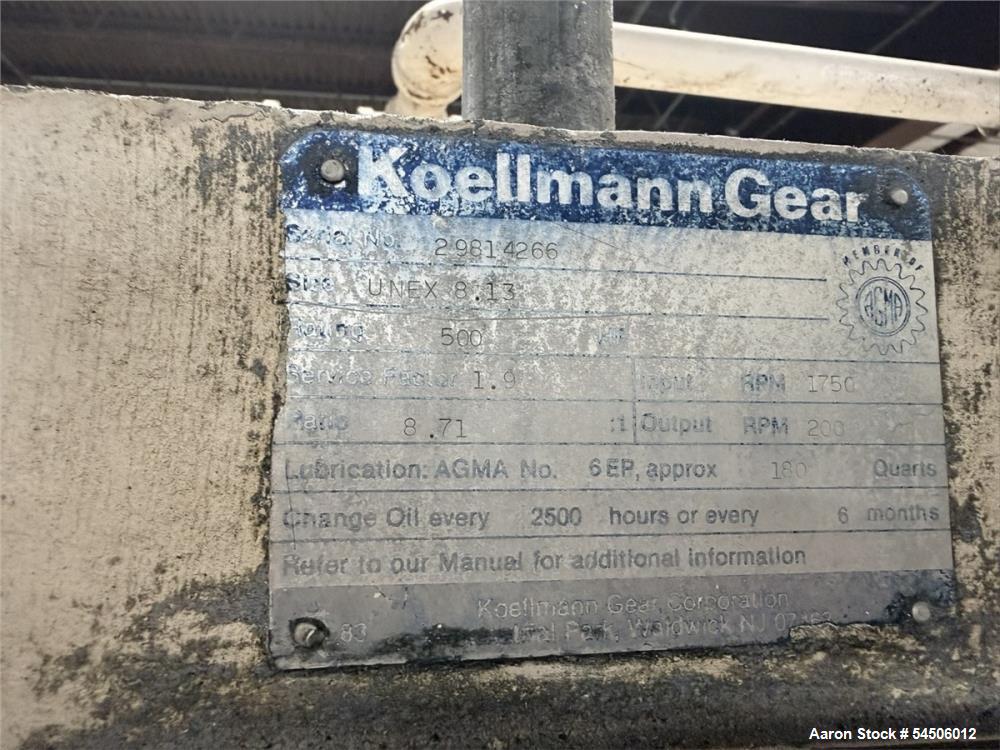

Power is supplied by a 500 HP Reliance AC motor, capable of operating the screw at speeds up to 200 RPM. Torque is transmitted through a direct-driven Koellmann gearbox featuring an 8.7:1 reduction ratio, providing dependable power delivery for high-output extrusion applications.

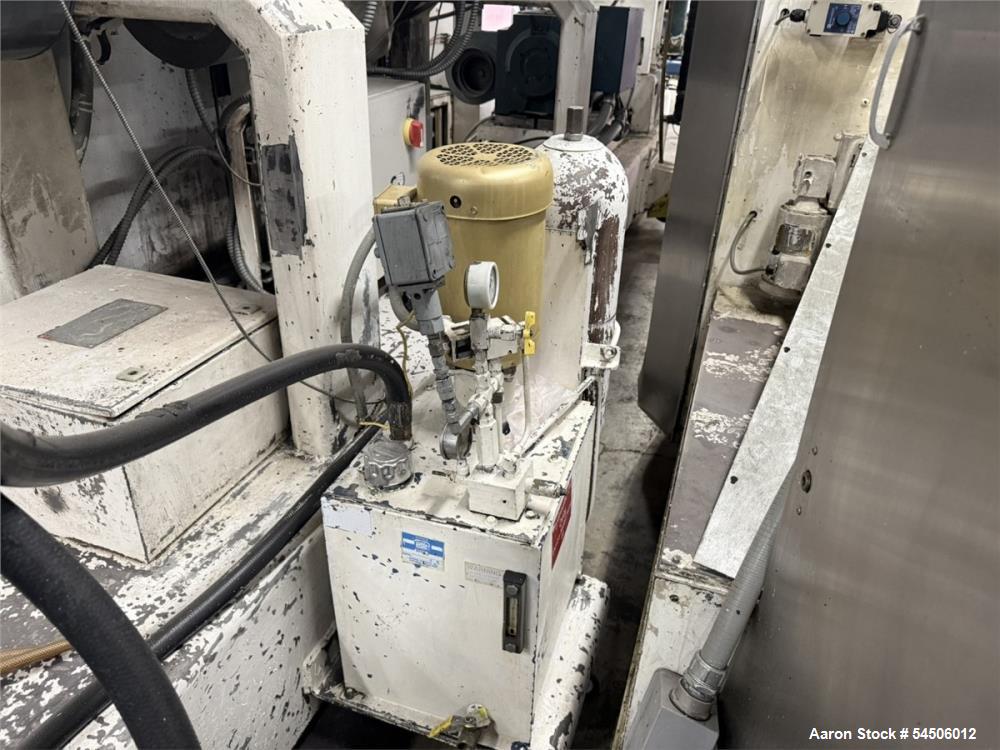

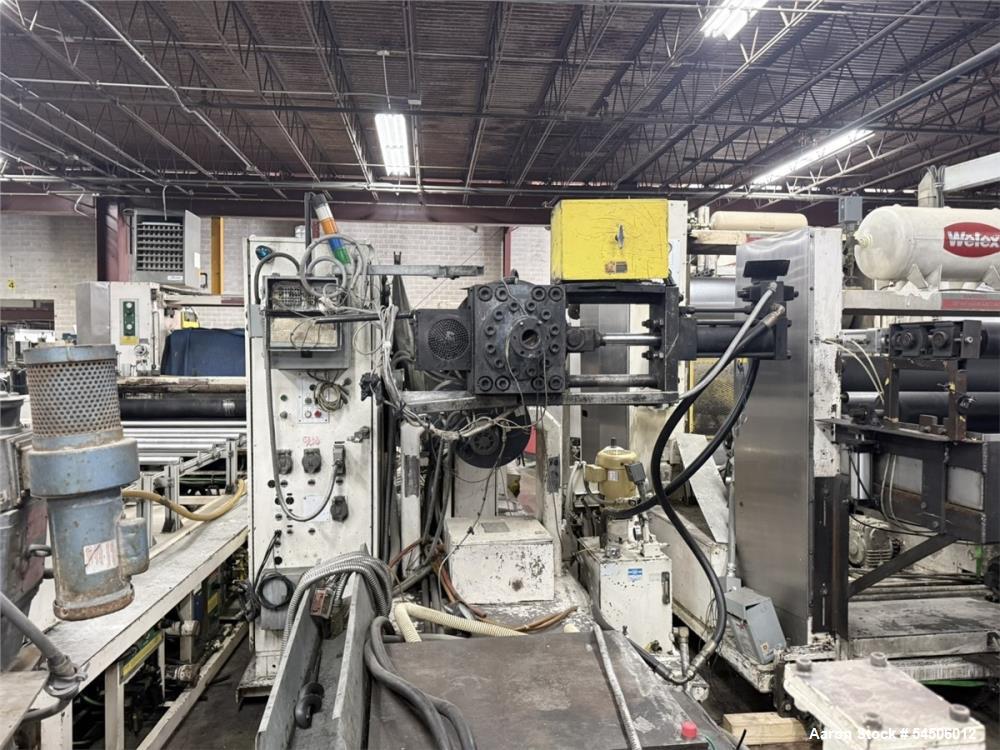

The machine includes a 10-inch × 8-inch feed throat, 68-inch centerline height, and a 6-inch Dynisco hydraulic screen changer complete with its hydraulic power unit, allowing continuous filtration and improved melt quality during production.

Note: This machine does not include an AC drive, allowing purchasers to integrate a drive package best suited to their application.

Specifications

Applications

This Welex extrusion system is ideal for:

• PET sheet extrusion
• Plastic sheet production
• Polymer processing
• Plastic recycling
• Packaging sheet manufacturing
• Thermoplastic extrusion
• Engineering resin processing
• Plastic compounding
• Industrial extrusion
• Continuous polymer manufacturing
• Specialty plastic production
• Custom extrusion applications

Common Materials Processed

• PET
• RPET
• Polypropylene (PP)
• Polyethylene (PE)
• High-Density Polyethylene (HDPE)
• Low-Density Polyethylene (LDPE)
• Polystyrene (PS)
• Engineering thermoplastics
• Reprocessed plastics
• Polymer compounds
• Specialty resin blends
• Thermoplastic formulations

Features & Benefits

• Heavy-duty 6-inch single screw extruder
• 30:1 L/D ratio for excellent melt quality
• Air-cooled vented barrel
• Vented section for devolatilization capability
• Six barrel heating zones
• Nine die heating zones
• Tempco Cool Touch heater bands
• Powerful 500 HP Reliance AC motor
• Direct-driven Koellmann gearbox
• Maximum screw speed up to 200 RPM
• 6-inch Dynisco hydraulic screen changer
• Hydraulic power unit included
• Previously processed PET resin
• Ideal for high-output sheet extrusion and polymer processing

Frequently Asked Questions

What materials can this extruder process?

The machine was previously used with PET resin and is suitable for processing PET, RPET, polyethylene, polypropylene, engineering thermoplastics, recycled plastics, and other compatible polymers depending on screw configuration and downstream equipment.

Does the barrel include a vent?

Yes. The barrel includes a vent located approximately 120 inches from the feed throat. It is currently plugged but can be configured for venting or vacuum devolatilization if required.

Is an AC drive included?

No. An AC drive is not included, allowing the purchaser to select and integrate a drive package appropriate for their production requirements.

What screen changer is installed?

The extruder includes a 6-inch Dynisco hydraulic screen changer complete with its hydraulic power unit, allowing continuous melt filtration and improved product quality.

What type of drive system powers the extruder?

The machine is equipped with a 500 HP Reliance AC motor coupled to a direct-driven Koellmann gearbox with an 8.7:1 reduction ratio, capable of screw speeds up to 200 RPM.
