Used PTI TS4500 4.5" Pelletizing Line – 200 HP Extruder, Water Ring Pelletizer

Manufacturer Information:

• Manufacturer: PTI
• Model: TS4500 (Pelletizing Line)
• Condition: Used

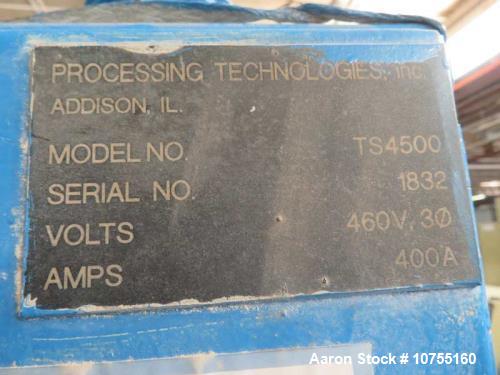

• Serial Number (Extruder): 1832
• Serial Number (Pelletizing System): 2780

Description:

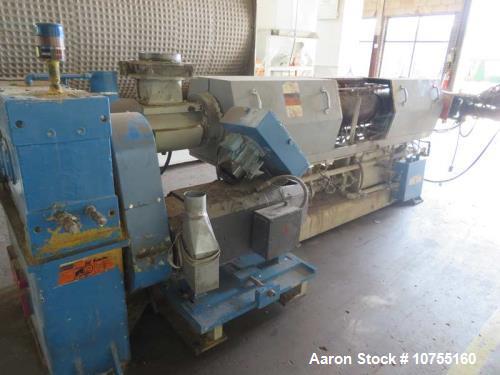

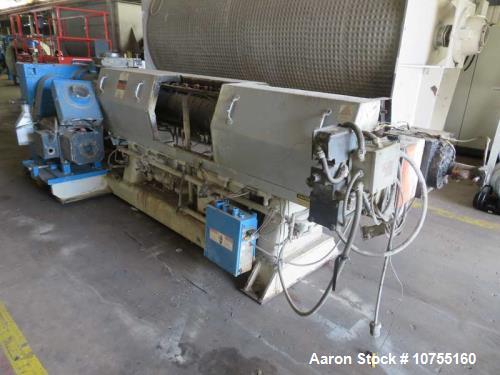

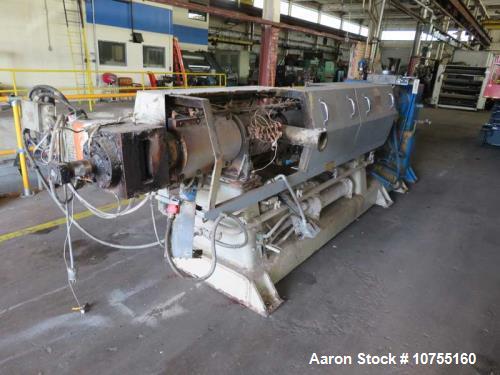

The PTI TS4500 Pelletizing Line is a high-performance, industrial extrusion and pelletizing system, designed for polymer processing, compounding, and recycling applications. Featuring a 4.5" diameter, 30:1 L/D extruder, this system ensures efficient material processing with superior temperature control and venting capabilities.

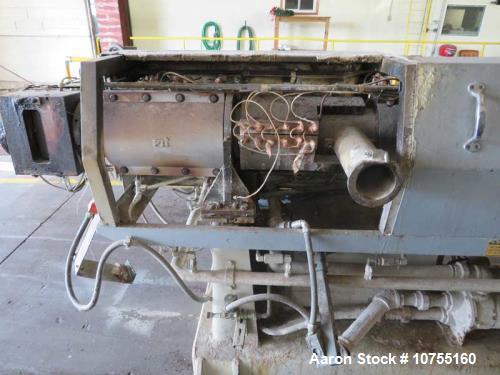

The electrically heated, water-cooled (closed loop), side-vented barrel operates at a nominal 42” centerline height, providing stable extrusion conditions and optimized melt flow. The extruder’s gearbox is a Flender SZNE250, with a 13.88:1 reduction ratio, offering a 200 HP service rating and a 325 HP catalog rating. The belt-driven gearbox is powered by a 200 HP DC motor, controlled via a Safetronics SCR drive, ensuring precise speed and torque control.

The over-sized, on-center oblong feed throat includes water cooling, allowing for enhanced material flow and temperature consistency. A free-standing temperature control panel provides ten (10) zones of temperature control, with the SCR system integrated into the control panel.

Mounted on the extruder discharge is an HSC-45 hydraulic slide plate screen changer, featuring two 4.5" diameter breaker plates and an oversized 5 HP hydraulic power pack (S/N H45-204) for efficient filtration and material purity.

Downstream Pelletizing System:

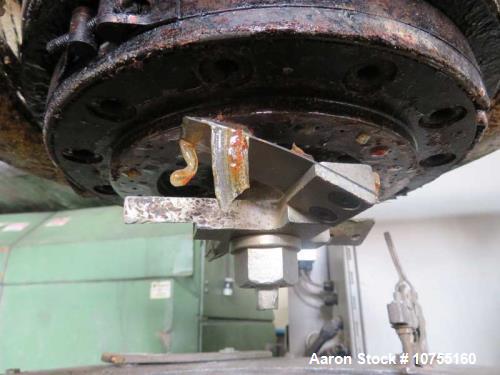

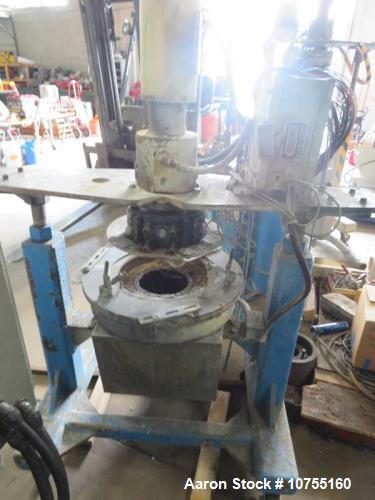

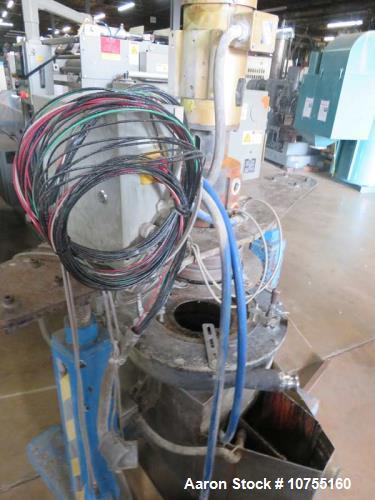

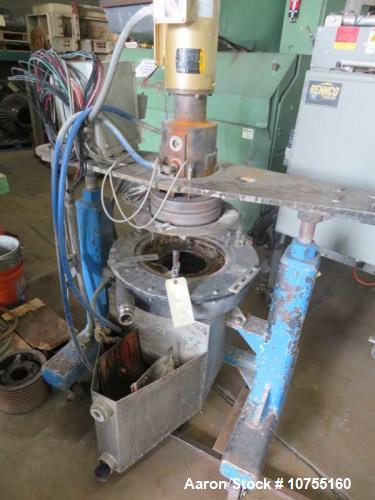

The PTI CPF1000S water ring pelletizing system includes:

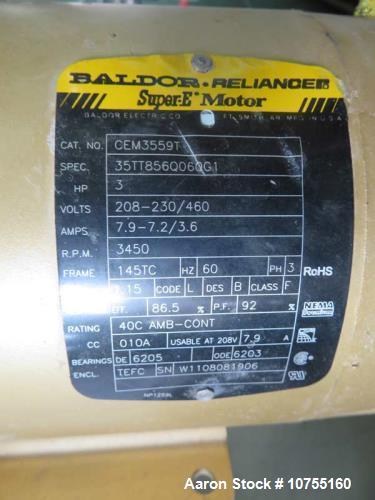

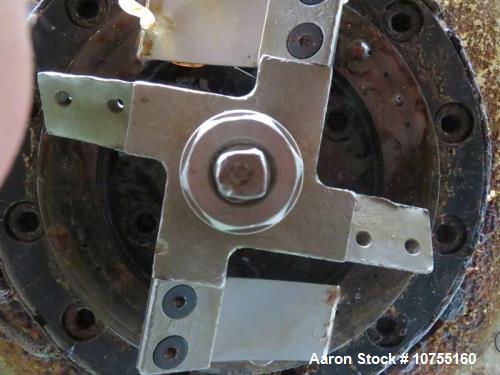

• 3 HP cutter head

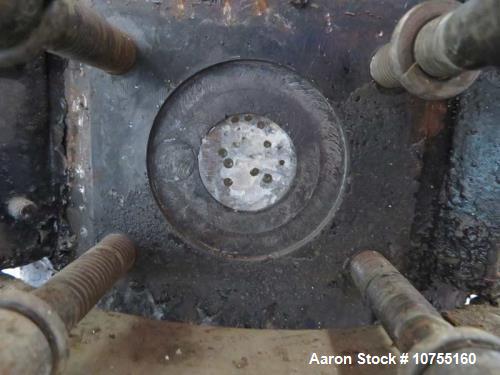

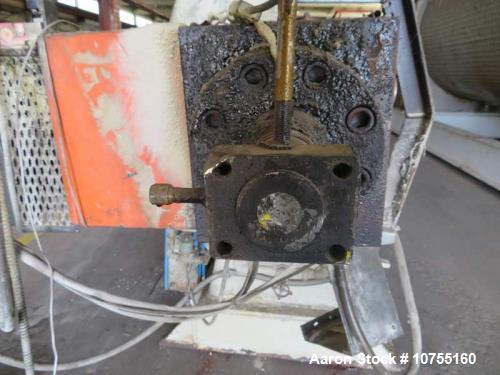

• Pelletizing die
• Sluiceway water system

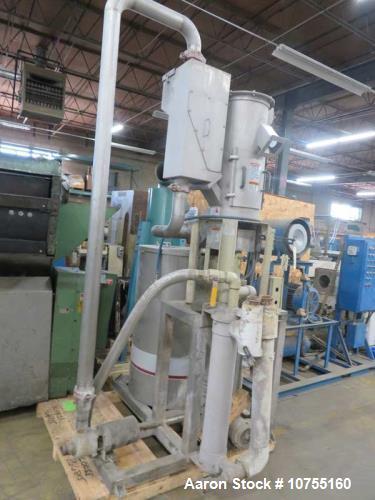

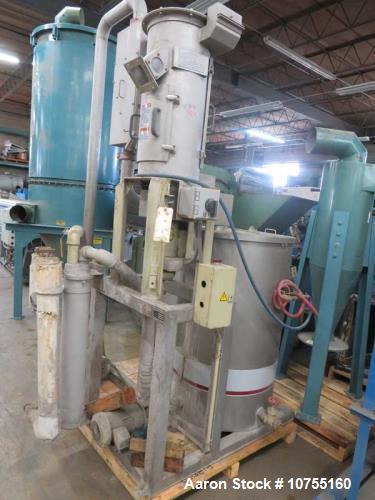

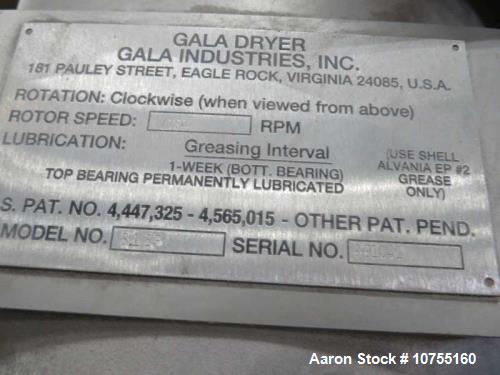

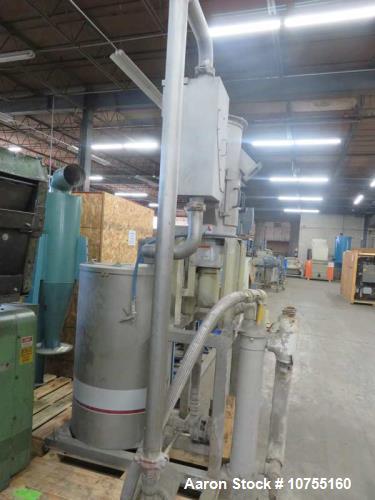

• Gala 8.1BF spin dryer with control panel

This high-efficiency pelletizing line is built for continuous, high-throughput operation, making it an ideal choice for polymer extrusion, recycling, and compounding applications.

Specifications:

Extruder System:

• Screw Diameter: 4.5 inches
• L/D Ratio: 30:1
• Barrel Features:
  • Electrically heated, water-cooled (closed loop)
  • Side vented for improved gas removal
  • Nominal 42" centerline height
• Gearbox:

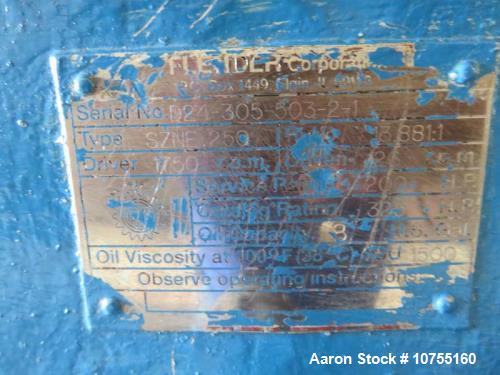

  • Flender SZNE250 model
  • Reduction Ratio: 13.88:1
  • Service Rating: 200 HP
  • Catalog Rating: 325 HP
• Drive System:

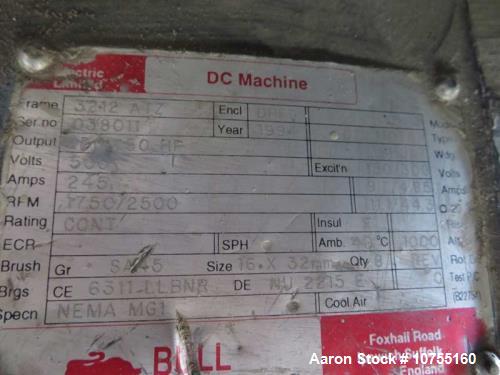

  • 200 HP DC motor

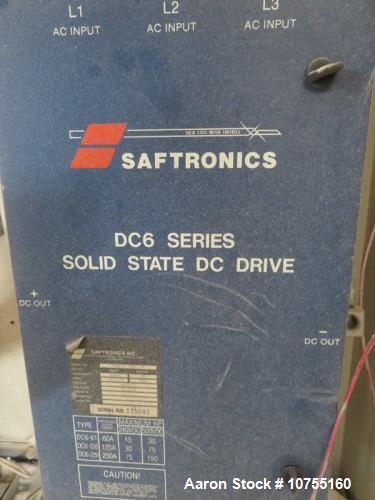

  • Safetronics SCR Control

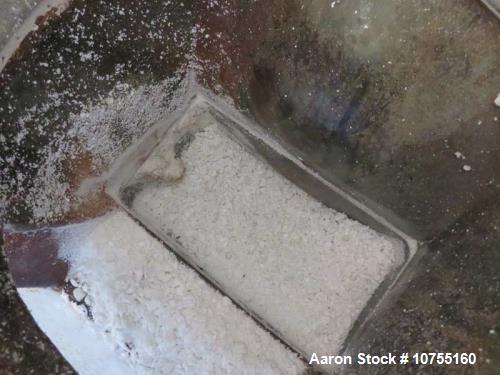

• Feed Throat: Over-sized, on-center oblong design with water cooling

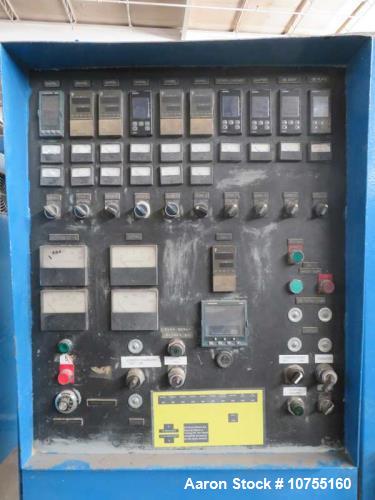

• Temperature Control:

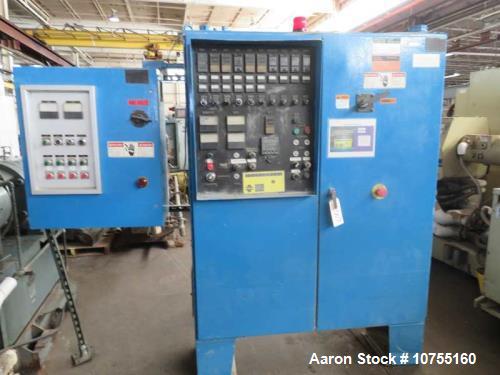

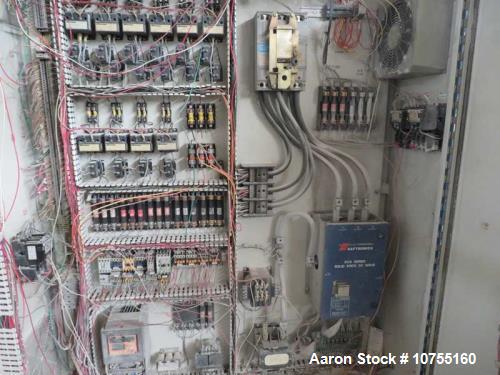

  • Free-standing control panel with 10 temperature zones
  • SCR system mounted inside the control panel
• Power Requirements: 480V / 3-Phase / 60Hz / 400 Amps

Screen Changer:

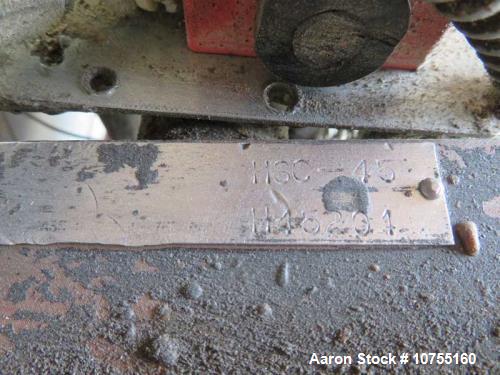

• Model: HSC-45 Hydraulic Slide Plate Screen Changer
• Breaker Plates: (2) 4.5" Diameter Plates

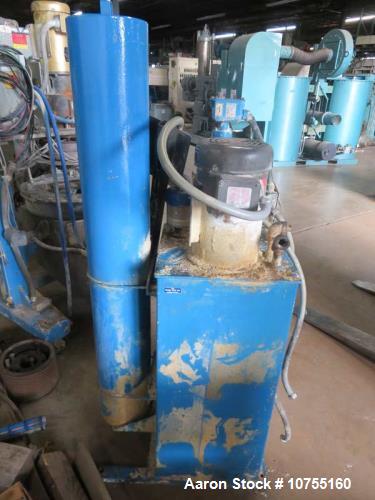

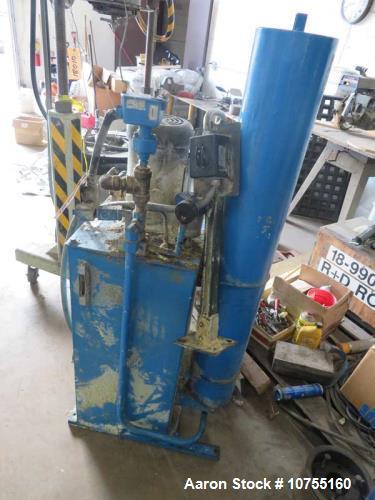

• Hydraulic Power Pack: 5 HP
• Serial Number: H45-204

Pelletizing System:

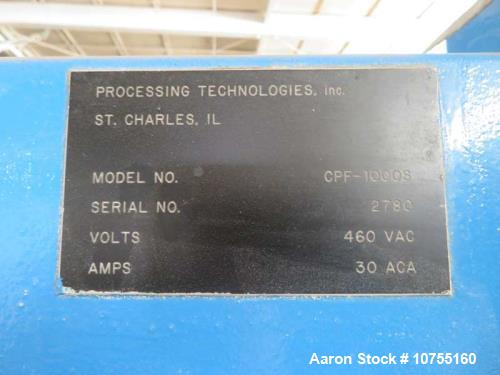

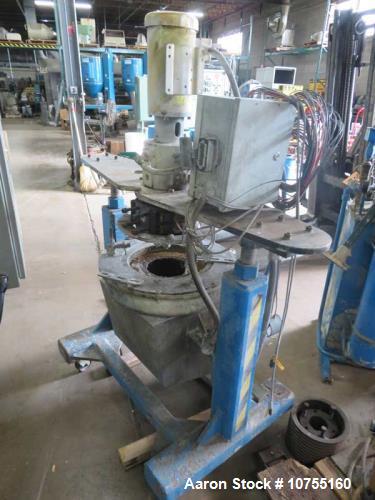

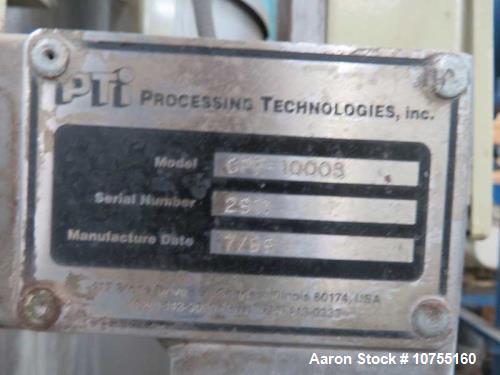

• Model: PTI CPF1000S Water Ring Pelletizer

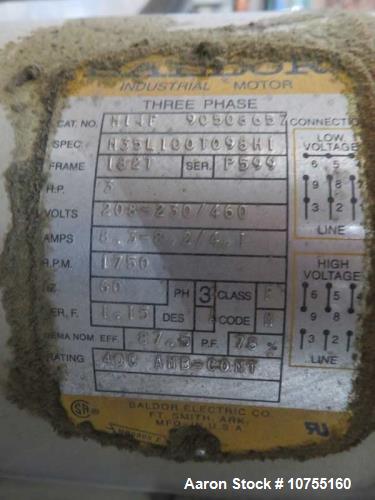

• Motor: 3 HP Cutter Head
• Additional Components:
  • Pelletizing die
  • Sluiceway water system

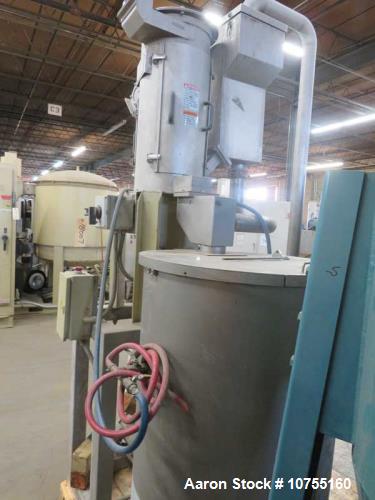

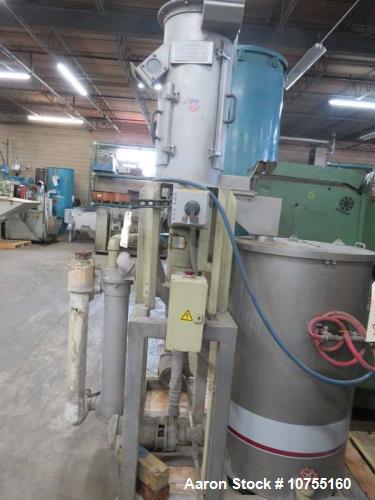

  • Gala 8.1BF Spin Dryer with control panel
• Power Requirements: 460V / 3-Phase / 60Hz / 30 Amps

Applications:

• Plastics & Polymer Processing: Pelletizing for thermoplastics and engineered materials
• Recycling & Reprocessing: Turning scrap plastic into reusable pellets
• Industrial Compounding: Masterbatch production and polymer blending
• Chemical & Specialty Material Processing: High-volume polymer extrusion

Common Product Uses:

• High-output extrusion for polymer compounding and recycling
• Temperature-controlled processing with closed-loop water cooling
• Hydraulic screen changing for efficient filtration
• Automated pelletizing with water ring cooling and drying
