Used Prodex 4.5" Pelletizing Line with 300 HP Extruder & Cumberland Pelletizer

🏭 Manufacturer Information

• Primary Manufacturer: Prodex

• Pelletizer: Cumberland (11" Quietizer)

• Screener: Witte (Two-Deck, 10" x 72")

• Inverter & Drive: Yaskawa V1000

• Gearbox: Lufkin Change Gear

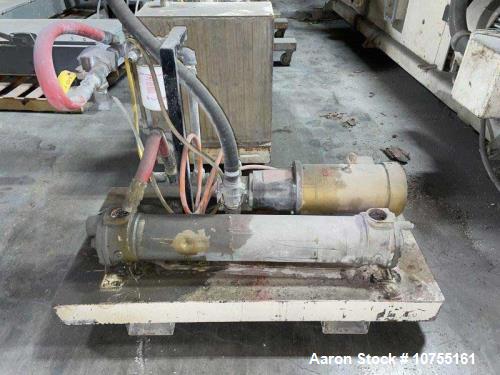

• Cooling System: Closed-loop (extruder & gearbox)

• Control System: 10-zone free-standing temperature control panel

📄 Product Description

This Used Prodex Pelletizing Line is a heavy-duty production system designed for high-volume plastic pellet output. It features a 4.5” diameter, 32:1 L/D extruder with an electrically heated and water-cooled (closed-loop) barrel and side venting. The Lufkin change gear gearbox is driven by a 300 HP A/C motor using a Yaskawa inverter, arranged in a tuck-under configuration. An oversized, water-cooled feed throat and volumetric screw feeder allow for consistent material input.

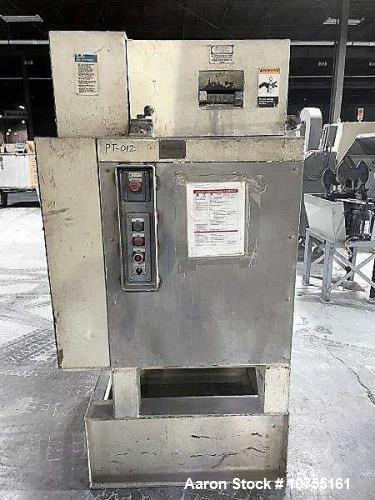

Mounted on the discharge is a hydraulic slide plate screen changer (dual 4.5” breakers), complete with hydraulic pack, strand die, and operator stand. Downstream, it includes a 25 HP Cumberland Quietizer 11” pelletizer with solid helical rotor and Yaskawa V1000 drive. The system finishes with a Witte 10” x 72” two-deck screener for finished pellet separation.

Note: Extruder screw is not included.

📏 Specifications

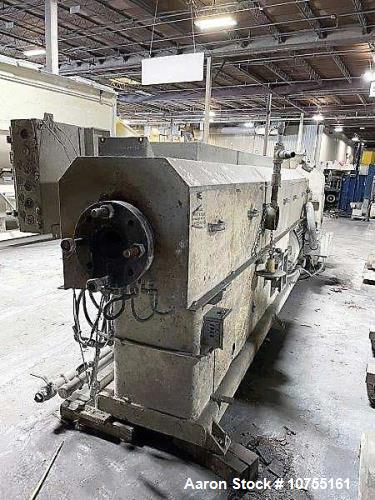

🔧 Extruder

• Barrel Diameter: 4.5”

• L/D Ratio: 32:1

• Heating/Cooling: Electrically heated, water-cooled (closed loop)

• Barrel Design: Side vented

• Feed Throat: Oversized, water-cooled, oblong center feed

• Screw Feeder: Volumetric

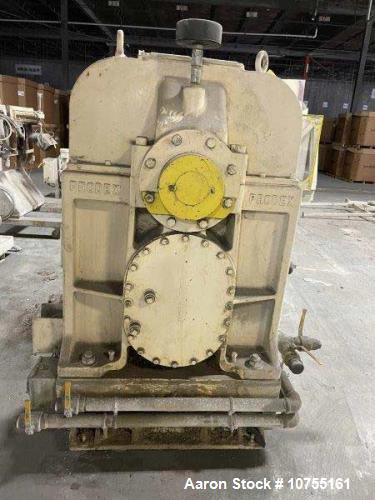

• Gearbox: Lufkin change gear

• Motor: 300 HP A/C motor

• Drive: Yaskawa inverter

• Mounting: Tuck-under configuration

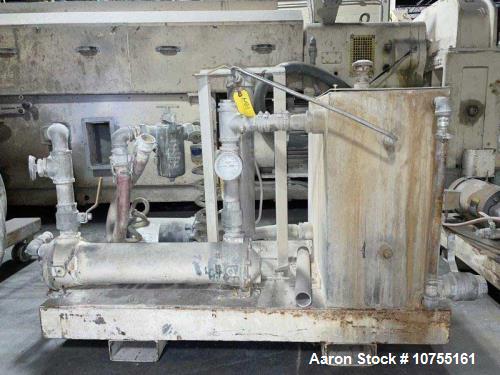

• Cooling: Stand-alone gearbox cooling system

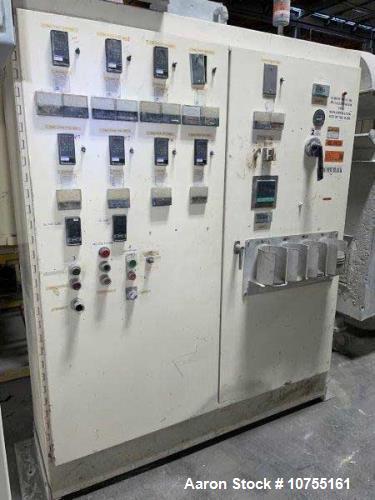

🎛 Control System

• Temperature Zones: 10

• Control Panel: Free-standing, zone-specific

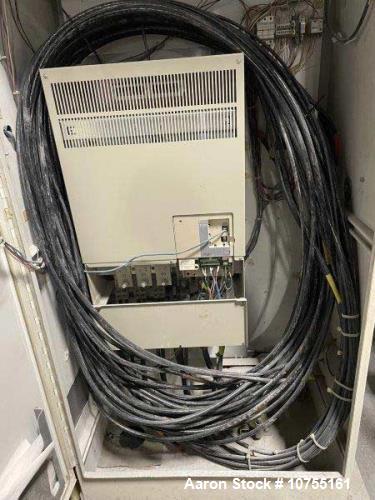

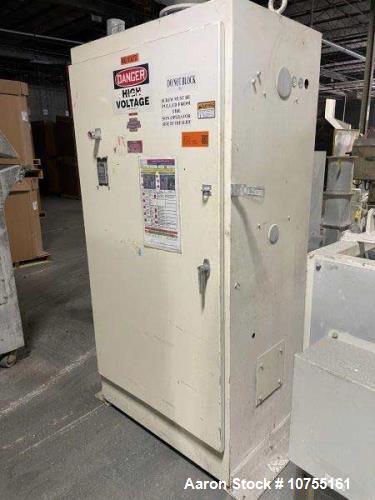

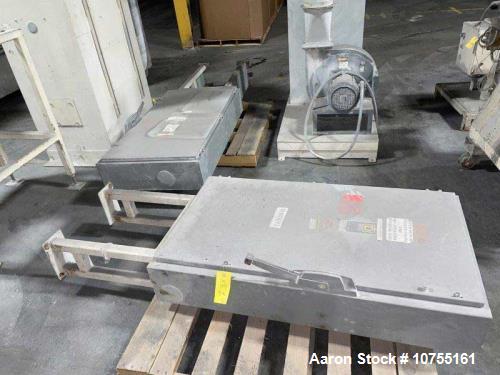

• Inverter Enclosure: Stand-alone, separate cabinet

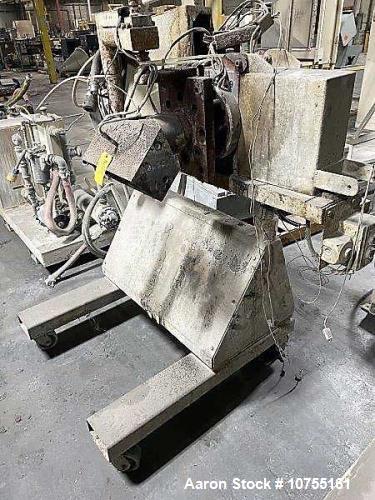

🔁 Screen Changer

• Type: Hydraulic slide plate

• Breakers: (2) x 4.5” dia.

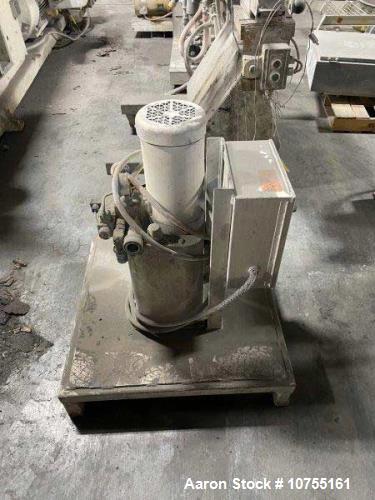

• Power Pack: Hydraulic

• Additional: Mounted stand, strand die

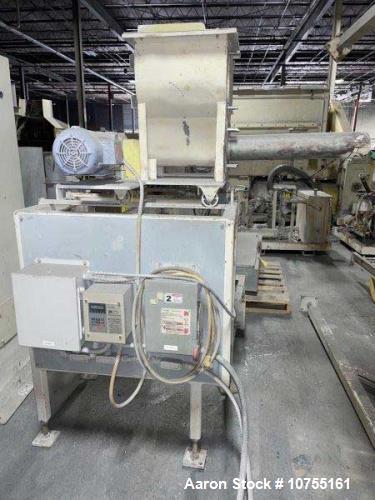

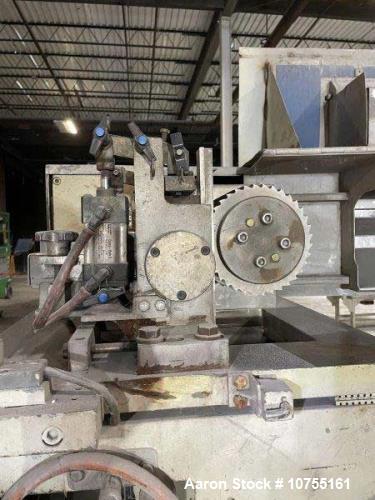

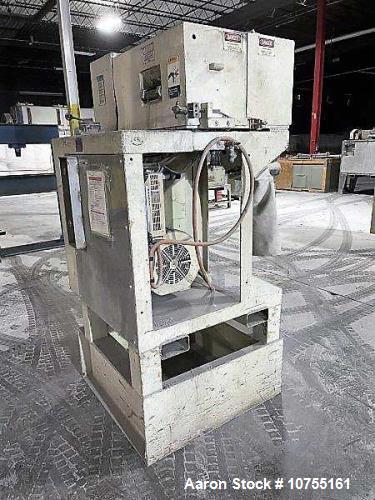

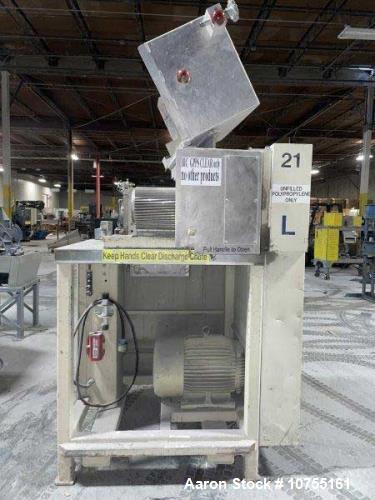

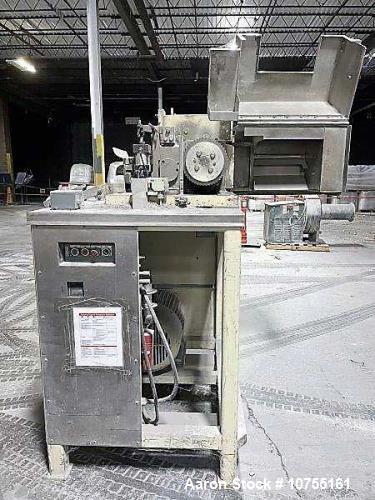

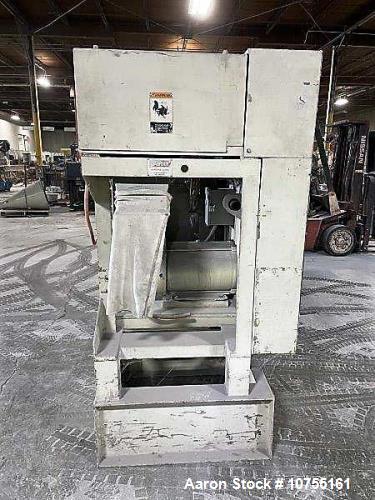

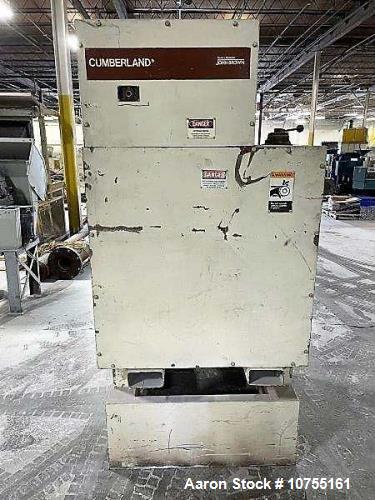

🔄 Pelletizer

• Brand/Model: Cumberland Quietizer

• Rotor: Solid helical

• Diameter: 11”

• Motor: 25 HP A/C

• Inverter: Yaskawa V1000

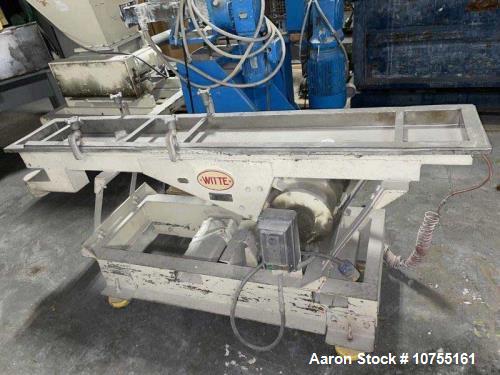

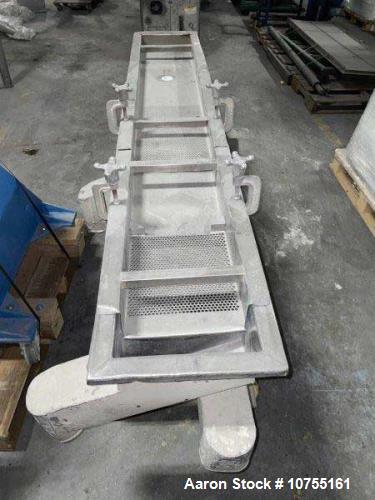

🧹 Screener

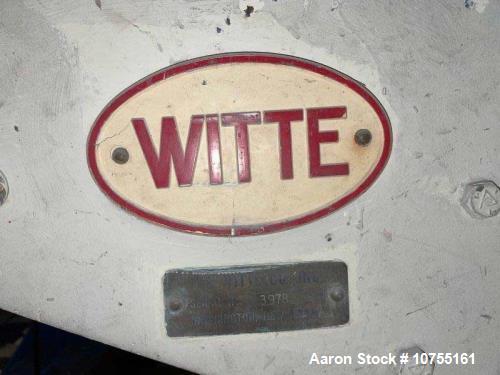

• Manufacturer: Witte

• Dimensions: 10” x 72”

• Decks: Two

🧩 Note:

• Extruder screw not included

🧩 Applications

Perfect for:

• Polyolefin pellet production

• Masterbatch compounding

• Recycled plastic pelletizing

• Thermoplastic resin pelletizing

• Color concentrate production

• Filler and additive blending

• PVC, PE, or PP strand pellet production

• Custom compounding lines

• R&D and contract pelletizing

• Extrusion-pelletizing operations in recycling plants

📌 Used For Producing

• Recycled PE or PP pellets

• Color masterbatch pellets

• Thermoplastic elastomer pellets

• PVC compound pellets

• Custom filled resins

• Mineral-filled polyolefins

• Repro resin granules

• Flame-retardant pellets

• High-density compound pellets

• Flexible packaging materials in strand form
