Used Krauss Maffei Process Equipment
Stock No.:
42816Used Krauss Maffei Peeler Centrifuge
Used- Krauss Maffei Peeler Centrifuge, Model HZ40. Material of construction 316 stainless steel (1.4580va) on product contact area. 15.6" (400mm) Diameter bowl. 3000 rpm. Approximately 11 hp (7.5 kw) drive motor. Mounted on stand. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
MFR: Krauss Maffei
Stock No.:

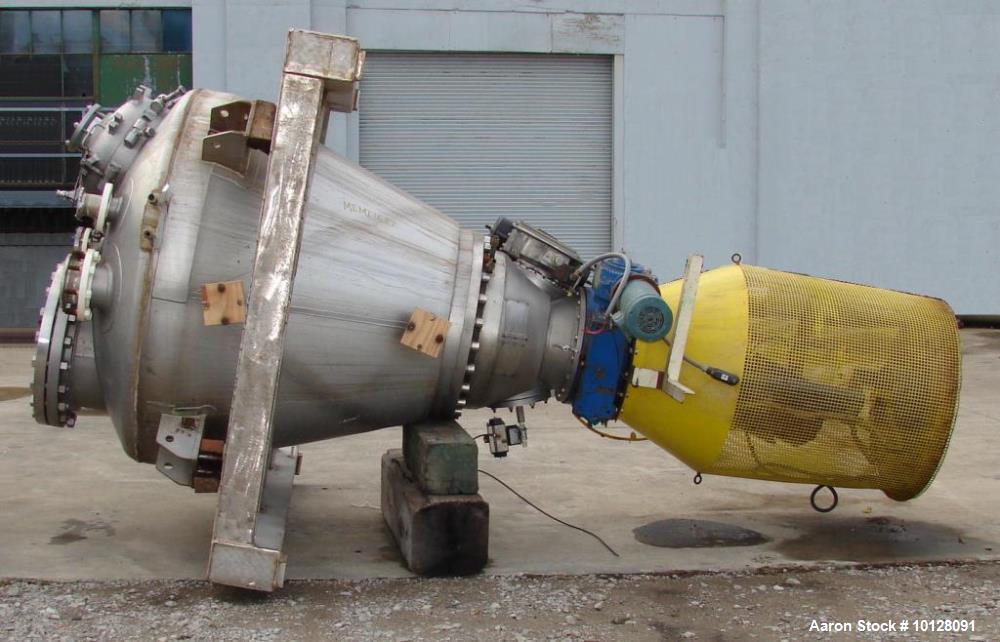

10128091Used Krauss-Maffei MT 1/200 Vacuum Mixer Dryer – 316L SS | 49.43 cu.ft. | Full Vacuum | 10 HP Orbiting Screw
Used- Krauss Maffei Mixer Vacuum Dryer MT. Model MT 1/200. Serial # 7098. National Board # 21424. Constructed of 316L stainless steel. Interior has polished surface. Conical vessel has a capacity of 49.43 cuft with working volume of 35.3 cuft. Dryer uses an 8" diameter inclined orbiting screw, driven by a 10 hp drive to gently agitate product while drying. Can dry particles up to 5 mm in size. Vessel is rated for Full Vacuum/150 psi @ 450 f on jacket and internal. Acutal drying temperature maximum is 302 f. The top has an 18" manway with 6" sight glass, 18" flanged fitting, 4" sight glass, (2) 3" flanged fittings, (2) 2" flanged fittings, 6" flanged fittings and (2) 1" threaded fitting for the top jacket. The side has (2) 2" flanged fittings for the body jacket. The bottom has a 10" flanged discharge fitting with pneumatically operated flush mount valve and (2) 1" threaded fittings for bottom jacket.
MFR: Krauss Maffei
Stock No.:
53459037Used KraussMaffei Berstorff ZE 52-48D Twin Screw Extruder – 52.2 mm Co-Rotating Extruder, 350 kW, 1.2 TPH Capacity
Used- KraussMaffei Berstoff ZE 52-48D Twin Screw Extruder with a capacity 1.2 tonnes per hour (depending on product). (2) 52.2 mm diameter side by side screws, 48:1 L/D ratio, 12 total barrel sections, electrically heated water cooled. Driven by a 350 kw( 525 hp) 3 x 400 volt/50cycle/3ph AC drive motor via a Eisenbeiss ZE-042,5-16,0 gear box. Screw speed maximum 1200 RPM. Frame mounted, (1) Side feeder, (1) Control panel. New year 2018. Serial # 90205420-0010-2018. Previously used in a compounding application.
MFR: Krauss Maffei
Stock No.:

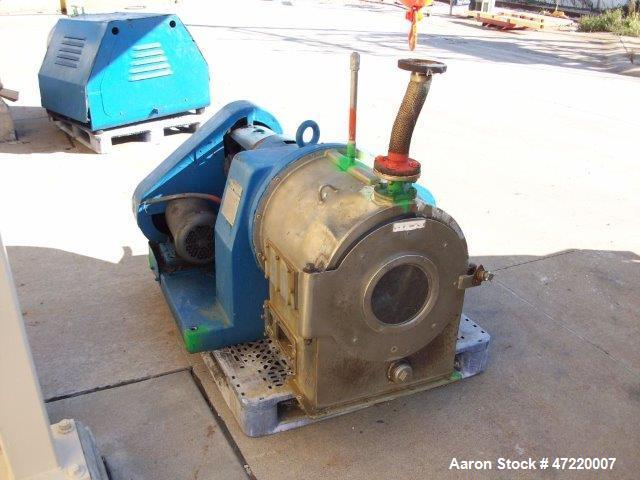

47220007Used Krauss Maffei SZ-21 Industrial Pusher Centrifuge – 250mm Basket | 316 Stainless Steel
Used Krauss Maffei Pusher Centrifuge, Model SZ-21, T316 Stainless Steel. 250mm diameter single stage cylindrical basket. ADM speed 2900, ADM density kg/CBM 1700, ADM filling 10 KGS. Equipped with 7.5 HP motor, 230-460/3/60.
MFR: Krauss Maffei
Stock No.:

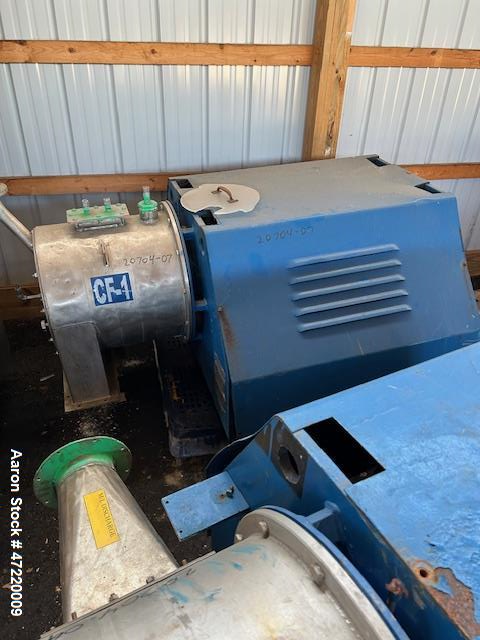

47220009Used Krauss Maffei SZ-21 Pusher Centrifuge – 316 Stainless Steel, 250mm Basket
Used- Krauss Maffei Model SZ-21 Pusher Centrifuge, 316 Stainless Steel. 250mm diameter single stage cylindrical basket. ADM density kg/CBM 1700, ADM load 9 kg. Equipped with 7.5 HP motor, 230-460/3/60. 2400 rpm.
MFR: Krauss Maffei
Stock No.:
52102001Industrial Twin Screw Extruder – Krauss Maffei Model KMD90, Electrically Heated, Oil Cooled Barrel
Used- 90mm Krauss Maffei Model KMD90 Counter-Rotating Twin Screw Extruder, 20:1 L/D. Has electrically heated oil cooled barrel. Driven by 40HP DC motor with SCR control. Includes temperature control panel.
MFR: Krauss Maffei
Stock No.:

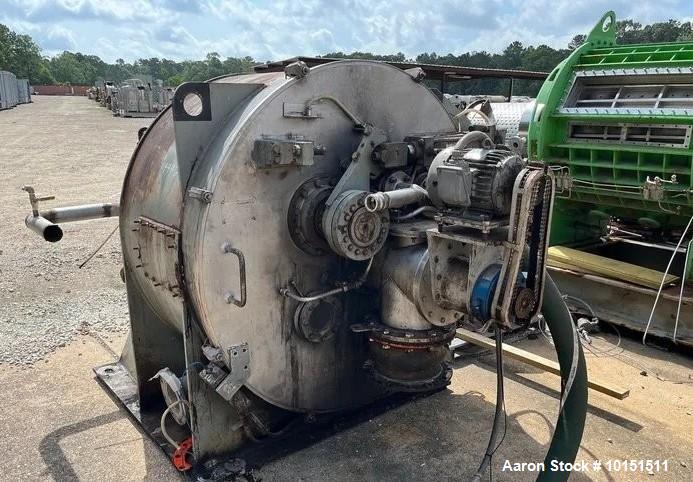

101515111250mm Krauss Maffei 316 Stainless Steel Horizontal Peeler Centrifuge
Used- 1250mm Krauss Maffei 316 Stainless Steel Horizontal Peeler Centrifuge, Model HZ125/2.5 Si. Siphon type peeler; 2.46 square meters filter area; 323.6 liters nominal basket volume; 60 hp main drive; 2 hp hydraulic pack.
MFR: Krauss Maffei
Stock No.:

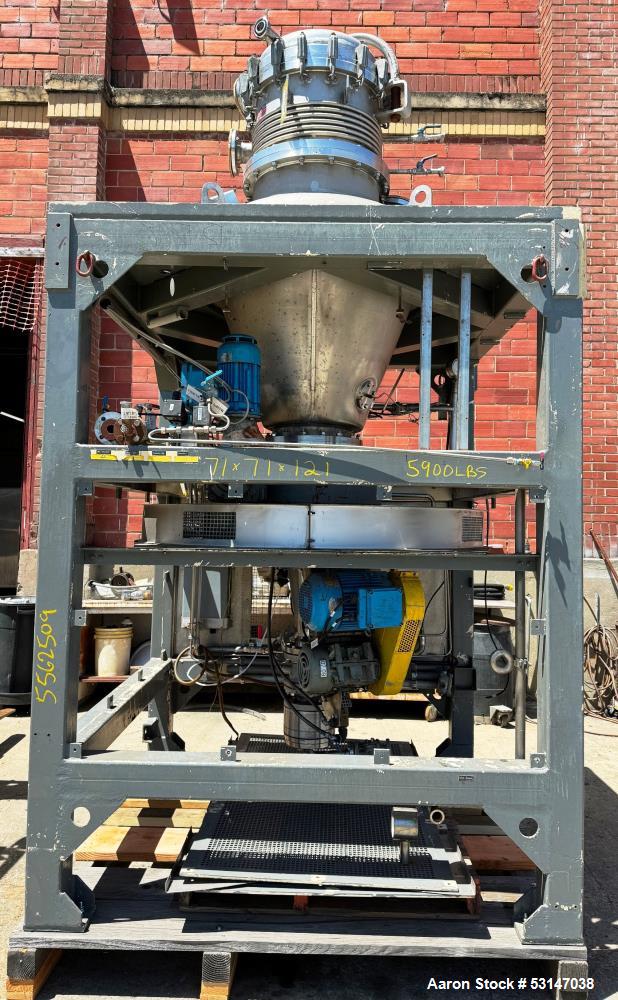

53147038Used Krauss Maffei Conical Dryer Model TMD 0.25/160 – Stainless Steel 316Ti, ATEX
Used Krauss Maffei Conical Dryer, Model TMD 0.25/160 "Titus-Mixer-Dryer," constructed from stainless steel 1.4571 (316Ti). This unit features a working pressure of 3 Bar (43.5 PSI) (vacuum possible), jacket working pressure of 6 Bar (87 PSI), and a capacity of 380 Liters (useful capacity 250 Liters). The cone measures 1016mm (40") in diameter and 1066mm (42") in height, with a dished top and a jacketed mixing screw (6 Liters). Powered by a 4.0 kW + 1.5 kW motor, 380 Volt (explosion-proof), and a jacket volume of 96 Liters. It operates at a maximum temperature of 165C and has a 150mm (6") bottom outlet. Manufactured in 1995, the dryer is mounted on a frame, includes switchgear, and is ATEX compatible. Dimensions are 2.0m x 2.0m (6.6' x 6.6') with a total height of 3.5m (11.5'), weighing 2650 KG. Serial Number 7005/742904/3.
MFR: Krauss Maffei
