Used Quadrel Process Equipment

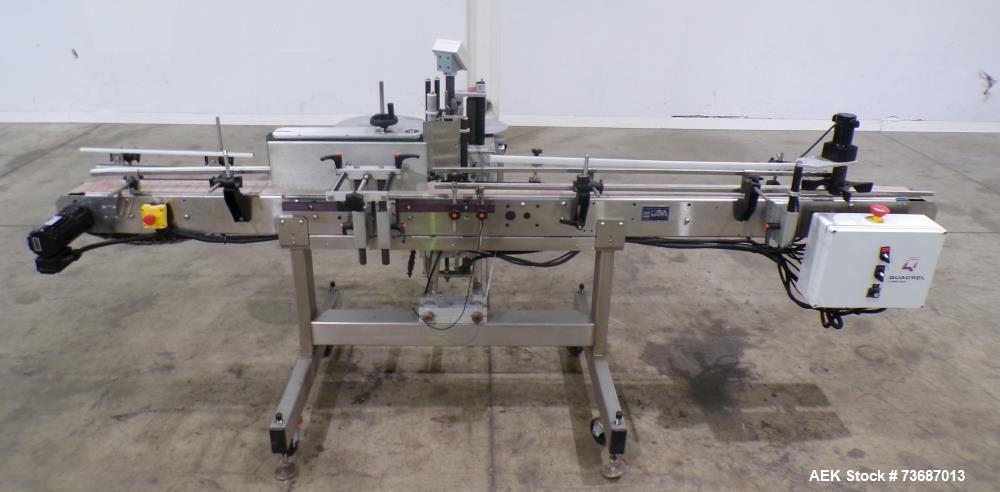

Used Quadrel Moduline 3-Panel Labeling System with Q55 L.H. Labeling Head and Adjustable Conveyor

Used- Quadrel Model Moduline 3-Panel, Quadrel Q55 L.H. Labeling Head. Adjustable height. 7.5 in. tall plate, currently set up to run 4 in. tall labels, pneumatic flaps for labels. Plastic table-top chain conveyor, 120 in. long x 4.5 in. wide x 34 in. tall. Top hold down belt, 36 in. long x in. wide, adjustable height. Includes pacing with adjustable speed control. Control panel with conveyor on/off, main power on/off, pace speed control. SS frame, on casters, with adjustable legs. Electrical requirements 220-volt, 1 phase, 6 amp, 60 hz.

MFR: Quadrel

Quadrel Econoline Pressure Sensitive Wrap Labeler — Rated to 150 Containers/Min

Used- Quadrel Model Econoline 4 Panel Wrap Pressure Sensitive wrap labeler. 4.5"W x 10"L conveyor, Rated up to 150 cpm, Norwood thermal date coder, 6.5" max label height, 22"L wrap belt, top hold down, 14" max container height, variable speed. 16" label reel with 3" core. Elec: 1/50/60/220V. Overall dimensions: 124"L x 55"W x 65"H.

MFR: Quadrel

Unused Quadrel ZDT ProLine Zero-Downtime Wraparound Labeler

Unused Quadrel ProLine Series Model ZDT servo-driven zero-downtime wraparound pressure-sensitive labeler, built in 2021 and never put into production. The system features two redundant 7" high label heads for continuous labeling operation, a wrap station with top hold-down, wormscrew container infeed, and 4-1/2" wide conveyor belt. Maximum label height is 6-7/8" with stated labeling accuracy of plus or minus 1/32" and label dispensing speeds up to 3,000" per minute. Each label head accepts a 16" outside-diameter label reel with a 3" diameter core. Controls include an Allen-Bradley CompactLogix MicroLogix 1400 PLC, Delta DOP-110WS HMI, and Nidec Control Techniques Commander and Epsilon EP drives. Electrical requirements are 220 volts, 1 phase, 60 hertz. Serial number 83288-100. Overall dimensions are 175" long x 68" wide x 96" tall. Possible applications include high-speed, continuous wraparound pressure-sensitive labeling of suitable bottles, jars, cans, and other round containers.

MFR: Quadrel

Used- Quadrel Labeling Systems Labeler. Model Moduline 3 Wraparound Pressure Sensitive Labeler. Plastic table-top chain conveyor, 120 in. long x 4.5 in. wide x 34 in. tall.

MFR: Quadrel
