Used Chicago Blower Process Equipment
Stock No.:

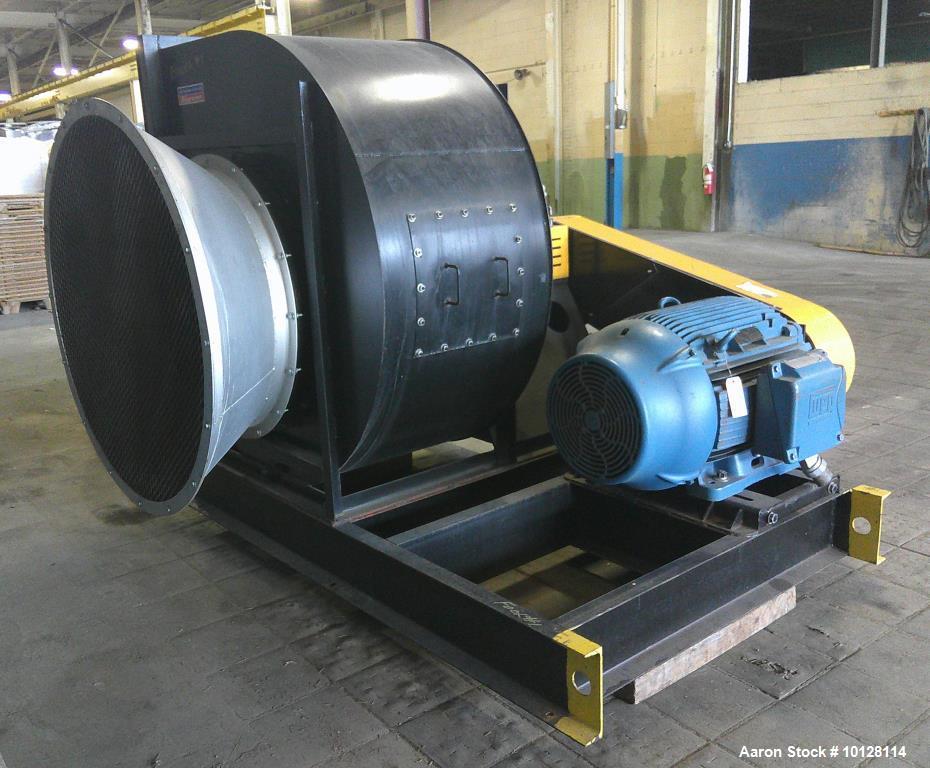

10128114Used Chicago Blower Size 365 Centrifugal Fan Blower | 125 HP Industrial Air Handling System
Used Chicago Blower Size 365 Centrifugal Fan Blower | 125 HP Industrial Air Handling System. Up to 36,000 acfm @ 15.5" wg SP. Serial number 308228. Inlet 40" diameter with cone to 54" diameter. Outlet 40" x 28"". Overall size 68" wide x 100" tall x 122" long. Motor 125 HP. Electrical power 460 vac 3 phase.
MFR: Chicago Blower
Stock No.:

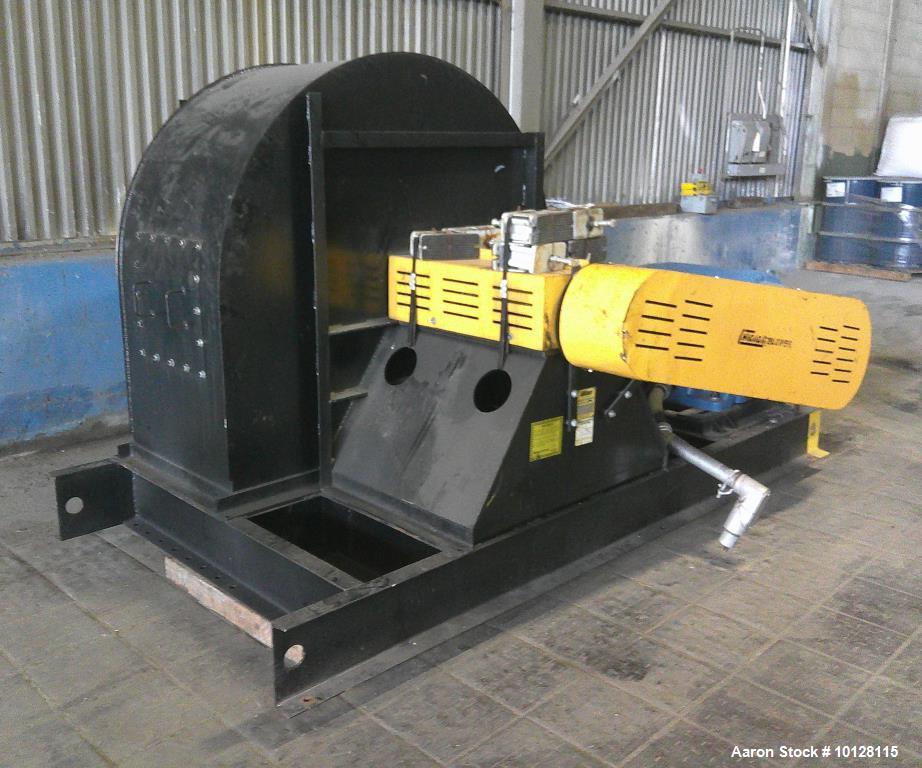

10128115Used Chicago Blower Size 365 Centrifugal Fan Blower | 125 HP Industrial Air Handling System
Used Chicago Blower Size 365 Centrifugal Fan Blower | 125 HP Industrial Air Handling System. Up to 36,000 acfm @ 15.5" wg SP. Serial number 308228. Inlet 40" diameter with cone to 54" diameter. Outlet 40" x 28"". Overall size 68" wide x 92" tall x 122" long. Motor 125 HP. Electrical power 460 vac 3 phase.
MFR: Chicago Blower
Stock No.:

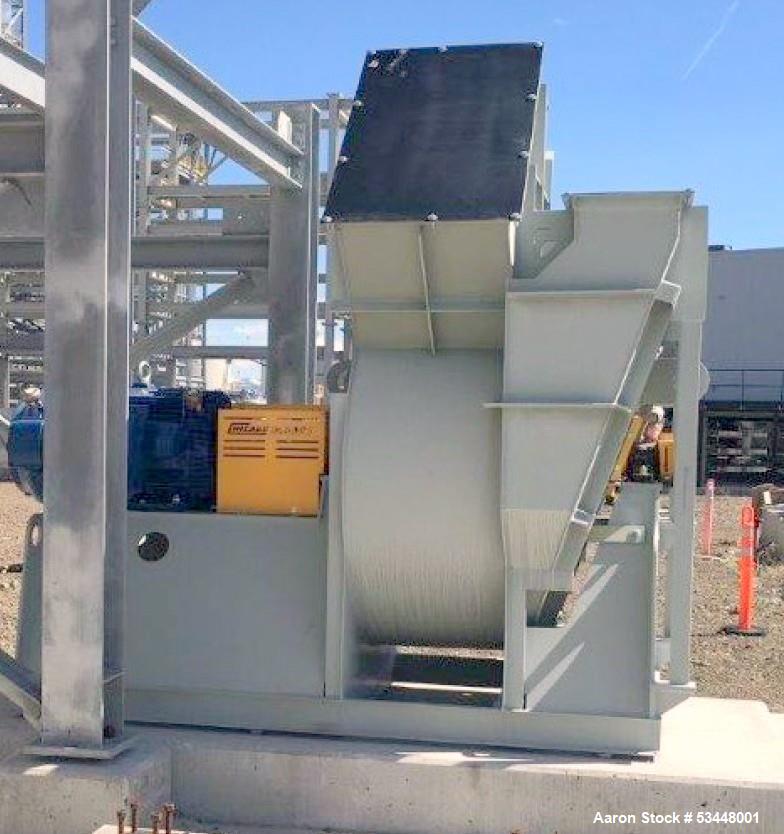

53448001Used Chicago Blower Recycle Heater FD Fan – 150 HP, Heavy-Duty Industrial Fan
Used- Chicago Blower Recycle Heater FD Fan (200-KB-101). Includes: FAN; 4014D/1904, Heavy Duty, airfoil blade wheel, Arr 7Si, with inlet box at 0 position, TH or BH discharge, CW rotation, 110% width. MOTOR; 150 HP, 1800 RPM, 447T frame, TEFC, 460,3,60 Hz - variable torque, IEEE-841. Insulated DE and NDE bearing, 120V space heater winding RTD's (2/Phase) and Bearing RTD's in common JB. SILENCER; Aeroacoustic SilentFlow Model IB, Vertical, lifting lugs, inlet screen, rainhood, and velocity tube. ADDED; Vibration Probe/Switch, Metrix Model ST5491E-021-002-00 -LCD INDICATOR, LOOP POWERED -4-20 mA OUTPUT PROPORTIONAL TO VELOCITY -INTERFACES W/ PLC, DCS & 4-20mA MONITORS -1 IPS FULL SCALE RANGE -1/4" NPT MOUNTING STUD -CSA/NRTL/C FOR CLASS I, DIV 1, GRPS C-D AND CLASS II, DIV 1, GRPS E-G -4-20MA FLYING LEADS CONNECTION -STANDARD HIGH(1500HZ), LOW(2HZ) FILTERS, (2) 1-1/2" 300# plugged TW connections to the inlet silencer. Built 2020.
MFR: Chicago Blower
Stock No.:
10128113Used Chicago Blower Size 300 Centrifugal Fan | 60 HP Industrial Blower System
Used Chicago Blower Size 300 Centrifugal Fan | 60 HP Industrial Blower System. Size 300. Rated up to 18,000 cfm @ 15.3 SP. Serial number 308227. Inlet 30" diameter with cone to 42" diameter. Outlet 32" x 23.5"" with damper. Overall size " wide x " tall x " long. Motor 60 HP. Electrical power 230/460 vac 3 phase. OAL dimensions 84" wide x 80" long x 71" tall.
MFR: Chicago Blower
