Used Gea-Niro Process Equipment
Stock No.:
53462011Used GEA Niro Soavi NS3037H Homogenizer | 6,000 LPH Stainless Steel Dairy Homogenizer
Used GEA Niro Soavi NS3037H Homogenizer | 6,000 LPH Stainless Steel Dairy Homogenizer. Designed for 6000 liter (1587 US-Gallon) per hour with a max pressure of 100 BAR (1500 PSI). Single stage. Puppet Valves. 30 Kw-400volt/50cycle/3Ph motor. Incl. Oil pumping system inside the unit. Control panel mounted on unit. Overall dimensions: 2300 mm (7'5") long x 1520 mm (4'9") width x 1550 mm (5'1") high. Weight 2 tonnes. Last used in dairy application. Serial # 5162 New year 2003. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
MFR: Gea-Niro
Stock No.:
10749128Used 304L Stainless Steel 1st Stage Crystallizer. 3000 Gallons Capacity
Used- 304L Stainless Steel 1st Stage Crystallizer. 3000 Gallons Capacity, 6'6" diameter x 9'6" T/T. 304L Stainless Steel Shell Material, 304L Stainless Steel (Sanitary Polished Internal) Jacket Material. Vertical. 43.5 psi @ 203 deg. F. both shell and jacket. Mfg. by SRI (Special Restvrijstaal Industrie BV) Designed by GEA Messo PT. Built in 2013. Flanged bolted dished top and welded dished bottom heads. On skirt and leg supports. Conventional jacket type. With center top mounted, internal sweep side scraper and internal bottom mounted shaft steady bearing agitator. Nozzles are sanitary clamped. ALLOY : S; GALLONS : 3000; DIA/WIDTH (FT'IN") : 6'6"; LENGTH (FT'IN") : 9'6"; SHELL PSI : 43.5; SHELL TEMP DEG. F : 203; V/H : V; SHELL MATERIAL : 304LSS; CODE : NB; WALL : 15/32"; JKT/COIL PSI : 43.5; JKT/COIL TEMP DEG. F : 203; JKT/COIL MATERIAL : 304LSS SANITARY POLISHED INTERNAL; AGITATED Y/N : Y; TOP HEAD : FLANGED BOLTED DISHED; BOTTOM HEAD : WELDED DISHED;
MFR: Gea-Niro
Stock No.:
10749131Used 3000 Gallon Stainless Steel 1st Stage Crystallizer
Used- 3000 Gallon Stainless Steel 1st Stage Crystallizer, 6'6" diameter x 9'6" T/T. 304L Stainless Steel Shell Material, 304L Stainless Steel (Sanitary Polished Internal) Jacket Material. Vertical. 43.5 psi @ 203 deg. F. both shell and jacket. Mfg. by SRI (Special Restvrijstaal Industrie BV) Designed by GEA Messo PT. Built in 2013. Flanged bolted dished top and welded dished bottom heads. On skirt and leg supports. Conventional jacket type. With center top mounted, internal sweep side scraper and internal bottom mounted shaft steady bearing agitator. Nozzles are sanitary clamped. ALLOY : S; GALLONS : 3000; DIA/WIDTH (FT'IN") : 6'6"; LENGTH (FT'IN") : 9'6"; SHELL PSI : 43.5; SHELL TEMP DEG. F : 203; V/H : V; SHELL MATERIAL : 304LSS; CODE : NB; WALL : 15/32"; JKT/COIL PSI : 53.5; JKT/COIL TEMP DEG. F : 203; JKT/COIL MATERIAL : 304LSS SANITARY POLISHED INTERNAL; AGITATED Y/N : Y; TOP HEAD : FLANGED BOLTED DISHED; BOTTOM HEAD : WELDED DISHED;
MFR: Gea-Niro
Stock No.:
10749133Used 1st Stage Crystallizer – 3,000 Gallon, 304L Stainless Steel, Jacketed, Agitated
Used- 1st Stage Crystallizer. 3000 gallons, 6'6" diameter x 9'6" T/T. 304L Stainless Steel Shell Material, 304L Stainless Steel (Sanitary Polished Internal) Jacket Material. Vertical. 43.5 psi @ 203 deg. F. both shell and jacket. Mfg. by SRI (Special Restvrijstaal Industrie BV) Designed by GEA Messo PT. Built in 2013. Flanged bolted dished top and welded dished bottom heads. On skirt and leg supports. Conventional jacket type. With center top mounted, internal sweep side scraper and internal bottom mounted shaft steady bearing agitator. Nozzles are sanitary clamped. ALLOY : S; GALLONS : 3000; DIA/WIDTH (FT'IN") : 6'6"; LENGTH (FT'IN") : 9'6"; SHELL PSI : 43.5; SHELL TEMP DEG. F : 203; V/H : V; SHELL MATERIAL : 304LSS; CODE : NB; WALL : 15/32"; JKT/COIL PSI : 43.5; JKT/COIL TEMP DEG. F : 203; JKT/COIL MATERIAL : 304LSS SANITARY POLISHED INTERNAL; AGITATED Y/N : Y; TOP HEAD : FLANGED BOLTED DISHED; BOTTOM HEAD : WELDED DISHED;
MFR: Gea-Niro
Stock No.:
10288056Used GEA Niro Spray Dryer | 47" Chamber | Atomizing Nozzle | Jacketed Slurry Tanks w/ Mixers | Stainless Cyclone Collector
Used GEA Niro Spray Dryer | 47" Chamber | Atomizing Nozzle | Jacketed Slurry Tanks w/ Mixers | Stainless Cyclone Collector. 47" inside diameter, 31" straight wall, 32" cone bottom. Electric heater, atomizng Nozzle -sprays from the bottom with two stainless steel slurry tanks and mixers with inverters. Slurry tanks are jacketed with covers, baffles inside with Speedex feed pump, variable speed.Full control panel. Stainless steel cyclone collector and collection can.
MFR: Gea-Niro
Stock No.:

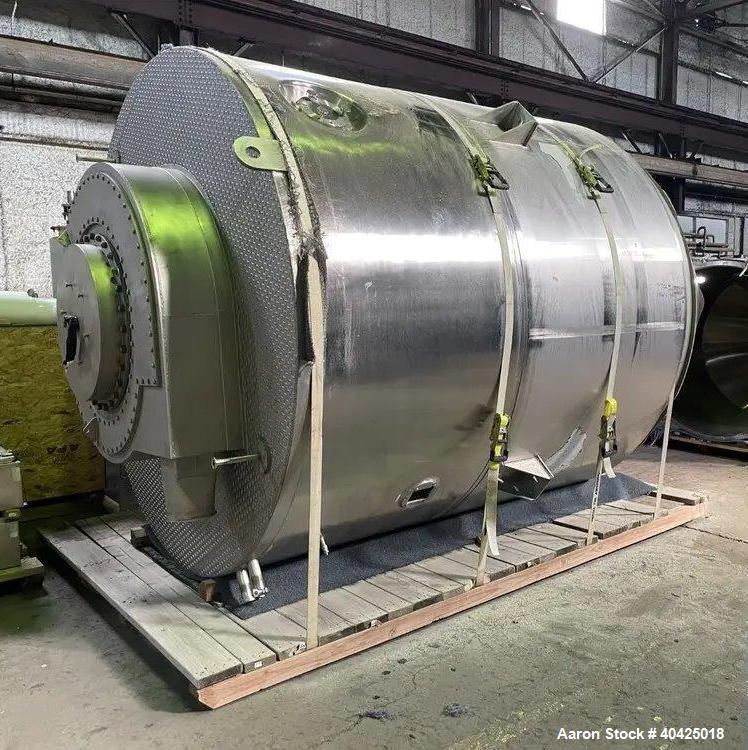

40425018Used GEA Niro PSD4 Stainless Steel Spray Drying System – Industrial Powder Dryer
Used- GEA Niro Sanitary Stainless Steel Spray Drying System. Consisting of: Model PSD4 GEA Niro spray dryer, approximately 8' inner diameter x 8'6" straight side x 8'9" deep cone bottom spray dryer chamber, 316 stainless steel product contact surfaces, mirror internal finish, with fluid nozzle and centrifugal rotary atomizers, approximately 17" diameter, sanitary stainless steel cyclone fines collector, approximately 6' diameter dust collector, sanitary stainless steel construction, pulse jet, cone bottom, set up for electric or steam heating with Watlow, 145 kw electric heater with external Hepa filter, air handler with steam coil and Watlow 37.25 kw electric heater, internal Hepa filter, designed for nitrogen purge, 7.5 hp process air supply blower, 7.5 hp process air return blower, set up for solvent recovery with condensor(less receiver pot), solution feed pump with Micro Motion flow meter, inter connecting pipe work from dryer, to dust collector and cyclone, GEA Niro control panel and HMI panel, 460 volt, 3 phase, GEA Niro fabrication# 099-0013-00, built 1999.
MFR: Gea-Niro
Stock No.:
10678047Used GEA Niro MSD800 Spray Dryer & Evaporation Plant | 5.2 TPH Fully Integrated Dairy System
Used- GEA Niro/TVR Fully-Integrated Evaporation and Spray Drying Plant. Model MSD800 Spray Dryer. 5.2 tons/hour nominal capacity. Suitable for dairy and related liquid concentration applications with TS up to 55%. Spray Dryer Features: Multi-stage spray dryer system (Compact design); Externally cladded drying chamber free of insulative material; X8 Spray nozzle atomization system; Complete with internal static fluid bed and external horizontal fluid bed for heating and cooling functions; GEA- designed and built bag house (powder filtration system); Air heating system including steam and electrical top-up heating; Powder handling equipment and discharge systems; Control panels fitted with frequency inverters. Rebuilt CDI-800 + BF in 2005 and GEA Baghouse replaced in 2007. Evaporator Features: Multi-stage falling film evaporator system; Configuration: 1x 3 stage MVR + 1x 5 Effect TVR & High Finisher; Mechanical Vapor Recompression (MVR); Thermal Vapor Recompression (TVR); Direct steam injection heating with regenerative section; Shell & tube pre-heater; Vacuum system complete with vacuum pumps; Configuration enables effective vapor reuse, reducing overall steam demand while maintaining stable product quality. Previously used in a dairy application.
MFR: Gea-Niro
Stock No.:
53979001Unused GEA HSD-01-06 Disc Stack Centrifuge
Unused: GEA HSD-01-06 Nozzle Disc Centrifuge, Stainless steel (product contact areas), max bowl speed 10,000 rpm (9500 x G force), four discharge nozzles, 1.0 L solids chamber capacity, temperature rating: 5-100C (41-212F), belt drive, drive motor, control.
MFR: Gea-Niro
Stock No.:

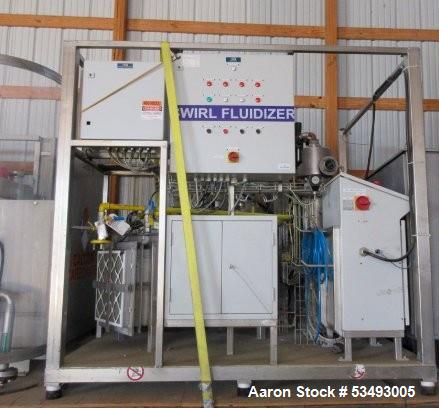

53493005Used GEA Niro Swirl Fluidizer Flash Dryer – 55 kg/hr Evaporation, Stainless Steel Skid
Used GEA Niro Swirl Fluidizer/Agitated Flash Dryer System designed for continuous drying of slurry, paste, and filter cake materials. System includes controls, an inlet air gas heater, and a stainless steel fluidizing slurry tank measuring approximately 3' diameter x 3' high with a bottom-mounted scraped-wall blade agitator and outlet to a screw conveyor. The complete system is mounted on an approximately 86" x 87" x 82" stainless steel skid for a compact installation. Operating specifications include an airflow capacity of 450 to 630 kg/hr, inlet air temperatures from 100 to 350 C, outlet air temperatures from 60 to 150 C, water evaporation capacity from 0 to 55 kg/hr, maximum powder production rate of 100 kg/hr, and maximum feed rate of 150 kg/hr. The system is configured for operation with natural gas or propane fuel and was built in 2009. Previously used for drying cellulose pastes prior to filtration.
MFR: Gea-Niro
