Used GEA Niro PSD4 Stainless Steel Spray Drying System – Industrial Powder Dryer

Manufacturer Information:

• Manufacturer: GEA Niro
• Model: PSD4 Spray Dryer
• Year of Manufacture: 1999
• Fabrication Number: 099-0013-00
• Voltage: 460V, 3 Phase

System Components & Specifications:

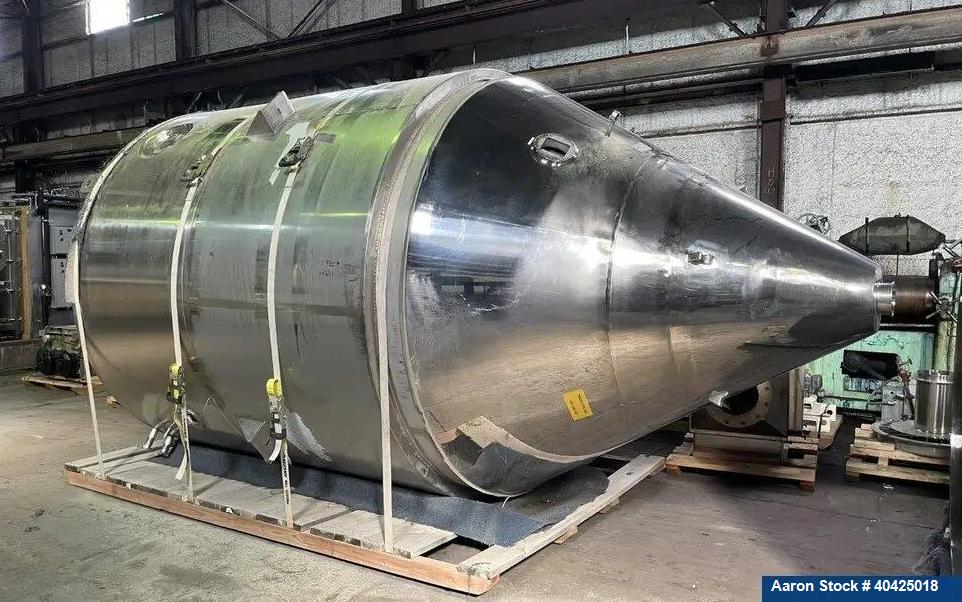

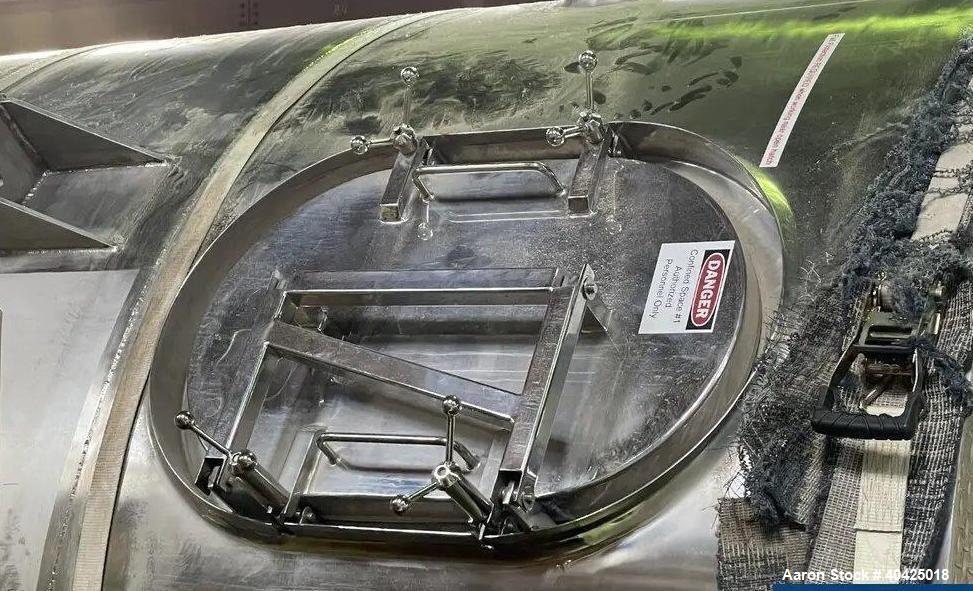

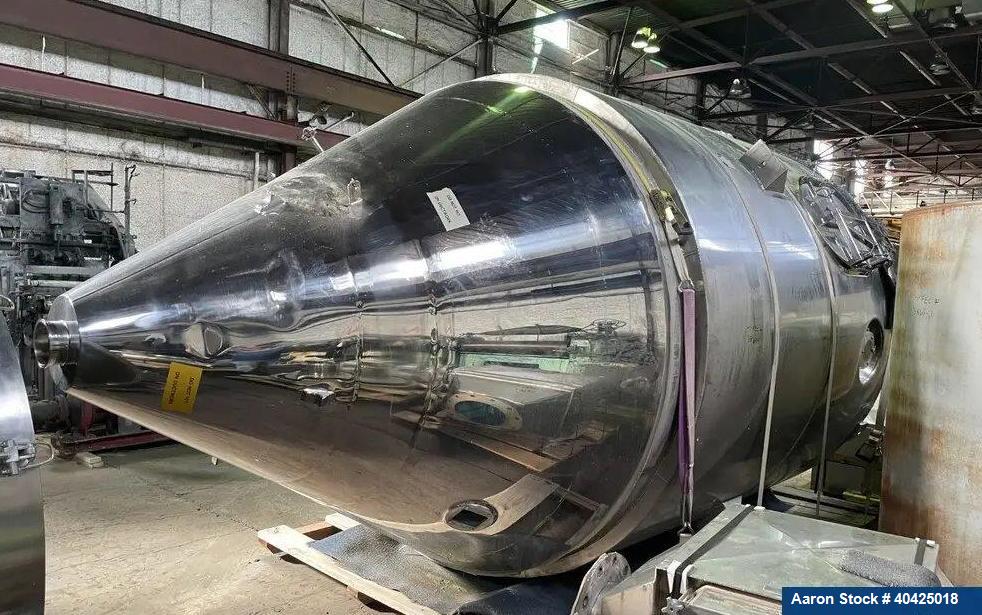

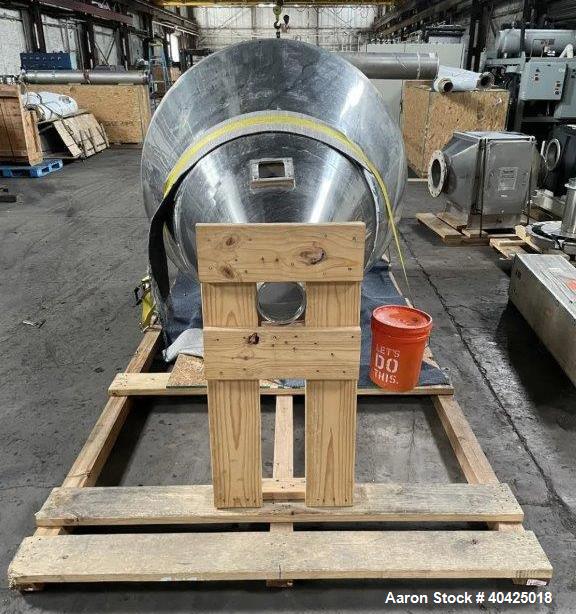

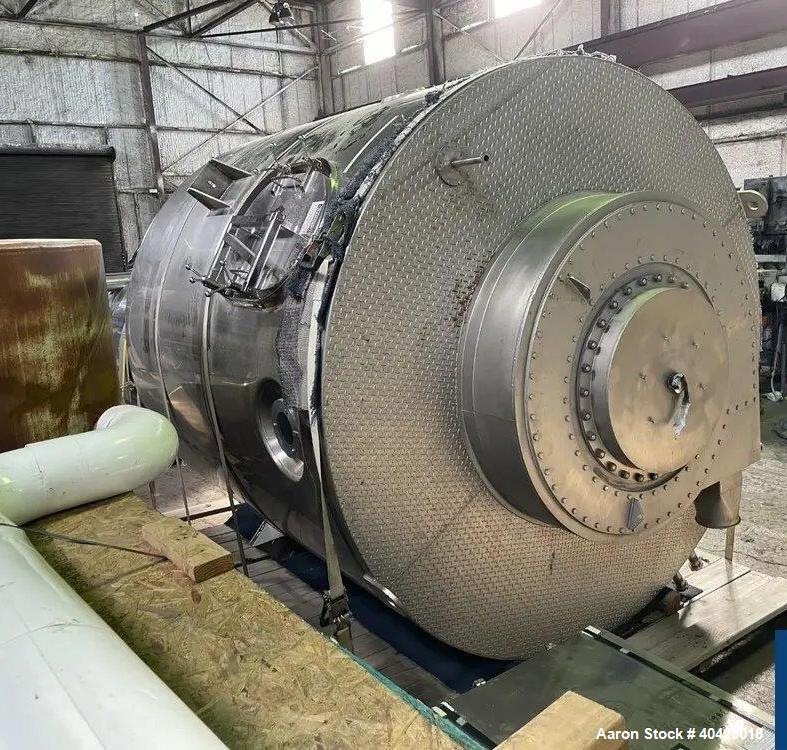

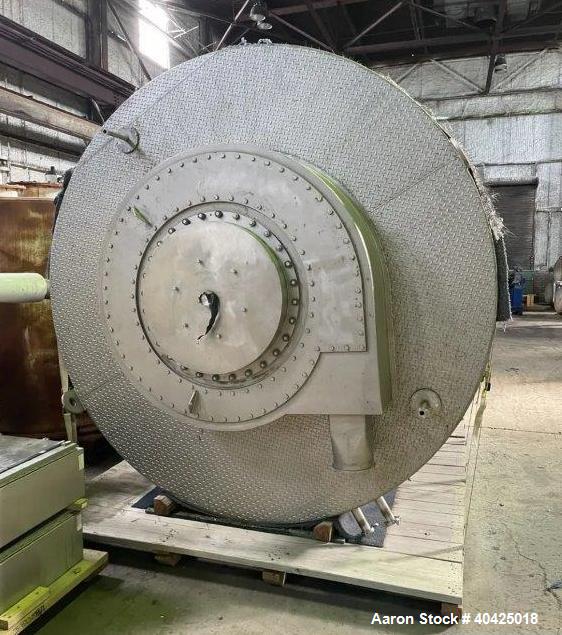

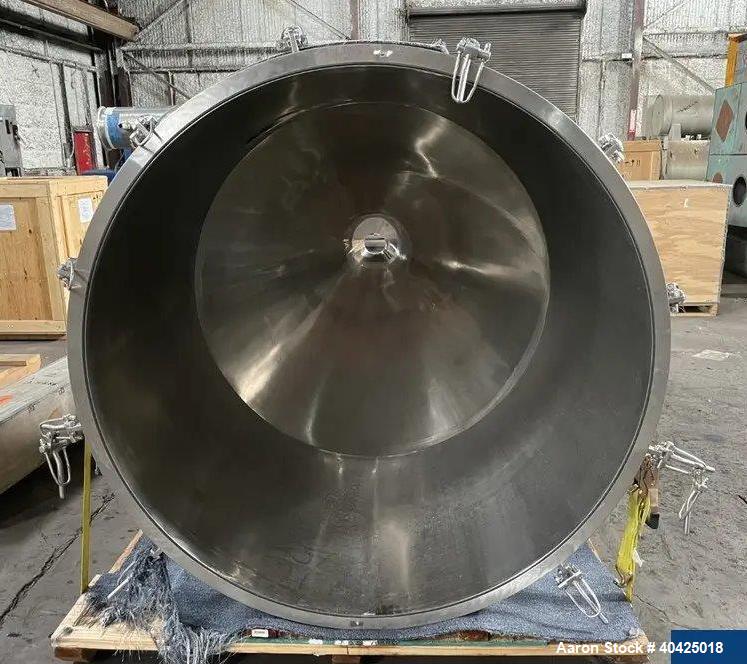

• Spray Dryer Chamber:

  • Diameter: 8’ inner diameter
  • Straight Side Height: 8’6”
  • Cone Bottom Depth: 8’9”
  • Material: 316 Stainless Steel (Product Contact Surfaces)
  • Finish: Mirror Internal Finish

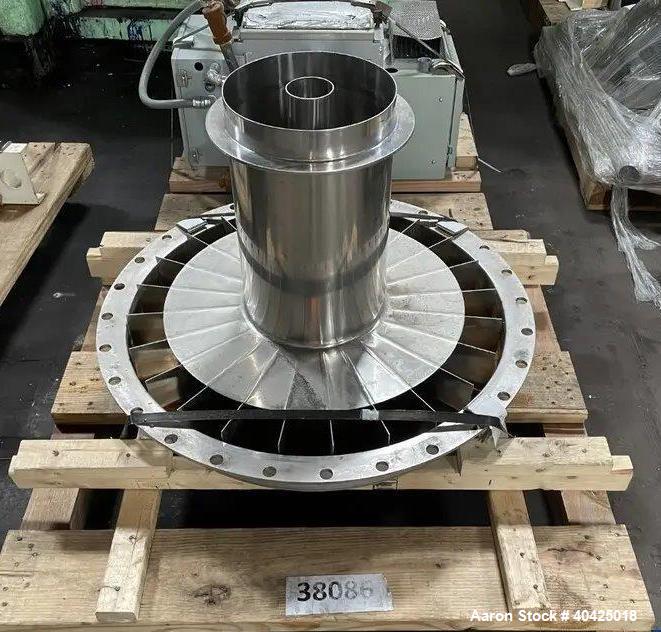

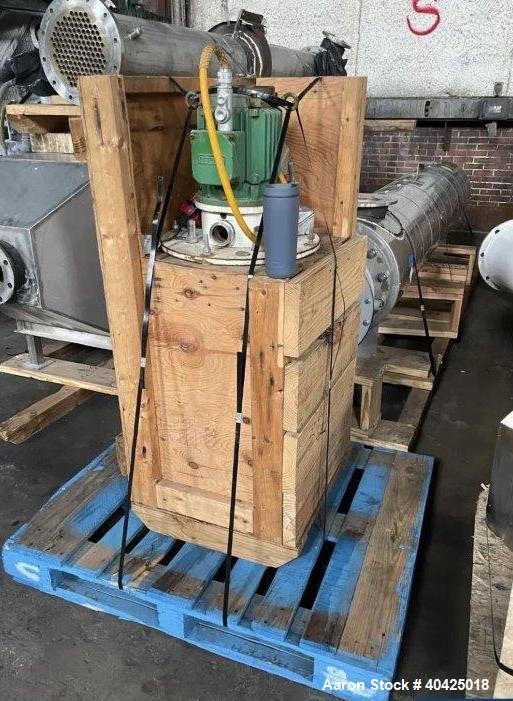

  • Atomization: Fluid Nozzle & Centrifugal Rotary Atomizers (Approx. 17” Diameter)

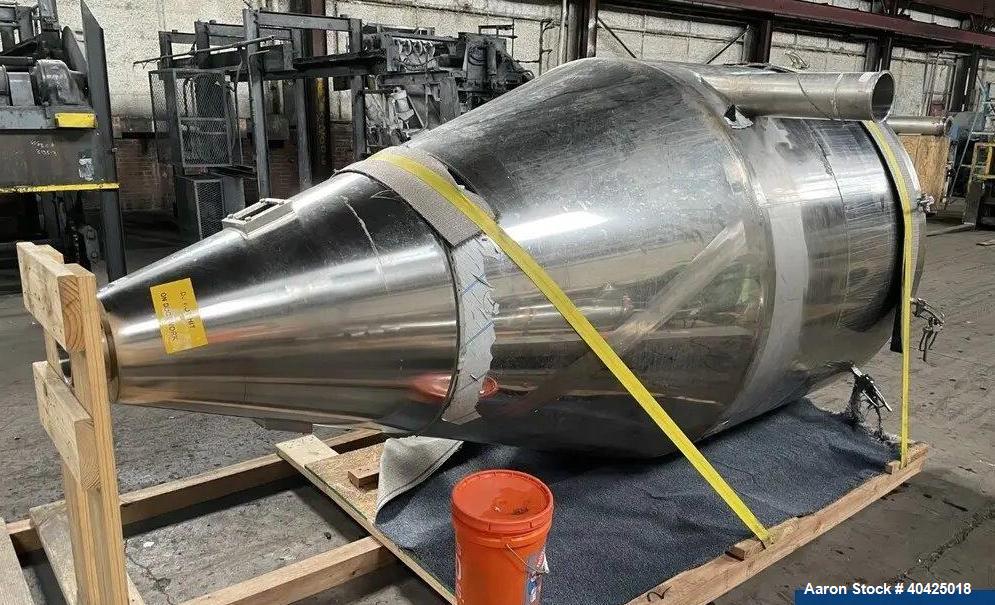

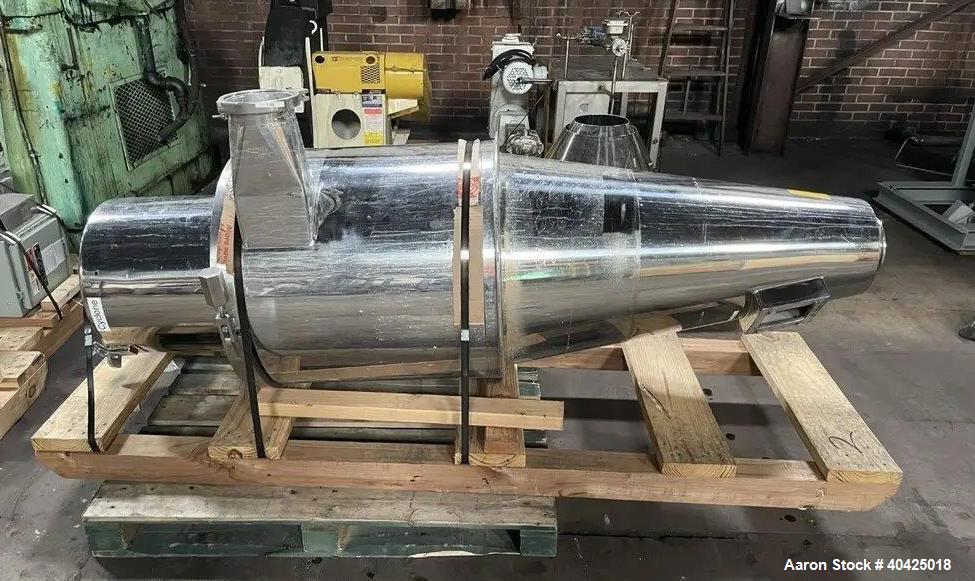

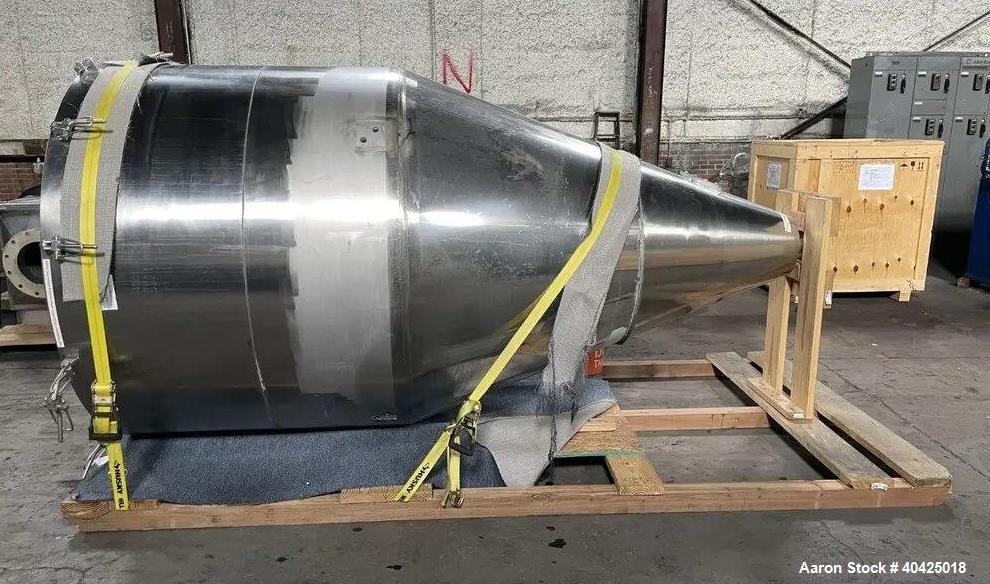

• Cyclone Fines Collector:

  • Diameter: Approx. 6'
  • Material: Sanitary Stainless Steel

• Dust Collector:

  • Material: Sanitary Stainless Steel Construction
  • Design: Pulse Jet, Cone Bottom

• Heating System:

  • Heating Options: Electric or Steam

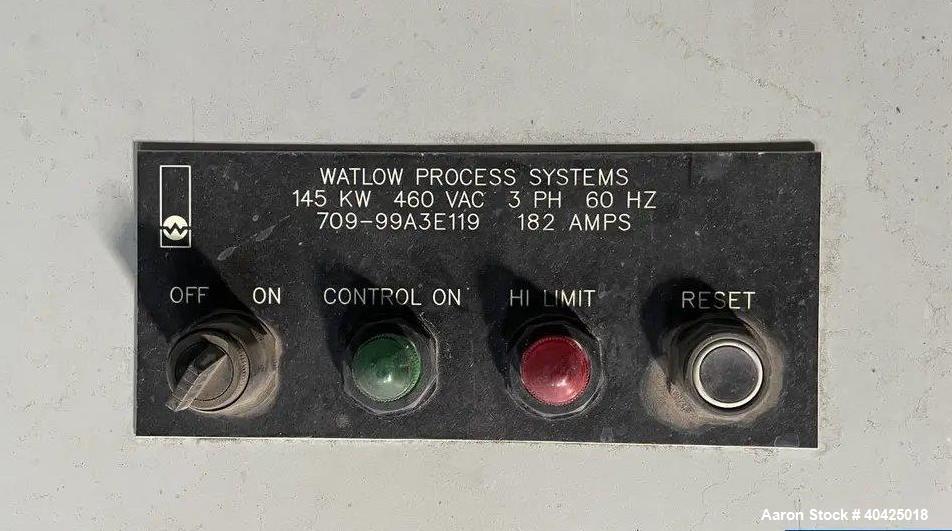

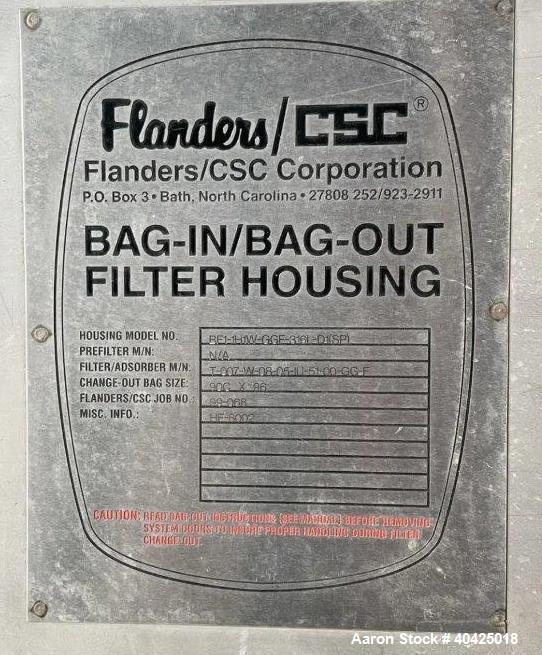

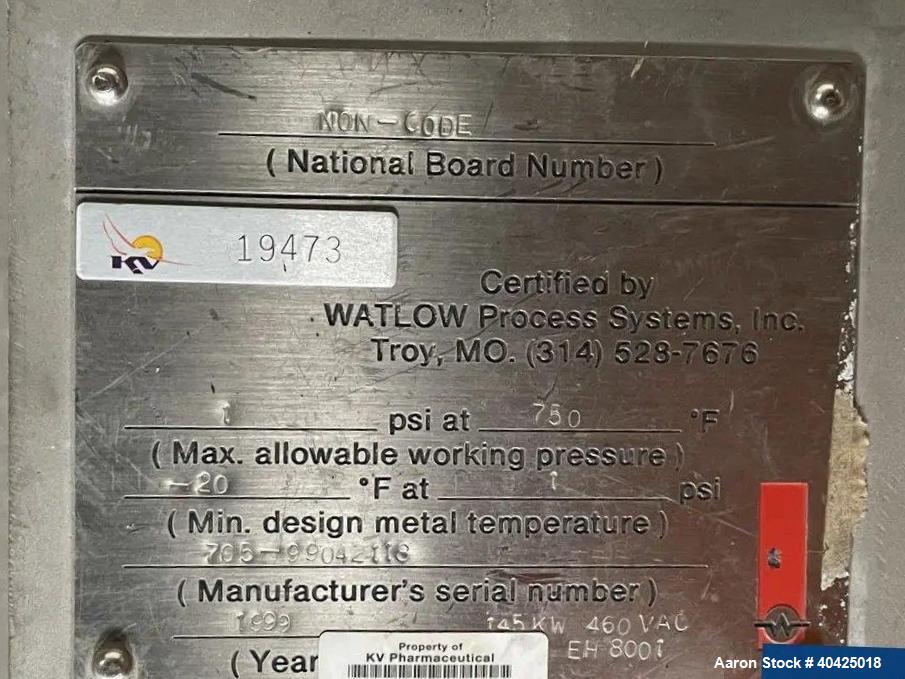

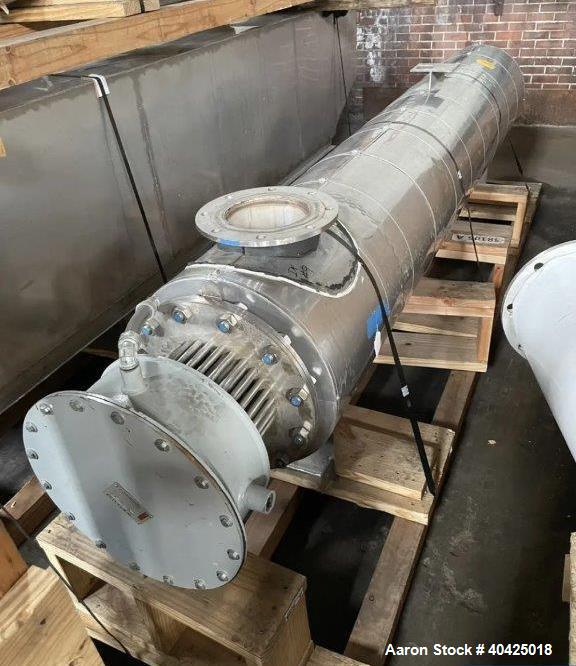

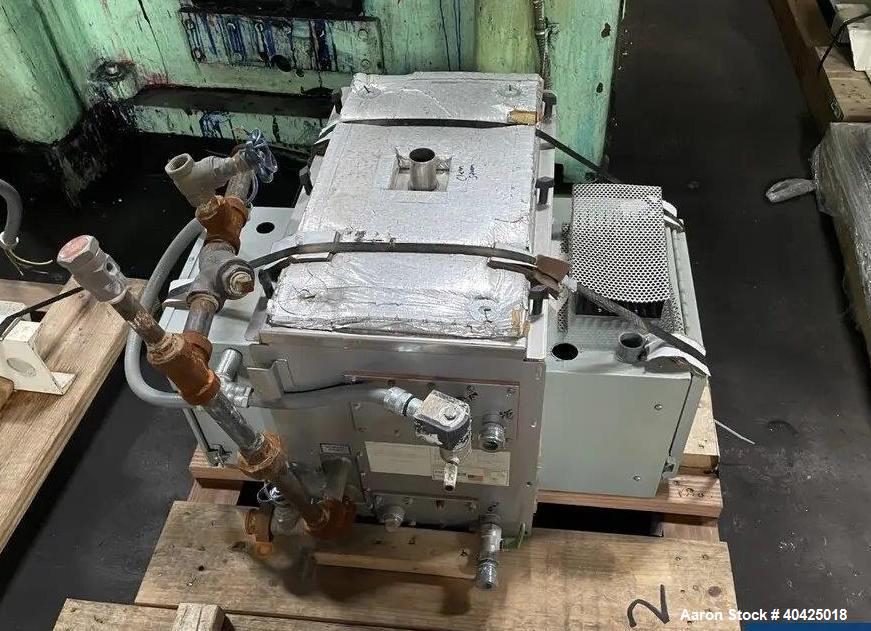

  • Watlow 145 kW Electric Heater with External HEPA Filter

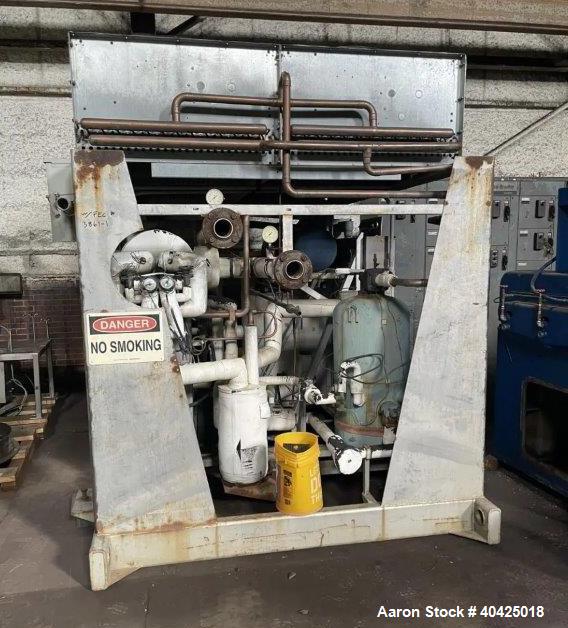

  • Air Handler: Steam Coil & Watlow 37.25 kW Electric Heater with Internal HEPA Filter

• Process Features:

  • Designed for Nitrogen Purge

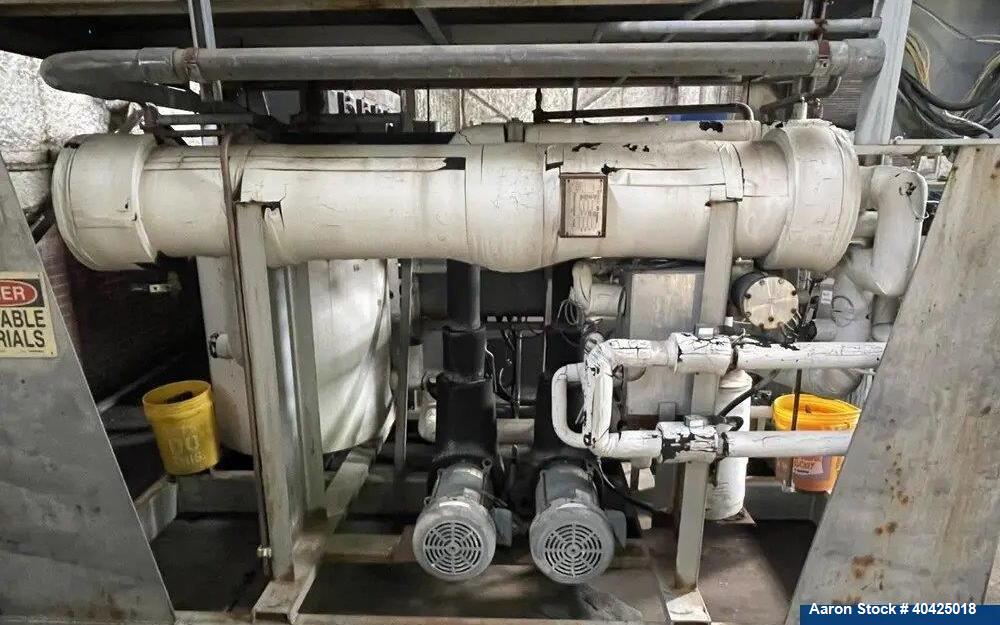

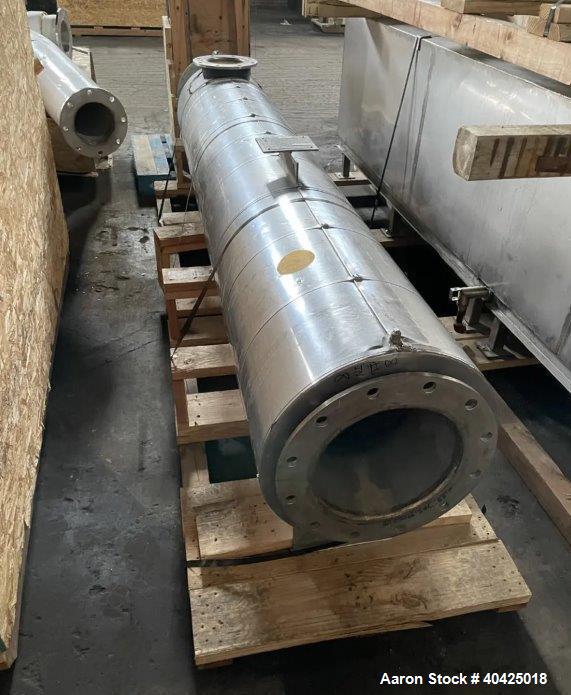

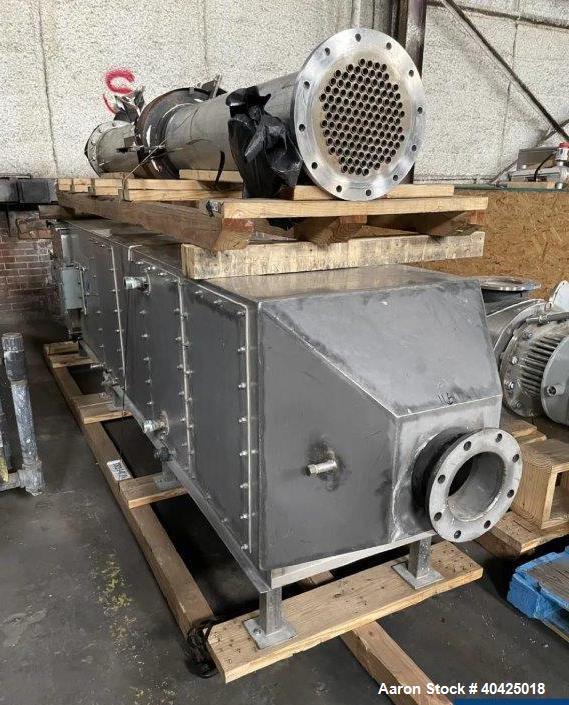

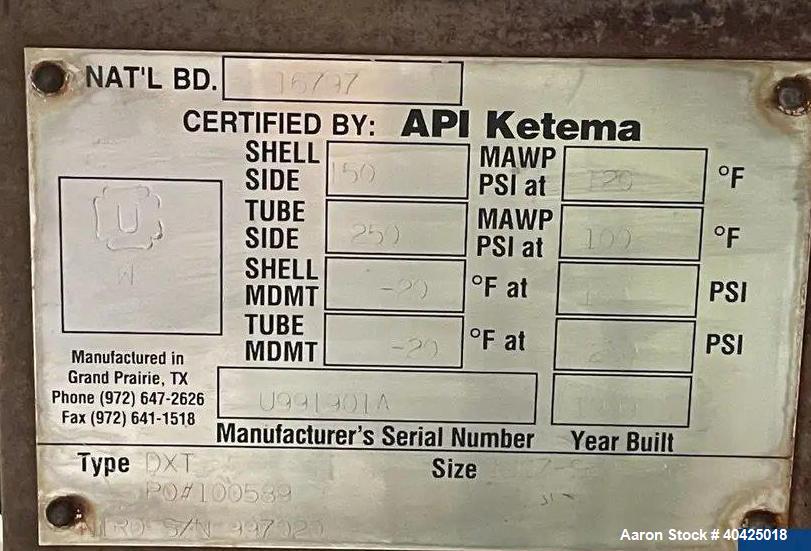

  • Solvent Recovery Capability (with Condenser, Less Receiver Pot)

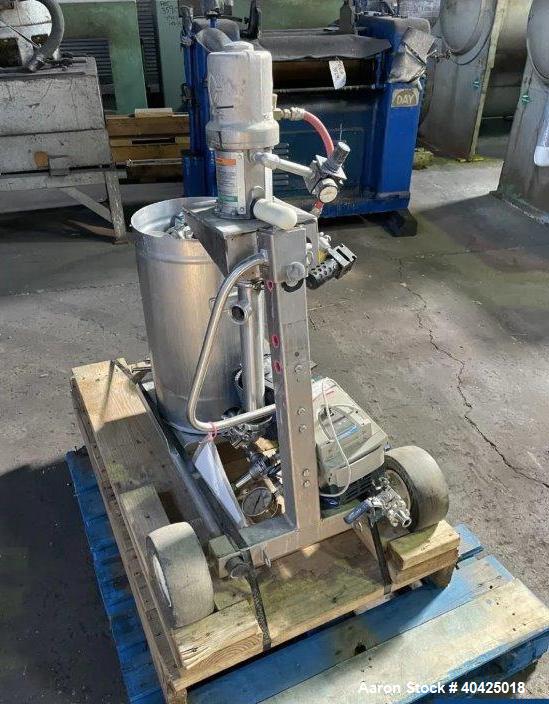

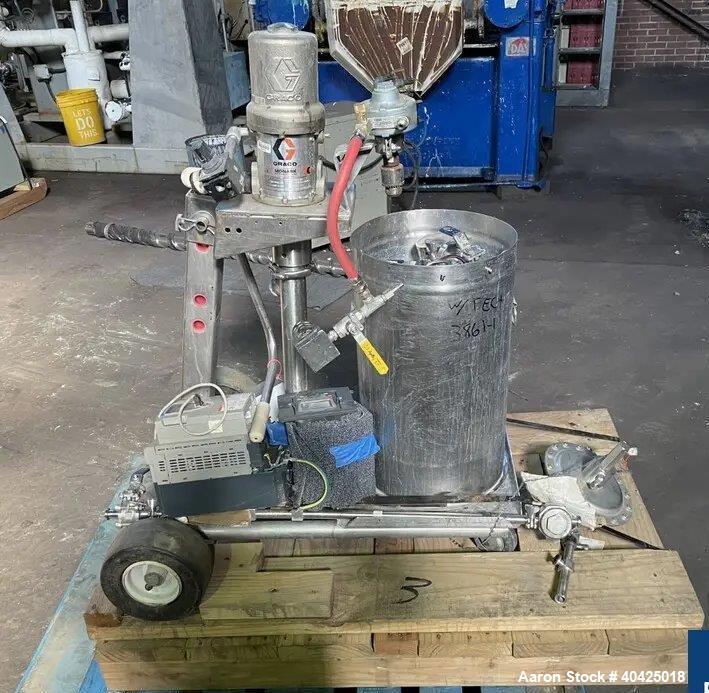

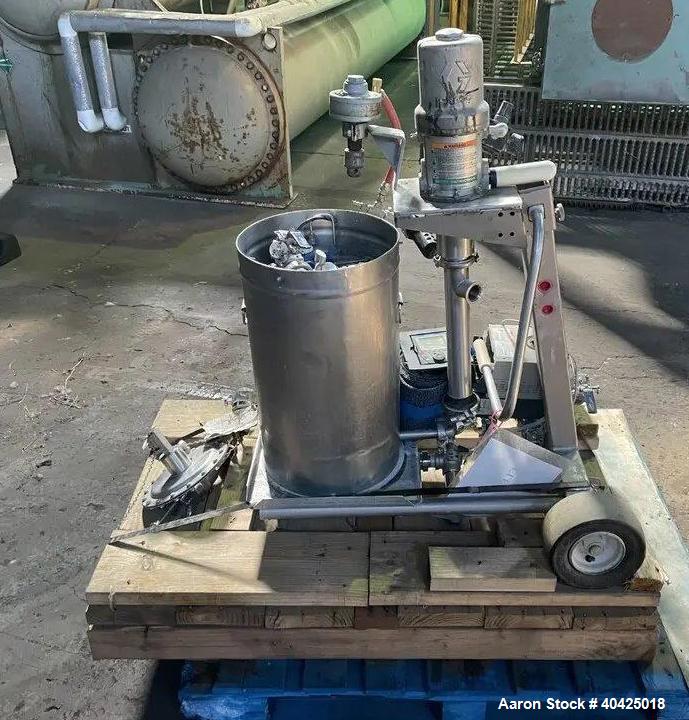

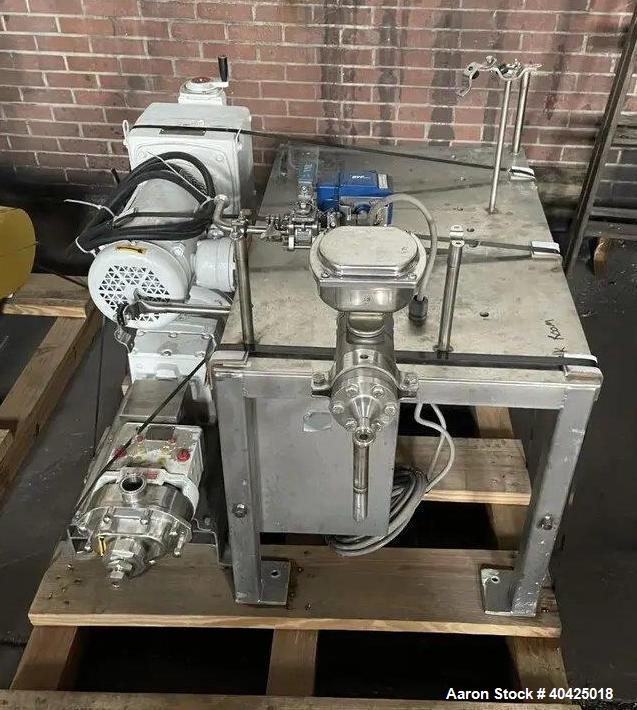

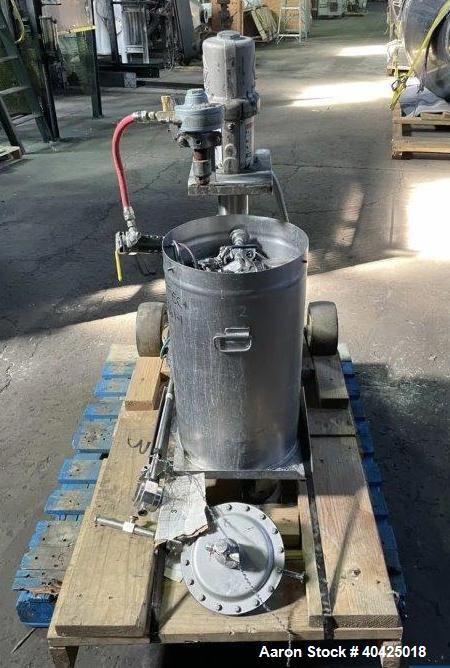

  • Solution Feed Pump with Micro Motion Flow Meter

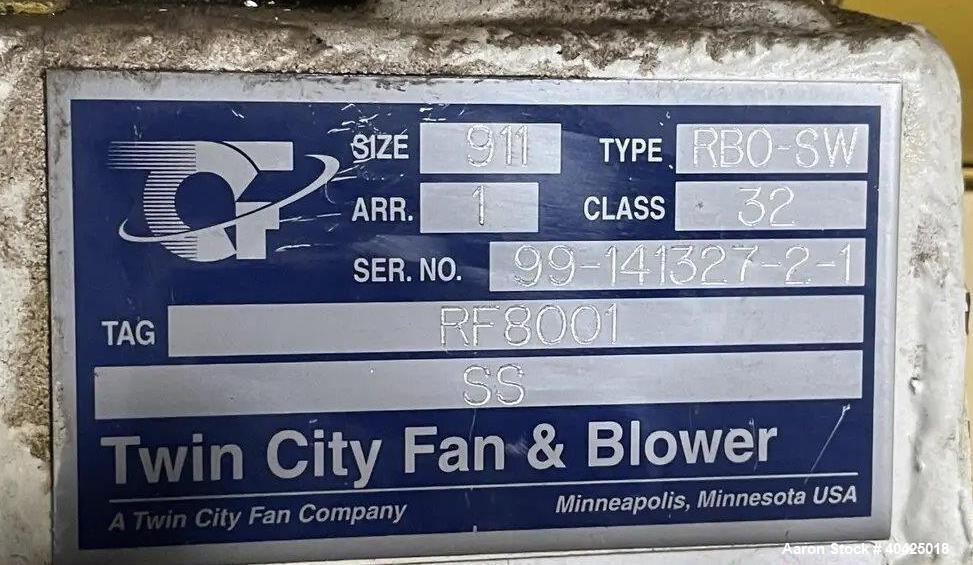

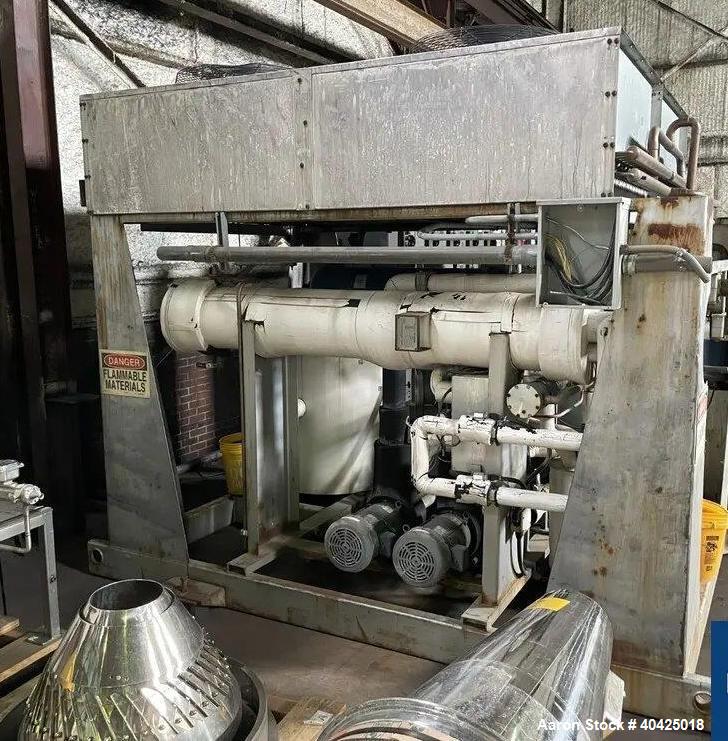

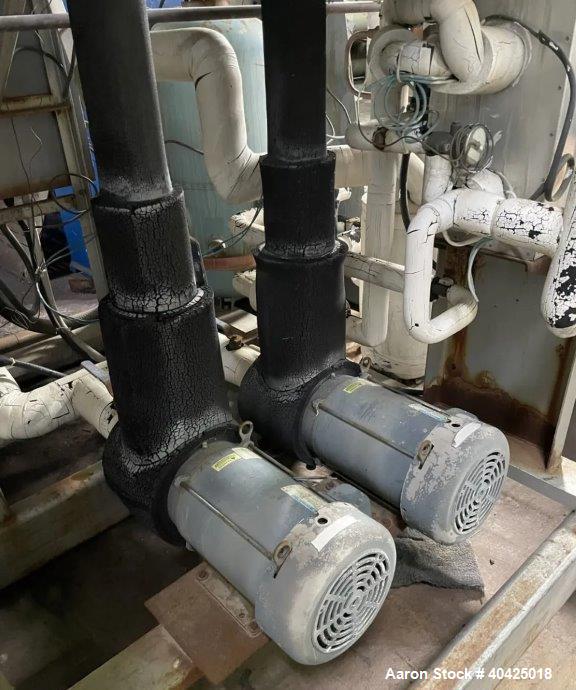

• Air Handling & Blowers:

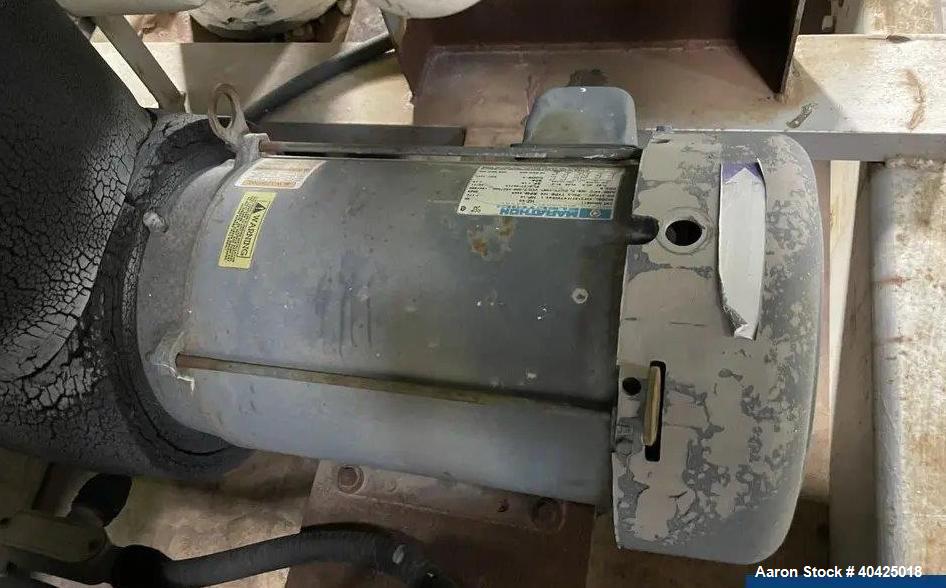

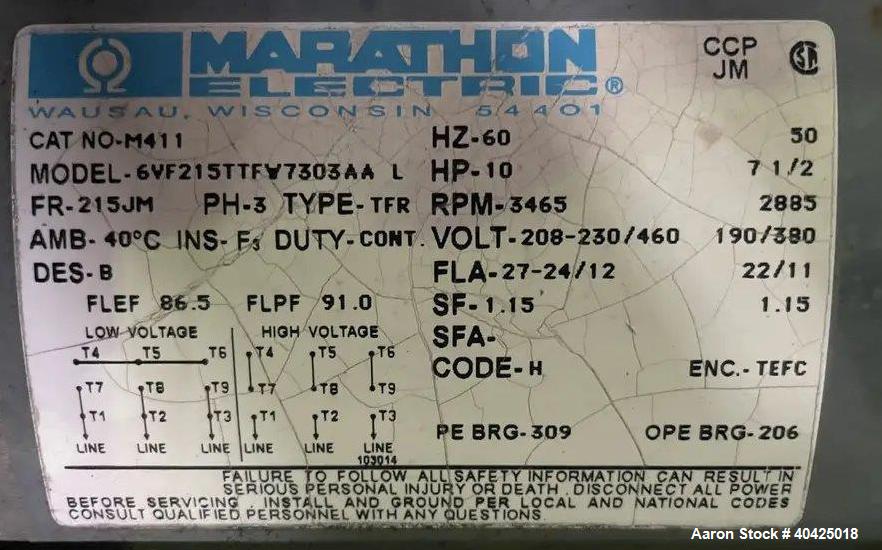

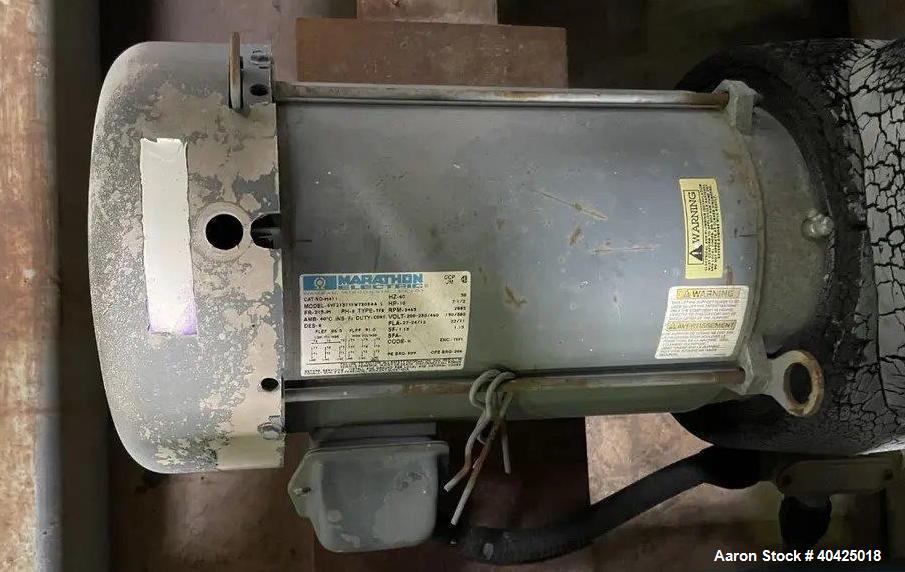

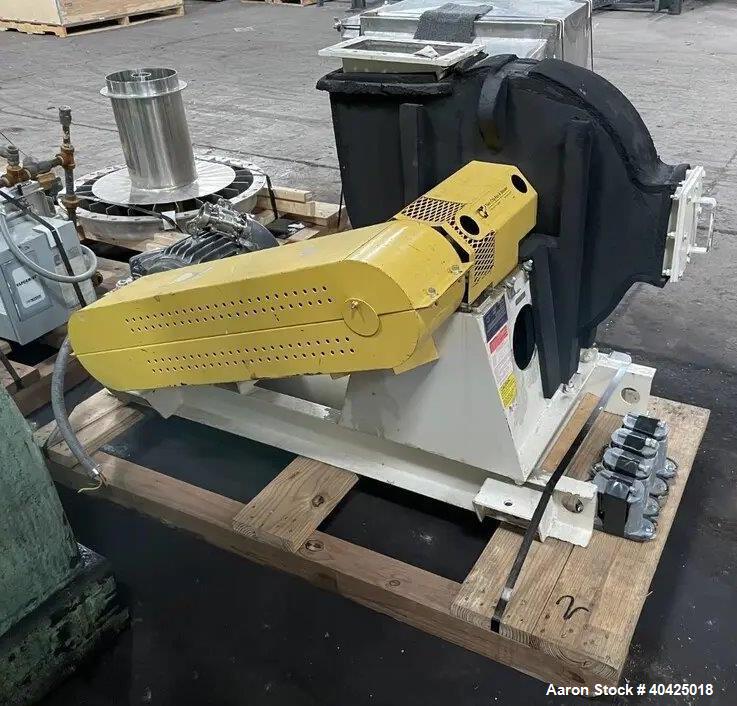

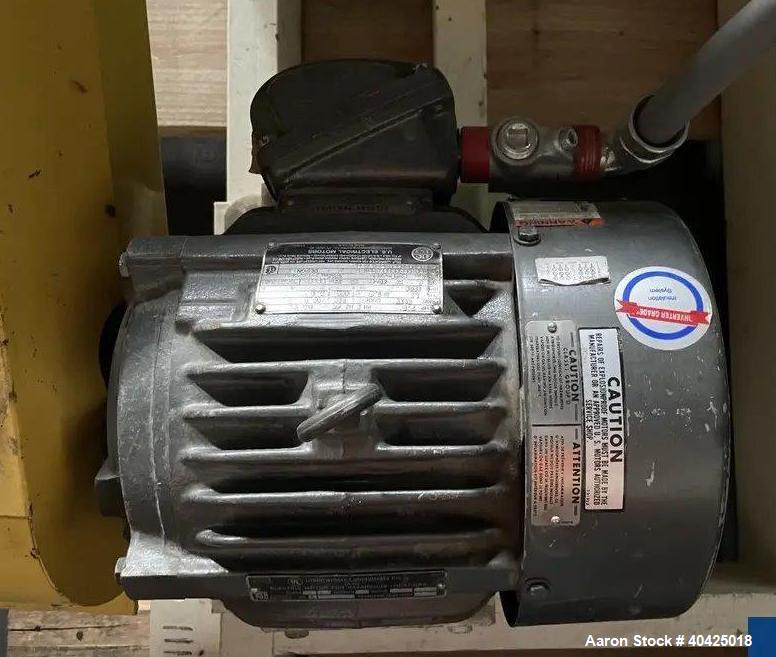

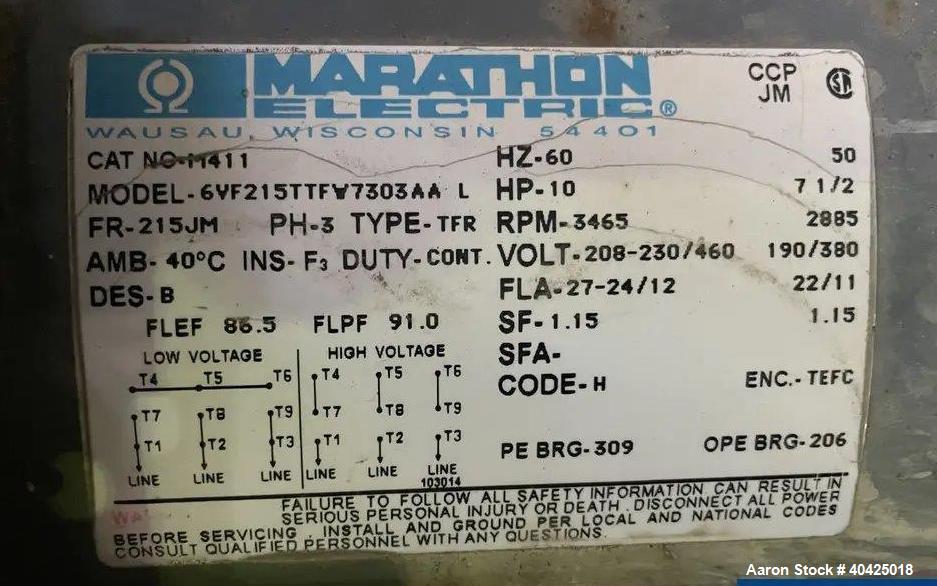

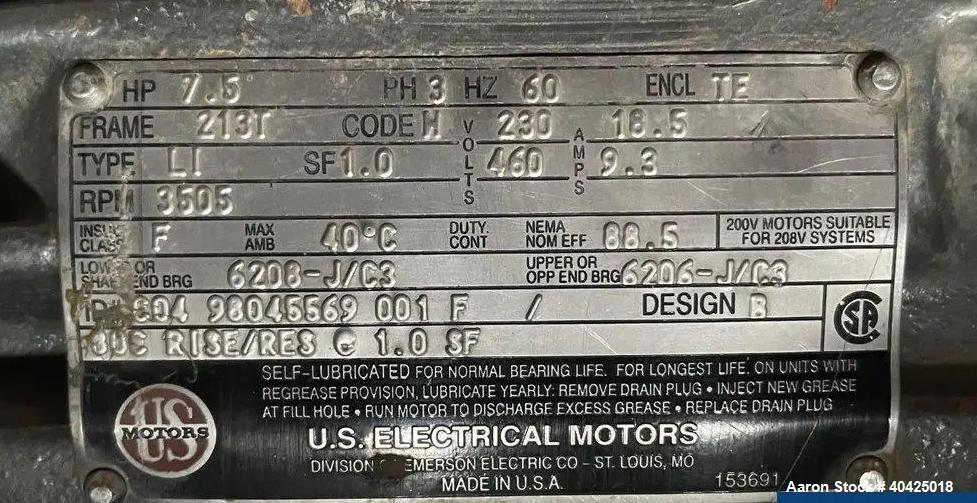

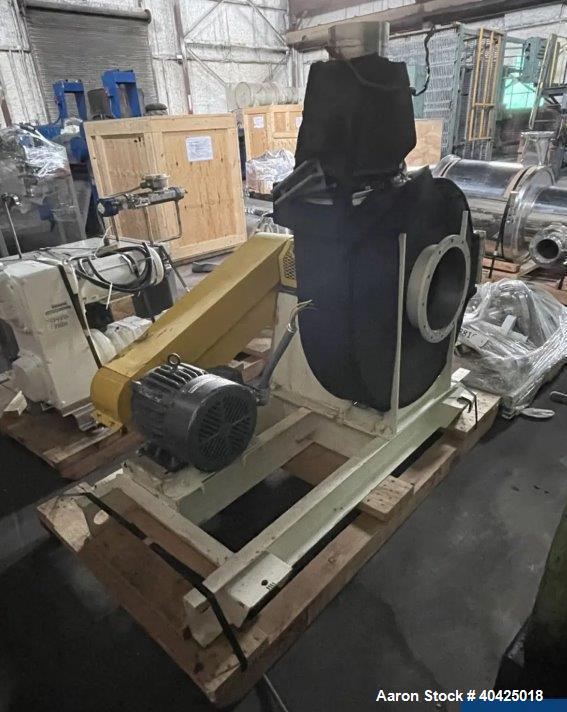

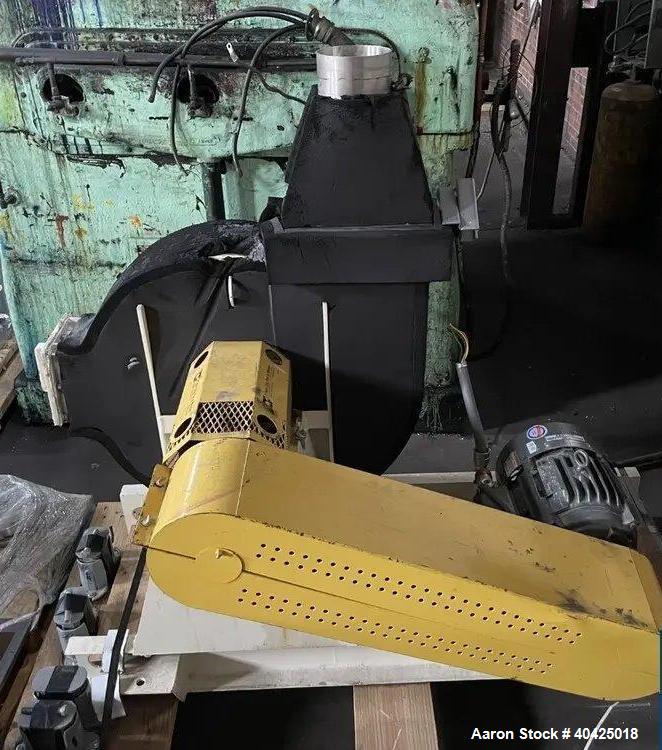

  • 7.5 HP Process Air Supply Blower
  • 7.5 HP Process Air Return Blower

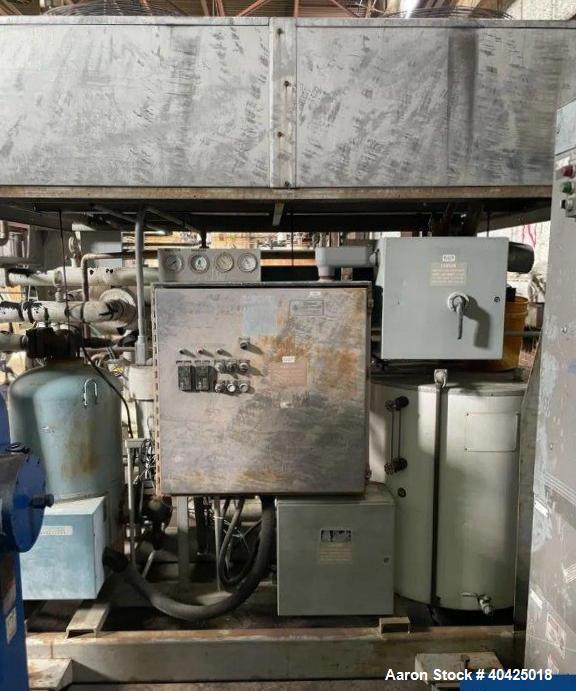

• Control System:

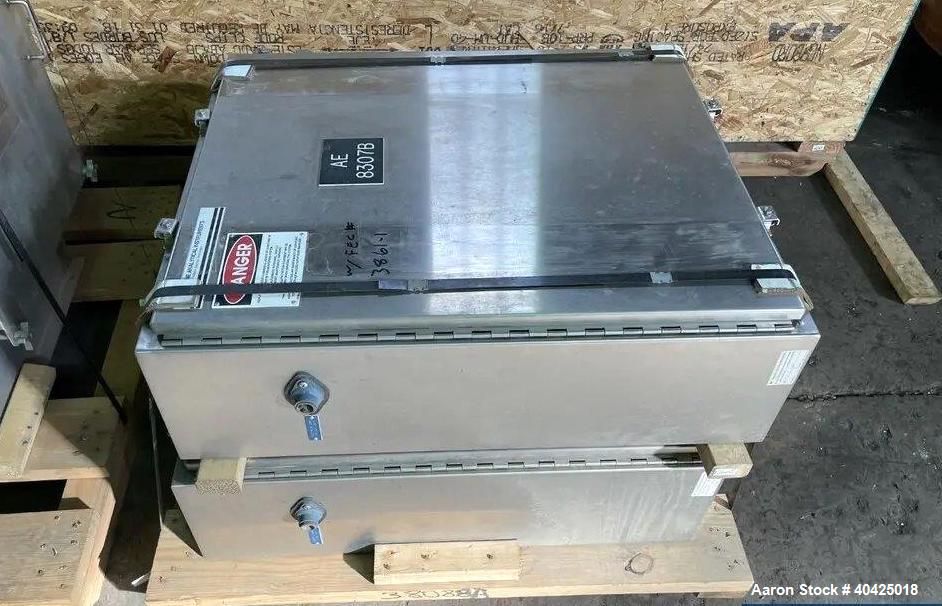

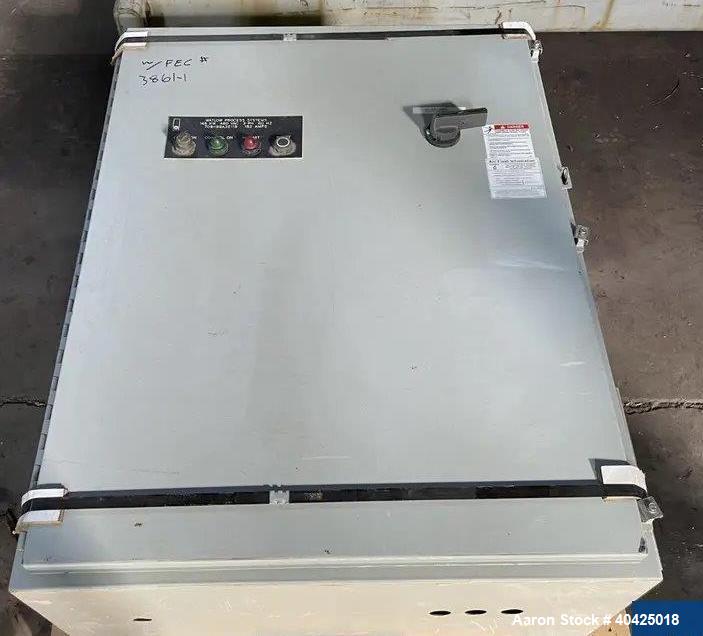

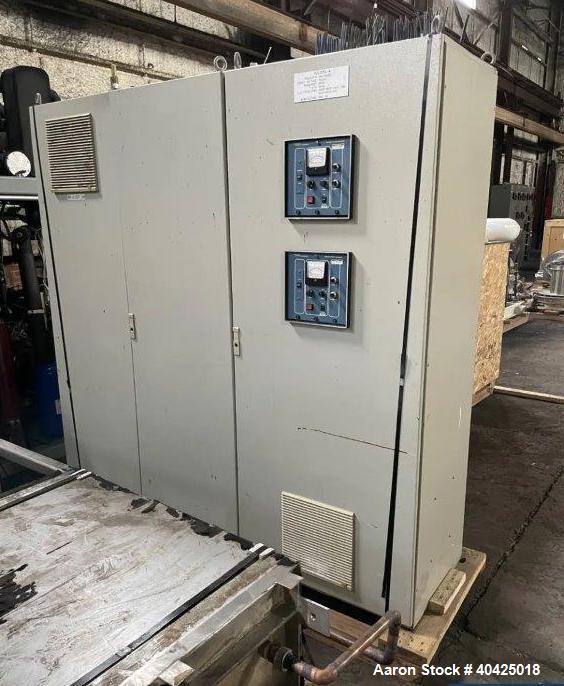

  • GEA Niro Control Panel & HMI Panel

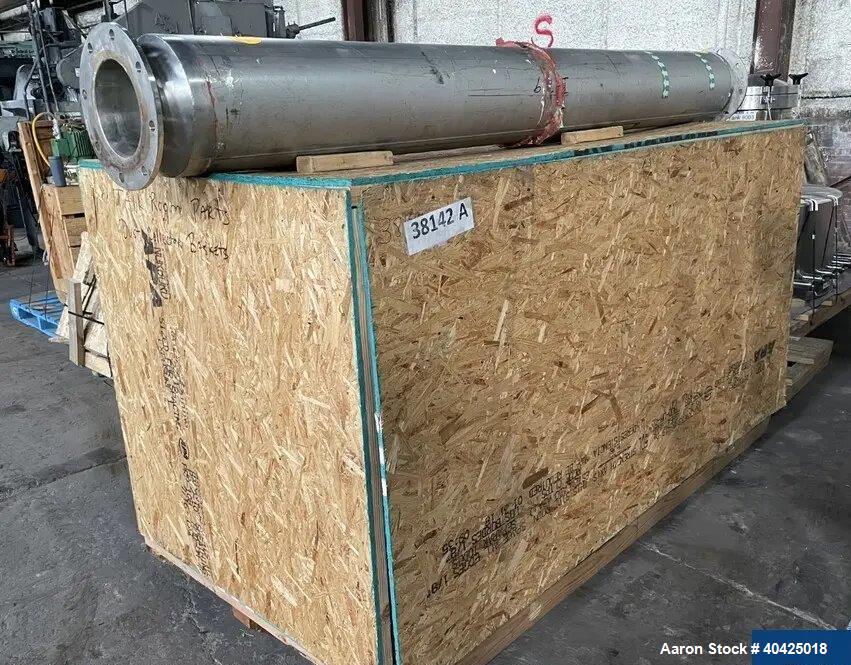

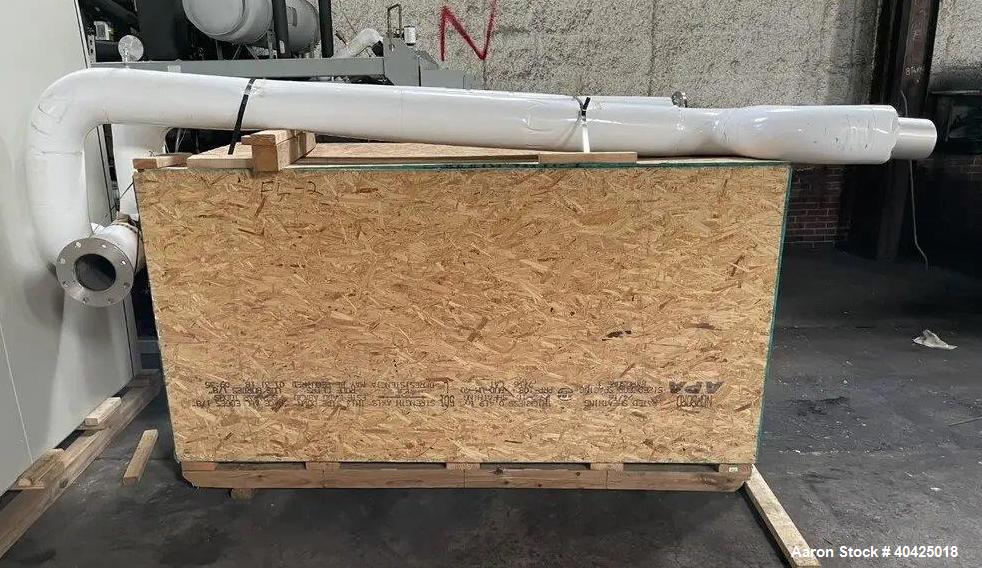

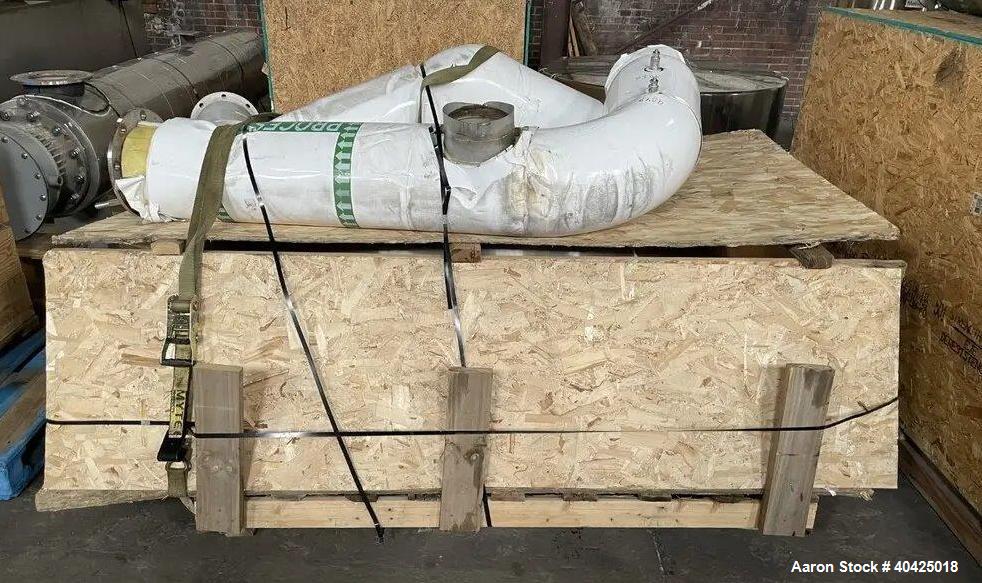

  • Interconnecting Pipework from Dryer to Dust Collector and Cyclone

Applications:

• Food & Dairy Industry: Drying of milk powders, whey, proteins, starches, coffee, and flavors
• Pharmaceutical Industry: Drying of APIs, excipients, probiotics, and pharmaceutical powders
• Chemical Industry: Spray drying of catalysts, polymers, and specialty chemicals
• Nutraceuticals & Supplements: Production of powdered vitamins, herbal extracts, and protein powders
• Cosmetic & Personal Care: Drying of powdered ingredients for skincare and beauty products
• Industrial Solvent Recovery: Spray drying with nitrogen purge for sensitive or volatile materials
