Stock No.: 54437003
Used Vivtek LSD-H1500F/T Spray Dryer | Lab Scale Spray Drying System 1500 ml/hr

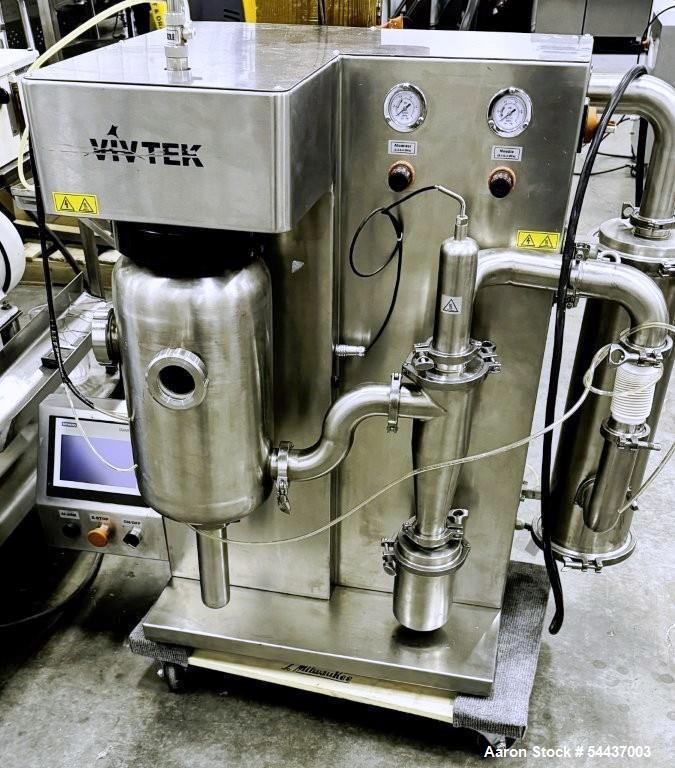

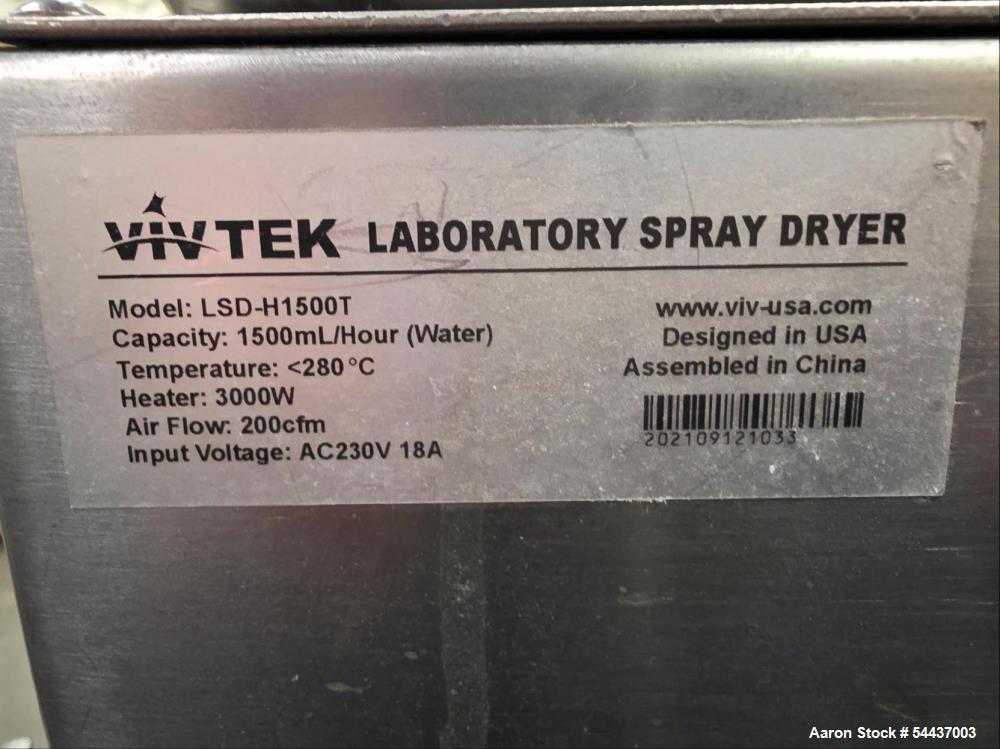

Used- Vivtek Instruments Spray Dryer, Model LSD-H1500T. 1500 ml H2O/hour evaporation rate. Two-fluid nozzle w/ needle, 1/1.5mm atomizer. 12" diameter x 16" length drying chamber. 5" diameter x 20" length cyclone. 80-280 degrees C (176-536 degrees F.) inlet gas temp., 50-120 degrees C (120-248 degrees F.) outlet gas temp. 3,000 W heater. 200 cfm airflow. 50/60 hZ, 230V. Built 2022.
-
ModelLSD-H1500F/T
-
CategoryDryers - Drying Equipment
-
SubcategorySpray Dryer
Used equipment facts about this machine
Manufacturer Information
Manufacturer: Vivtek Instruments
Model: LSD-H1500F/T
Equipment Type: Laboratory Spray Dryer
Condition: Used
Year Built: 2022
Description
Used Vivtek Instruments Model LSD-H1500F/T spray dryer designed for laboratory and pilot-scale drying applications. This compact system is ideal for R&D, product development, and small-batch production, offering precise control over drying parameters and particle formation.
With an evaporation capacity of up to 1500 ml of water per hour, this unit utilizes a two-fluid nozzle with needle and interchangeable atomizer sizes (1 mm / 1.5 mm) for flexible droplet size control. The stainless steel drying chamber and cyclone separator ensure efficient powder recovery and consistent product quality.
The system operates across a wide temperature range, allowing for drying of heat-sensitive materials as well as more robust formulations. Built in 2022, this unit is well-suited for pharmaceutical, food, chemical, and academic research environments.
Specifications
- Manufacturer: Vivtek Instruments
- Model: LSD-H1500F/T
- Type: Laboratory spray dryer
- Evaporation Capacity: <1500 ml H₂O/hour
- Atomization: Two-fluid nozzle with needle
- Atomizer Sizes: 1 mm / 1.5 mm
- Drying Chamber:
- Diameter: 12"
- Length: 16"
- Cyclone Separator:
- Diameter: 5"
- Length: 20"
- Inlet Temperature Range: 80°C to 280°C (176°F to 536°F)
- Outlet Temperature Range: 50°C to 120°C (120°F to 248°F)
- Electrical: 208/230V / 50-60 Hz
- Year Built: 2022
Applications
Ideal for laboratory-scale drying, particle formation, and formulation development in pharmaceutical, food, and chemical industries.
Products This Equipment Would Be Used For
- Pharmaceutical powders
- Nutraceutical powders
- Food ingredients
- Flavor powders
- Dairy samples
- Chemical compounds
- Ceramic slurries
- Polymer solutions
- Herbal extracts
- Research formulations
