Used Fluid Air PolarDry Model 050 Electrostatic Spray Dryer – 50 Kg/Hr Evaporation Capacity. Designed for GMP processing with nitrogen drying and atomizing gas. Rated for maximum evaporation capacity...

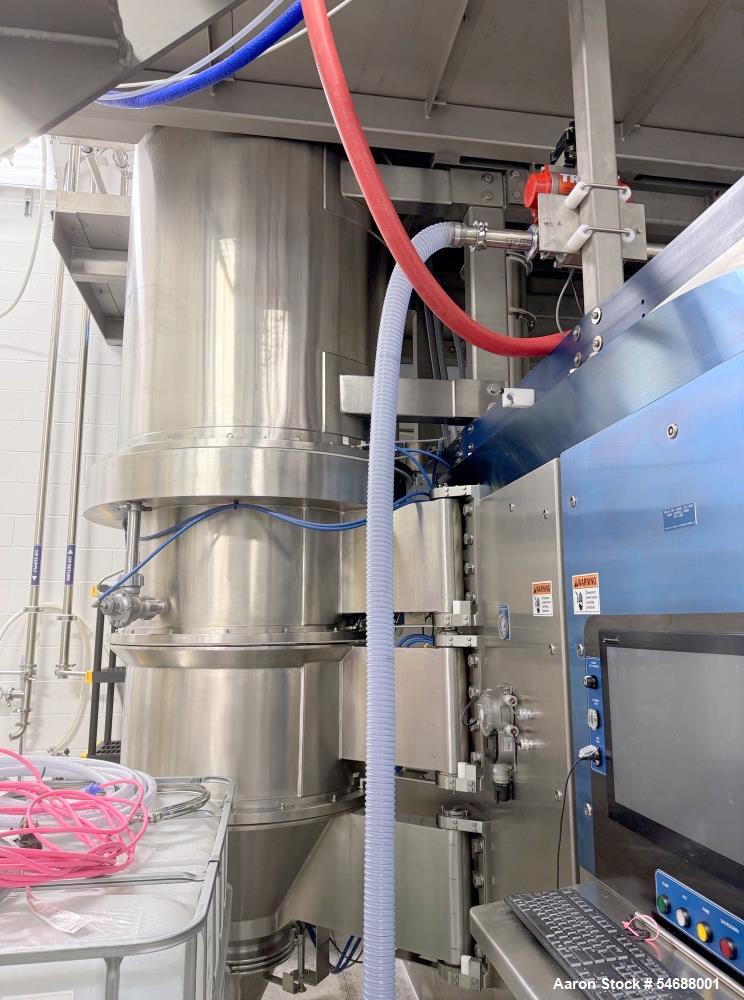

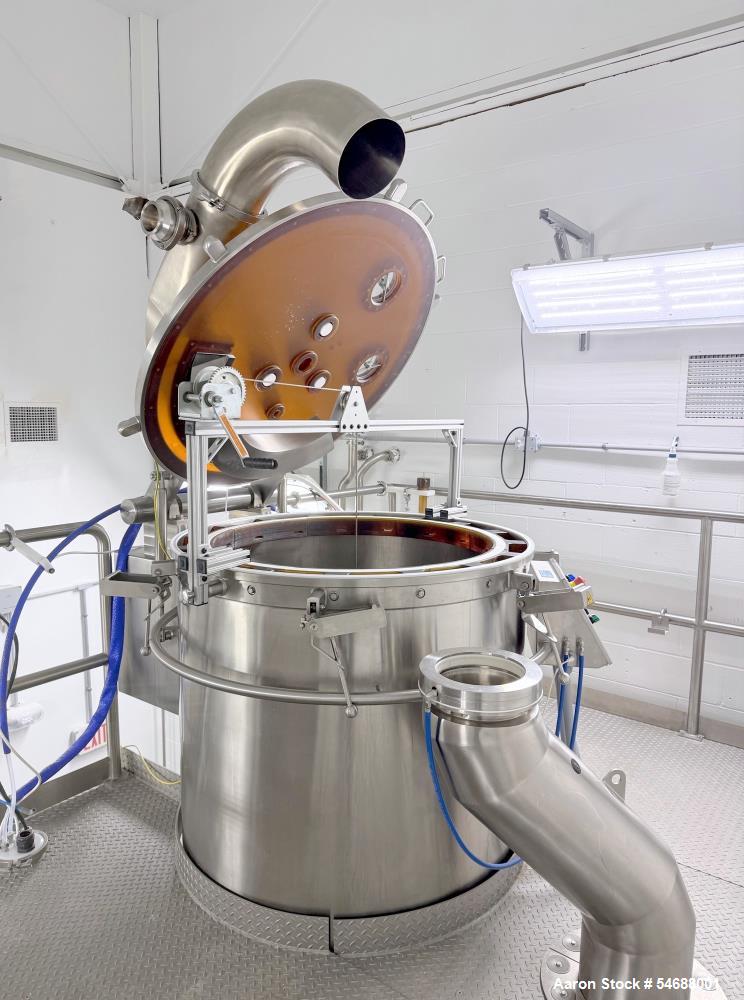

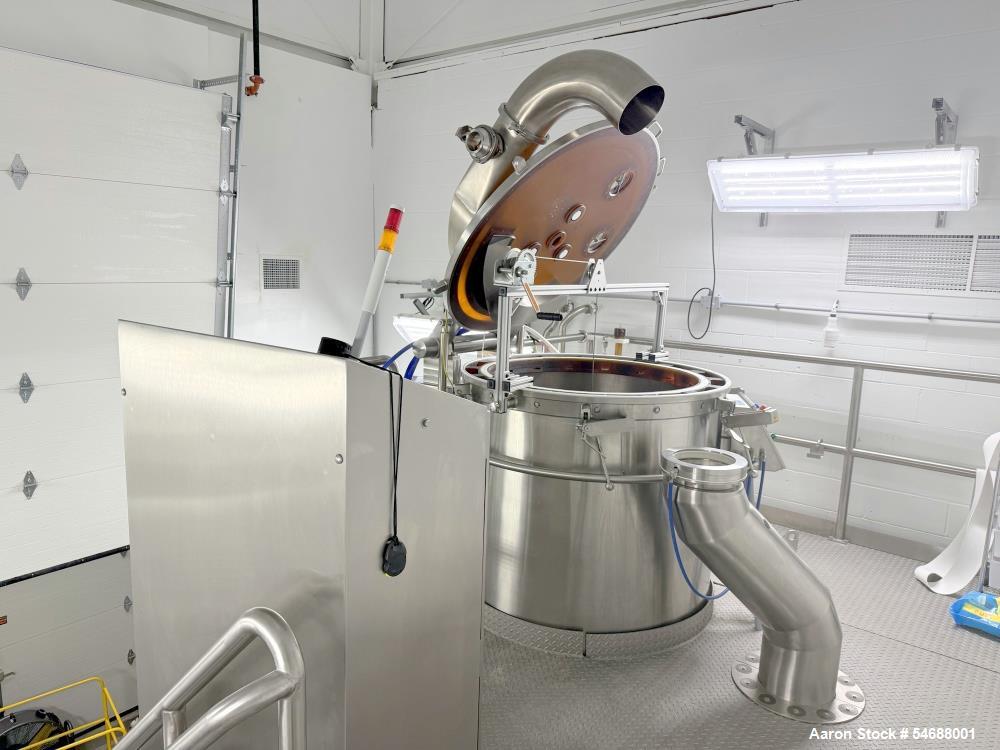

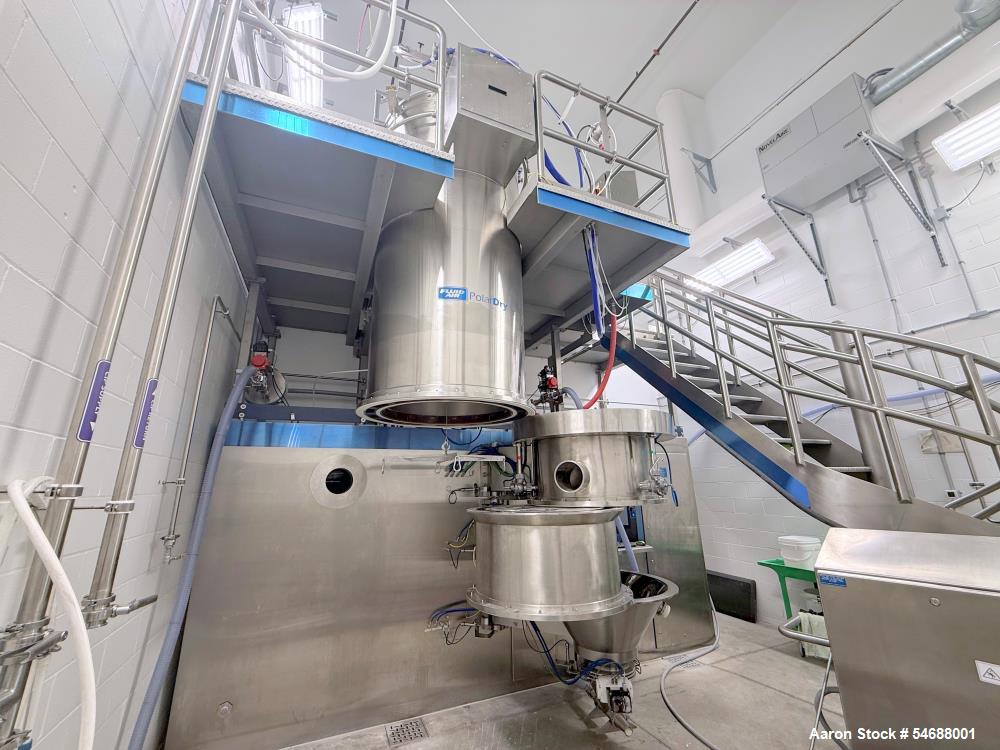

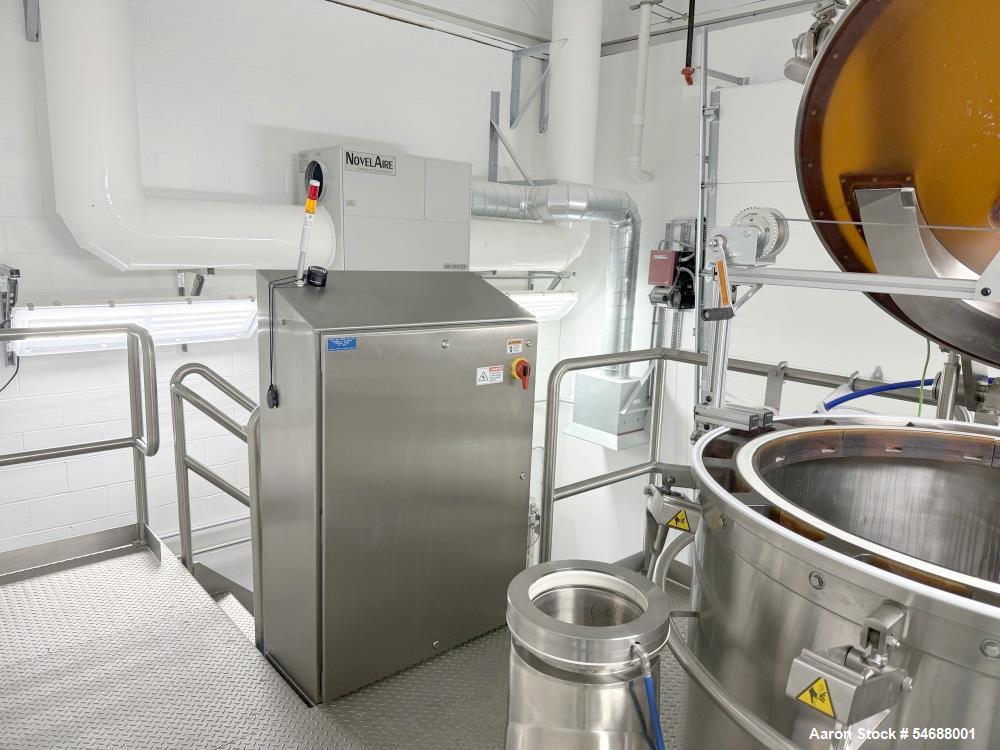

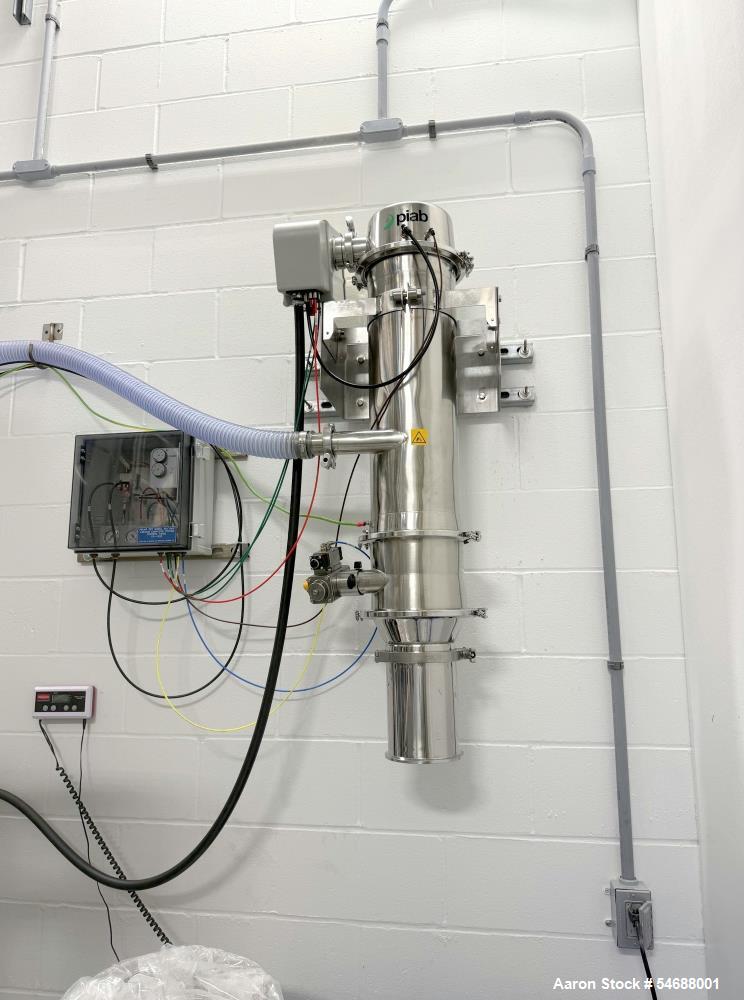

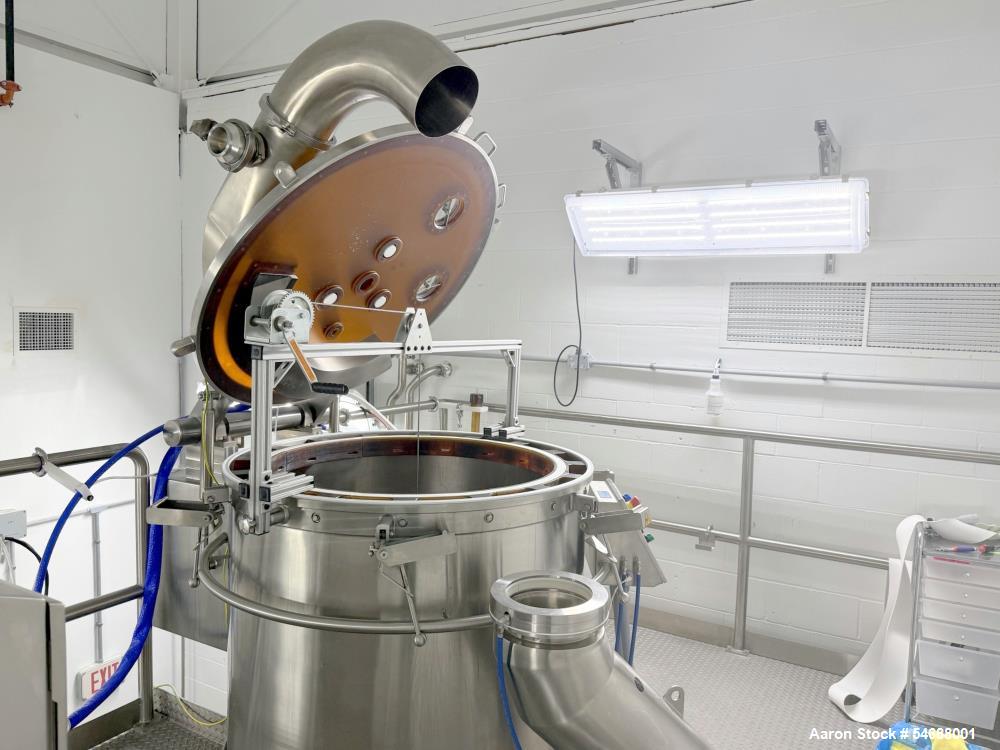

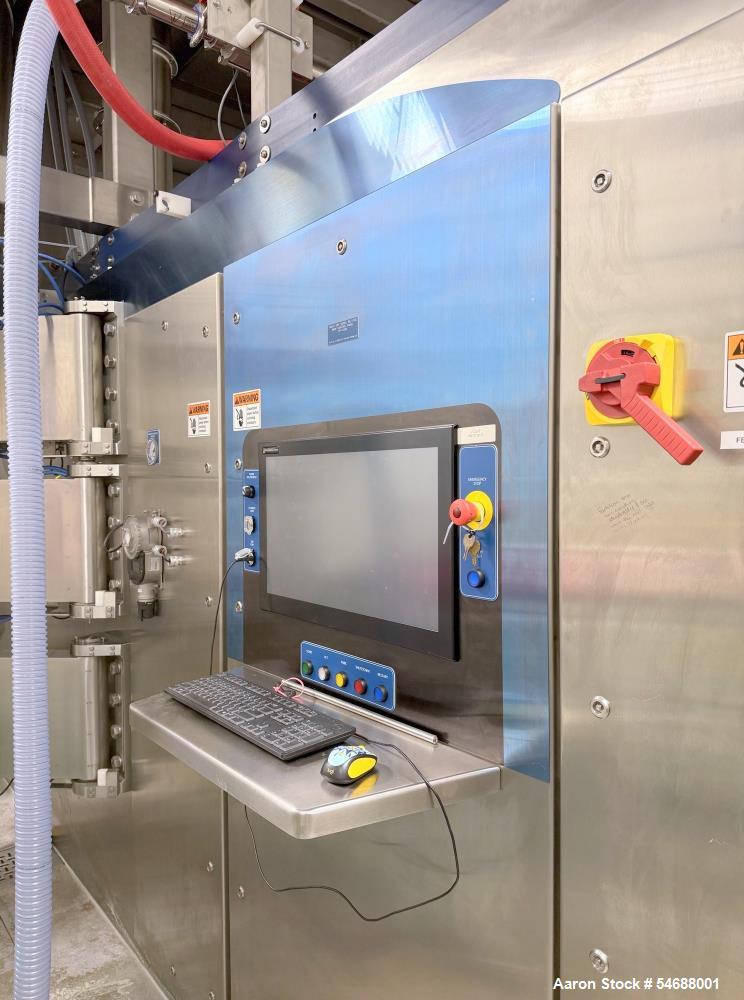

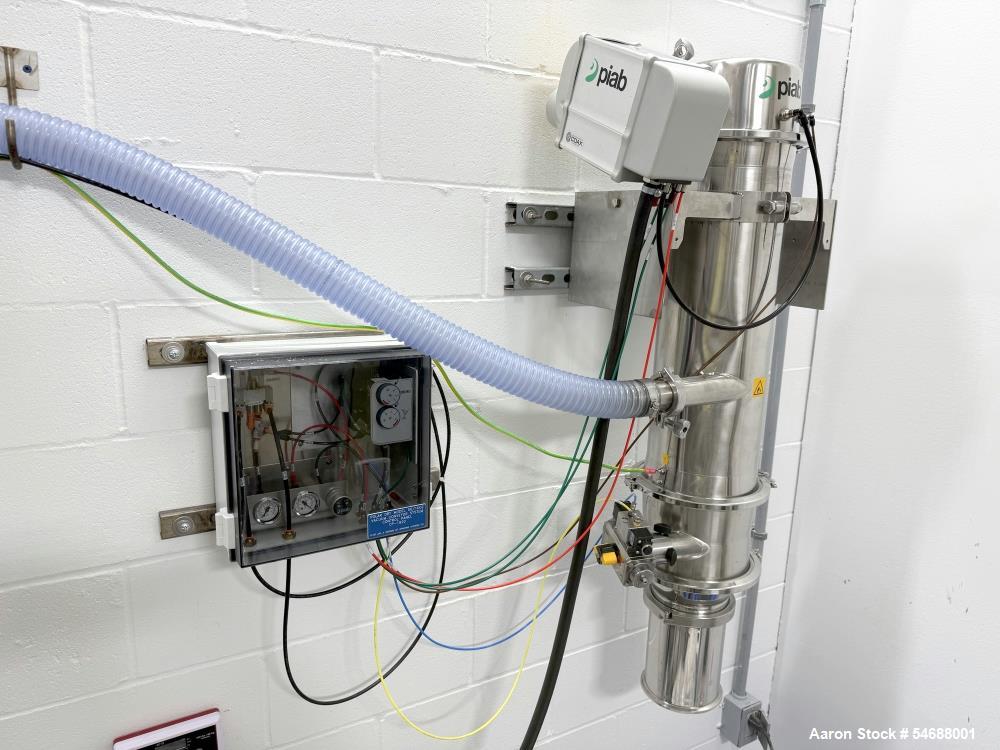

Used- Fluid Air PolarDry Model 050 Electrostatic Spray Dryer – 50 Kg/Hr Evaporation Capacity. Designed for GMP processing with nitrogen drying and atomizing gas. Rated for maximum evaporation capacity of 50 kg/hr, maximum drying gas inlet temperature of 140 C, maximum drying gas flow of 1,870 m³/hr, and design vacuum of 12 kPa. Atomizing gas specifications include maximum inlet temperature of 150 C, maximum pressure of 4.14 bar, and design flow of 100 m³/hr. Features stainless steel spray chamber with FDA-approved PTFE liner, electrostatic atomization technology, pneumatic powder collection and conveying system, (3) reverse-pulse cartridge filters, HEPA filtration, dehumidification coil, drying gas heater, blower, and oxygen monitoring safety system. Equipped with Watson Marlow peristaltic feed pump, Allen-Bradley PLC with Batch Architect control system, operator HMI, stainless steel process skid, and elevated access platform with stairs. Product contact surfaces include 316L stainless steel and FDA-approved PTFE. Electrical requirements include 480V, 3-phase, 60 Hz. Possible applications include pharmaceutical, nutraceutical, biotechnology, food ingredient, and specialty chemical spray drying of compatible liquid formulations into powdered products.
