Used Yamato Spray Dryer Model DL-41 – Lab-Scale Fine Particle Spray Dryer

Manufacturer Information

• Manufacturer: Yamato Scientific

• Model: DL-41

• Machine Type: Laboratory Spray Dryer

• Serial Number: B0400003

• Heating Method: Electrically heated

• Voltage: 220V

• Mounting: Mobile, mounted on casters

Description

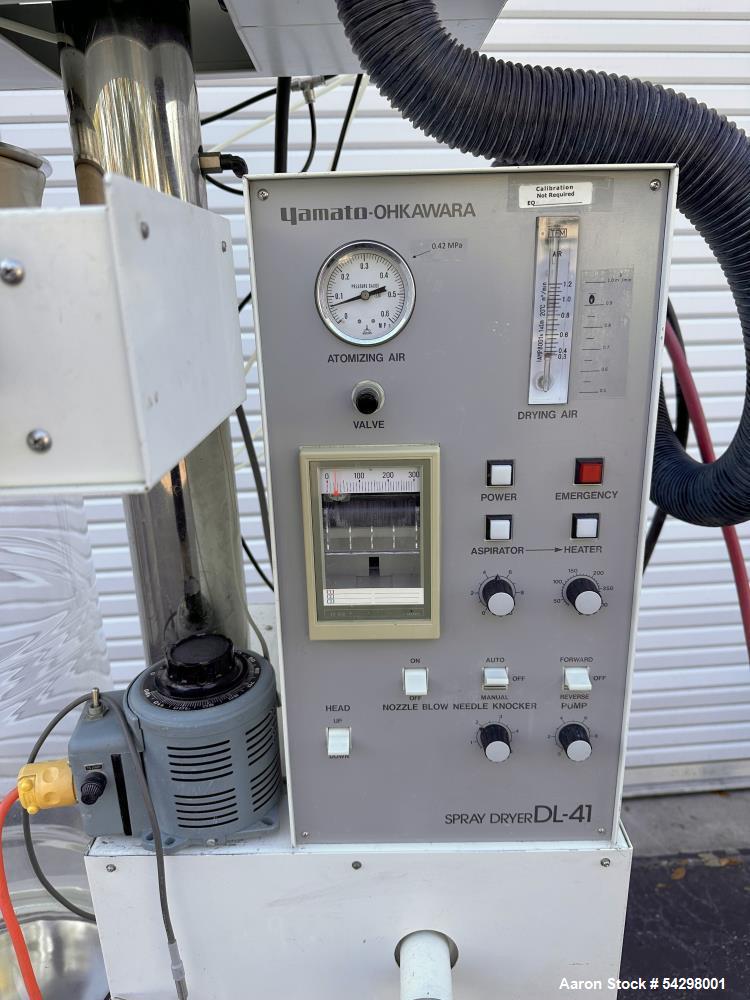

This used Yamato Spray Dryer, Model DL-41, is a compact, laboratory-scale spray drying system designed for producing fine granules in the 40–100 micron range. Ideal for R&D, pilot-scale testing, and small-batch production, the DL-41 offers precise control over temperature, airflow, and liquid feed rates.

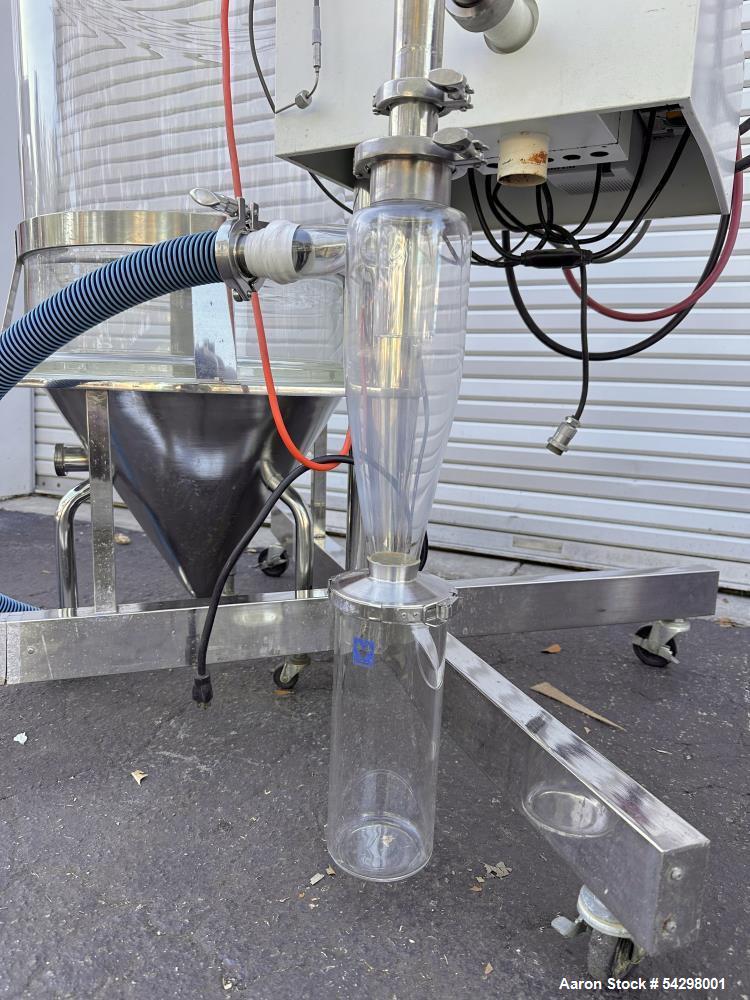

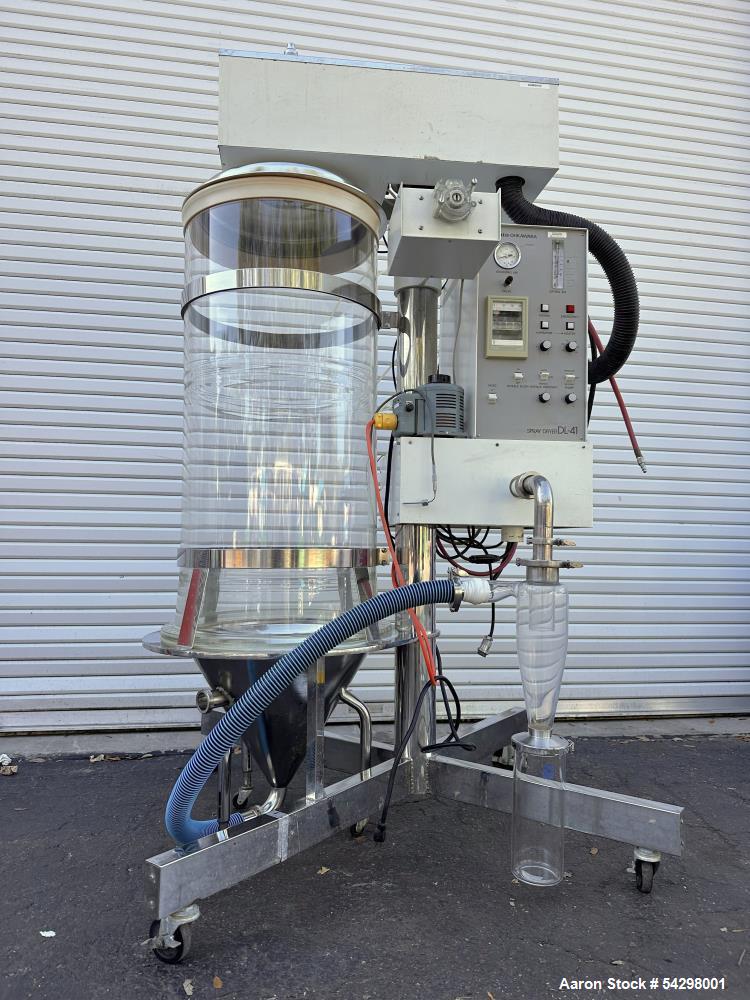

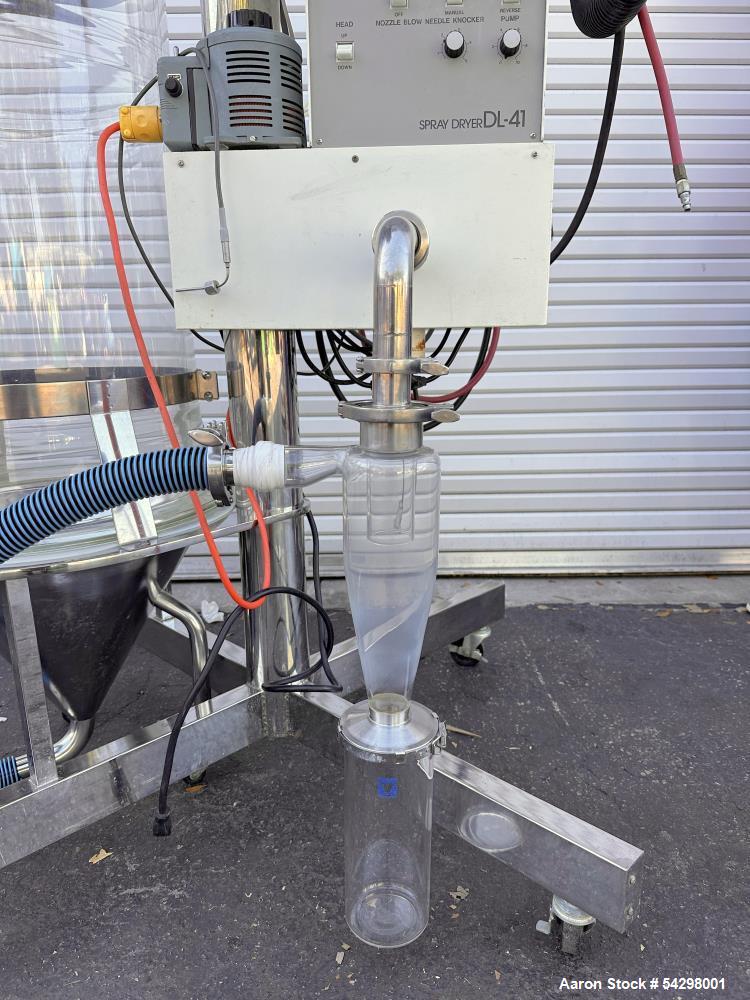

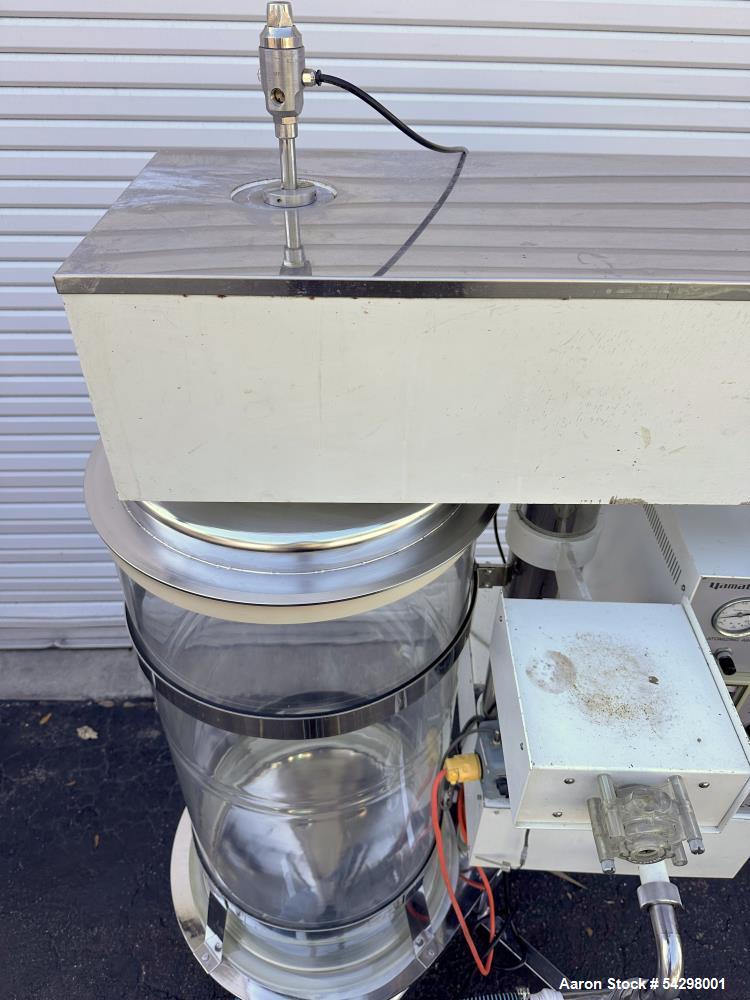

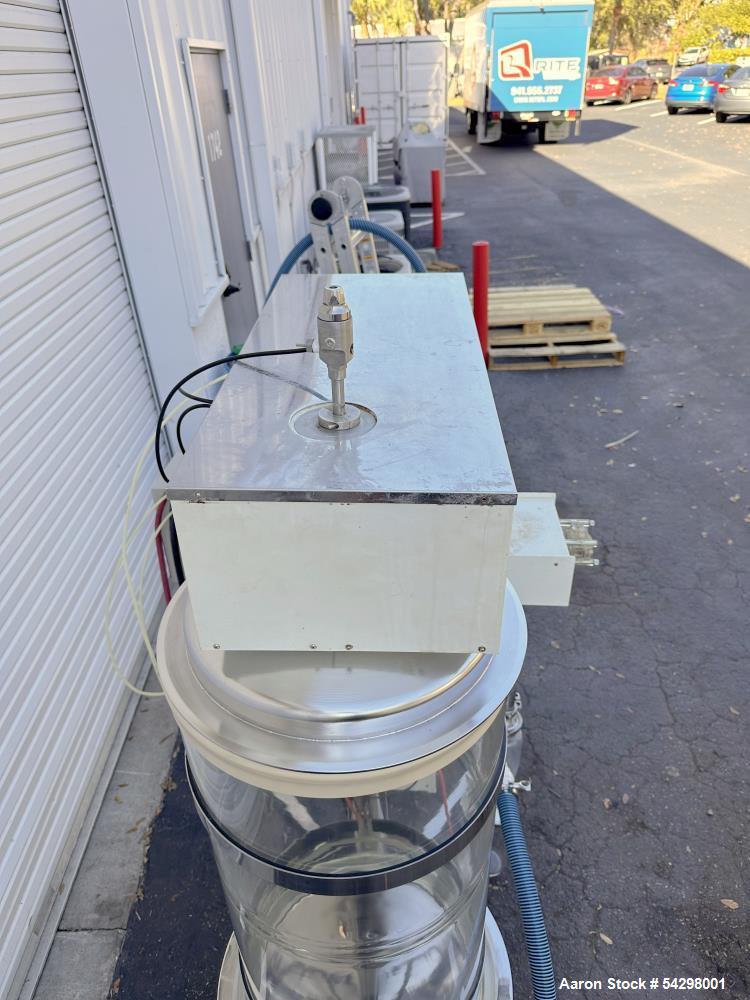

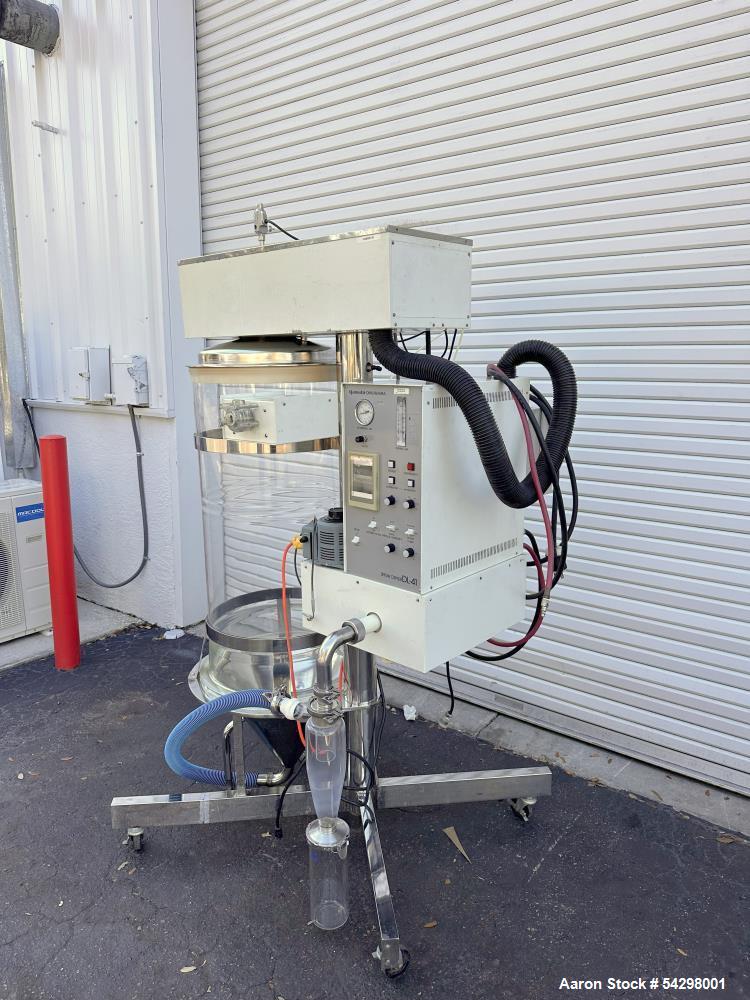

The unit features a large glass drying chamber (approx. 17-3/4" diameter x 39" high) for clear process visibility, a two-liquid nozzle atomization system with a 0.7 mm orifice, and an integrated cyclone separator with collection jar for efficient powder recovery. With a water evaporation capacity of up to approximately 3,000 ml/hour and an operating temperature range up to 300°C (572°F), this spray dryer is well suited for a wide range of materials and formulations.

Specifications

• Manufacturer: Yamato Scientific

• Model: DL-41

• Particle Size Range: Approx. 40–100 µm

• Water Evaporation Rate: Up to approx. 3,000 ml/hr

• Liquid Feed Rate: Up to 80 ml/min

• Operating Temperature Range: 40–300°C (104–572°F)

• Drying Chamber: Glass

• Chamber Dimensions: Approx. 17-3/4" diameter x 39" high

• Heating: Electric

• Electrical: 220V

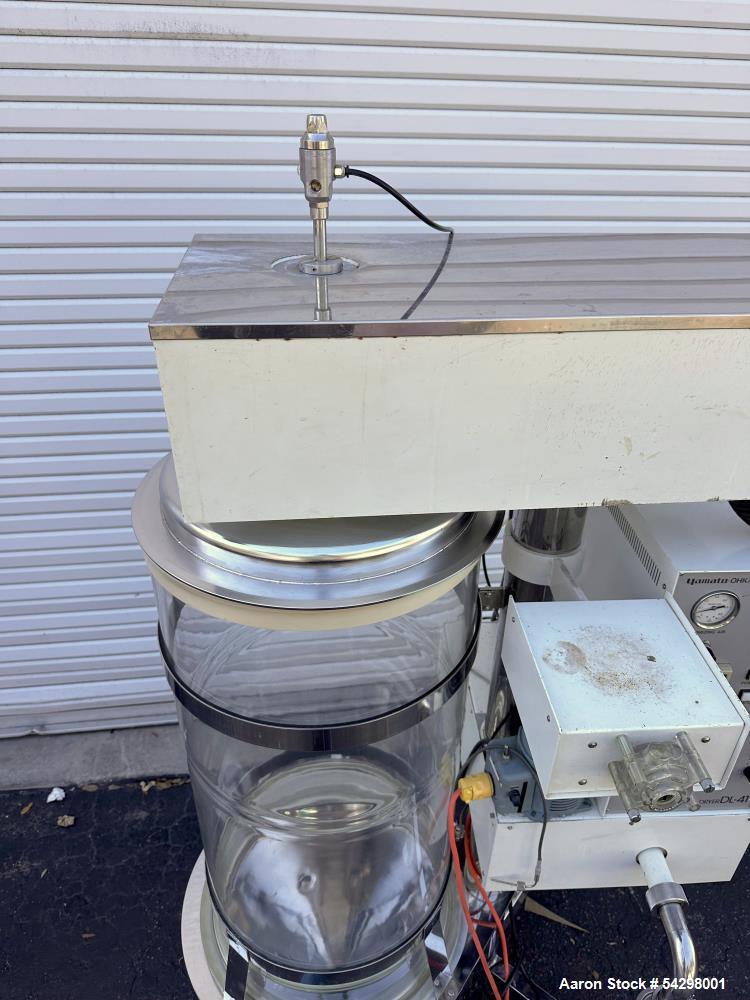

• Nozzle System: Two-liquid nozzle

• Nozzle Orifice Diameter: 0.7 mm

• Cyclone Separator:

  • Cyclone Body: Approx. 3-1/2" diameter x 6" straight side

  • Collection Jar: Approx. 3-3/4" diameter x 9-3/4" straight side

• Mobility: Mounted on casters

Applications

• Laboratory spray drying

• Product development and formulation

• Pilot-scale powder production

• Encapsulation studies

• Drying of heat-sensitive materials

• Small batch specialty powders

What Might This Be Used For

• Converting liquid solutions or slurries into powders

• Producing uniform fine granules for testing

• Evaluating spray-dry behavior before scale-up

• Encapsulation of active ingredients

• Drying pharmaceutical or nutraceutical formulations

• Research and academic laboratory work

Products This Machine Is Commonly Used For

• Pharmaceutical compounds

• Nutraceutical ingredients

• Food flavorings

• Enzymes and proteins

• Chemical solutions

• Pigments and dyes

• Polymers

• Ceramic slurries

• Specialty chemicals

• Biotech materials
