Unused GF Corporation MDL-050CM Micro Mist Spray Dryer – 3 kg/h Stainless Steel Lab Spray Drying System (2021)

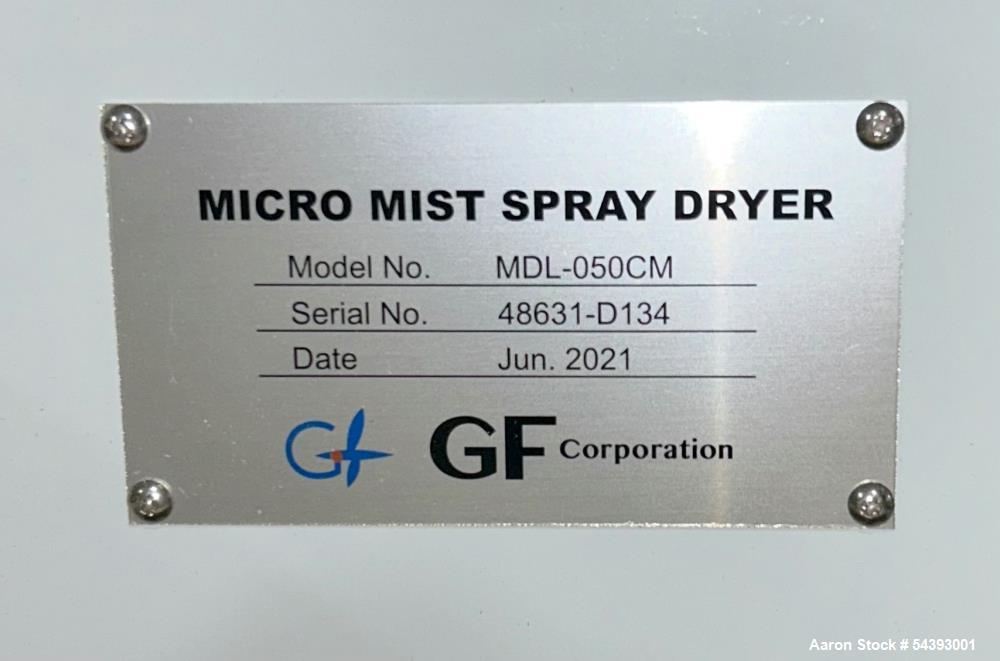

Manufacturer: GF Corporation
Model: MDL-050CM
Machine Type: Micro Mist Spray Dryer / Laboratory Spray Dryer
Construction: Stainless Steel
Evaporation Capacity: Approx. 3 kg/hr (6.6 lbs/hr)
Drying Air Flow: Co-Current Air Flow Pattern
Atomization System: Four-Fluid Nozzle
Collection System: Cyclone Separator & Filter Bag
Feed Pump: 50 ml/min Liquid Feed Pump

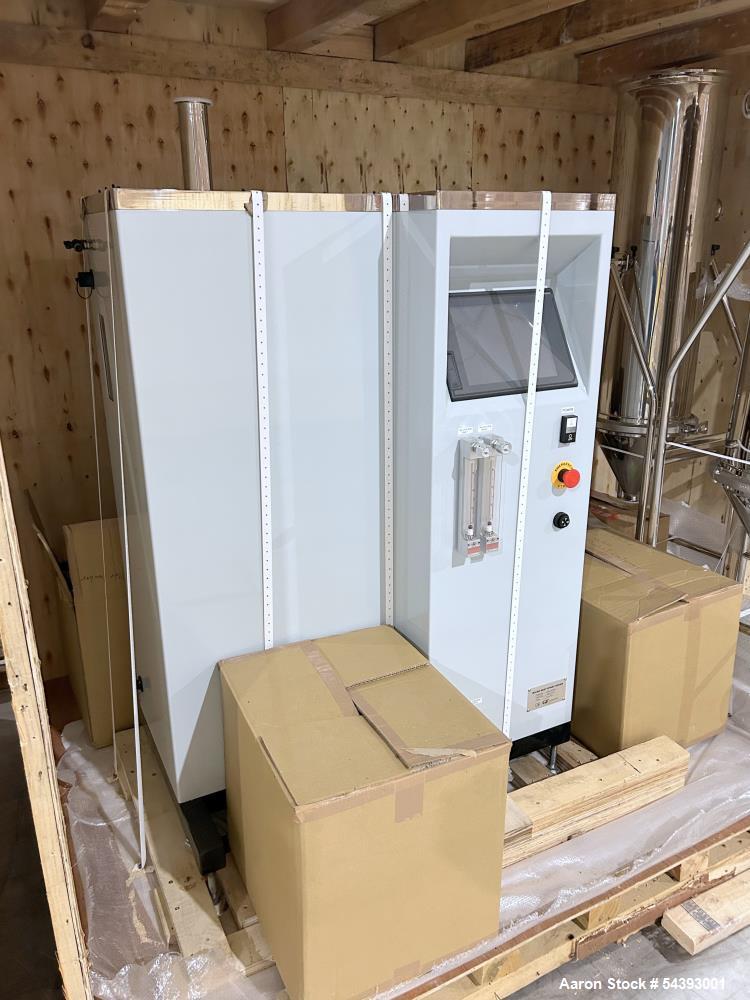

Controls: Touch Screen Interface
Heater: 5 kW
Electrical: 3 Phase / 200V
Year Built: 2021
Condition: Unused

Description

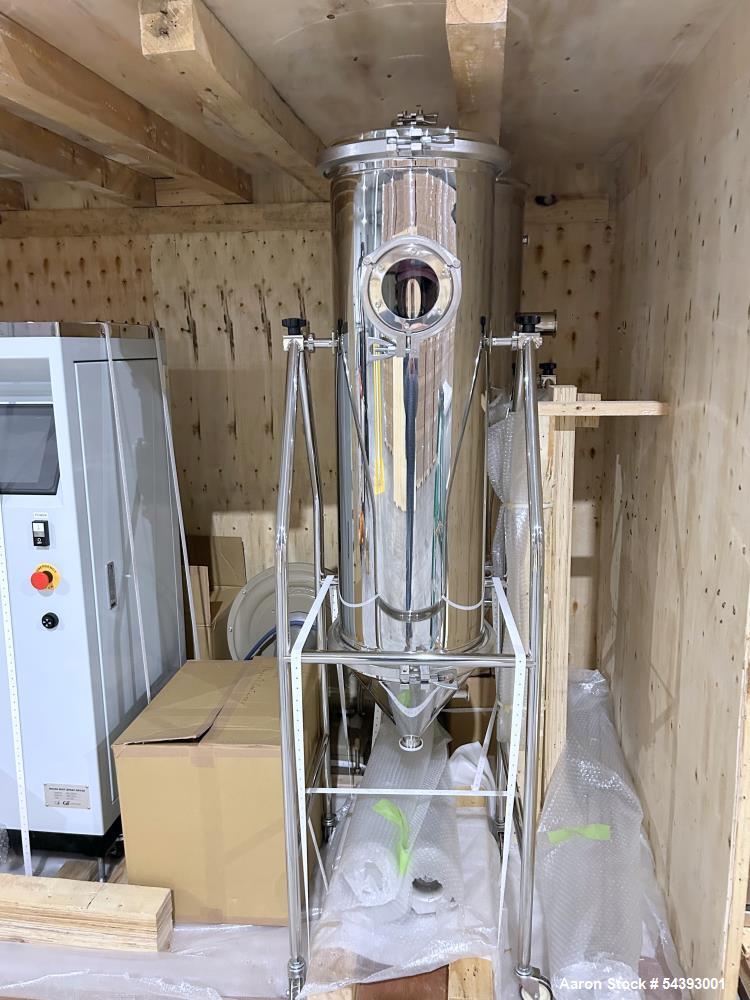

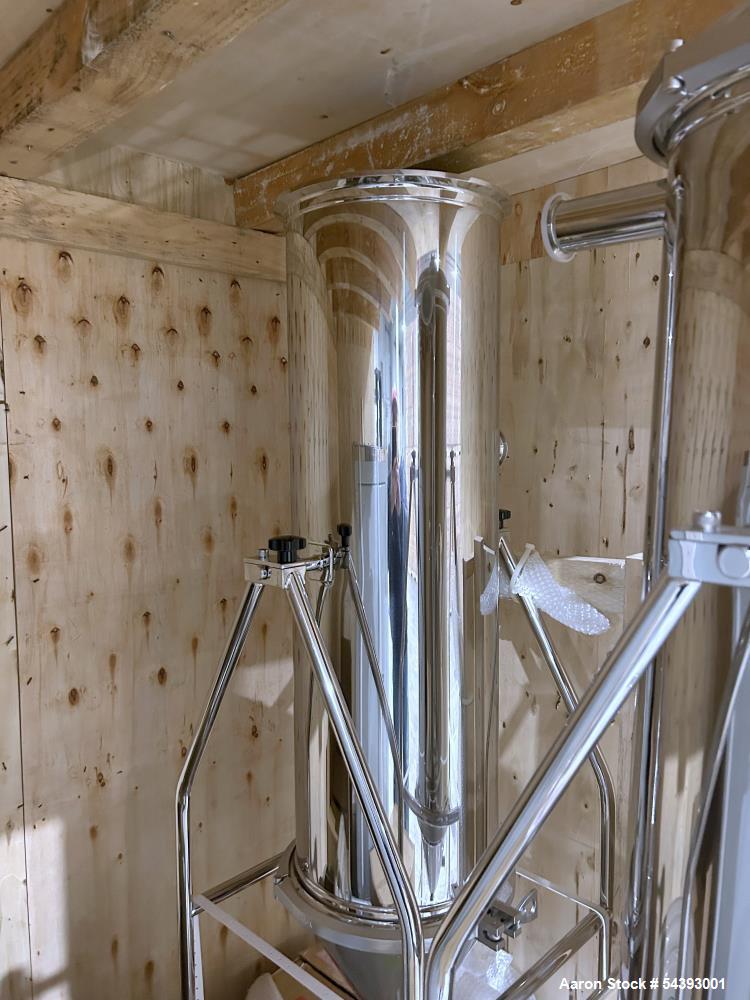

Unused GF Corporation Micro Mist Spray Dryer, model MDL-050CM, designed for laboratory, pilot plant, and small-scale production spray drying applications. This stainless steel spray drying system converts liquid solutions, emulsions, and suspensions into dry powders using a controlled heated air stream and fine atomization.

The system provides an evaporation capacity of approximately 3 kg/hour (6.6 lbs/hour) under typical operating conditions with 200°C (392°F) inlet air temperature and 60°C (140°F) outlet air temperature. A four-fluid nozzle atomization system allows precise droplet formation for efficient drying and particle size control.

The spray dryer uses a co-current airflow pattern, which is ideal for heat-sensitive materials because the hottest air contacts the wettest droplets first, reducing product degradation.

Powder recovery is accomplished through a cyclone separator and filter bag collection system, improving product yield and minimizing powder loss. The unit is equipped with touch screen controls for monitoring temperature, airflow, and feed rate.

Built in 2021 and unused, this spray dryer is suitable for R&D, pharmaceutical development, food ingredient drying, and specialty material processing.

Specifications

• Manufacturer: GF Corporation

• Model: MDL-050CM

• Equipment Type: Micro mist spray dryer

• Construction: Stainless steel

• Evaporation Capacity: Approx. 3 kg/hr (6.6 lbs/hr)

• Inlet Temperature: 200°C / 392°F

• Outlet Temperature: 60°C / 140°F

• Atomization System: Four-fluid nozzle

• Air Flow Pattern: Co-current

• Powder Collection: Cyclone separator and filter bag

• Feed Pump Capacity: 50 ml/min

• Heater Power: 5 kW

• Controls: Touch screen control system

• Electrical: 3 Phase / 200V

• Year Built: 2021

• Condition: Unused

Applications

This spray dryer is commonly used for:

• Pharmaceutical powder production

• Nutraceutical ingredient drying

• Food ingredient spray drying

• Chemical powder processing

• Ceramic powder preparation

• Battery material drying

• Polymer and resin drying

• Flavor and fragrance encapsulation

• Laboratory scale powder production

• R&D spray drying development

What Might This Be Used For

• Spray drying pharmaceutical APIs

• Drying milk or dairy powders

• Producing protein powders

• Creating powdered flavors or extracts

• Catalyst powder preparation

• Ceramic slurry drying

• Encapsulating food additives

• Producing nutraceutical powders

• Polymer latex drying

• Chemical solution drying

Products This Machine Can Process

• Pharmaceutical compounds

• Food extracts

• Protein powders

• Milk powders

• Nutraceutical ingredients

• Flavorings and fragrances

• Chemical solutions

• Ceramic suspensions

• Polymer dispersions

• Specialty chemical powders

Manufacturer Information

GF Corporation manufactures laboratory and pilot-scale spray drying equipment used in pharmaceutical research, food processing, chemical development, and material science applications. Their micro mist spray dryers are designed for precise particle formation, efficient evaporation, and reliable powder collection for small-scale production and product development.
