Used Hemraj PSD 02 Stainless Steel Spray Dryer – 22 Lb/Hr Water Evaporation, Two-Fluid Nozzle Atomization

Manufacturer Information

Hemraj

Hemraj manufactures industrial processing equipment for drying and powder-production applications. The PSD 02 spray dryer is designed to convert compatible liquid feeds, solutions, suspensions, or slurries into dry powders through atomization into a controlled stream of heated air.

This unit features 316 stainless steel product-contact parts and 304 stainless steel non-contact components, making it suitable for compatible sanitary, chemical, agricultural, food ingredient, and specialty powder-processing applications.

Description

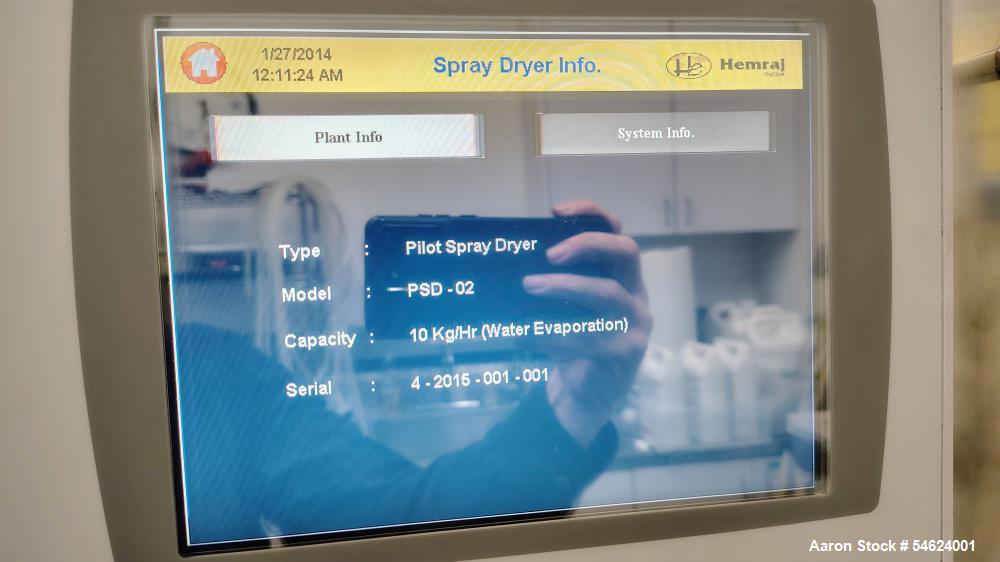

Available for sale is a used Hemraj Model PSD 02 spray dryer, built in 2014, with a rated water evaporation capacity of approximately 10 kg/hr (22 lb/hr).

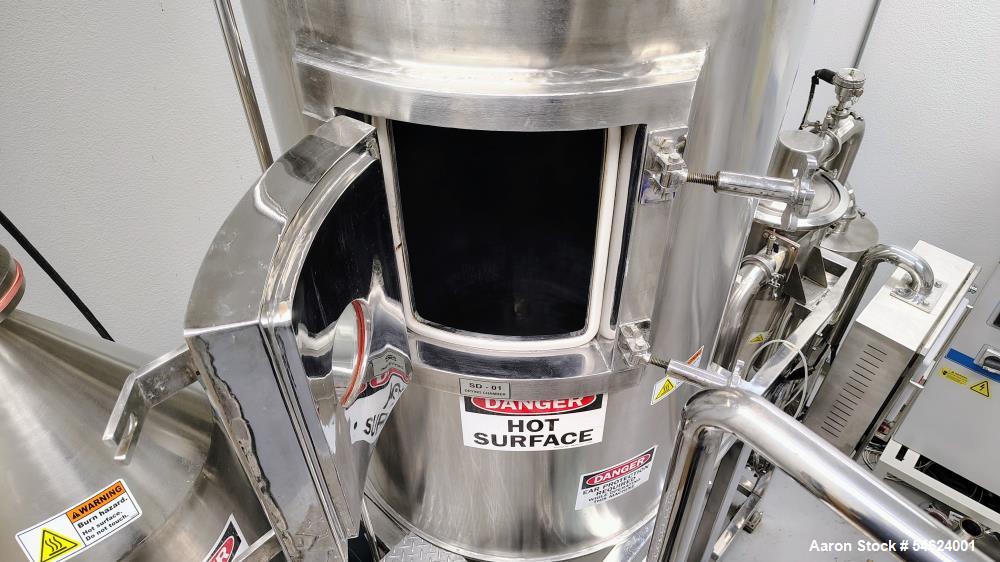

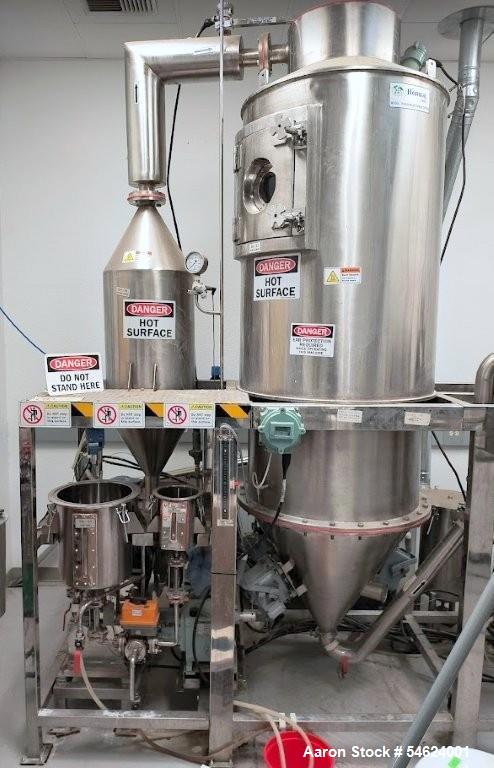

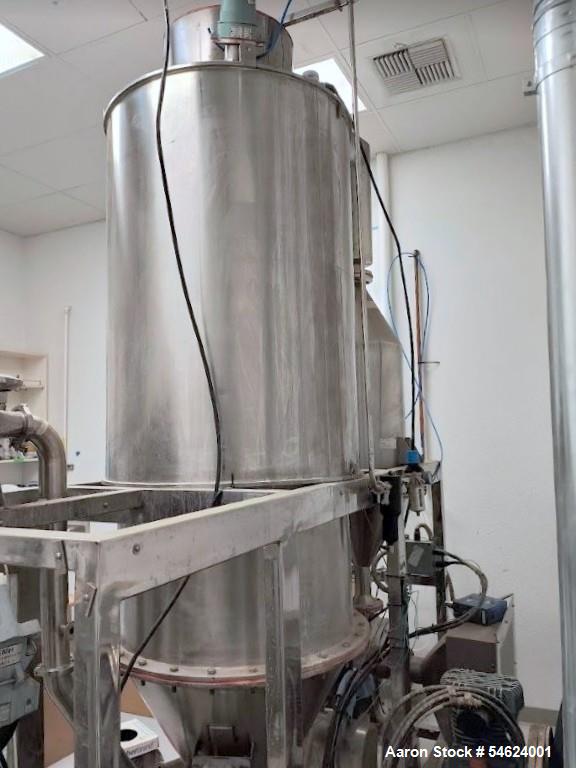

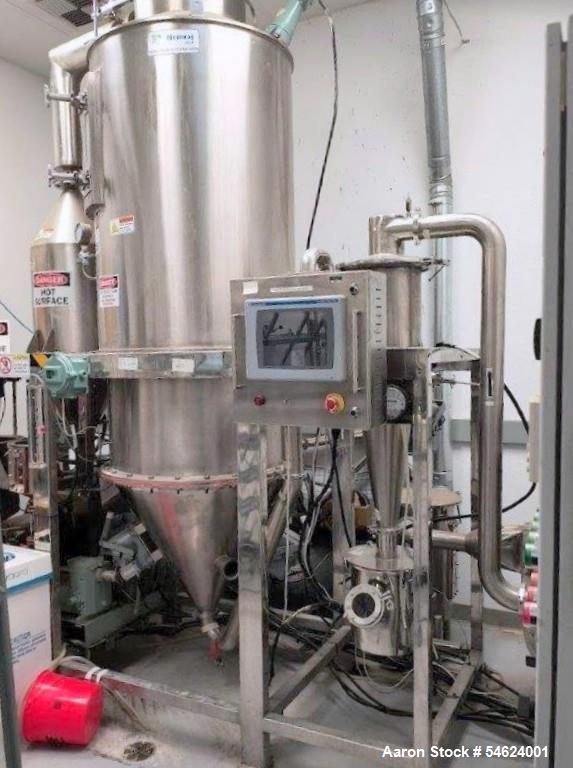

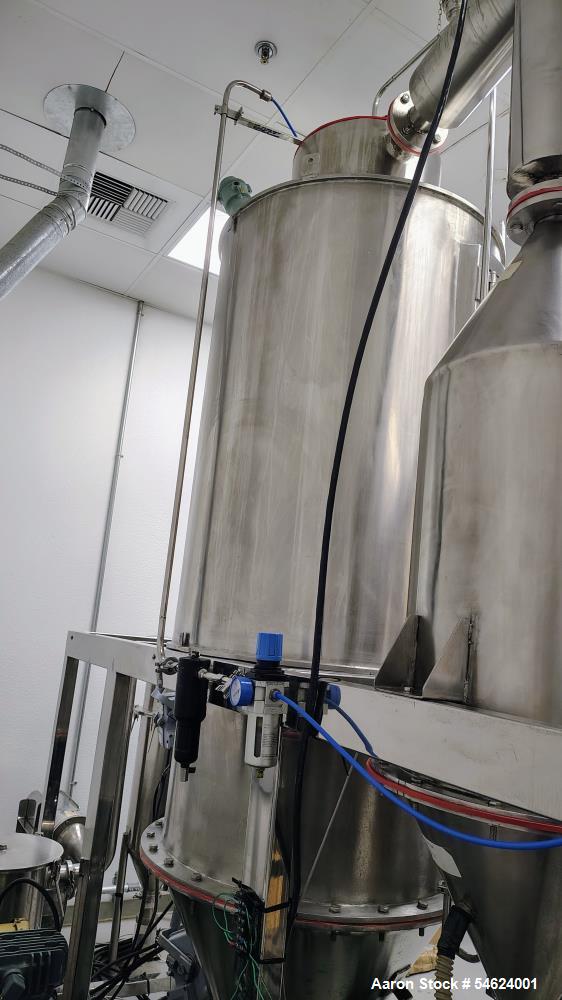

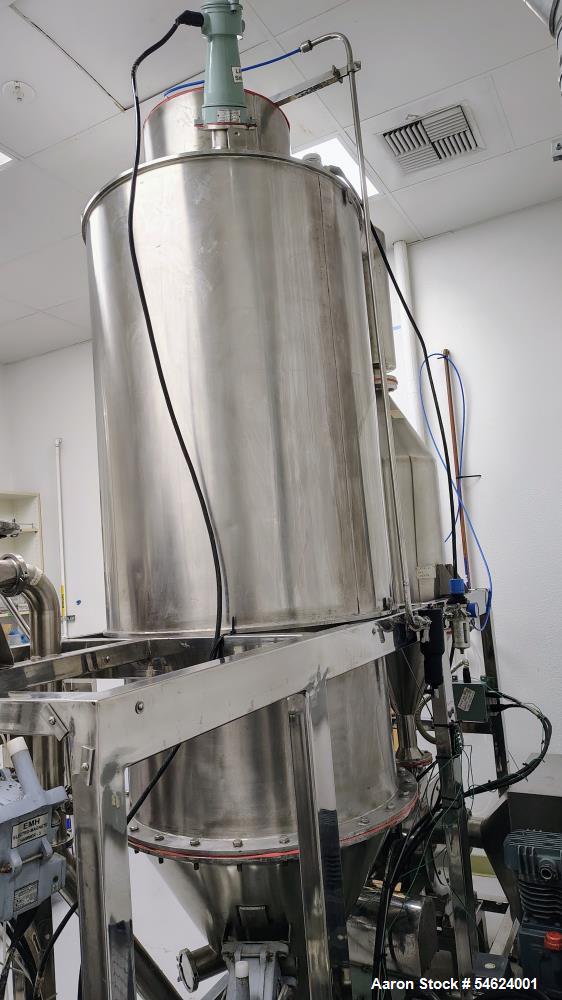

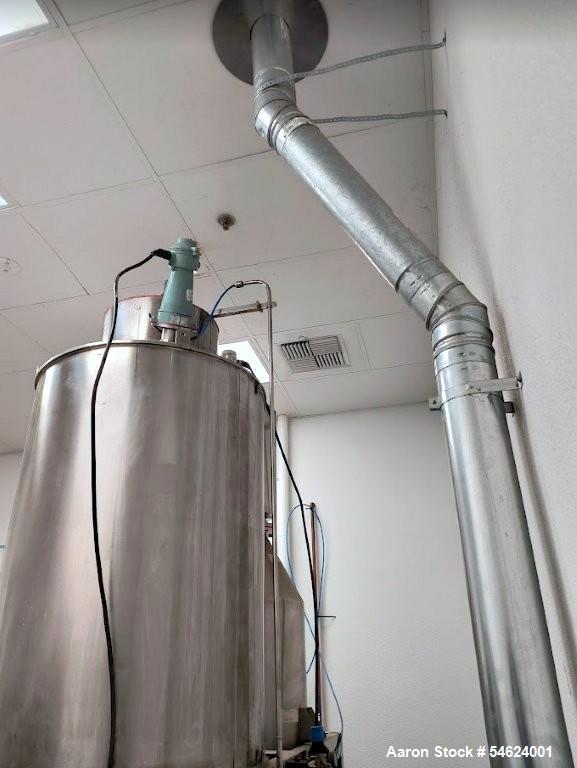

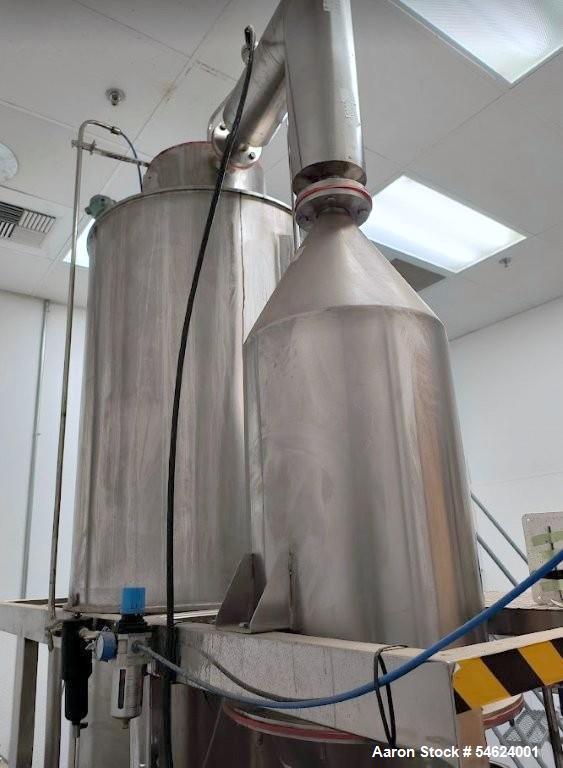

The drying chamber measures approximately 36" diameter x 69" straight side and features 316 stainless steel product-contact parts, with non-product-contact components constructed of 304 stainless steel.

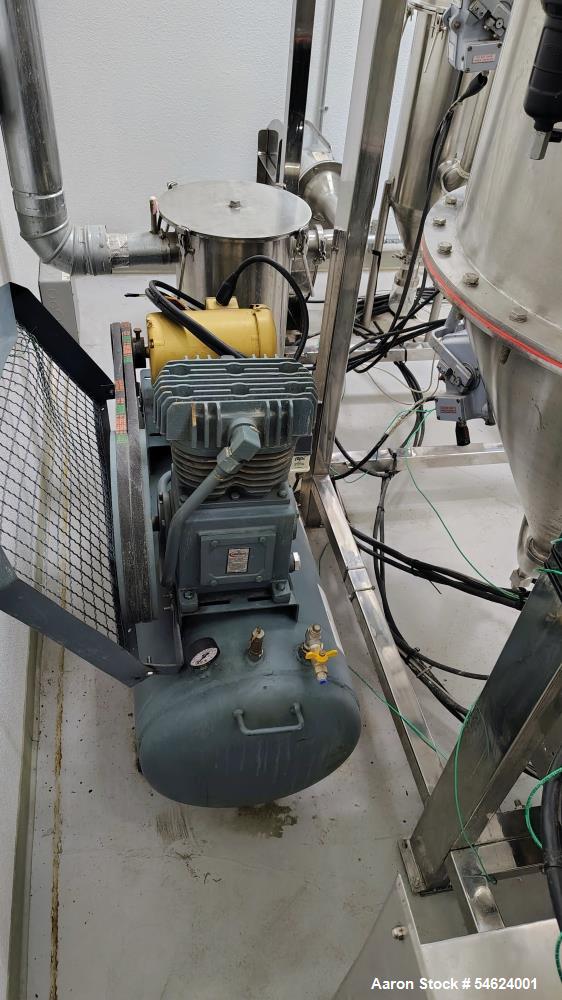

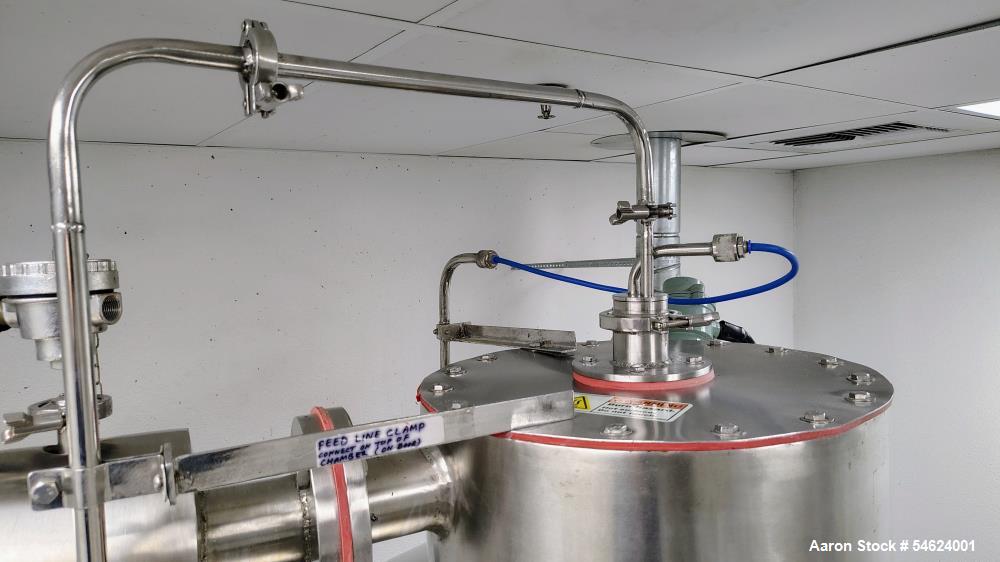

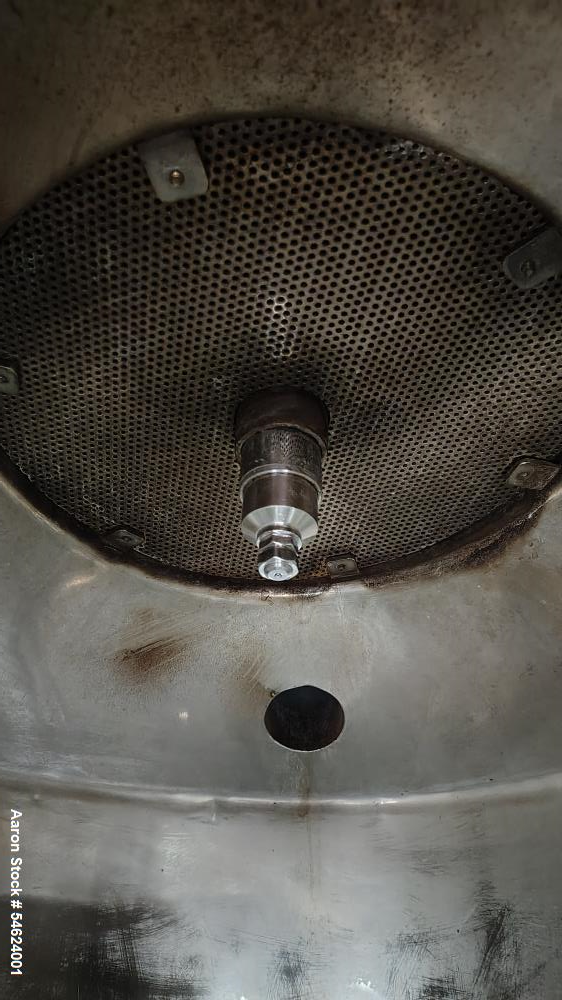

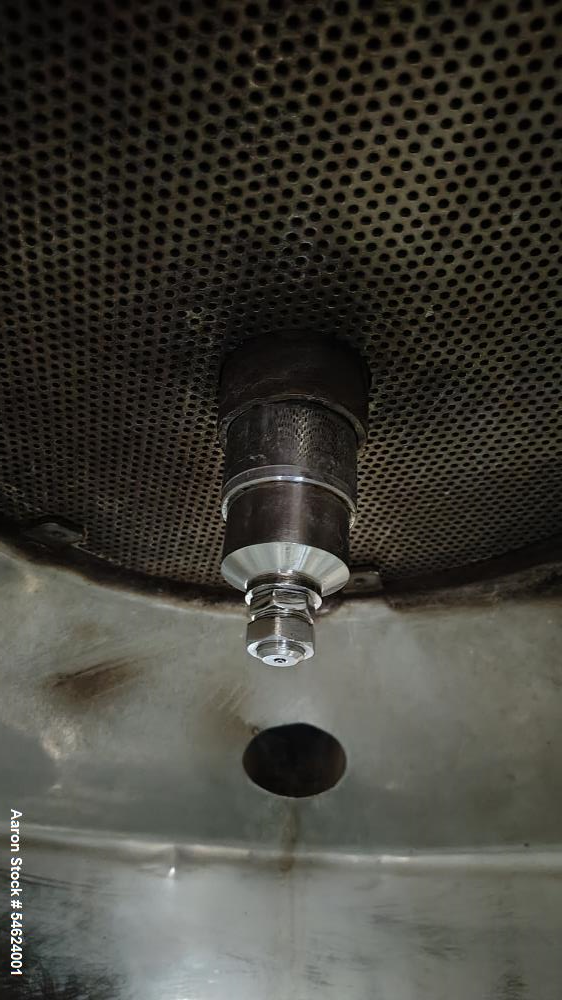

Atomization is accomplished through a two-fluid compressed-air nozzle, creating fine droplets of the liquid feed for rapid moisture evaporation inside the drying chamber. At a feed containing approximately 30% dry solids, the system has a stated feed rate of approximately 14.5 kg/hr (32 lb/hr) and powder production rate of approximately 4.5 kg/hr (10 lb/hr).

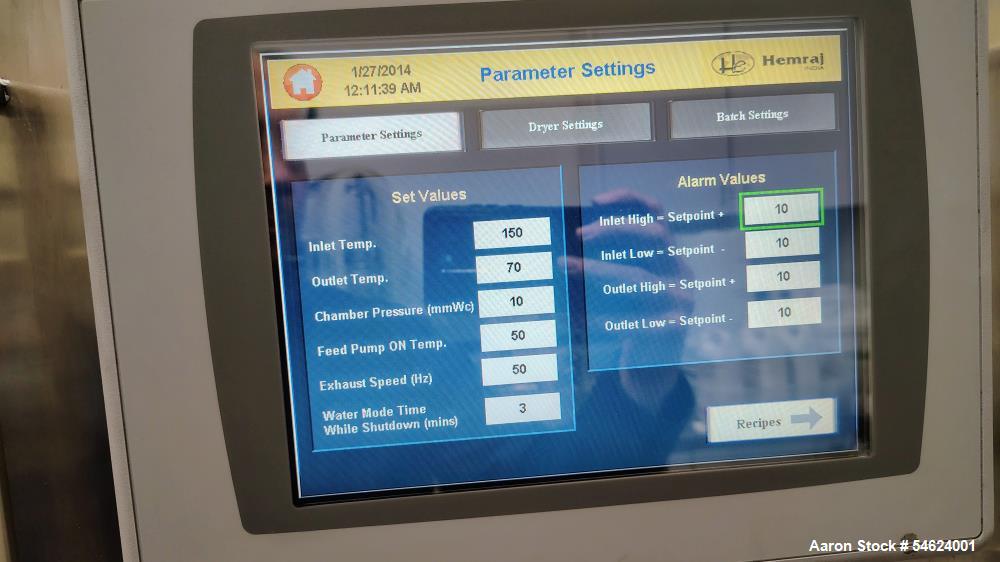

The system is designed for an inlet temperature ranging from ambient up to approximately 260°C (500°F), with a stated outlet temperature of approximately 95–100°C (203–212°F). Heat is supplied by an electric air heater.

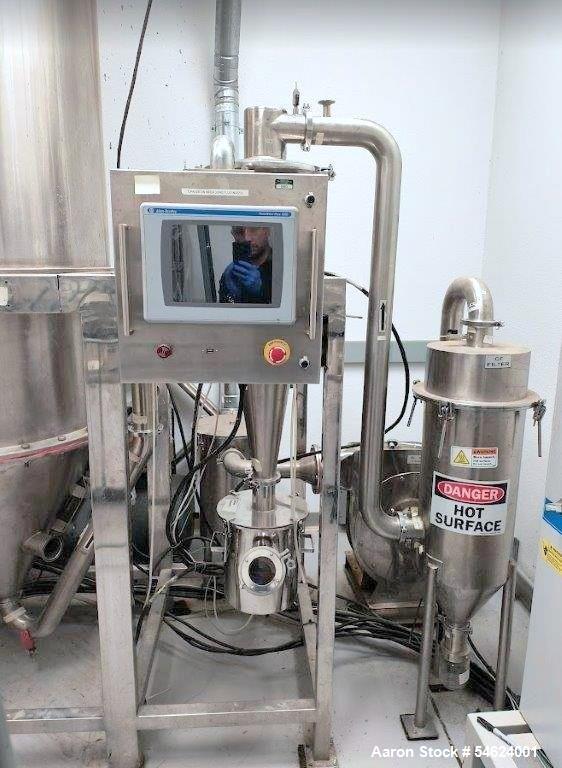

Powder is recovered using a "blown down" powder collection method. Design conditions include approximately 30–40°C (86–104°F) ambient temperature, 760 mm Hg atmospheric pressure, and 50% relative humidity.

Previously used in the production of organic biopesticides, this Hemraj PSD 02 may be suitable for research, pilot, specialty chemical, agricultural, and other lower-throughput powder-production applications.

Specifications

Typical Applications

• Spray drying
• Powder production
• Liquid-to-powder conversion
• Slurry drying
• Solution drying
• Suspension drying
• Specialty chemical processing
• Agricultural product processing
• Pilot-scale powder production
• Research and product development
• Ingredient drying
• Controlled moisture removal

Products This Spray Dryer Could Be Used For

• Biopesticide formulations
• Agricultural powders
• Specialty chemical powders
• Compatible food ingredients
• Botanical products
• Nutritional ingredients
• Water-based formulations
• Suspensions and slurries
• Solutions and emulsions
• Specialty additives
• Research and development formulations
• Other compatible heat-stable liquid feeds

Actual feed rate, evaporation capacity, powder yield, moisture content, and product suitability depend on feed solids, viscosity, density, heat sensitivity, inlet/outlet temperatures, atomization conditions, ambient conditions, and desired finished-powder properties.

Frequently Asked Questions

• What is the evaporation capacity? The Hemraj PSD 02 has a stated water evaporation capacity of approximately 10 kg/hr, or 22 lb/hr.
• How much finished powder can it produce? At the stated design basis of approximately 30% dry solids, the specified powder rate is approximately 4.5 kg/hr (10 lb/hr) from a 14.5 kg/hr feed rate.
• What type of atomizer does it use? The dryer uses a two-fluid compressed-air nozzle atomizer, which atomizes the liquid feed into fine droplets for rapid drying.
• What materials are used in construction? Product-contact components are 316 stainless steel, while non-product-contact components are 304 stainless steel.
• What was the spray dryer previously used for? The unit was previously used for organic biopesticides. Buyers should evaluate cleaning requirements and material compatibility before introducing a new product.
