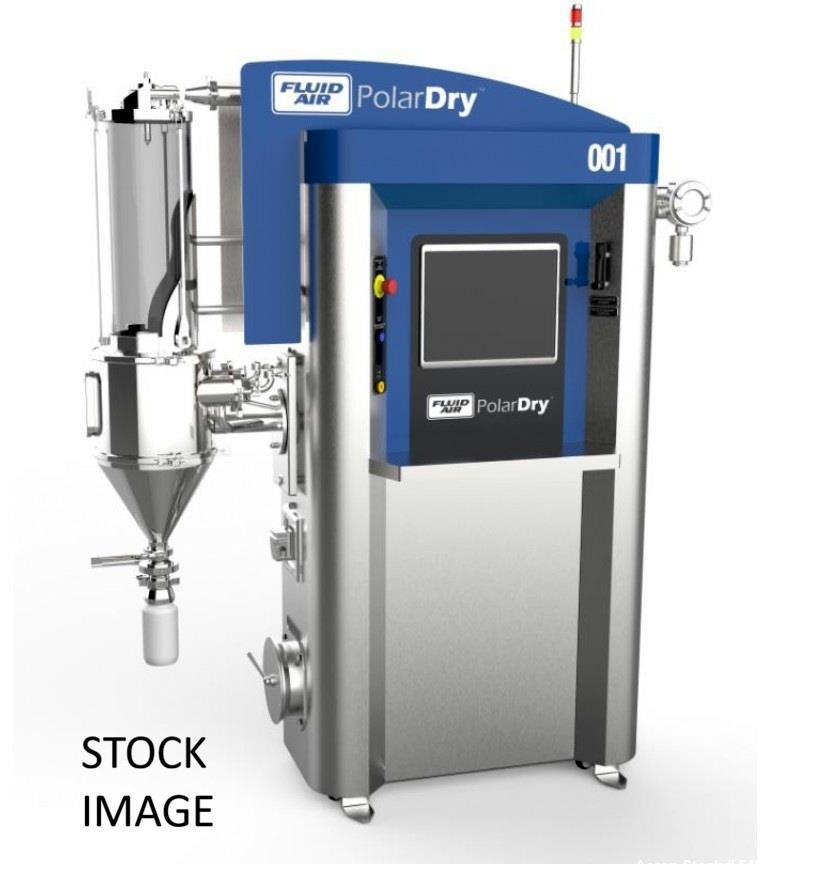

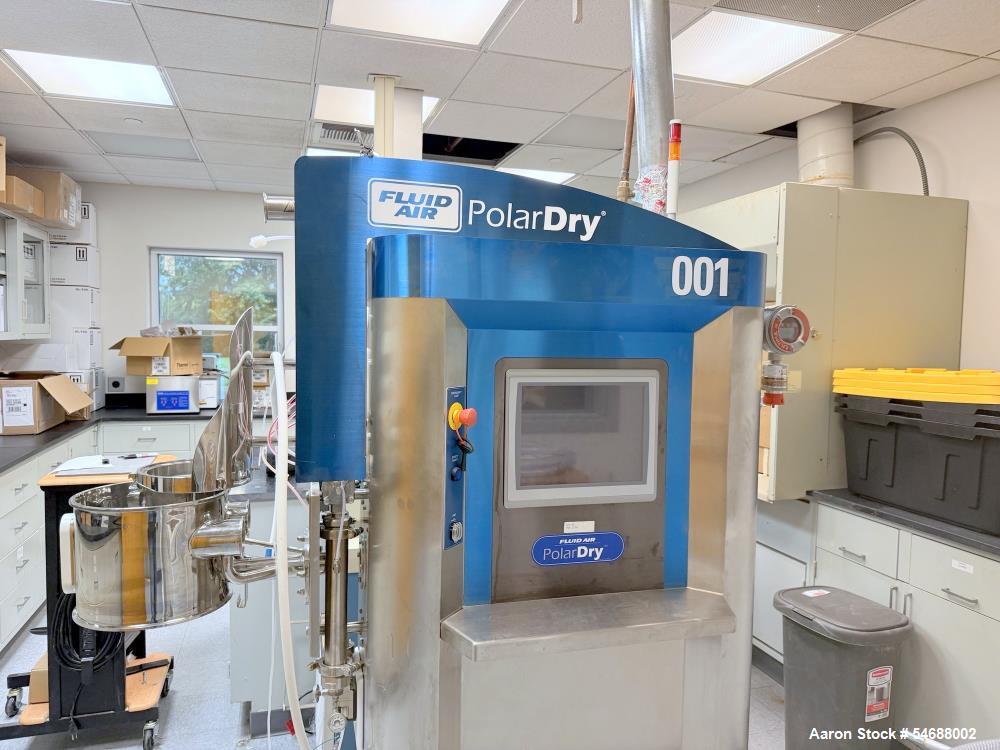

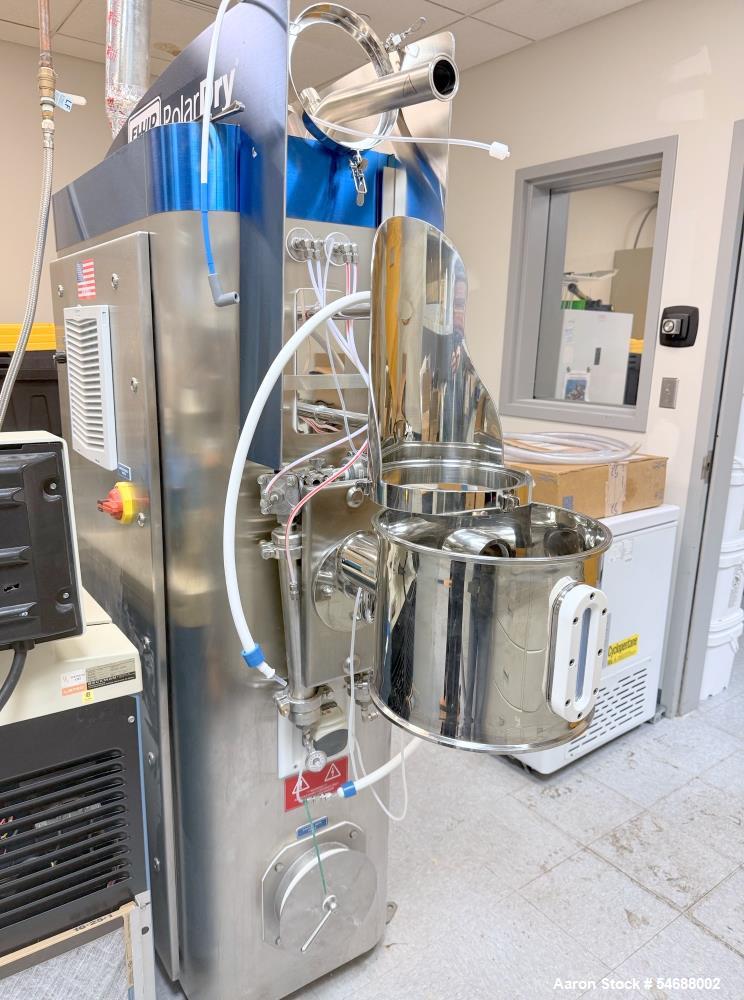

Used Fluid Air PolarDry Model 001 Electrostatic Spray Dryer, 1 Kg/Hr Evaporation Capacity. Designed for cGMP laboratory, research and development, and pilot-scale processing of aqueous feedstocks. Ra...

Used- Fluid Air PolarDry Model 001 Electrostatic Spray Dryer, 1 Kg/Hr Evaporation Capacity. Designed for cGMP laboratory, research and development, and pilot-scale processing of aqueous feedstocks. Rated for maximum evaporation capacity of 1 kg/hr with (1) electrostatic atomizing nozzle, maximum nitrogen drying gas inlet temperature of 140 C, drying gas flow of 43 Nm³/hr, maximum atomizing gas temperature of 150 C, and maximum atomizing gas pressure of 552 kPa. Features 316L stainless steel and ULTEM machine tower construction, FDA-approved acrylic spray chamber, (2) 5-micron polyester cartridge filters with 316 stainless steel wire mesh and reverse-pulse cleaning, HEPA exhaust filtration, electric drying gas heater, brushless DC blower, and 1-liter glass powder collection system. Equipped with Watson Marlow 313 peristaltic feed pump with 6–220 RPM operating range, AccuJet electrostatic nozzle controller, Allen-Bradley PLC with Batch Architect controls, operator touchscreen HMI, nitrogen inerting system, and integrated safety monitoring. Electrical requirements: 208–240V, single phase, 50/60 Hz, 30 amps. Compact, portable stainless steel design. Possible applications include laboratory spray drying, powder formulation development, microencapsulation, pharmaceutical research, nutraceutical development, and processing of compatible aqueous food and specialty ingredient formulations.
