Stock No.: 54437001

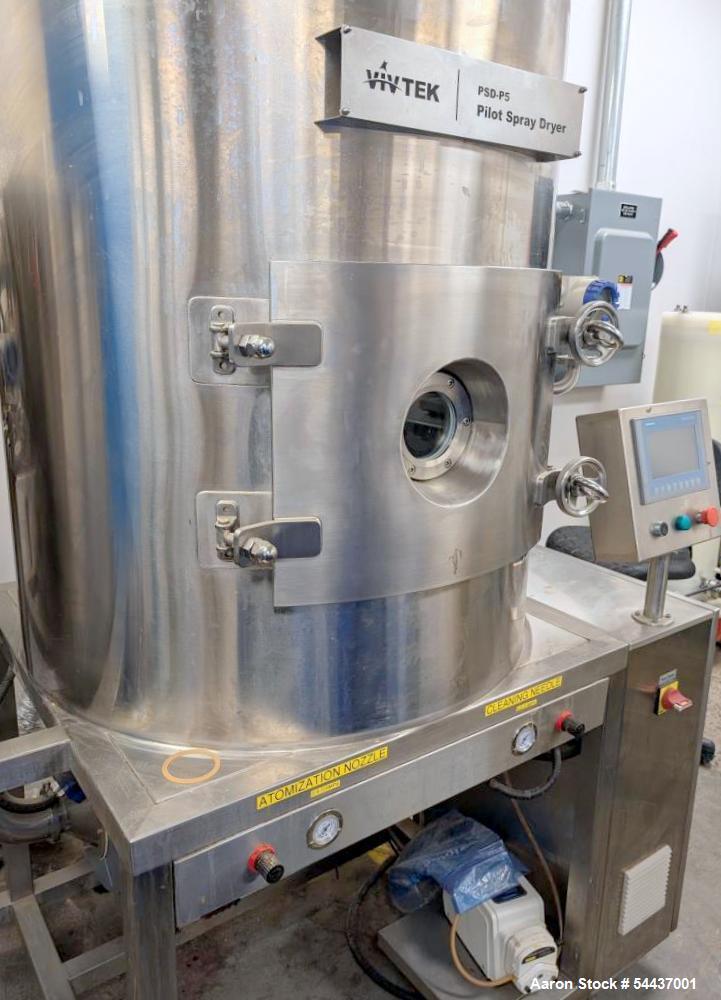

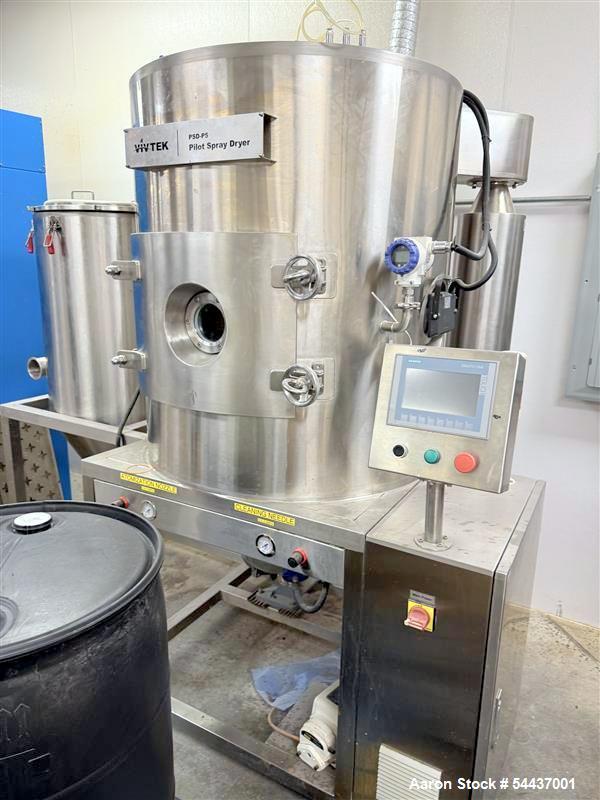

Used Vivtek PSD-P5 Pilot Spray Dryer – Food-Grade Powder Production System with Dust Collection (2023)
Used- Vivtek Instruments Pilot Spray Dryer, Model PSD-P5. 5-8 kg/hour (approx. 11-17.5 lbs./hour) evaporation capacity. 32" diameter x 60" long drying chamber. 6" diameter x 16" long cyclone. Two-fluid atomizer: 1, 1.5, and 2 mm. 280 degrees C. (538 degrees F.) max. temperature. 12 kW heater. 750W air blower. 3ph/230V. With dust collector. Built 2023. Previously used for food/beverage emulsion powder.
-
ModelPSD-P5
-
CategoryDryers - Drying Equipment
-
SubcategorySpray Dryer
Used equipment facts about this machine
Manufacturer Information
Manufacturer: Vivtek Instruments
Model: PSD-P5
Year Built: 2023
Condition: Used
Product Description
The Vivtek PSD-P5 Pilot Spray Dryer is a compact, high-performance drying system designed for pilot-scale and small production powder applications. Previously used for food and beverage emulsion powders, this unit is ideal for R&D, formulation development, and specialty production environments.
With an evaporation capacity of 5–8 kg/hour (11–17.5 lbs/hour), the PSD-P5 delivers efficient and consistent drying performance. The system features a 32" diameter x 60" long drying chamber and a 6" x 16" cyclone separator for effective powder recovery.
Equipped with a versatile two-fluid atomizer (1 mm, 1.5 mm, and 2 mm nozzles), this spray dryer allows for precise particle size control across a range of formulations. A 12 kW heater supports drying temperatures up to 280°C (538°F), while a 750W air blower ensures stable airflow and drying conditions.
The unit includes a dust collector for improved product recovery and clean operation. Designed for hygienic and controlled processing, this system is ideal for food-grade and specialty powder applications.

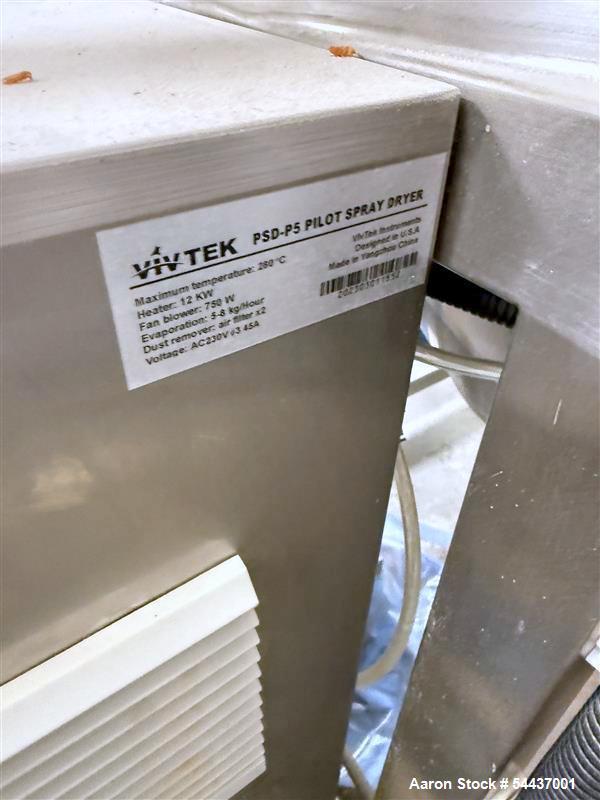

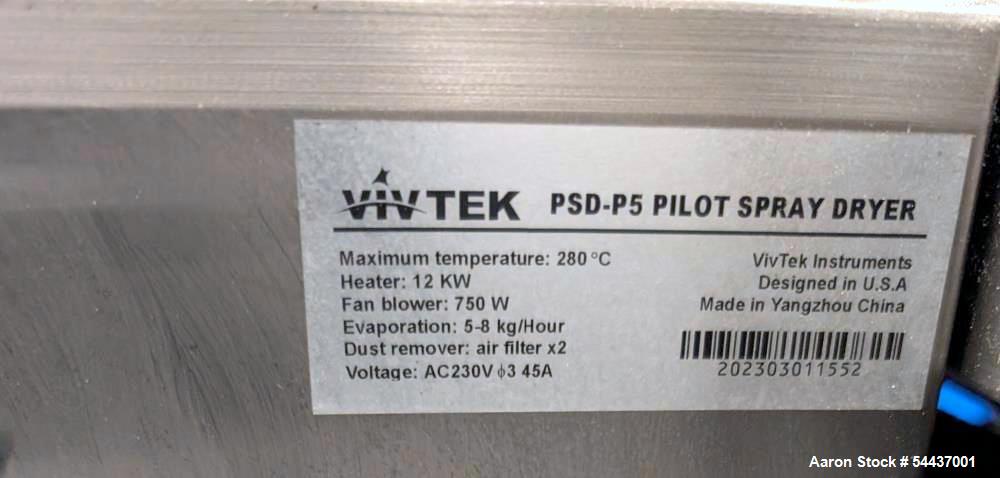

Specifications
- Manufacturer: Vivtek Instruments
- Model: PSD-P5
- Condition: Used
- Year: 2023
- Evaporation Capacity: 5–8 kg/hr (11–17.5 lbs/hr)
- Drying Chamber: 32" diameter x 60" length
- Cyclone Separator: 6" diameter x 16" length
- Atomizer Type: Two-fluid atomizer
- Nozzle Sizes: 1 mm, 1.5 mm, 2 mm
- Maximum Temperature: 280°C (538°F)
- Heating Capacity: 12 kW
- Air Blower: 750W
- Dust Collection: Included
- Electrical Requirements: 3 Phase / 230V
Applications
- Pilot-scale spray drying
- Food and beverage powder production
- Emulsion drying
- Pharmaceutical powder processing
- Nutraceutical powder manufacturing
- Chemical drying applications
- R&D and formulation testing
- Flavor and ingredient encapsulation
- Specialty powder production
- Laboratory and pilot plant operations
What Products Would This Be Used For
- Milk powders
- Beverage powders
- Emulsified food powders
- Nutritional supplements
- Flavor encapsulates
- Protein powders
- Pharmaceutical powders
- Chemical powders
- Specialty food ingredients
- Dry emulsions
