Used Disc Dryers

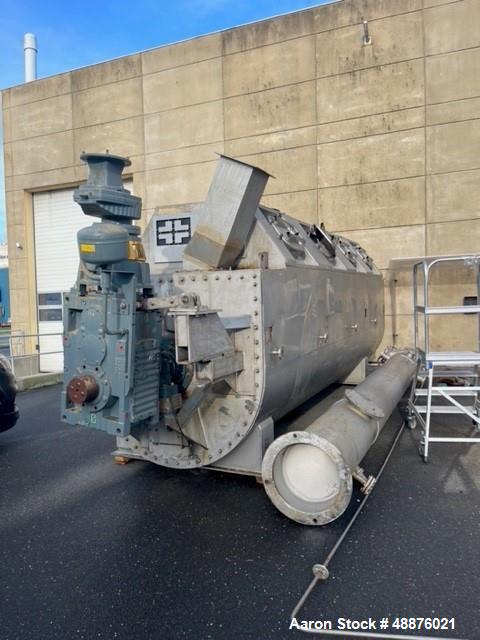

Used- Stainless Steel Rietz / Bepex Torus Disc Dryer, Model TDJS-60-17

Used- Reitz / Bepex Torus Disc Dryer, Model TDJS-60-17, 304 Stainless Steel. Approximately 177 cubic feet working capacity. 60" Diameter x 210" long cored screw, rated 75 psi at 300 degrees F, National Board# 125. Dimple jacketed trough approximate 70" wide x 210" long x 82" deep, rated 50 psi at 300 degrees F, National Board# 125. Chain driven by a 60hp, 3/60/230/460 volt, 1775 rpm motor thru a reducer, ratio 47.1 to 1, approximate 37 rpm output speed. Openings top 12", (4) 24" with covers, each cover has a 4", 22". Top end feed, side outlet. Serial# TD793918-1, Built 1980. Includes a 5hp screw feeder.
