Stock No.: 53128002

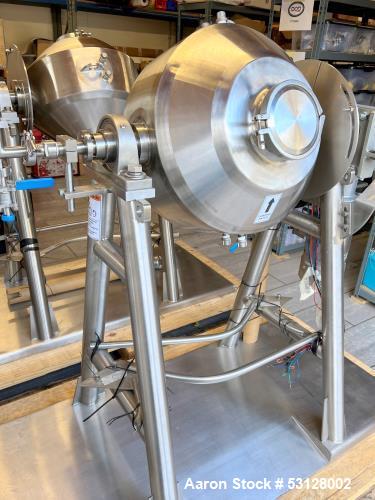

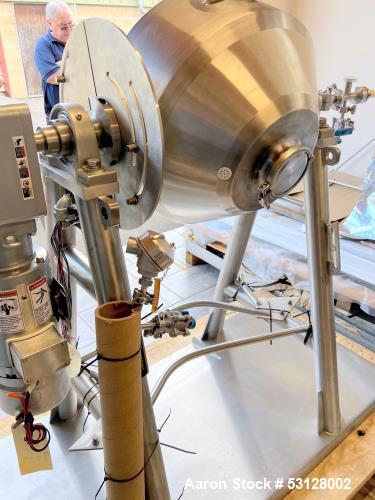

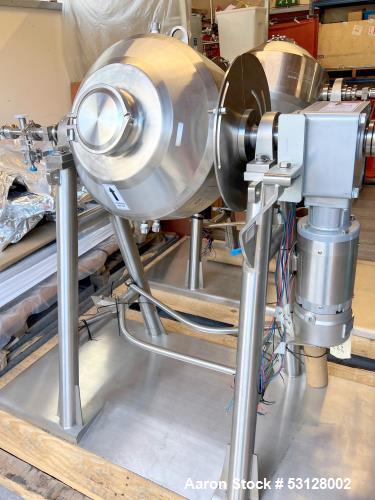

Unused Paul O. Abbe Sanitary Rota-Cone Vacuum Dryer – Model RCVD 1.1 | 316L Stainless Steel
Unused- Paul O. Abbe (Certified by DCI Inc.) Sanitary Rota-Cone Vacuum Dryer, Model RCVD 1.1, 316L Stainless Steel. Working capacity. 1.7 Cubic Foot, Total Capacity (12 Gallon). Type 316L Stainless Steel Construction. 18" Inside Diameter Shell that is Electropolished. Sanitary 6" Inlet with Gasketed Cover and 3" Sanitary Outlet, No Valve. Internal Rated 35 PSI/Full Vacuum @ 300 Degrees F. MDMT is -20 Degrees F @ 35 PSI/Full Vacuum. Type 304 Stainless Steel Jacket rated 45 PSI/Full Vacuum @ 300 Degrees F. MDMT is -20 Degrees F @ 45 PSI/Full Vacuum. Jacket Volume is 2-gallon capacity. Vessel is Insulated with 1" Chloride Free Insulation with 316L SS Shroud. National Board, ASME & U Stamped. Includes Stainless Steel Hp TEFC Motor, 400 Volt, 3/50. CE Certified. Hollow Bore Gear Motor. Approx. 8 RPM Output Speed, mounted through Aluminum Frame Gear Reducer at 188.5/1 Ratio. 304 Stainless Steel Tubular Legs and Base. Includes Internal Sanitary Vacuum Line, Gas Purge and RTD Probe. Stainless Steel Rotary Unions. Includes Brake Motor with Inverter, and Positioning Disc. Does Not Include Control Panel. Drawings and Manual are available. Serial Number JS7845A, Built in 2020. Built for a Pharmaceutical Company in the UK and it was NEVER USED. Still in storage in the UK. Ready for Shipment. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
-
ManufacturerPaul O Abbe
-
ModelRCVD-1.1
-
Serial #JS7845B
-
CategoryDryers - Drying Equipment
-
SubcategoryDouble Cone - V Rotary Vacuum
-
Material Of Construction316L Stainless Steel
-
Capacity1.7 cu/ft
-
Internal RatedPressure
-
Vacuum Rated45
-
Pressure Rated35
-
Internal Temperature-20 to 300 F
-
Opening CoverYes
-
Year Built2020
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information
- Brand: Paul O. Abbe (Certified by DCI Inc.)
- Year Built: 2020

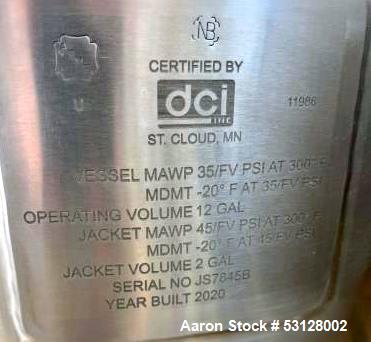

- Certification: National Board, ASME & U Stamped, CE Certified
- Condition: Unused – Still in Storage in the UK, Ready for Shipment
Manufacturing Data & Specifications

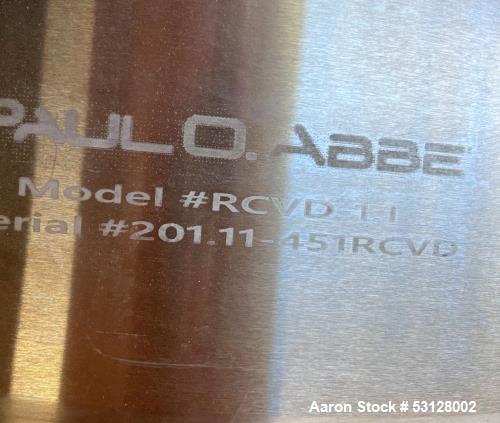

- Model: RCVD 1.1
- Material: 316L Stainless Steel Construction
- Working Capacity: 1.7 Cubic Foot (12-Gallon Total Capacity)
- Shell Interior: 18” Inside Diameter, Electropolished for Sanitary Applications
- Inlet & Outlet:
- 6” Sanitary Inlet with Gasketed Cover
- 3” Sanitary Outlet (No Valve)
- Internal Pressure Ratings:
- 35 PSI / Full Vacuum @ 300°F
- MDMT: -20°F @ 35 PSI / Full Vacuum
- Jacket (304 Stainless Steel):
- Rated 45 PSI / Full Vacuum @ 300°F
- MDMT: -20°F @ 45 PSI / Full Vacuum
- 2-Gallon Jacket Volume
- Insulation:
- 1” Chloride-Free Insulation
- 316L Stainless Steel Shroud for Protection

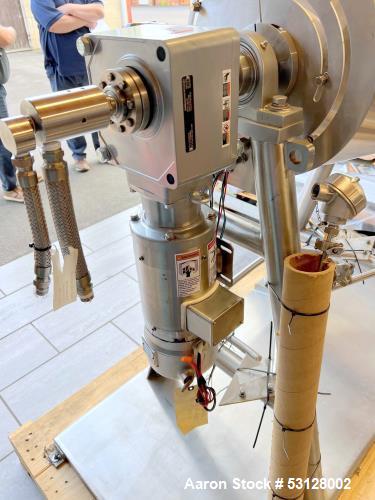

Drive System & Motor Details

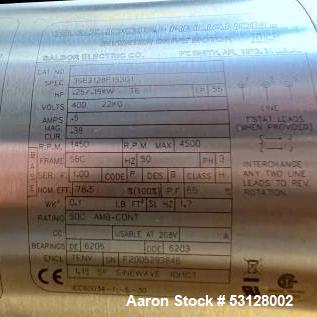

- Motor: Stainless Steel HP TEFC Motor
- Voltage: 400V, 3/50
- Drive System: Hollow Bore Gear Motor
- Gear Reducer: Aluminum Frame, 188.5/1 Ratio
- Rotational Speed: 8 RPM Output
- Includes:
- Brake Motor with Inverter & Positioning Disc
- Stainless Steel Tubular Legs & Base

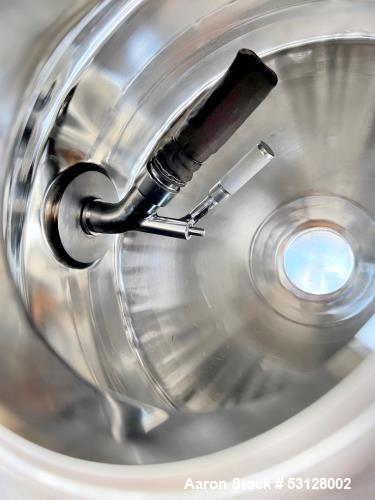

- Internal Sanitary Vacuum Line

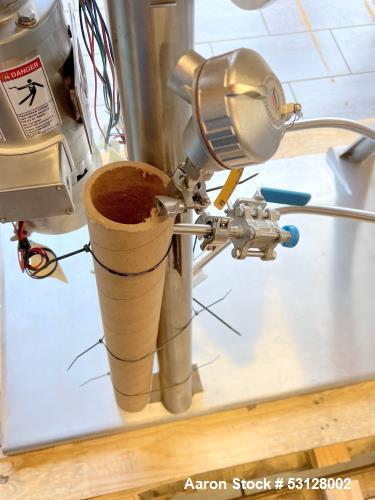

- Gas Purge System
- RTD Probe for Temperature Monitoring
- Stainless Steel Rotary Unions
- Control Panel: Not Included
Description
This unused Paul O. Abbe Sanitary Rota-Cone Vacuum Dryer is a high-performance pharmaceutical-grade drying solution designed for low-temperature drying of sensitive materials under vacuum conditions. Made of electropolished 316L stainless steel, this dryer provides a sanitary, contamination-free processing environment, making it ideal for pharmaceutical, chemical, food, and specialty material applications.
Designed for precise temperature and pressure control, the Rota-Cone Vacuum Dryer effectively removes moisture without damaging heat-sensitive products. With an internal vacuum line, gas purge, and RTD probe, it offers optimized drying performance.
Applications
This industrial vacuum dryer is ideal for industries requiring precision drying under controlled conditions, including:
- Pharmaceuticals (API, fine chemicals, excipients)
- Nutraceuticals & food ingredients
- Chemical & specialty material drying
- Heat-sensitive material drying
- Biotech & research laboratory applications
Compatible Products & Equipment
- Vacuum pumps & filtration systems
- Stainless steel reactors & process vessels
- Centrifuges & separators
- Bulk powder handling & packaging systems
Product Details
- Rota-Cone Vacuum Dryer
- Paul O. Abbe vacuum dryer
- Stainless steel pharmaceutical dryer
- Industrial vacuum drying equipment
- High-capacity sanitary vacuum dryer
- ASME-certified vacuum dryer
- Unused Paul O. Abbe Rota-Cone Vacuum Dryer for sale
- 316L stainless steel vacuum dryer for pharmaceuticals
- Industrial-grade electropolished vacuum dryer
- CE-certified vacuum drying equipment for sensitive materials
- Low-temperature drying system for fine chemicals
