New Paul O. Abbe Model RCVD-9 Body Only

Product Description

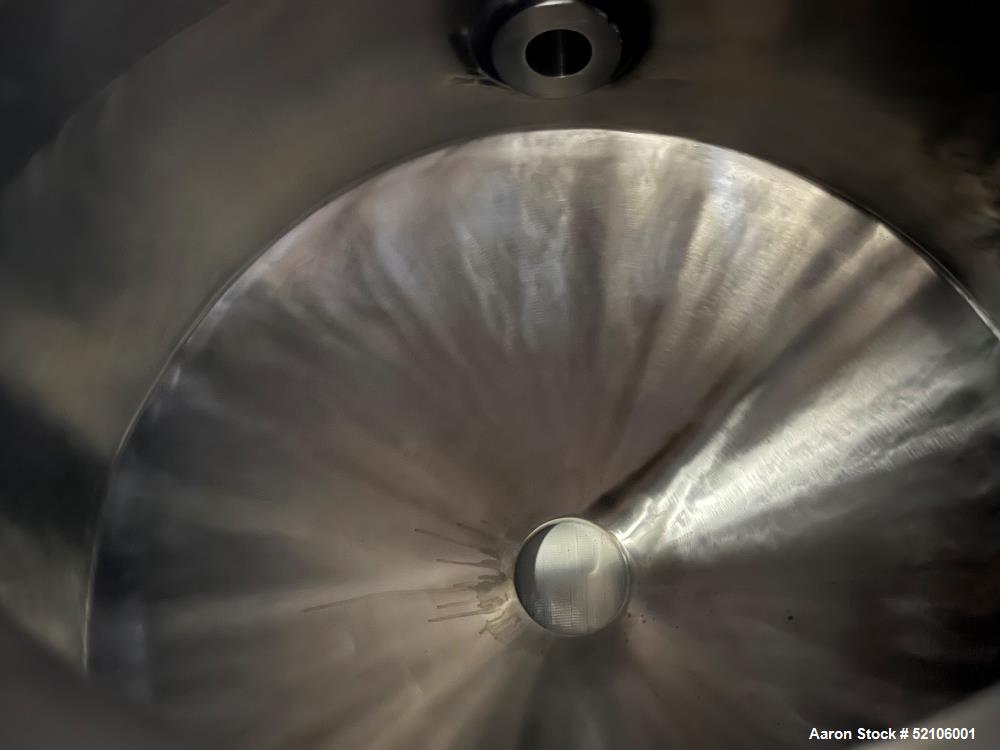

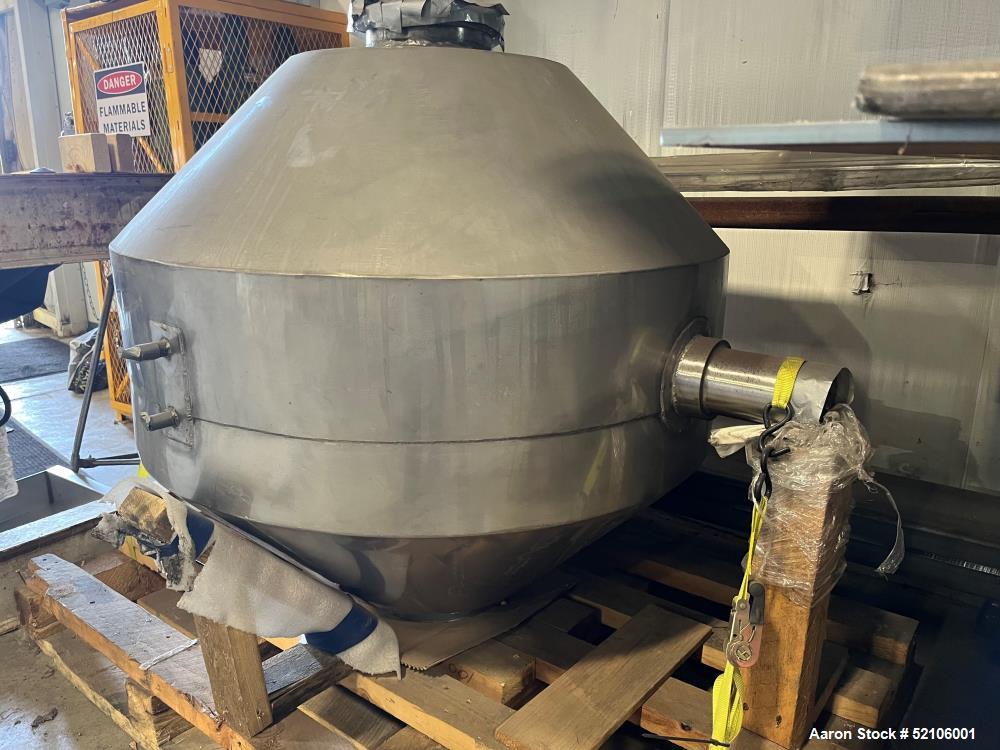

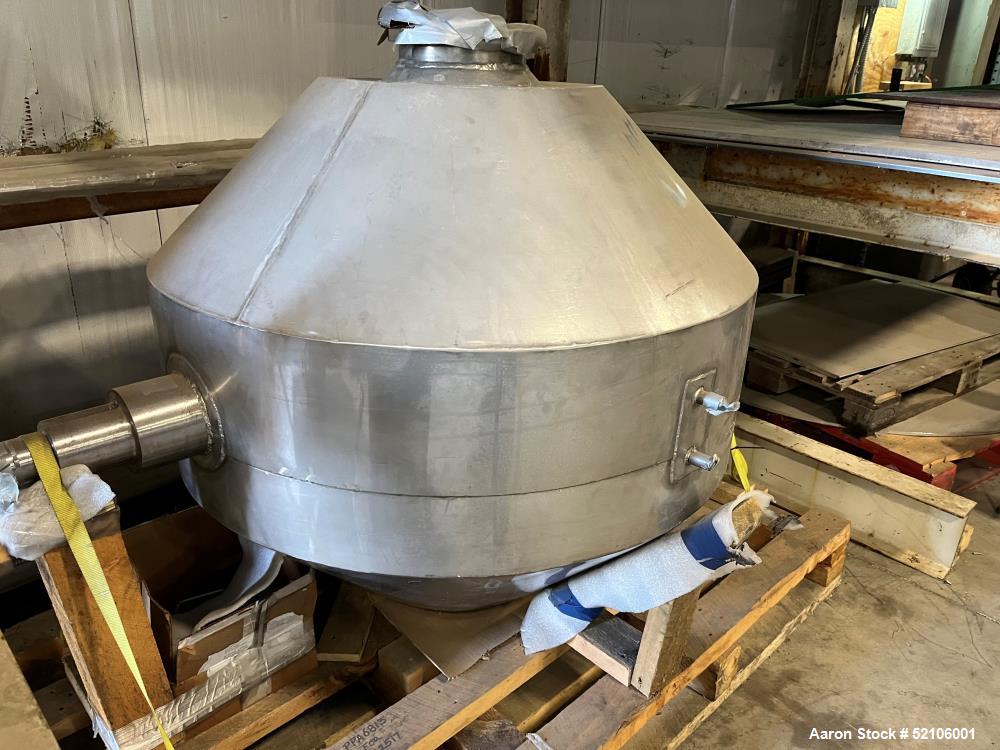

This New/Unused Paul O. Abbe RCVD-9 is a high-performance rotary cone vacuum dryer (RCVD) body, engineered for drying sensitive, granular, or powdered materials under vacuum. Built from Type 304 stainless steel with an 180-grit, 32 Ra polish, it offers a working capacity of 8.8 cubic feet and a 36" diameter body, optimized for uniform drying performance and product purity.

The unit includes a non-code 14.7 psig rated jacket, chloride-free rock wool insulation, and a 304 stainless steel welded shroud with glass bead finish for thermal efficiency. The dryer body also comes with an 8” loading cover, 6” manual butterfly valve, and a vacuum line with RTD for temperature sensing (no readout). A 1 HP TEFC motor powers the system, suitable for products up to 90 lbs/ft³ bulk density.

Note: This listing includes the dryer body only. However, new stands can be fabricated in 8 weeks, and custom upgrade options such as higher HP, XP motors, spray bars, samplers, gas purge lines, and full control panels (NEMA 12, 4, 4X, 7 & 9) are available upon request.

⚙️ Specifications

• Manufacturer: Paul O. Abbe

• Model: RCVD-9 (Body Only)

• Condition: New / Unused

• Working Capacity: 8.8 Cubic Feet

• Material: Type 304 Stainless Steel (Contact Surfaces)

• Interior Finish: 180 Grit Polish, 32 Ra

• Shell Diameter: 36"

• Jacket: Non-Code, Rated 14.7 psig

• Insulation: 2" Chloride-Free Rock Wool

• Shroud: 304 Stainless Steel, Glass Bead Blasted

• Vacuum System: RTD included (no readout)

• Loading Port: 8" Cover

• Discharge: 6" Manual Butterfly Valve

• Drive Motor: 1 HP TEFC

• Bulk Density Rating: Up to 90 lbs/ft³

🔧 Optional Add-Ons (Available)

• New support stands (8-week lead time)

• Higher HP motor for minerals or dense powders

• Explosion-proof (XP) motor

• Gas purge line

• Liquid spray bar

• Integrated product sampler

• 304 stainless steel legs or support structure

• Positioning system

• Electrical Controls:

  • NEMA 12

  • NEMA 4

  • NEMA 4X stainless steel

  • NEMA 7 & 9 (hazardous location)

✅ Applications

• Pharmaceuticals – APIs, excipients

• Chemicals – Solvent-based compounds, catalysts

• Powdered Metals & Minerals – Carbides, metal oxides

• Nutraceuticals – Herbal extracts, dietary powders

• Food Ingredients – Starches, flavors, additives

• Plastics & Polymers – Resins, additives, fillers

• Biotech & Cosmetics – Active ingredients, clays

📦 What Products Would This Be Used For?

• Sensitive heat- or oxygen-reactive powders

• Solvent-laden materials requiring vacuum drying

• Granular or crystalline food and pharma products

• High-density metal powders

• Spray-dried materials requiring final moisture removal

• Specialty chemicals and intermediates
