Stock No.: 53008001

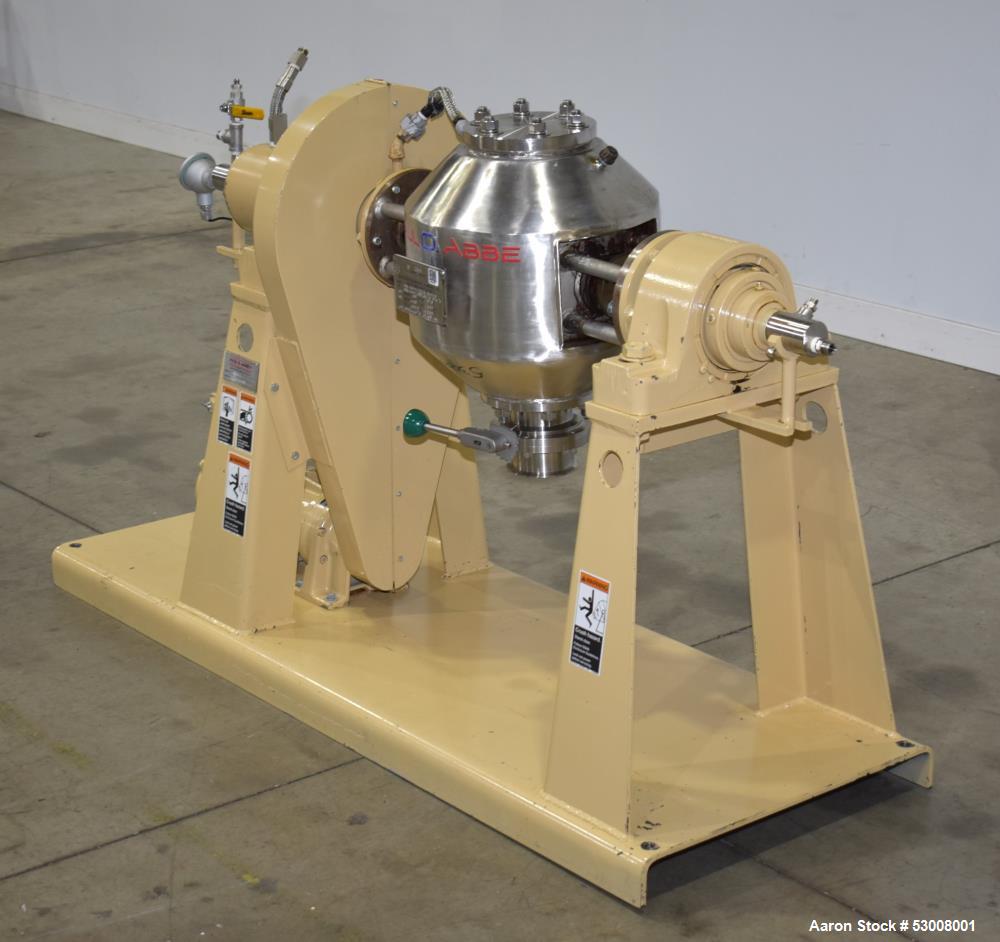

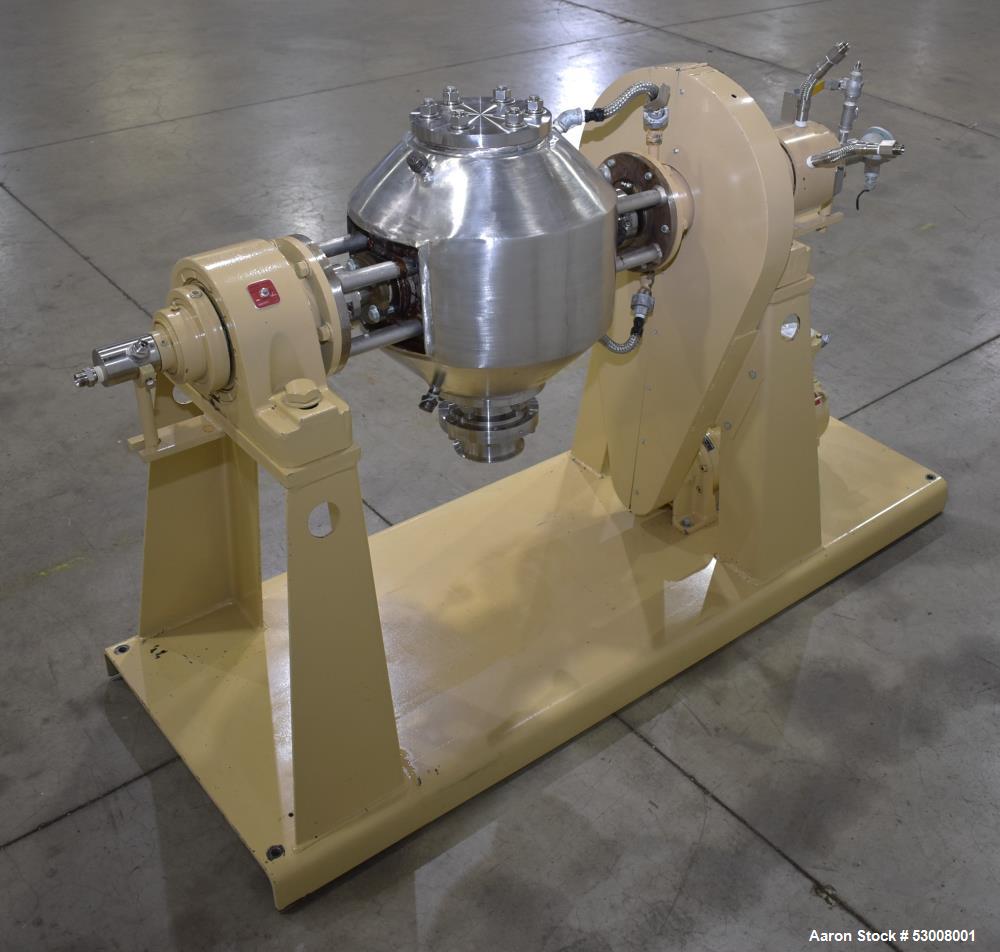

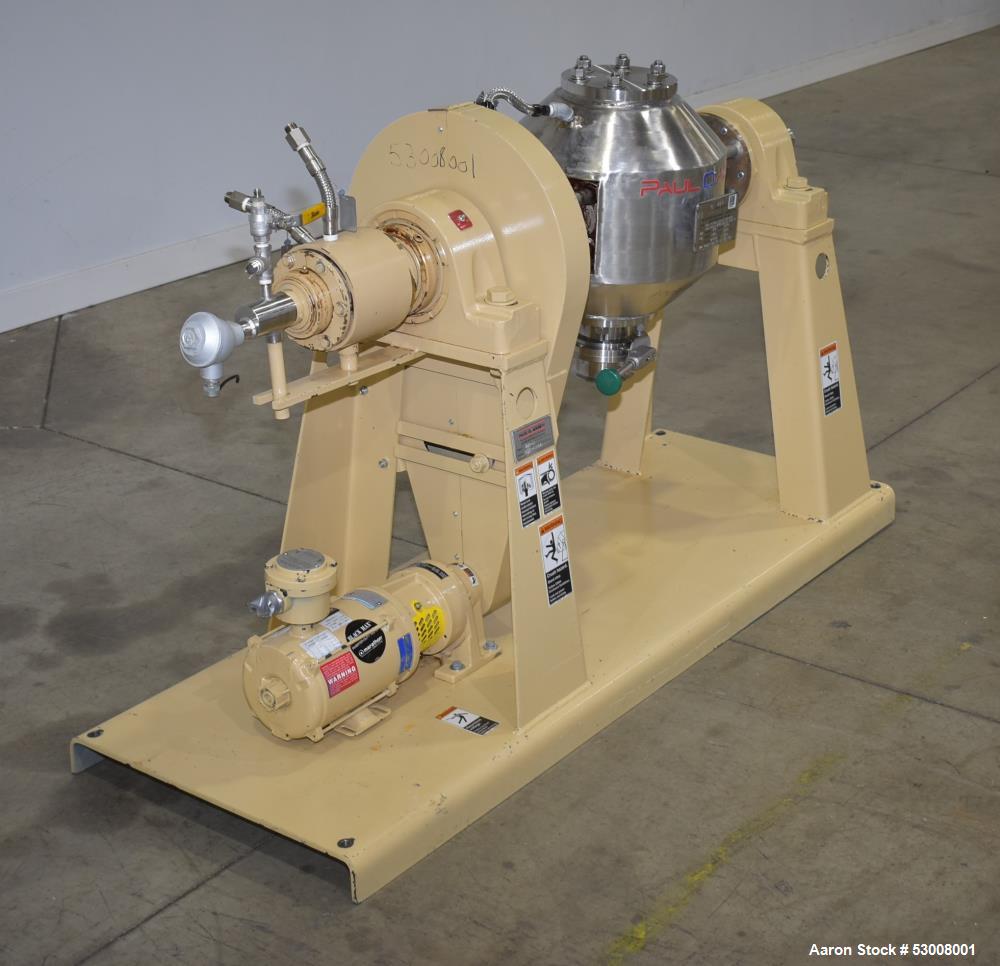

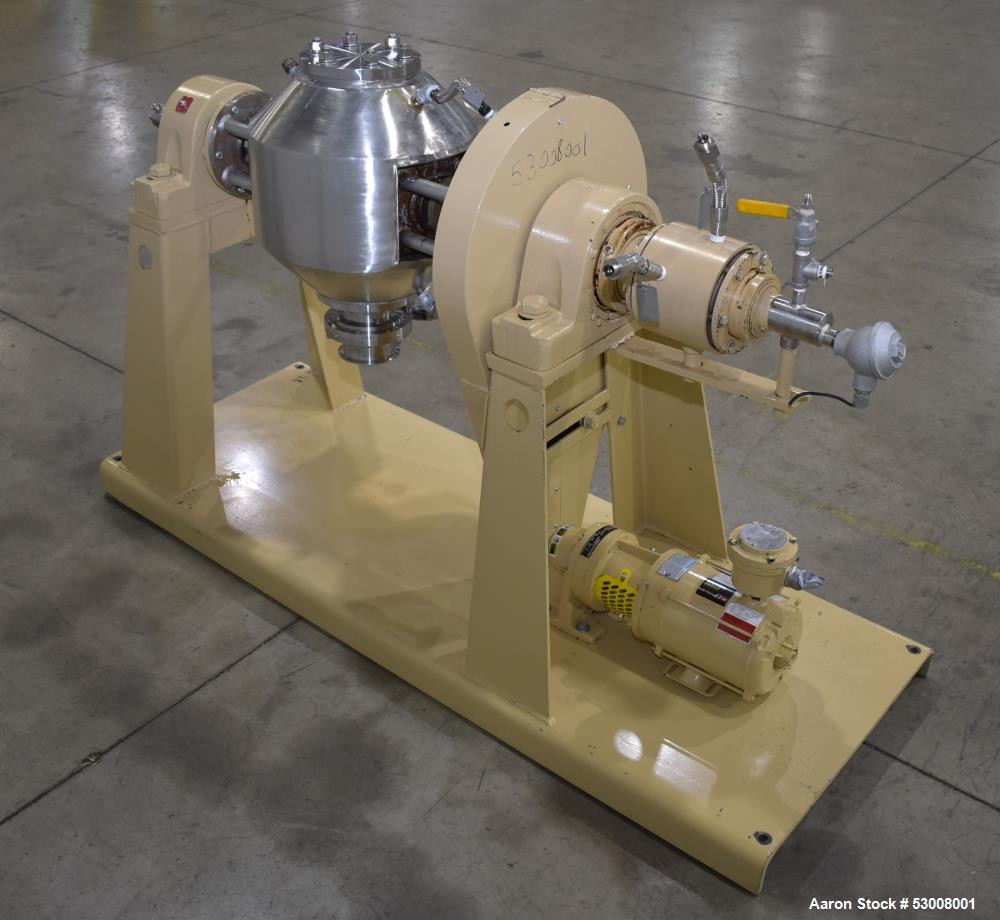

Used Paul O Abbe RCVD-12 Rota-Cone Vacuum Dryer – 304 Stainless Steel

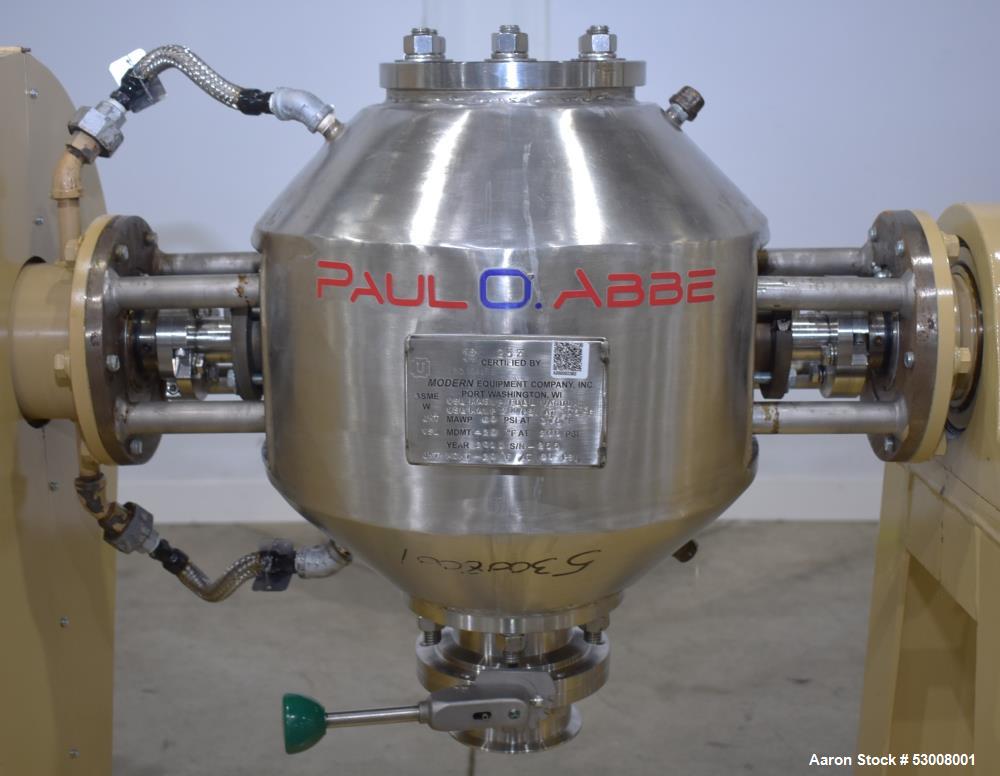

Used- Paul O Abbe Rota-Cone Vacuum Dryer, Model RCVD-12, 304 Stainless Steel. Vessel volume: 0.61 cubic feet total, 0.4 cubic feet operating. approximately 12" diameter x 6" straight side bowl. Internal rated 200 psig / FV at -20 to 375 degrees F. Jacket rated 60 psi at -20 to 375 degrees F. Driven by a 1/4HP, 3/60/230-460 volt gear motor, through a reducer 51:1 ratio. Speed of rotation 0 - 5 rpm. (2) 4" openings. Mounted on base. National Board# 253, Serial# 11121-439RCVD. 3/60/240 Volt.
-
ManufacturerPaul O Abbe
-
ModelRCVD-12
-
Serial #11121-439RCVD
-
CategoryDryers - Drying Equipment
-
SubcategoryDouble Cone - V Rotary Vacuum
-
Material Of Construction304 Stainless Steel
-
Capacity0.61 total
-
Internal RatedFull Vacuum
-
Vacuum Rated60psi
-
Pressure Rated200 psi
-
Internal Temperature375 degrees F.
-
Opening Size4"
-
Opening CoverNo
-
Outlet Size4"
-

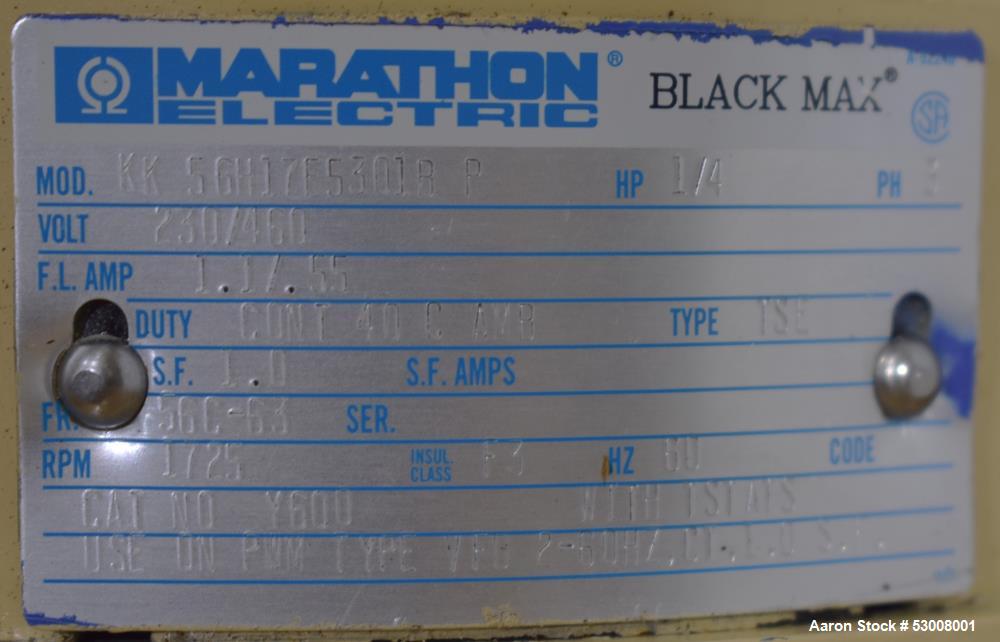

Motor Hp1/4
-
Motor Phase3
-
Motor Cycle60
-
Motor Voltage208-230/460 Volt
-
Motor Rpm1725
-
Motor TypeGearmotor
-
Drive Ratio51:1
-
MountedBase Mounted
-
Overall Dimensions72" x 42" x 36"T
-
Year Built2011
Used equipment facts about this machine

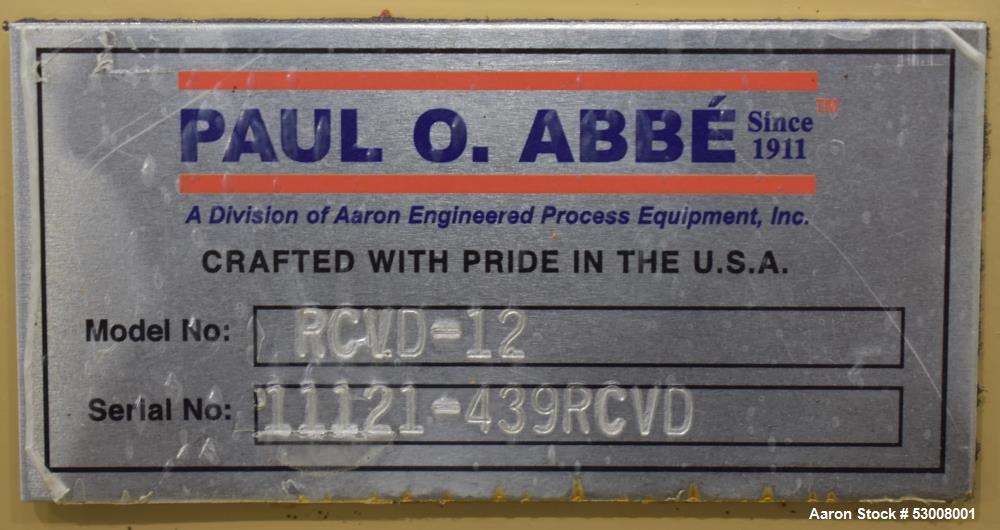

Manufacturer Information
Manufacturer Information:
- Brand: Paul O Abbe
- Model: RCVD-12 (Rota-Cone Vacuum Dryer)
- Serial Number: 11121-439RCVD

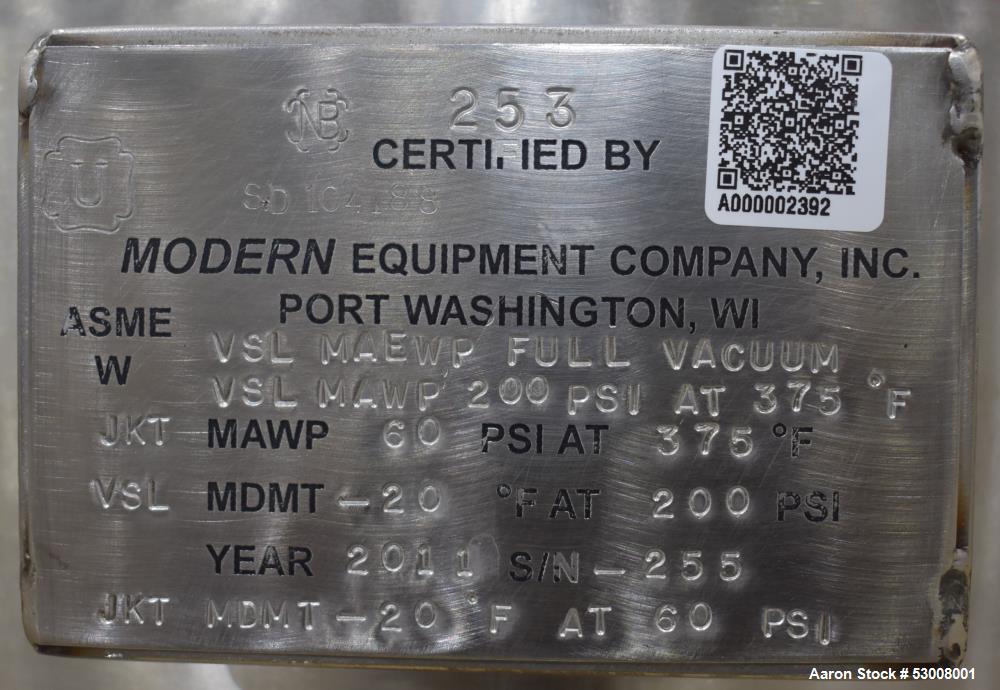

- National Board Number: 253
Description:
The Paul O Abbe RCVD-12 Rota-Cone Vacuum Dryer is a high-efficiency drying system, designed for low-temperature drying, solvent recovery, and precise moisture removal in industries such as pharmaceuticals, chemicals, and food processing.
This unit is constructed of 304 stainless steel and features a 0.61 cubic foot total vessel volume, with a 0.4 cubic foot operating volume. The internal chamber is rated for 200 PSIG / Full Vacuum at -20 to 375°F, while the jacket is rated for 60 PSIG at -20 to 375°F, allowing for controlled heating and vacuum drying.

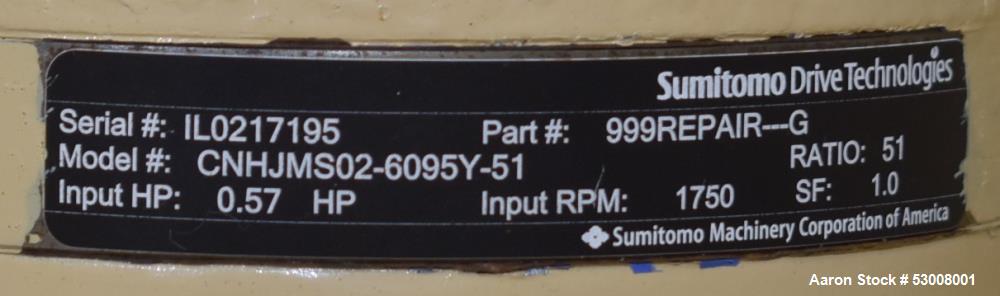

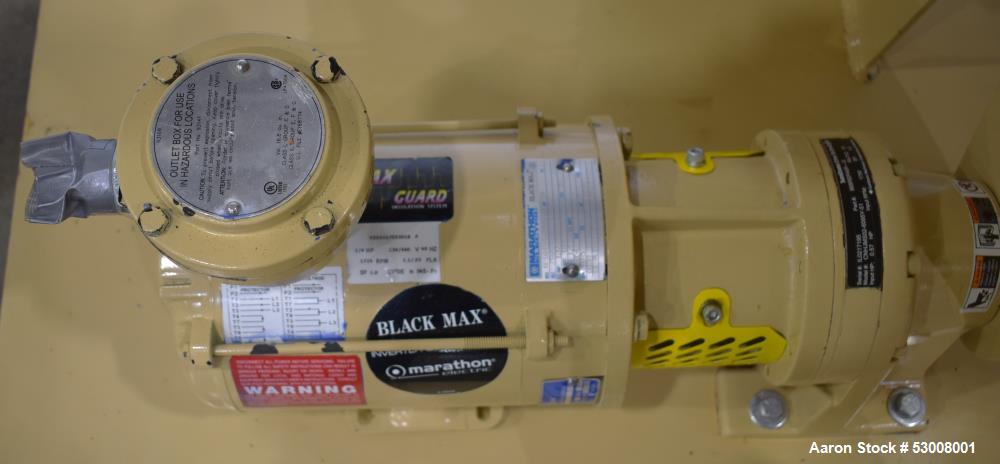

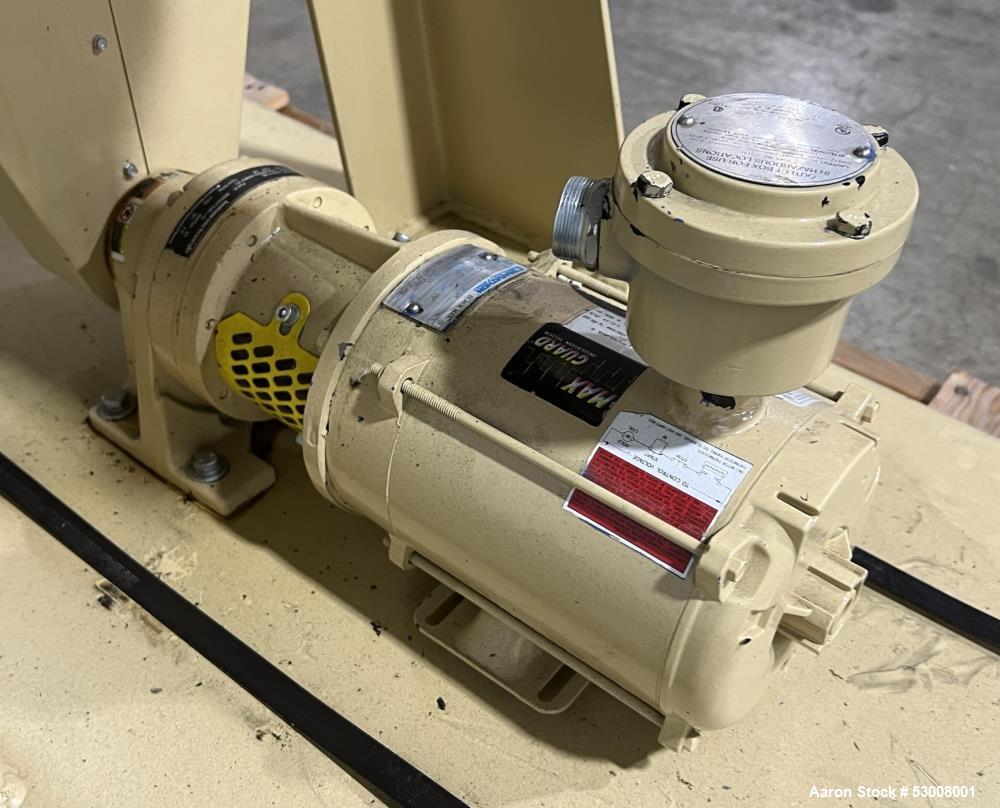

The dryer is driven by a 1/4 HP, 3/60/230-460V gear motor with a 51:1 reducer, allowing for precise speed control from 0 to 5 RPM. It features two 4" openings (without covers) and is mounted on a stable base for easy integration into existing production lines.
Key Features:
- 304 Stainless Steel Construction for durability and sanitary processing
- 0.61 Cu Ft Total Volume, 0.4 Cu Ft Operating Volume
- Internal Chamber Rating: 200 PSIG / Full Vacuum (-20 to 375°F)
- Jacket Rating: 60 PSIG (-20 to 375°F) for controlled heating
- Speed Control: 0 - 5 RPM for optimized drying efficiency
- 1/4 HP, 3/60/230-460V Gear Motor with 51:1 Reducer

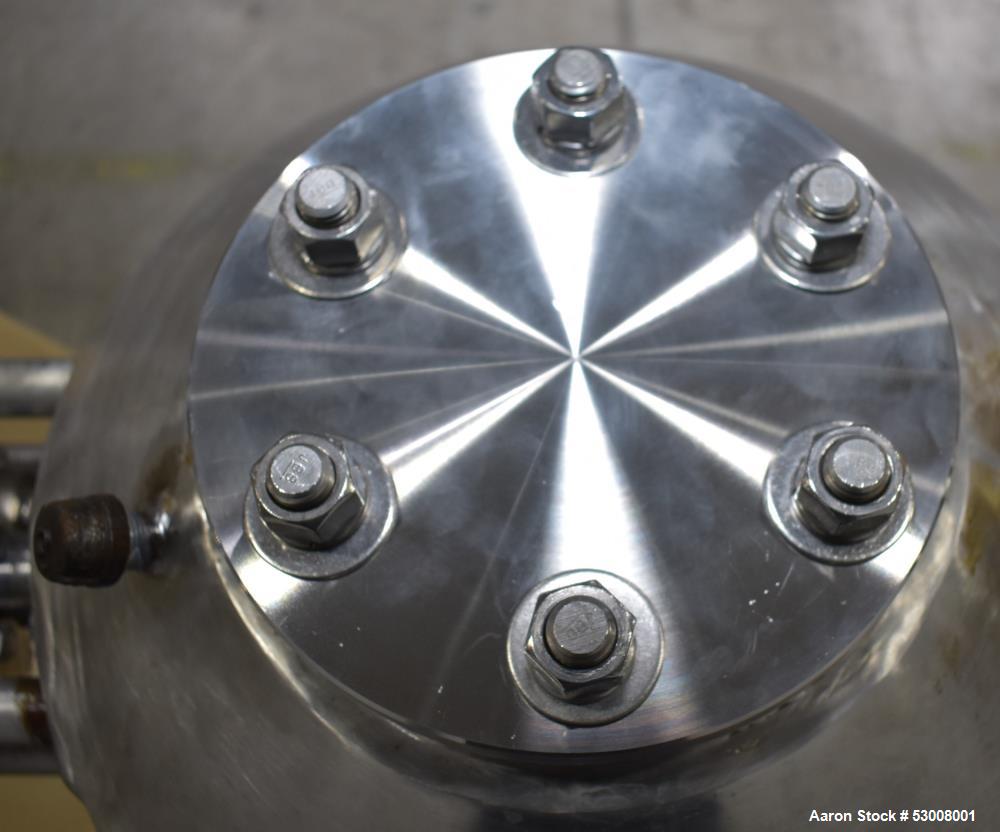

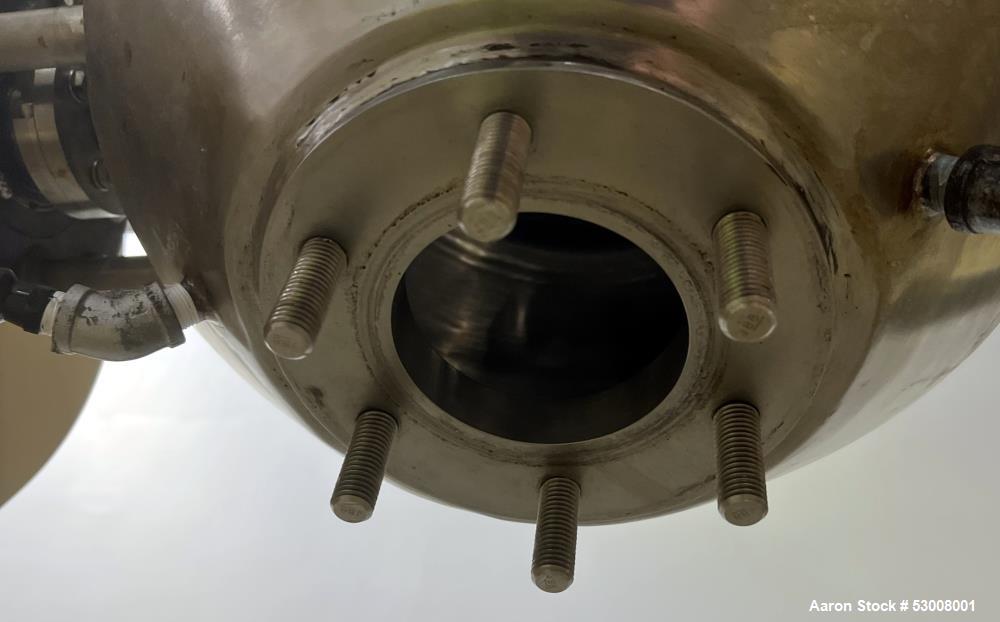

- (2) 4” Openings (without covers) for loading/unloading
- Mounted on Base for stability and ease of use
Specifications:
- Machine Type: Rota-Cone Vacuum Dryer
- Brand: Paul O Abbe
- Model: RCVD-12
- Construction Material: 304 Stainless Steel
- Total Vessel Volume: 0.61 Cubic Feet
- Operating Volume: 0.4 Cubic Feet
- Internal Rating: 200 PSIG / Full Vacuum (-20 to 375°F)
- Jacket Rating: 60 PSIG (-20 to 375°F)
- Motor Power: 1/4 HP, 3/60/230-460V
- Reducer Ratio: 51:1
- Rotation Speed: 0 - 5 RPM
- Openings: (2) 4” Ports (without covers)
- Mounting: Base-Mounted
- Serial Number: 11121-439RCVD
- National Board Number: 253
Applications:
- Pharmaceuticals: Drying of API powders, granules, and active ingredients
- Chemical Processing: Removal of solvents from fine powders and chemicals
- Food Processing: Drying of sensitive ingredients, extracts, and powders
- Nutraceuticals: Production of vitamins and dietary supplements
- Fine Powders & Specialty Materials: Controlled low-temperature drying
What Products Would This Be Used For?
- API (Active Pharmaceutical Ingredients)
- Powdered chemicals and specialty resins
- Solvent recovery applications
- Heat-sensitive food and pharmaceutical ingredients
- Nutraceuticals, vitamins, and dietary supplements
