Used Patterson-Kelley 100 cu.ft. twin shell vacuum dryer. Jacket is rated for the 30 psi @ 250° F. The drying chamber is rated for 150 psi and full vacuum. Drying chamber is designed to turn between ...

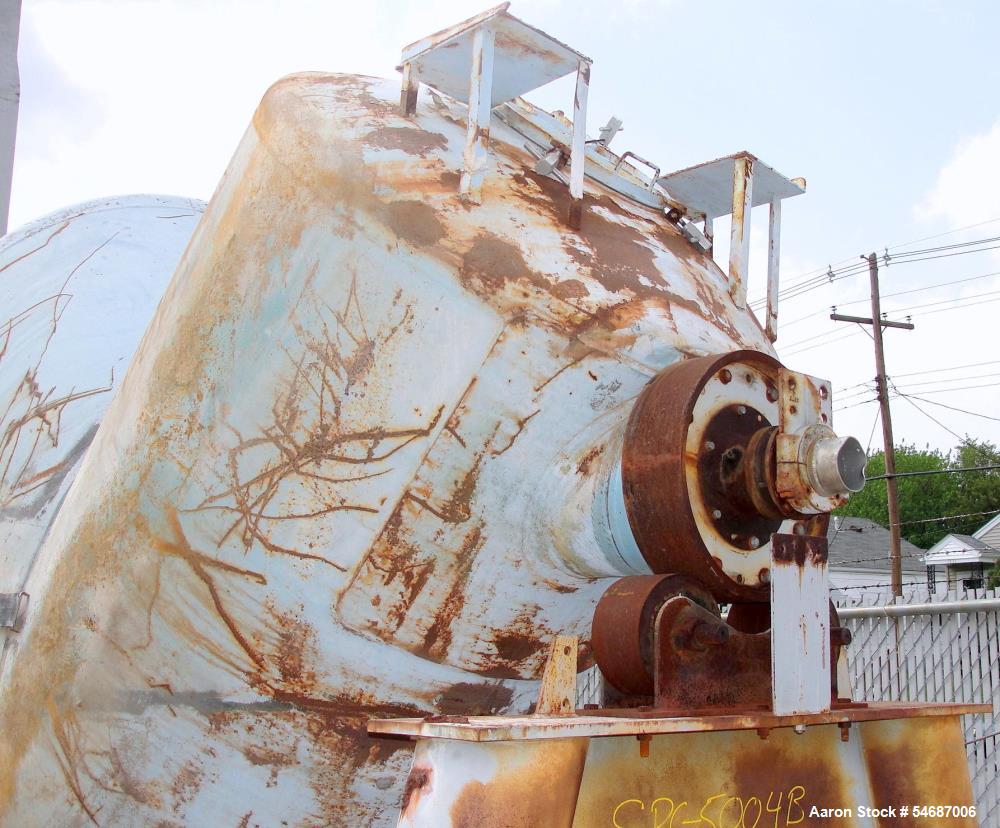

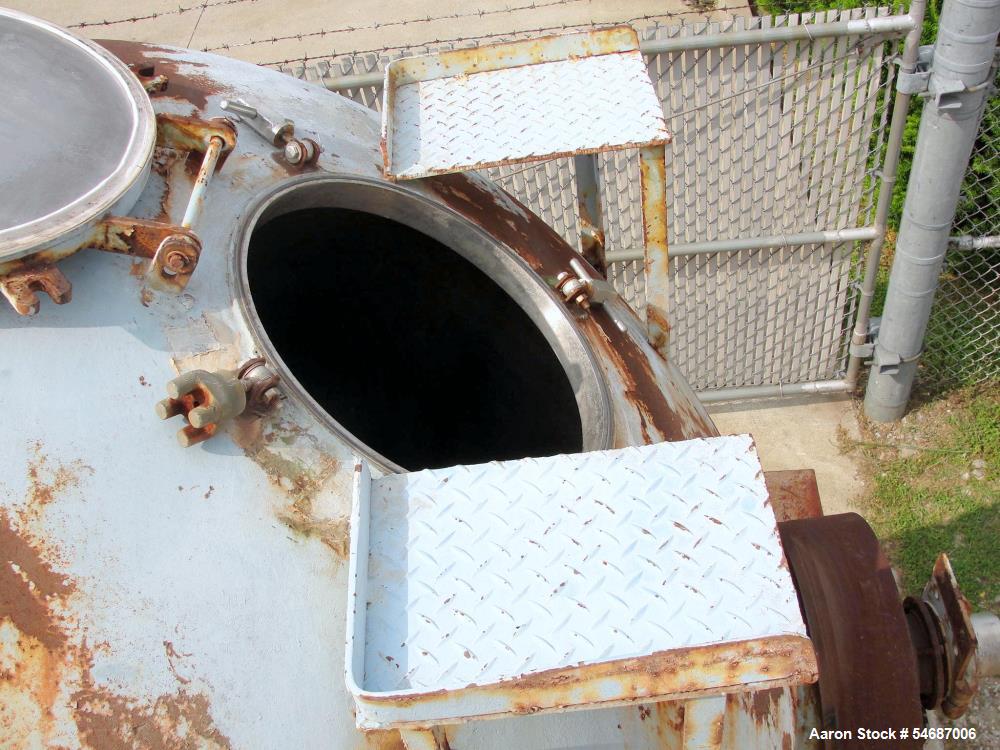

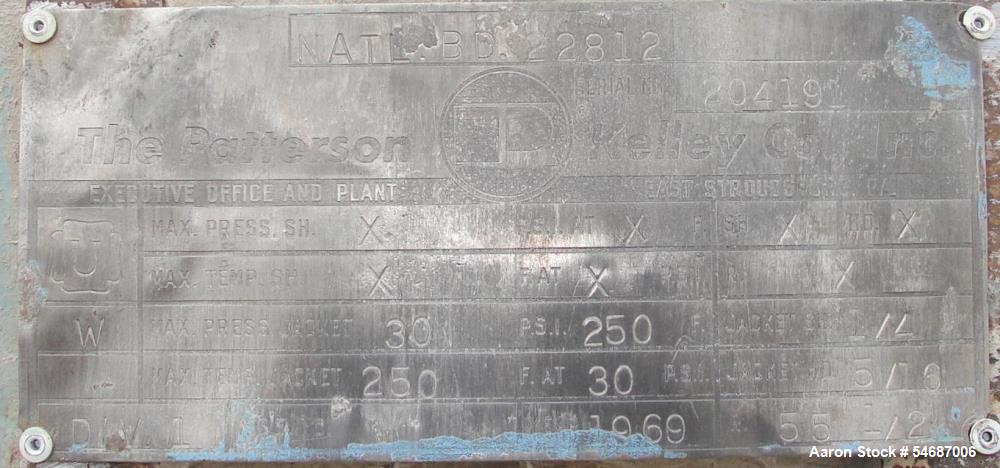

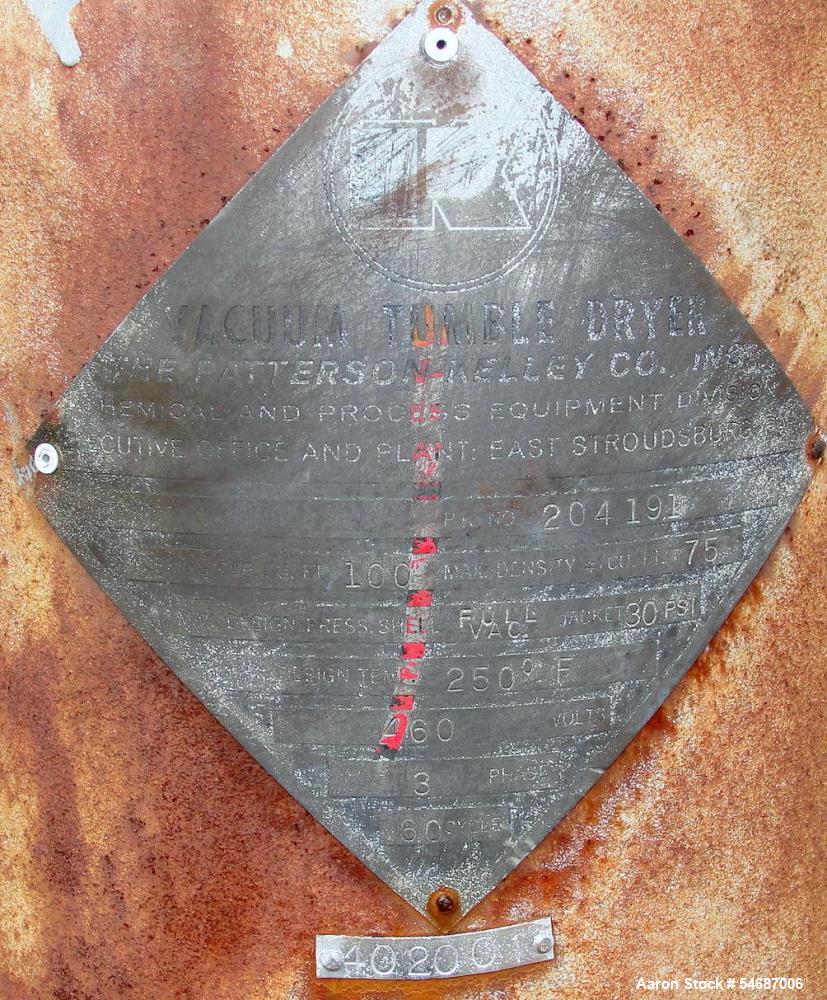

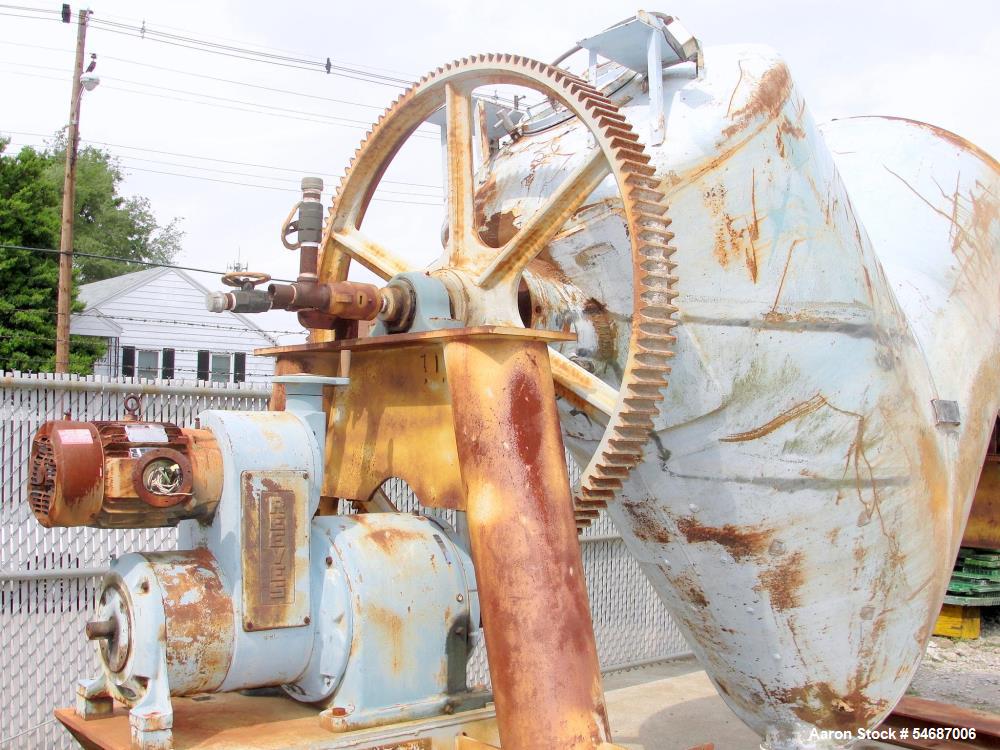

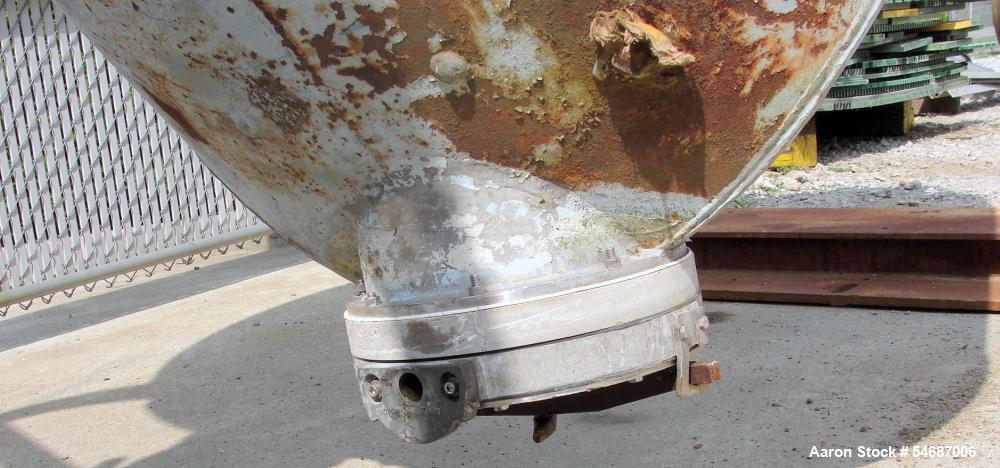

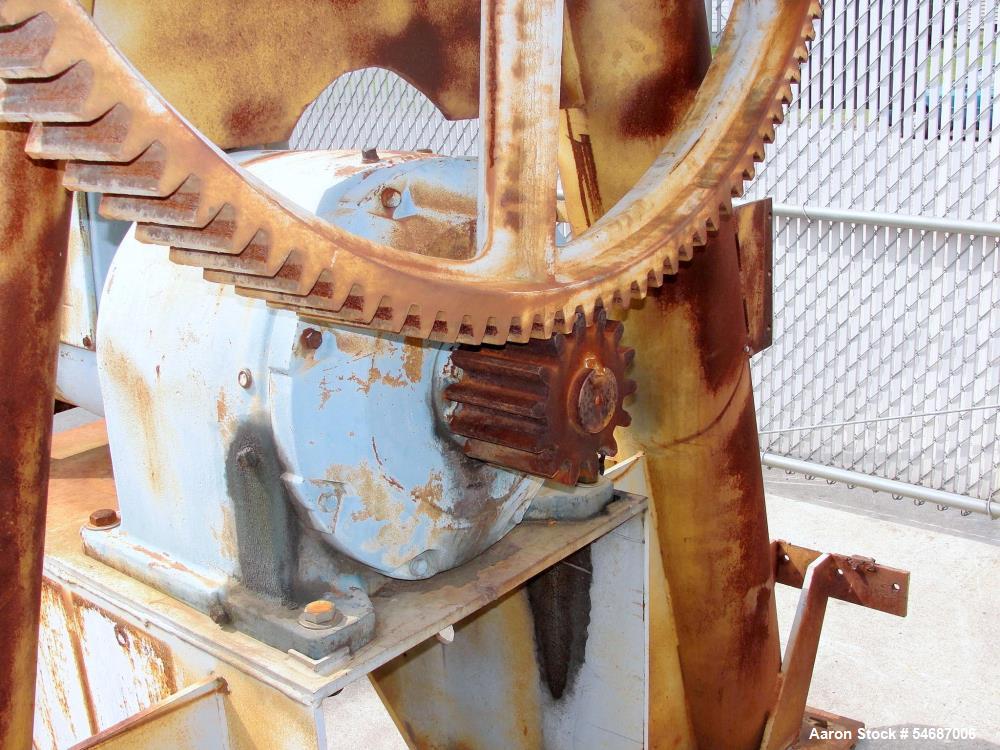

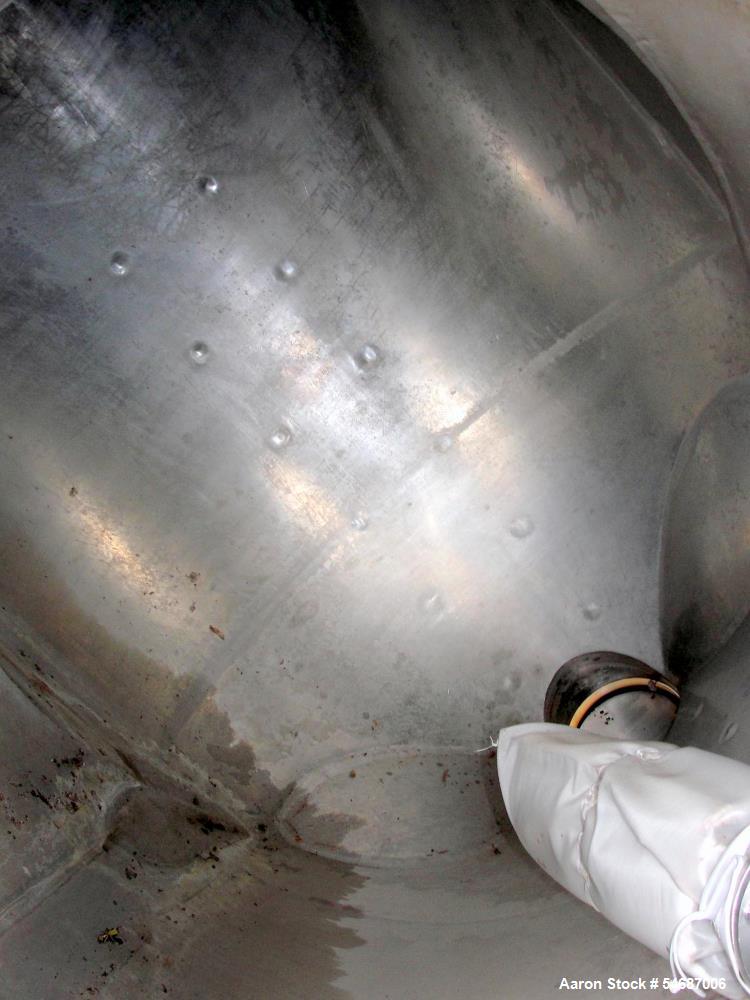

Used-Patterson-Kelley 100 cu.ft. twin shell vacuum dryer. Jacket is rated for the 30 psi @ 250° F. The drying chamber is rated for 150 psi and full vacuum. Drying chamber is designed to turn between .96 to 7.66 rpm using a 10 hp reeves drive. Motor is tagged for hazardous location. The outer shell of each chamber measures 56" diameter x 96". The chamber has an 18" access panel. There is a 12" discharge at the bottom. Contact surfaces are constructed of 304 stainless steel and the jacket is carbon steel. Maximum density of product is 75 lbs per cu.ft. Overall dimensions are 19' 9" long x 83" wide x 10'1" tall. Serial # 204190. Requires 460 vac 3 phase electrical supply. Drawings are on file.
