Used Spray Dryers

Stock# 45134022

Used- Niro Spray Tower Dryer. Originally designed for 12,500 pounds / hour of water evaporation. The dryer capacity was increased to 15,000 pounds / hour at 65,000 SCFM of air flow. The Dryer is constructed of 316 L Stainless Steel. The dryer is a Standard Tall Form Dryer equipped with an integral static Fluid Bed Dryer and external Vibratory Fluid Bed Cooler. Both beds have heaters and the VFB also had a Cooler. The Dryer was equipped with fines return and agglomeration capabilities as an option. It is currently configured without Fines return. Primary cyclone followed by a Dust Collector. Both the burners for the fiber and spray dryer were maximum 30 MMBTU / hour. The Kst of Soy Isolate is 119, so the dryer, cyclone and dust collector all were equipped with explosion panels. The system is equipped with a CIP system with the exception of the dust collector. The feed system was designed for 33 GPM with two high pressure pumps capable of 10,000 psi feed. (The pump is not be included). No controls are included.

Stock# 52380001

Used-Rica-Tec(Anhydro) Spray Drying Plant consisting of (1) Rica Tec(Anhydro) Spray Drying tower, Stainless steel Inc. Centrifugal Atomizer, type 18D-320-FH 150,. (XXXX kg /hr.), Output powder capacity 1-1.2 tonnes/hr. (4) Stainless steel cyclones, (1) Heating system steam/electrical, (1) Blower for air supply, 4500 kgs, (1) Heat recovery system, (1) Blower for exhaust, 6000 kgs, (1) Rica Tec (Anhydro) Fluid Bed Dryer, Capacity 2 tonnes/hr. Stainless steel, (1) 2-Deck Screen/Sifter, Stainless steel. (1) Bag filter. Controls. Complete with sensors, valves, pumps, I-beam structure, stairways, additional infrastructure and support. New 1994. Previously used in a Soya oil powder application.

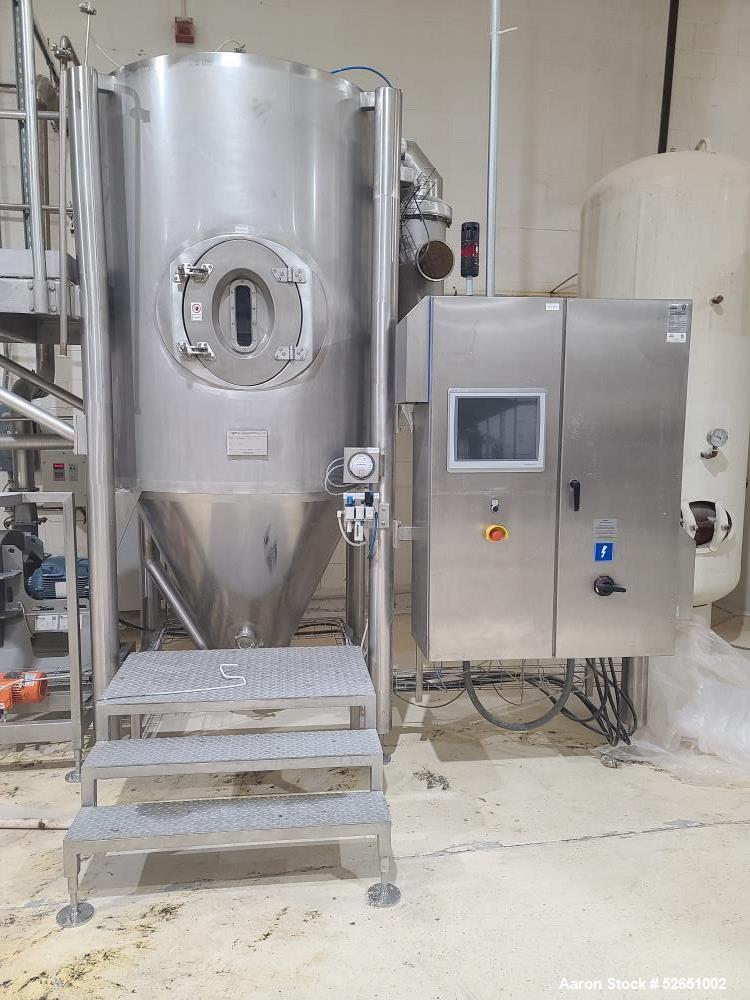

Stock# 52651002

Used- SPX Flow Technology Spray Dryer, Type MS-400, Stainless Steel. Explosion duct, Controls and Single Pass. Rotary Atomizer. Serial# 57027, built 2021. Electrical requirements 480 Volt.

Stock# 49382001

Used- Niro Spray and Fluid Bed Drying System: Rated 24 MMBTU. Double effect evaporator, last used on animal blood, poultry hydrolysis, egg, liver products, pork plasma. Includes (2) towers with titanium tube sheets, titanium heads, stainless steel shell. Rated for approximately 50,000 pounds/hour water, 30,000 pounds/hour product. System includes horizontal condenser, shell and tube heat exchanger, stainless steel tubes, carbon steel shell. Circulation pumps are in storage, Goulds stainless steel with CD4 impellers. Missing control system. Arthur Zimmer Spray drying system, approximately 30' diameter, manufactured by Niro, stainless steel contacts, fed by Niro Savoi 125 hp high pressure feed pump, rated for 1800 - 2500 PSI feed. Top of dryer includes (8) feed nozzles (typically fed four nozzles at a time). Also includes Waukesha 130 stainless steel pump, Milpointe 50,000 CFM vertical scrubber, (4) stainless steel cyclones, etc. With Wiegand single effect evaporator, rated for approximately 45,000 - 50,000 pounds/hour product, 35,000 pounds/hour water evaporation rate, 304 stainless steel construction, with dedicated boiler, Needs vacuum pump. Includes 400 hp DC drive, vari-speed, SIHI vacuum pumps, Goulds centrifugal pumps. Last used on blood products, eggs, brewers yeast, liver products, poultry products, etc. With Rotary screen, 5' diameter x 12' long, manufacture by Baycore Fibre, Type SDS 60120, Serial# 99-0210. Current replacement cost is $200,000. Includes approximately 6" diameter flange feed inlet, leading to internal distributor. Equipment has fine mesh internal screen. Spare screens. Last screening eggs. With AirChem scrubber, rated for approximately 50,000 CFM, single stage with packed bed, No controls, last used as scrubber for hydrolysis building. New in 1998, 840 GPM, 1.5" W.C., ambient. With G&H Products Tube-in-tube heat exchanger, stainless steel construction, approximately 3" diameter outer tube, 2" diameter inner tube, 25' long, (20) tubes in 2x10 sections, insulated. Brought product from 180º to 40º. Used on Dairy / Milk Products. Food Grade.

Stock# 53036001

Used- Anhydro Spray Dryer, type 111 AK Series. Capacity 66-132 lbs/hr. (30-60 kgs/hr.) end product. 304 stainless steel on product contact parts, fluid atomizer type nozzle. Incl. (1) Cyclone, (1) 115-liter (30-Gallon) slurry tank with agitator, (1) Seepex Model 006- 12 Progressive cavity pump, (1) Electric burner, (1) Control Panel. Complete with mezzanine and additional infrastructure. Previously used in a ceramic application. New 1995.

Stock# 53111001

Used- Toption Lab 3L Spray Dryer. Model TP-S30C. Specs & Features: -Max Capacity: 3,000 ML per hour. Two-Fluid Nozzle (centrifugal Nozzle). Temperature Range of Air Inlet: 30 Degrees C -300 Degrees C. Temperature Range of Air Outlet: 30 Degrees C -140 Degrees C. Downwards (Co-Current). Emulsion to powder or granule products directly, don't need evaporation and crushing.

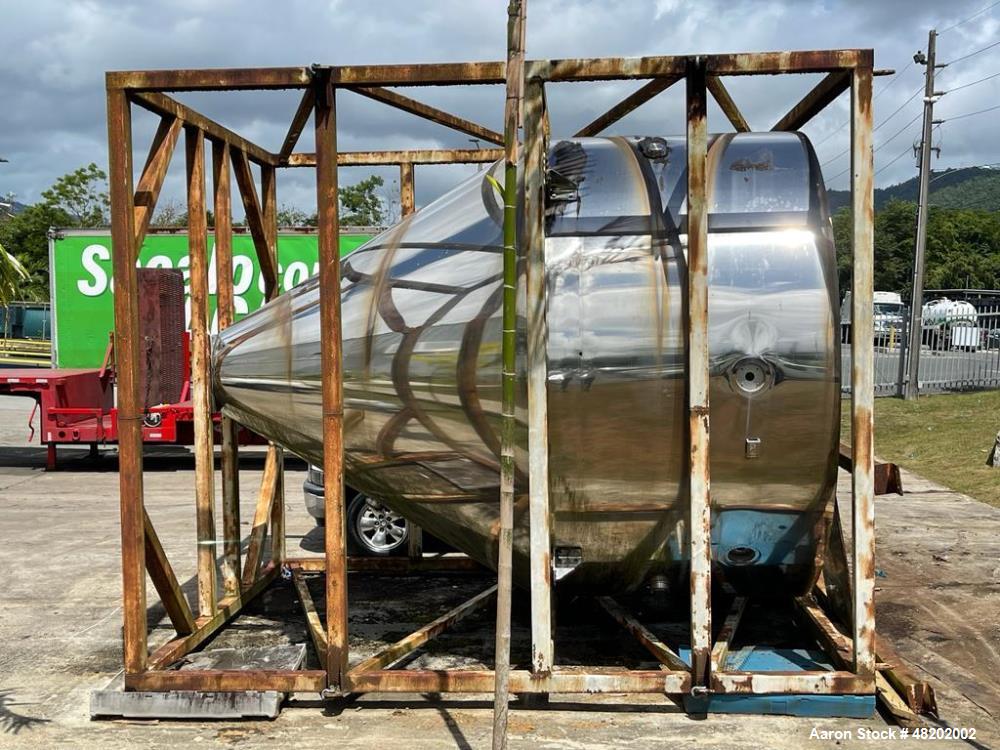

Stock# 48202002

Unused - GEA Niro PharmaSD, Type PSD 5-R-CC Spray Drying System, in AISI 316L SS on product contact parts consisting of: (1) Feed Pump, (1) GEA Niro PSD 5 Spray Drying body 3670 mm (143.2") dia, x 4991 mm (194.6) st. side, inside polished 0.8 micron. Rated for max 0.1 bar (1.5 PSI) at max 150 deg C (302 deg F). Pneumatic Interval Hammers, type PKl 150, (1) GEA Niro F1.5X Atomizer. (2) HEPA Filters, (2) Heaters, (1) Fan, (1) Bag filter, (1) Cyclone, (1) CIP-System. Complete with piping, sensors, valves, and additional infrastructure. New year 2005.

Stock# 51454001

Used- Bowen Engineering BLSA Laboratory Spray Dryer. 316 stainless steel. 30" (770 mm) diameter x 28" (720 mm) straight side x 30" (770 mm) coned bottom. Approximate evaporation rate 15-80 pounds (6.8-26.3 kgs) an hour. Atomizer. Air requirements 100 psi (6.66 bar), Inlet temperature range to 1000 degree F (537.77 degree C), side access door. Digital control panel mounted on unit. Mounted on stainless steel legs. Includes cyclone, collection jar, gas heater and blower, piping and additional infrastructure. Previous used in a Nutraceutical application.

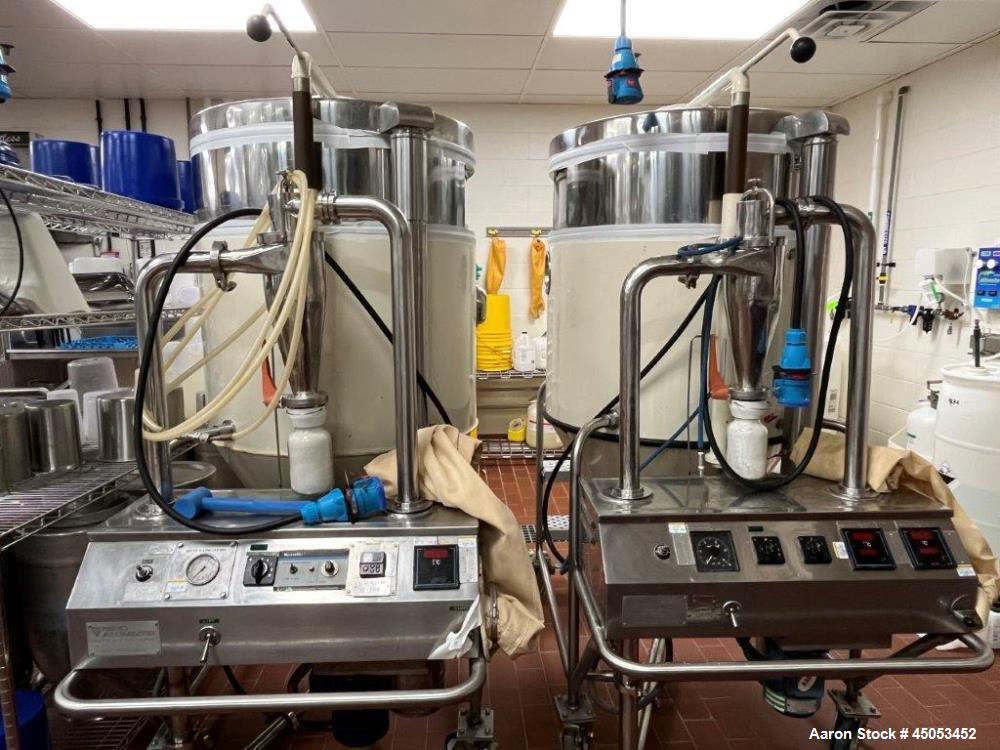

Stock# 45053452

Used- Niro Atomizer Mobile Minor Spray Dryer, 316 Stainless Steel. Approximately 1 to 7 kilograms an hour (2.2 to 15.4 pounds) water evaporation capacity. Electrically heated chamber 32" diameter x 24" straight side x 29" coned bottom. Removable top. Unit includes a rotary atomizer, 35,000 to 40,000 rpm, an electric air heater, fan motor, cyclone, and glass collection jar. Mounted on a frame with casters.

Stock# 52764001

Used- GEA Niro Production Minor Spray Dryer, Stainless Steel. Approximate 46.8" (1200 mm) diameter x 31.2" (800 mm) straight side x 31.2" (800 mm) cone bottom. Center bottom outlet. Drying capacity approximate 22 - 33 lbs (10-15 kg) an hour. Natural gas heated by a Rillo FS5D series one stage gas burner. Bottom-up nozzle atomization by a Niro pressure nozzle in fountain mode. Includes cyclone, 2.25HP/1.5 Kw motor, control panel, piping, and additional infrastructure. On 4 legs. Previously used in a ceramic application.

Stock# 41023022

Used- Pentronix PTX Model 370 Spray Dryer. Electrical heater, 47-1/2" diameter x 27-1/2" straight size x 26" cone interior, stainless steel construction, top mounted rotary atomizer with motor, thermocouple, disconnect switch with on/trip/off/reset/open, digital inlet temperature controller, temperature recorder, Ono Sokki TM-225 Speed Control for atomizer, atomizer voltage gauge, inlet blower button, exhaust blower button, atomizer on/off button, small Roller Pump for feeding liquid to dryer, Horie Industries Centrifugal Fan .2 kw/3500 rpm, 12" bottom discharge with flange for collector pan (pan not included).

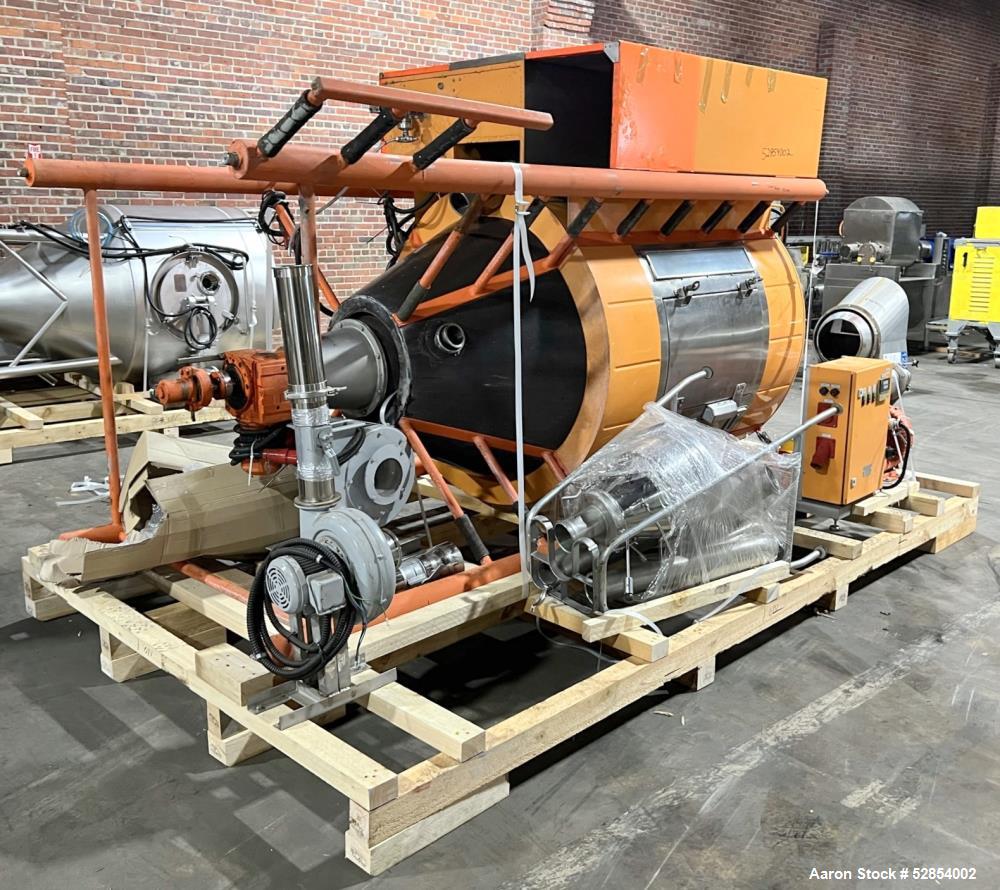

Stock# 52854002

Used- APV Anhydro Spray Dryer Compact EL, MicroSpray, Stainless Steel contact parts, Approximate heat consumption at 300 degrees C. is 42 kw. 49" Diameter x 36" straight side x 52" cone bottom chamber, (1) side access door. Evaporation rate at inlet/outlet temperatures 570/390 degrees F. 60/28 pounds an hour. Includes a top mounted rotary atomizer Model CF-100, Serial# 28061. Approximate disc speed up to 35,000 rpm, cyclone, and collection jar. Mounted on 4 carbon steel legs. Serial# 28034

Stock# 10151388

Used-Niro Stainless Steel Spray Dryer. 84" diameter X 72" straight side plus 60" cone bottom. Spray nozzle design. Stainless steel contact parts. Includes steam heater duct work.

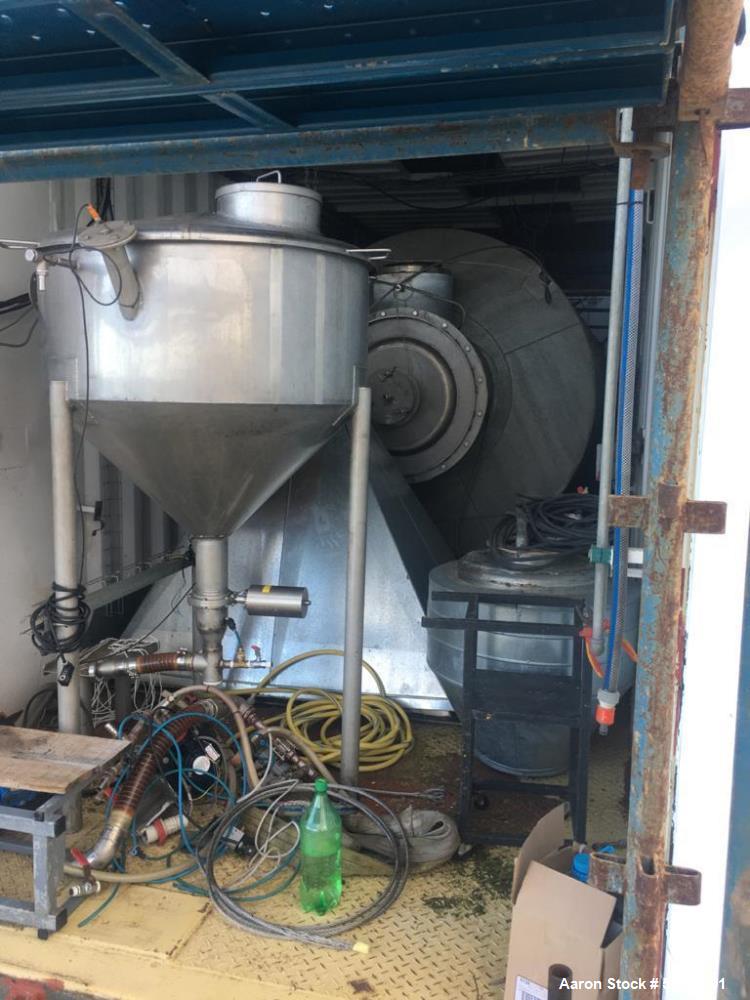

Stock# 51767001

Used- DryTech International Mobile Spray Drying Plant with an evaporation capacity of 132 lbs (60 kgs) per hour consisting of: (1) DryTech International spray dryer, 316 stainless steel construction on product contact parts, 7 (2160 mm) dia. x 176" (5400 mm) high. Nozzle spray device. (1) Cyclones, 316 stainless steel construction on product contact parts, 26" (800 mm) dia. x 86" (2650 mm) high., (1) Bag filter/Dust collection, (1) 316 stainless steel tank, 39" (1200 mm) dia. x 62" (1900 mm) straight side, (2) Ventilators for drying and cooling, (1) In-Duct gar heating unit. Complete with multiple valves, air channels, connecting pipes, pumps, crane, stairways, rails, control panels and additional infrastructure. Mounted in shipping containers. New 2016
