Columns

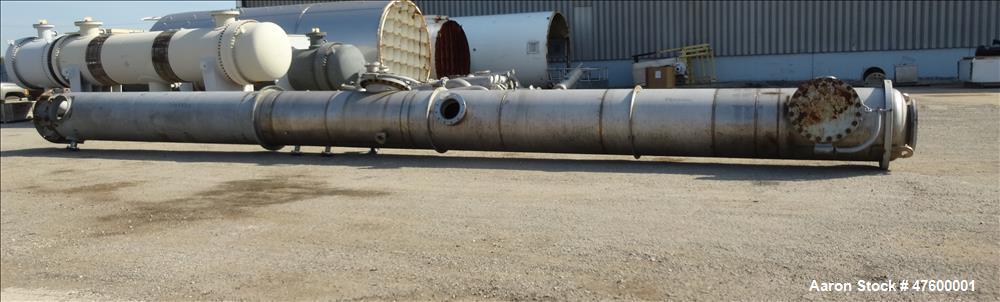

Used DCR Construction Acid Reduction Column – 304 Stainless Steel, 49’ Height, 50 PSI

Used DCR Construction acid reduction column, 304 stainless steel, vertical design. Approx. 36" diameter x 297" straight side with 2:1 elliptical top and bottom heads, giving approx. 49' overall height. Internal rating 50 psi at -20 to 250 F. Top openings include 18" vapor outlet, 6" liquid inlet, 24" manway with cover and davit arm, 12" packing dump, 8" vapor inlet, and (4) 3" nozzles. Bottom openings include 24" manway with cover and davit arm and 4" liquid bottom outlet. Mounted on approx. 183" tall carbon steel skirt. Serial 4411 7798, National Board #216, built 2007.Suitable for acid reduction/scrubbing or other gas/liquid contact applications in chemical processing, where 304 stainless construction and 50 psi rating are required. Multiple manways and packing dump facilitate packing installation and maintenance. Subject to buyer engineering and regulatory validation. Capacity and rating: 36" diameter, 49' height, 50 psi rating, 2007 build.Corrosion resistance: 304 stainless, acid reduction service. Maintenance access: dual manways and packing dump.

MFR: DCR Construction

Used Liberty Coppersmith 365 Gallon Copper Pot Still System

Used Liberty Coppersmith 365 Gallon Copper Pot Still System, Built 1947. Copper pot still is rated for 25 psi internal pressure and features a jacket covering the bottom dish of the kettle with a hammered copper finish. Kettle measures approximately 36" diameter x 54" straight side with a 24" dome top and 24" dish bottom. Includes copper shell-and-tube condenser, 45 gallon, 10 gallon and 5 gallon stainless steel collection tanks for heads, hearts and tails, (2) remote thermometers for pot and vapor temperature, stainless steel walkway with steps, copper process piping and brass spirits safe for product testing. Complete system is mounted on a stainless steel skid measuring approximately 6' x 10' with an overall height of approximately 13'8" to the top of the condenser. Drawing #47214. Serial #L2359. Built 1947. Possible applications include batch pot distillation of compatible fermented spirit products and use as an operational vintage display or centerpiece in a craft distillery.

MFR: Liberty

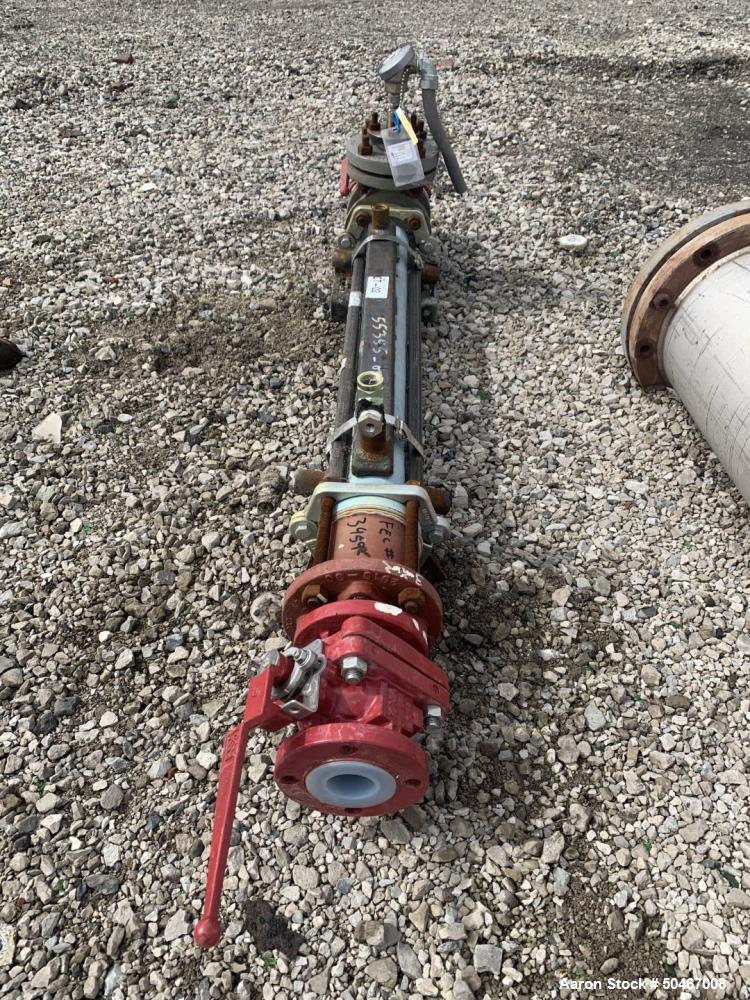

Buy Used 6" PFA Jacketed Column – Heat Transfer & Corrosion Protection

Used- 6" PFA lined column, jacketed.

MFR: Unknown

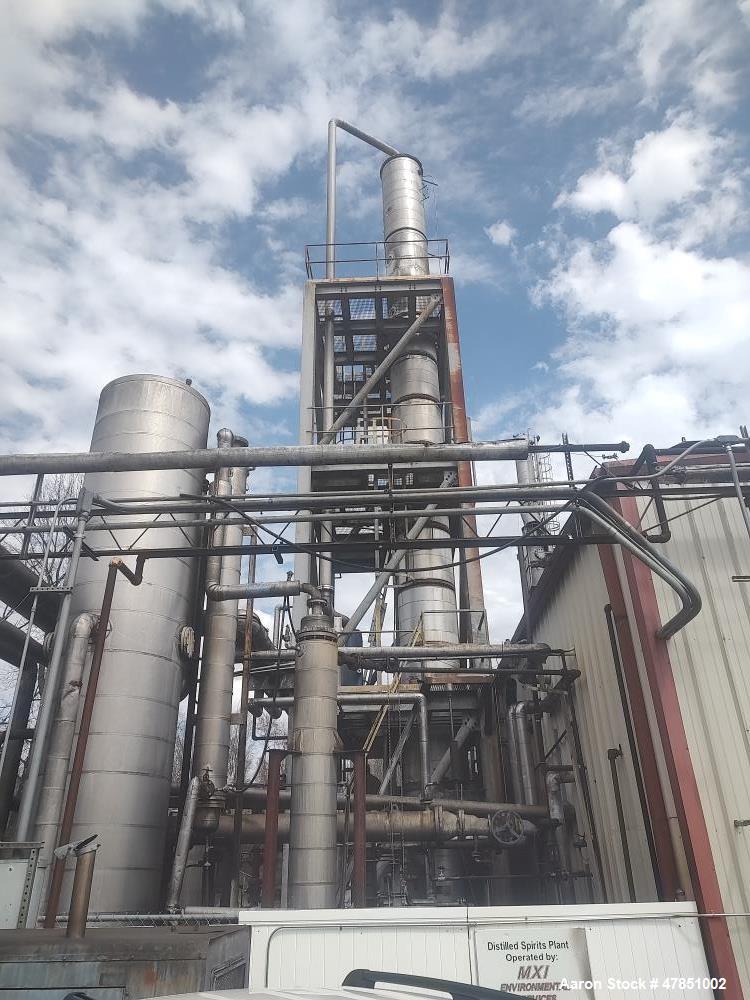

Used Vendome 42" Copper Distillation Columns with Trays, Condensers, and Steel Support Structure

Used- Vendome Copper & Brass Works 42" Distillation Columns. Includes supporting steel structure and condensers. Column has 18 tray stripper with 24" spacing; 40 tray rectifying section, and 20 tray side stripping section. The tray are bubble cap trays for high turndown ratio. Will produce 5-7 GPM of 192 Proof ethanol at 15-20% feed rate. Designed and built 2008.

MFR: Vendome Copper & Brass

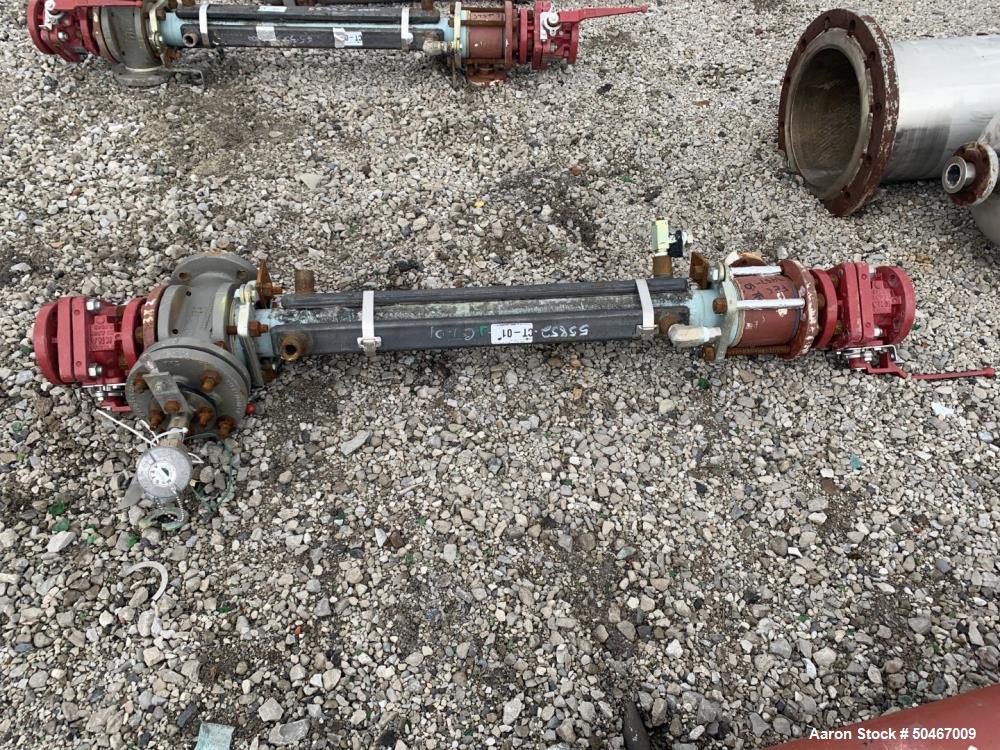

Used 6" PFA Jacketed Lined Column – Corrosion-Resistant, Industrial-Grade

Used- 6" PFA Jacketed Lined Column.

MFR: Unknown

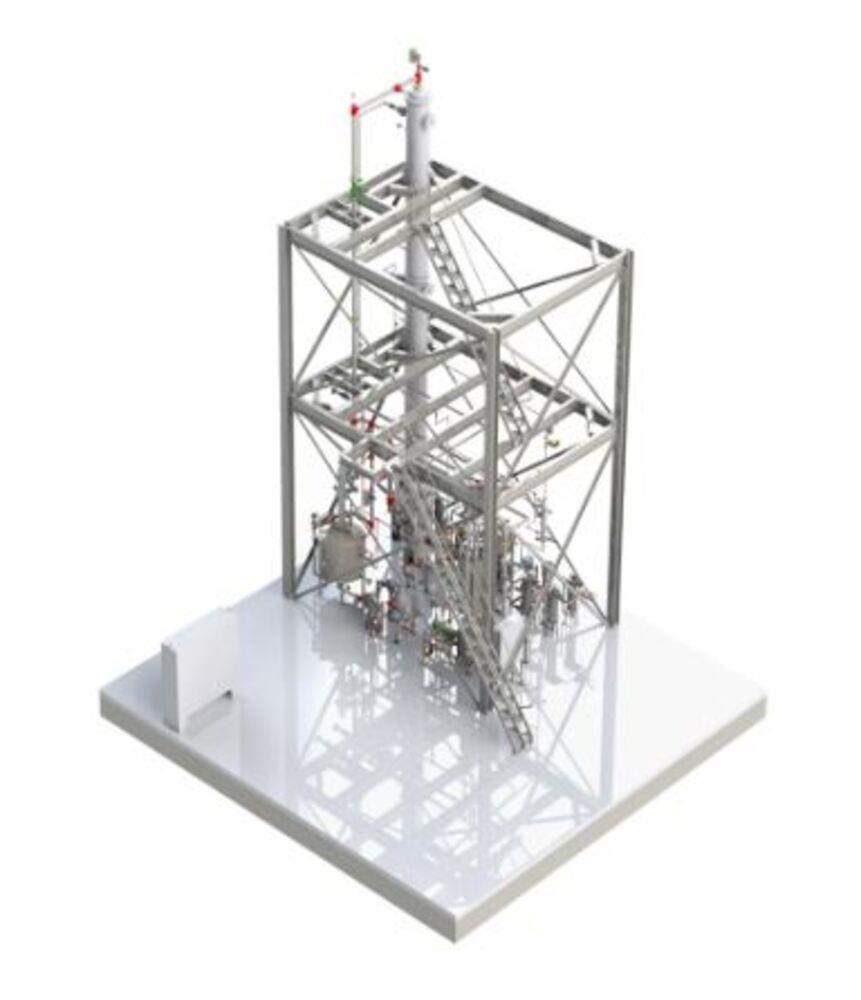

Unused Ethanol Distillation Packed Column System – 25' High with Enerquip Heat Exchangers

Unused- Ethanol Fractional Distillation Packed Column, 25' High. (1) Enerquip Shell & Tube Heat Exchanger, reboiler, model HX 14/30 x 96 BKUH, 304L, 6 FLG. (1) Enerquip Shell & Tube Heat Exchanger, Condenser, Model HX 20 X 72 BEUBV, 304L, 6 FLG. Includes auxiliary equipment.

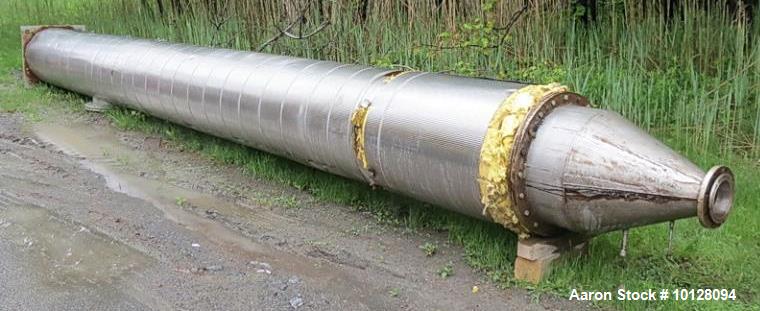

Used APV 24" x 28' Stainless Steel Desulphurizing Column

Used APV stainless steel desulphurizing column measuring approximately 24" diameter x 28' high and equipped with (15) valve trays. System was designed for approximately 1,000 imperial gallons per hour of grape juice and used for reducing sulphur dioxide concentration from approximately 1,550 ppm to 100 ppm. Includes preheater shell and tube heat exchanger. Possible applications include sulphur dioxide removal and desulphurization of compatible grape juice and other suitable liquid food or beverage processing streams.

MFR: APV
