Used Bowen BLSA Laboratory Spray Dryer – 316 Stainless | 15–80 lb/hr | 1000°F Inlet | Atomizer | Complete System

Manufacturer Information:

• Brand: Bowen Engineering

• Model: BLSA

• Type: Laboratory Spray Dryer

• Material of Construction: 316 Stainless Steel

• Condition: Used

• Previous Use: Nutraceutical Spray Drying

Description:

This Used Bowen Engineering BLSA Laboratory Spray Dryer is a compact, high-performance drying system built for lab and pilot-scale spray drying applications. Constructed from 316 stainless steel, this unit is designed for nutraceutical, pharmaceutical, chemical, and food ingredient applications, with a wide evaporation rate range of 15 to 80 pounds (6.8–26.3 kg) per hour.

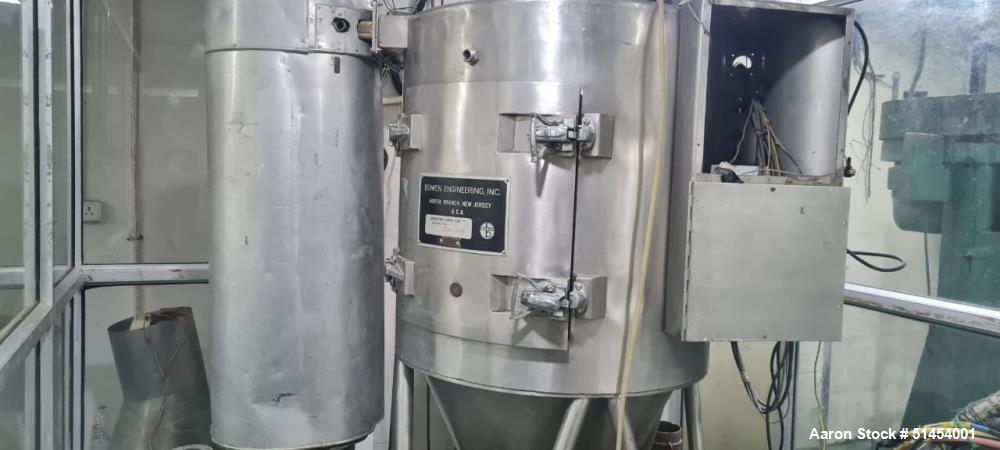

The system features a 30” diameter drying chamber with a 28” straight side and 30” coned bottom, and includes an integrated atomizer, digital control panel, and is mounted on stainless steel legs. It also comes with a cyclone separator, product collection jar, gas heater, blower, piping, and additional infrastructure for a complete turnkey solution.

Specifications:

• Model: BLSA

• Manufacturer: Bowen Engineering

• Chamber Dimensions:

  • Diameter: 30” (770 mm)

  • Straight Side: 28” (720 mm)

  • Coned Bottom: 30” (770 mm)

• Material: 316 Stainless Steel

• Evaporation Rate: 15–80 lb/hr (6.8–26.3 kg/hr)

• Air Requirements: 100 psi (6.66 bar)

• Max Inlet Temperature: Up to 1000°F (537.77°C)

• Access: Side access door

• Controls: Digital control panel (mounted)

• Mounting: Stainless steel legs

• Included Components:

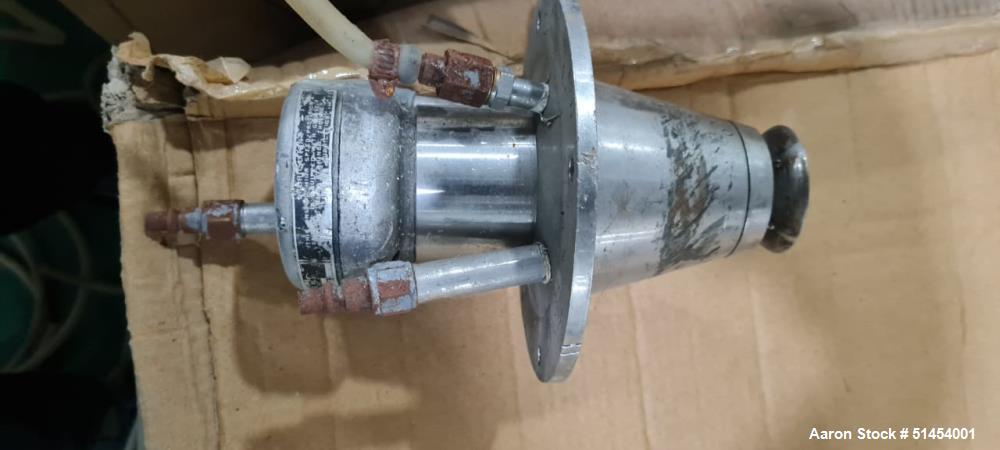

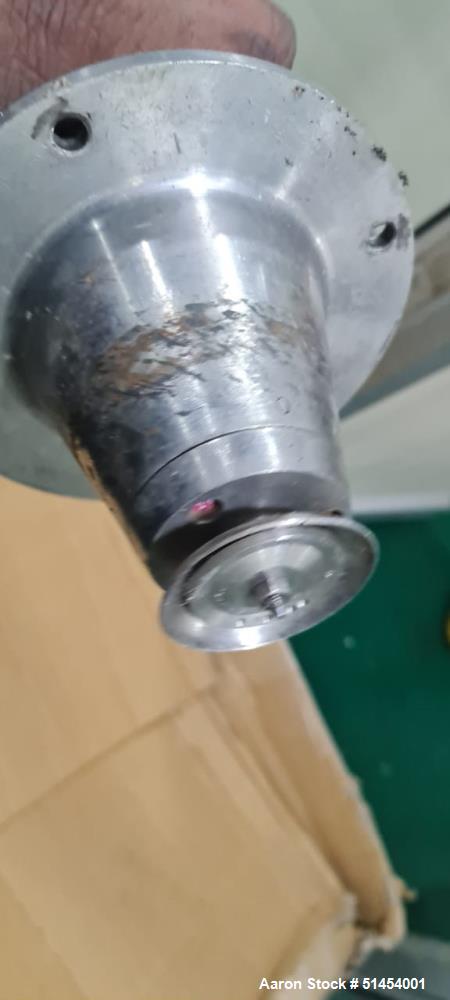

  • Atomizer

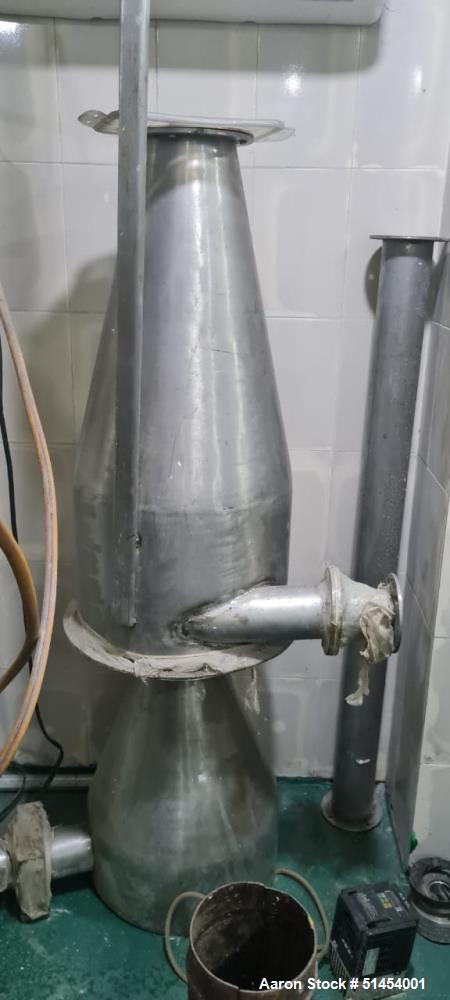

  • Cyclone separator

  • Product collection jar

  • Gas heater

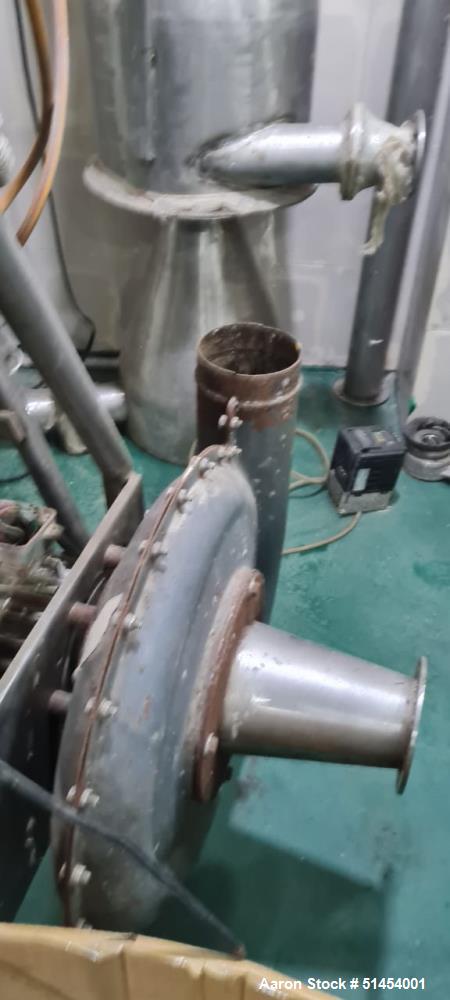

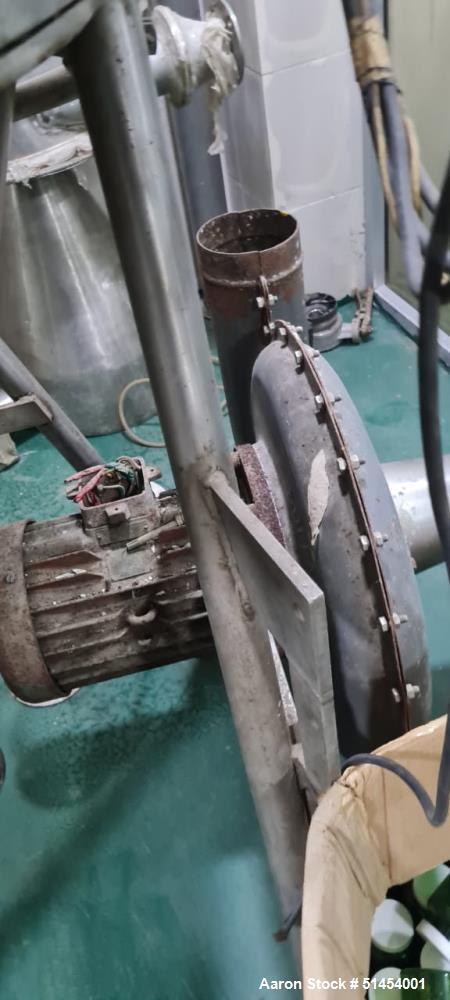

  • Blower

  • Piping and infrastructure

• Condition: Used – Clean, operational condition

• Previous Use: Nutraceutical drying

Features:

• Precision lab-scale spray dryer with broad evaporation range

• Constructed from 316 stainless steel for sanitary and corrosion-resistant performance

• Includes complete atomization and air handling system

• Side access door for inspection and maintenance

• High inlet air temperature capacity up to 1000°F for rapid moisture removal

• Mounted digital control panel for programmable, automated operation

• Fully mounted system with cyclone and product recovery infrastructure

• Suitable for pilot production, formulation development, or R&D trials

Applications:

• Nutraceutical and dietary supplement powders

• Food ingredient encapsulation and drying

• Pharmaceutical product development

• Specialty chemical and polymer drying

• Herbal and botanical extract drying

• Flavor and fragrance microencapsulation

• Protein and peptide spray drying

• Academic or pilot-scale product trials

What Might This Be Used For?

• Producing spray-dried powders from liquid nutraceutical or food solutions

• Pilot-scale production of new formulations for pharmaceuticals or supplements

• Replacing or supplementing existing lab-scale spray drying equipment

• Conducting product development, feasibility testing, or scale-up validation

• Drying temperature-sensitive compounds in controlled R&D environments

• Creating high-purity powder forms of bioactive or heat-sensitive ingredients

• Supporting batch testing for custom contract manufacturing

• Integrating into a small-scale GMP or cleanroom environment for powder processing
