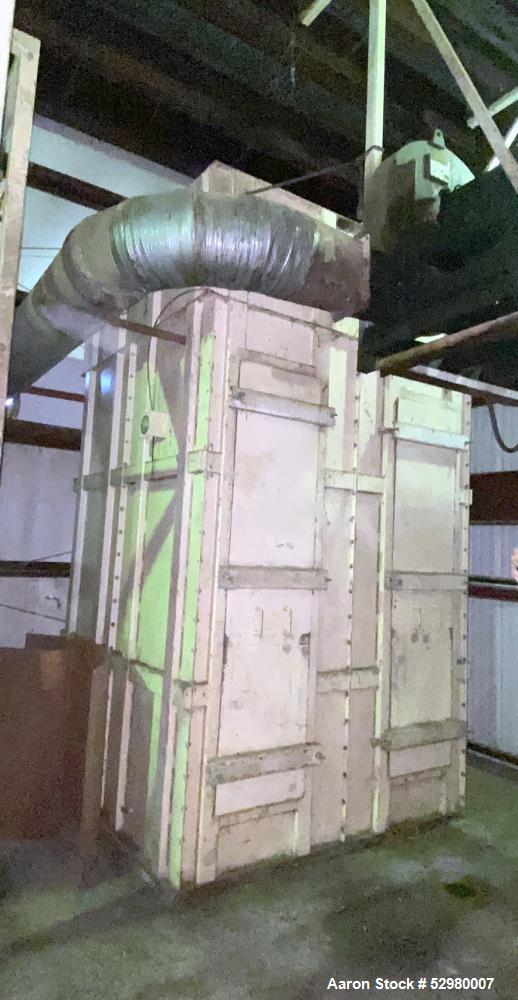

Used- Barr Murphy Stainless Steel Ring Dryer
Used- Barr Murphy Stainless Steel Ring Dryer. Design Operating Conditions: This Dryer was designed to continuously process Wheat A-Starch at the following capacities: Feed Rate: 20,93321,750 lb/hr, Feed Moisture: 3737%, Product Rate: 14,73515,310 lb/hr, Product Moisture:10.510.5 %, Evaporation: 6,1986,440 lb/hr, Back mix Rate: 7,515 - 7,810 lb/hr, Total Feed Rate: 28,448 - 29,560 lb/hr, Back mixed Feed Rate: 30%, Inlet Air Temperature: 385-400 deg F, Exhaust Air Temperature:140-140 deg F, Total Exhaust Volume: 38,000 ACFM, Natural Gas Consumption: 670 lb/hr, (NCV = 19,500 BTU/lb, Compressed Air Requirements: 9090 SCFM (90 psig, dry, oil free), Includes: Stainless Duct, Fresh Air Duct, Expansion Joint, Hot Air Box, 2'-2" Dia. Venturi, 3'-3" Dia. Drying Column, 2' - 6" x 3'-0" Ring Duct Details, Curved Duct Vent Panels, Flat Duct Vent Panels, Mild Steel Duct: Fresh Air & Hot Air Duct Details, Expansion Joint, Hot Air Box, Hot Air Box Door Details, Bag Filter to Main Fan Duct. (The cold disintegrator, burner and burner duct, mixer, and some other components).
