Used Glass Lined Tanks

Stock# 43567033

Used - Von Roll Glass Lined Pressure Tank, 630 Liter (166.48 Gallon), Horizontal. Approximate 27 diameter x 62 straight side. Dished ends, (1) removable. Internal rated 2 bar ( psi) at 200 degrees C. (392 F.) Openings top (2) 4, ends 3, 3 end bottom outlet. Mounted on removable saddles with a carbon steel cart with casters.

Stock# 52862002

Used- Pfaudler Glass Lined Tank, 250 Gallon Capacity, 9115 Glass, Horizontal. Approximately 36" diameter x 42" straight side. Clamp on dished ends. Internal rated 50 psi / FV at -20 to 450 degrees F. Openings: (8) 3", (1) 4". Approximately 3" bottom outlet, 21" discharge height. Mounted on (4) legs. National Board# 47203, Serial# R192-0548.

Stock# 11453536

Used- 500 Gallon Pfaudler Glass Lined Horizontal Chemstore Receiver Tank, rated 55 psi and full vacuum at 250 f internal, 9119 glass.

Stock# 11453537

Used-500 Gallon Pfaudler Glass Lined Horizontal Chemstore Receiver Tank, rated 55 psi and full vacuum at 250 f internal, 9119 glass

Stock# 11453517

Used- Pfaudler Glass Lined Chemstore Receiver Tank, 2,000 Gallon capacity, Vertical. Dished top and bottom. Internal rated 50 psi and full vacuum 300 F, 9119 glass, mounted on 4 legs. Serial# J009822

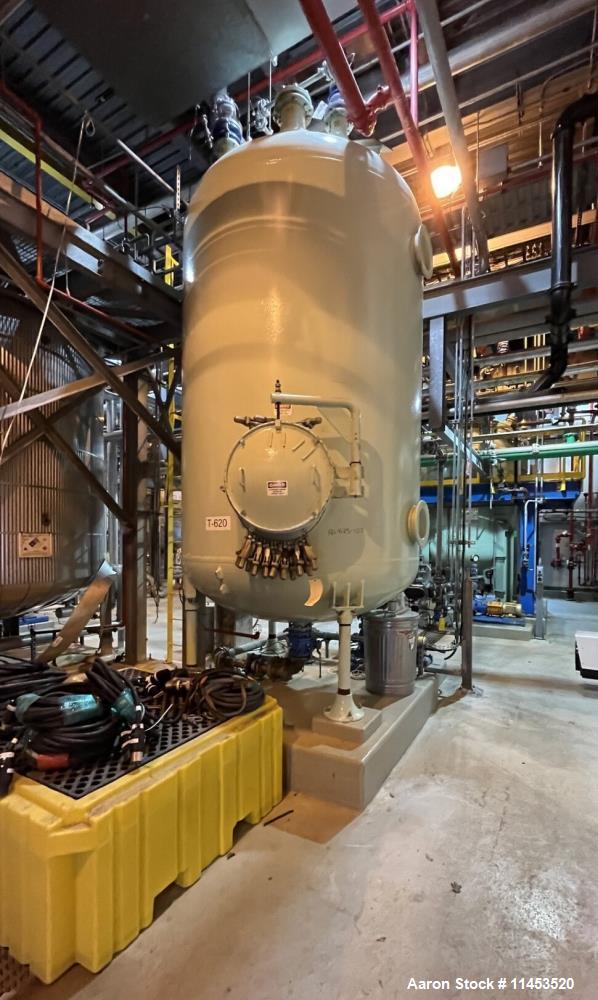

Stock# 11453520

Used- Pfaudler Glass Lined Chemstore Receiver Tank, 3,000 Gallon Capacity, Vertical. 2:1 Semi elliptical dish top and bottom. Approximately 84" diameter x 108" straight side. Rated 100 psi and full vacuum internal, mounted on 4 legs.

Stock# 11453538

Used- 5,000 Gallon Pfaudler Glass Lined Horizontal Chemstore Receiver Tank, rated 50 psi and full vacuum at 350 f internal, 9119 glass.

Stock# 11453535

Used- 5,100 Gallon Pfaudler Glass Lined Vertical Chemstore Receiver, rated 90 psi and full vacuum at 450 f, 9119 glass, built 2016.

Stock# 11453519

Used- GMM Pfaudler Glass Lined Chemstore Receiver Tank, 6,000 Gallon capacity, Horizontal. Dished Heads. Rated 87 psi and full vacuum at 392 F internal, mounted on saddles. Serial# 0007772
