Stock No.: 54687181

Used 1,000 gallon vertical stainless steel tank. The diameter is 59" and the straight side height is 84". The cone depth is 6". The outer skin of the tank has been removed exposing the low pressure j...

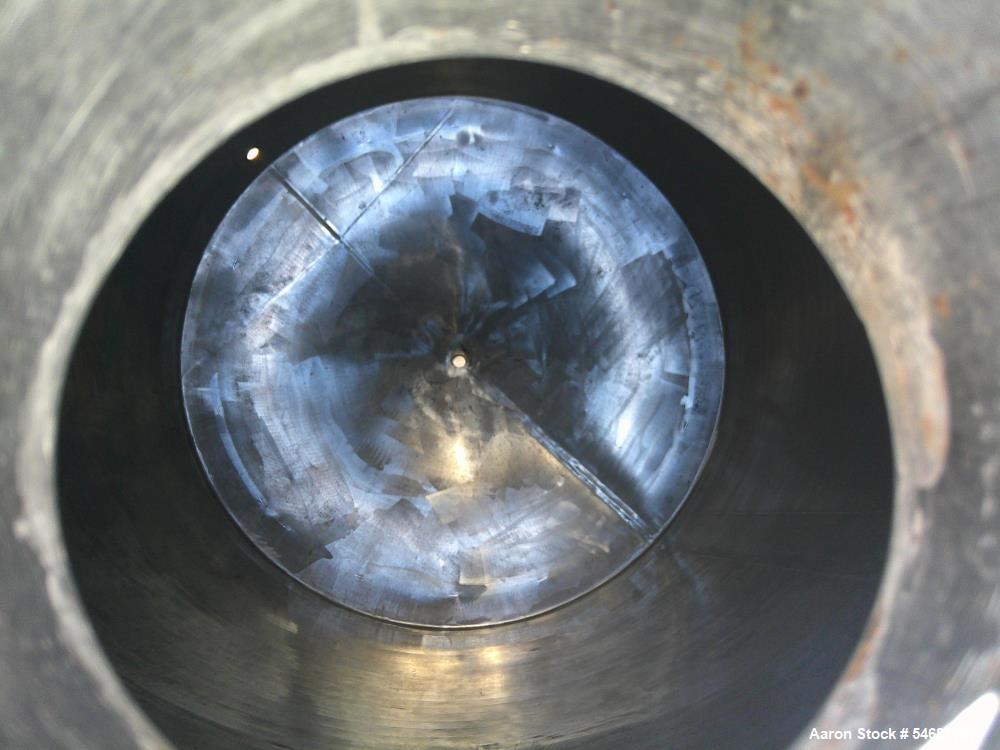

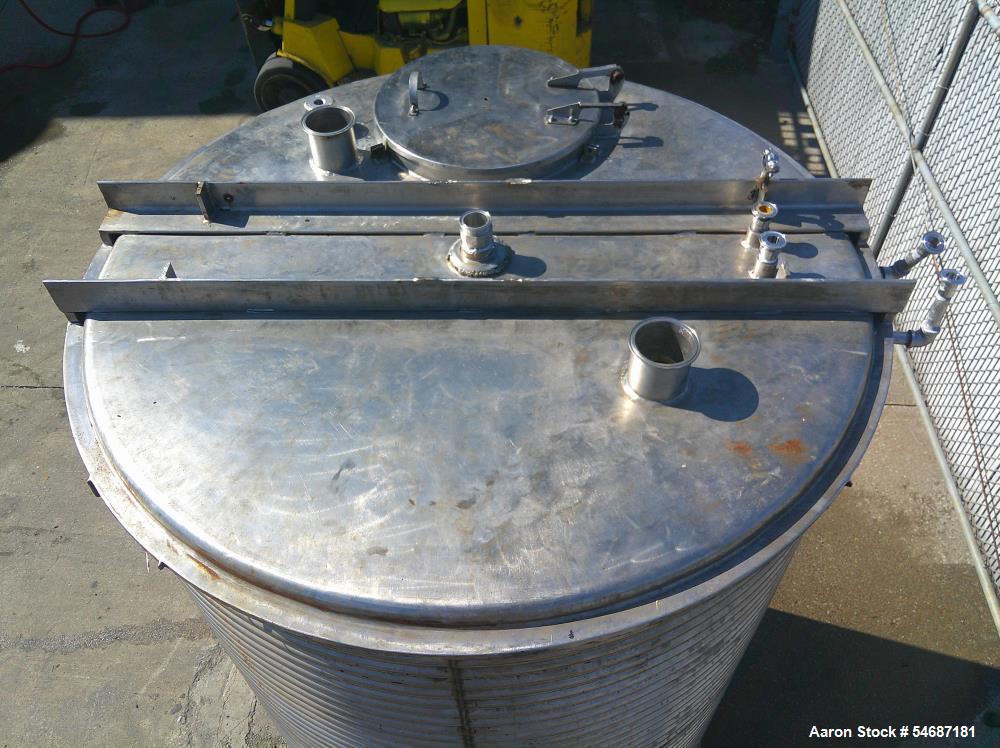

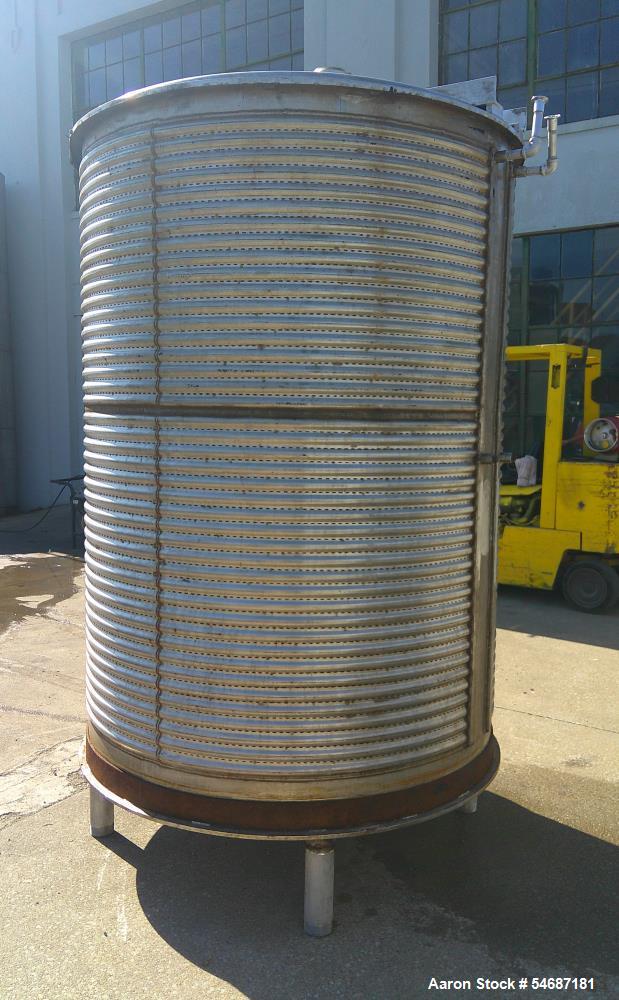

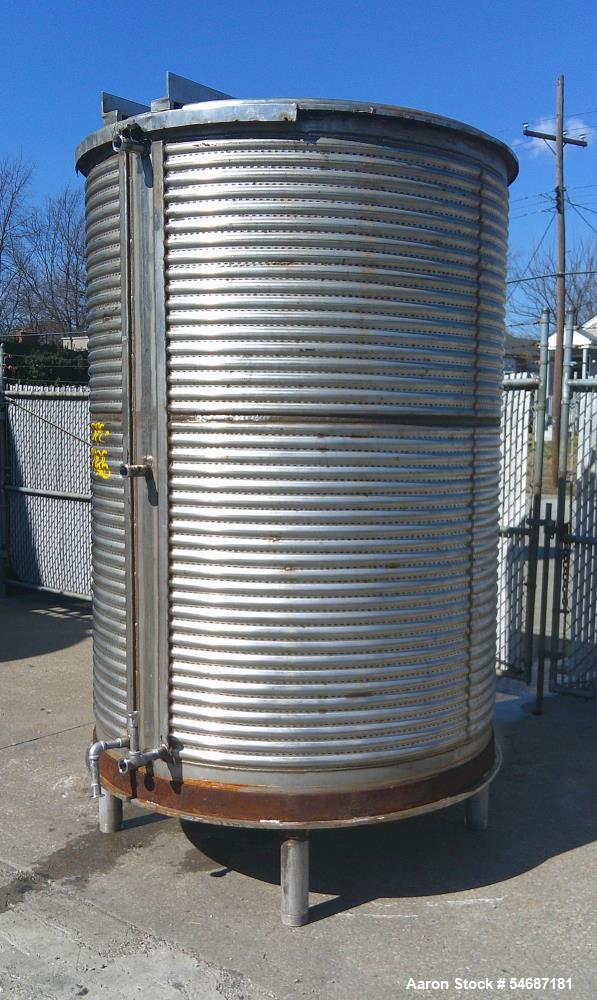

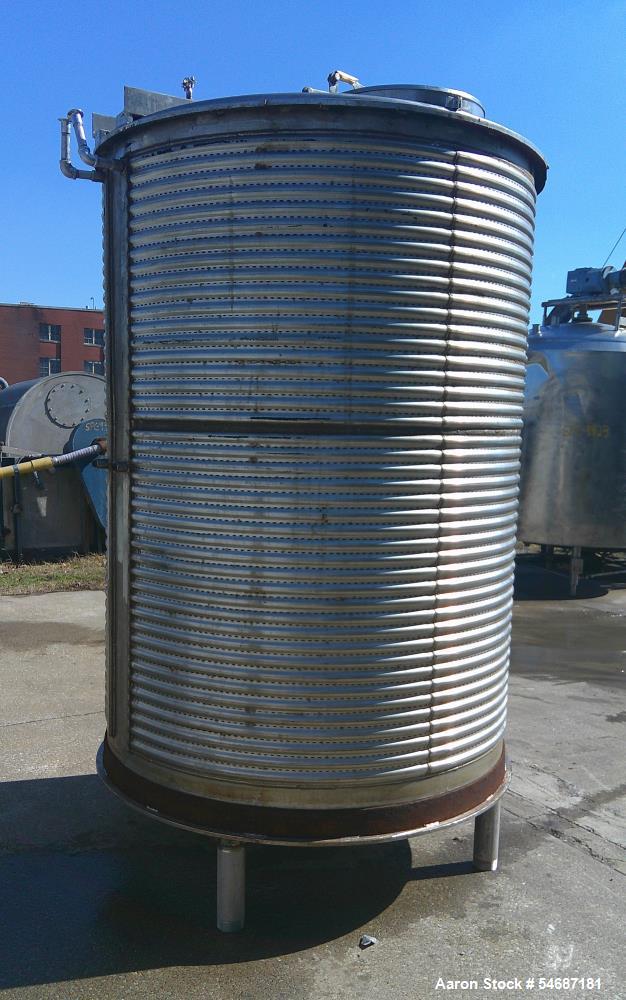

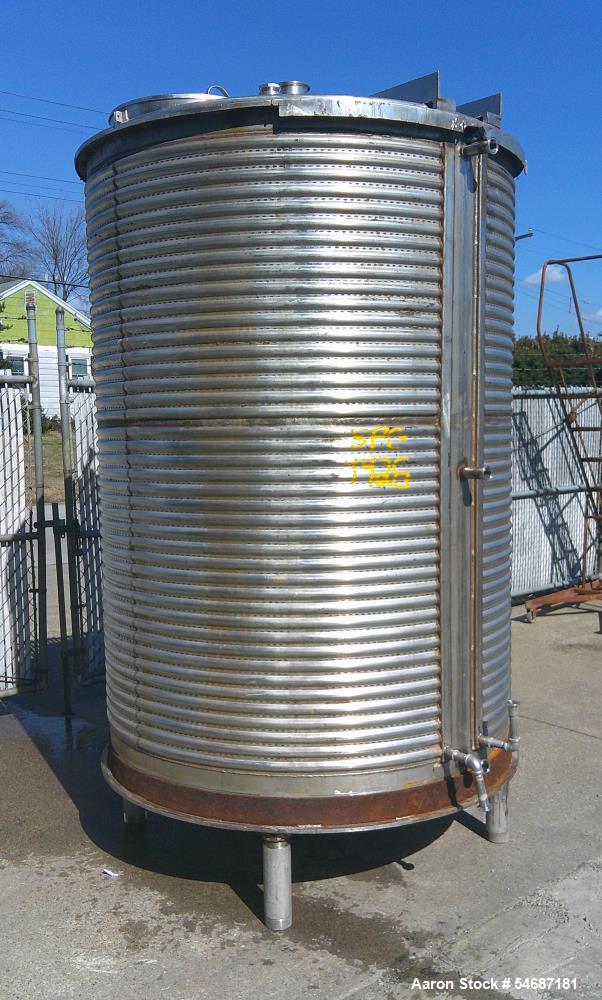

Used-1,000 gallon vertical stainless steel tank. The diameter is 59" and the straight side height is 84". The cone depth is 6". The outer skin of the tank has been removed exposing the low pressure jacket. The manway is 20" in diameter and there are 5 inlets on top. Two inlets are 4", one is 2" and two are 1" in diameter. There are three nozzles on the side that are 1.5". There are six 1" couplings for the jacket on the side. The outlet in the center of the cone is 1.5". There are four legs holding up the tank. Overall dimensions are 62" wide by 74" long by 105" tall.

Sell Us Yours

CategoryTanks
SubcategoryStainless 1000-4999 Gal

We offer a variety of finance programs. Please contact your sales person for more information.
