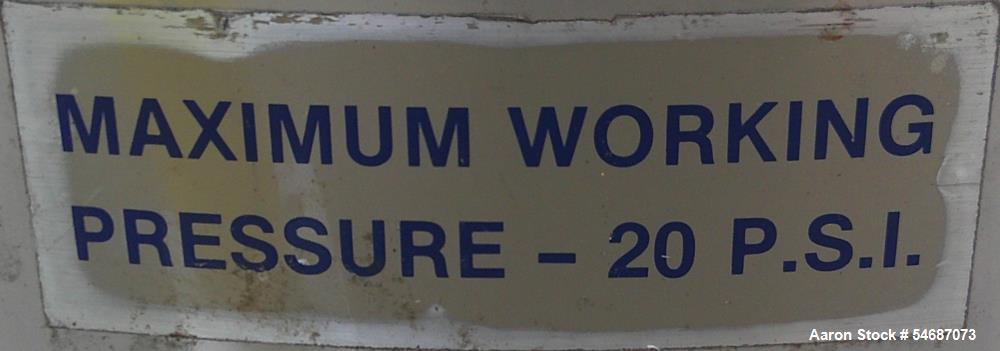

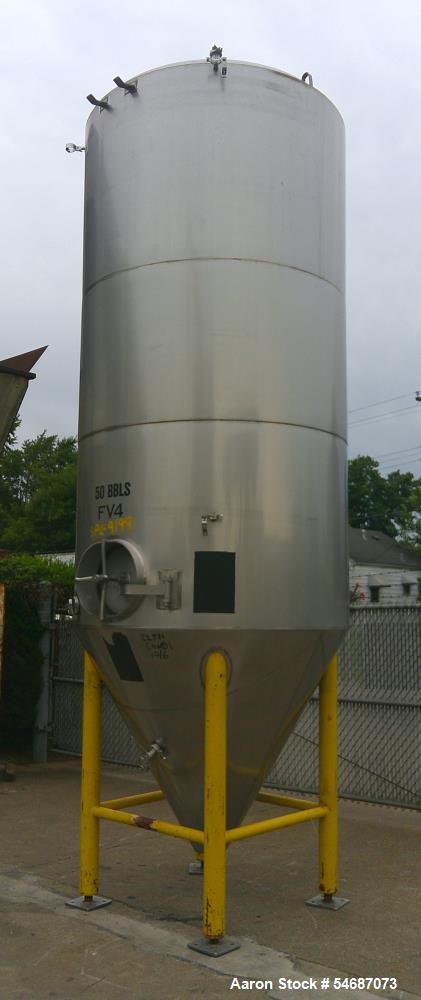

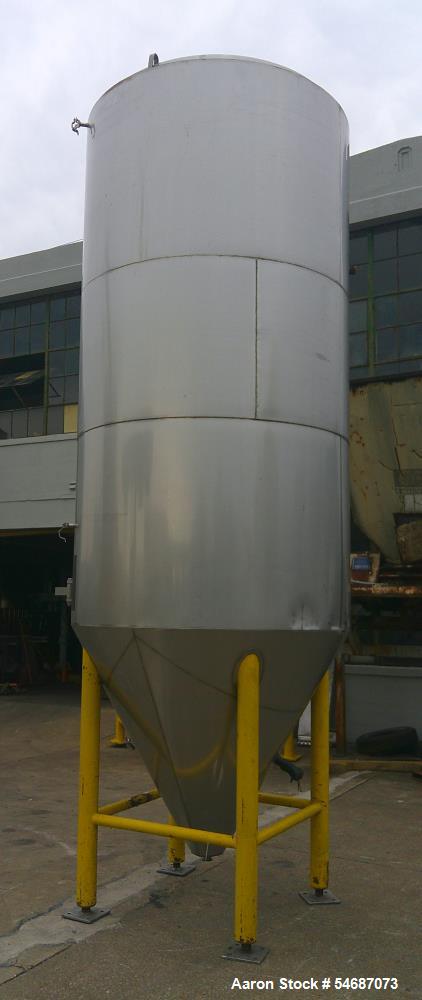

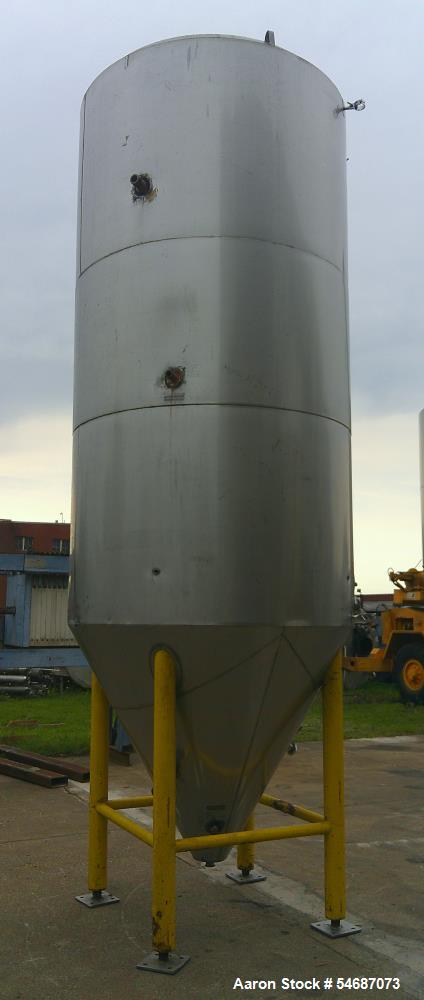

Used 2,000 gallon Santa Rosa Stainless Steel vertical tank with three zone 20 PSI MAWP jacket. Overall height is 240" tall on four legs. Main shell is 66" OD x 125" straight side. Long bottom cone ha...

Stock No.: 54687073

Used 2,000 gallon Santa Rosa Stainless Steel vertical tank with three zone 20 PSI MAWP jacket. Overall height is 240" tall on four legs. Main shell is 66" OD x 125" straight side. Long bottom cone ha...

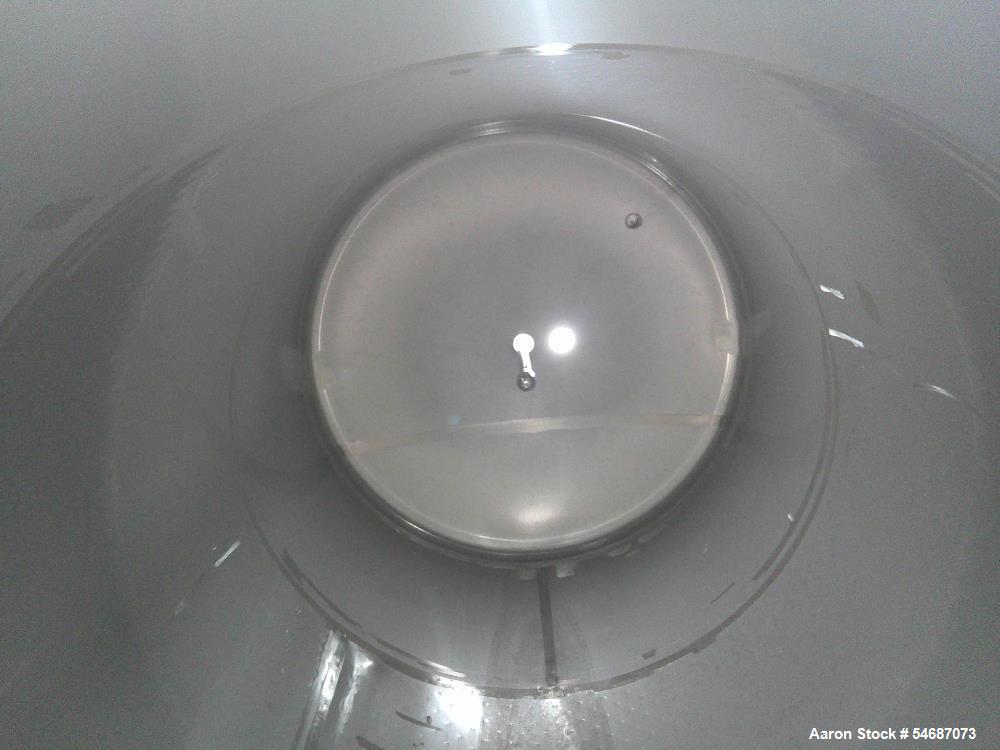

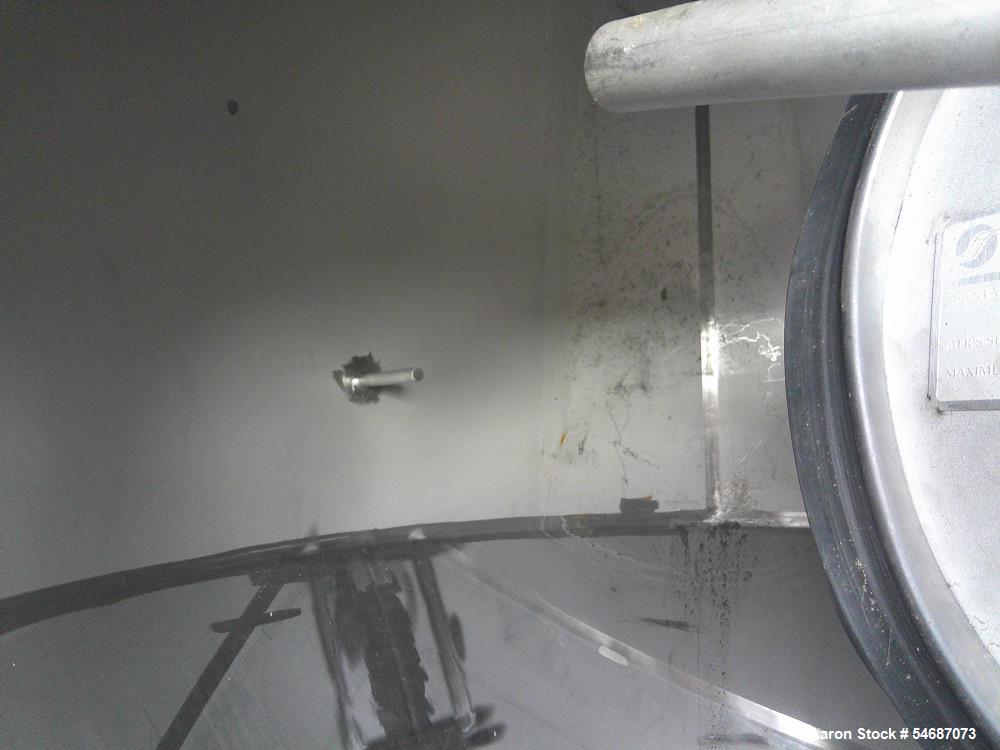

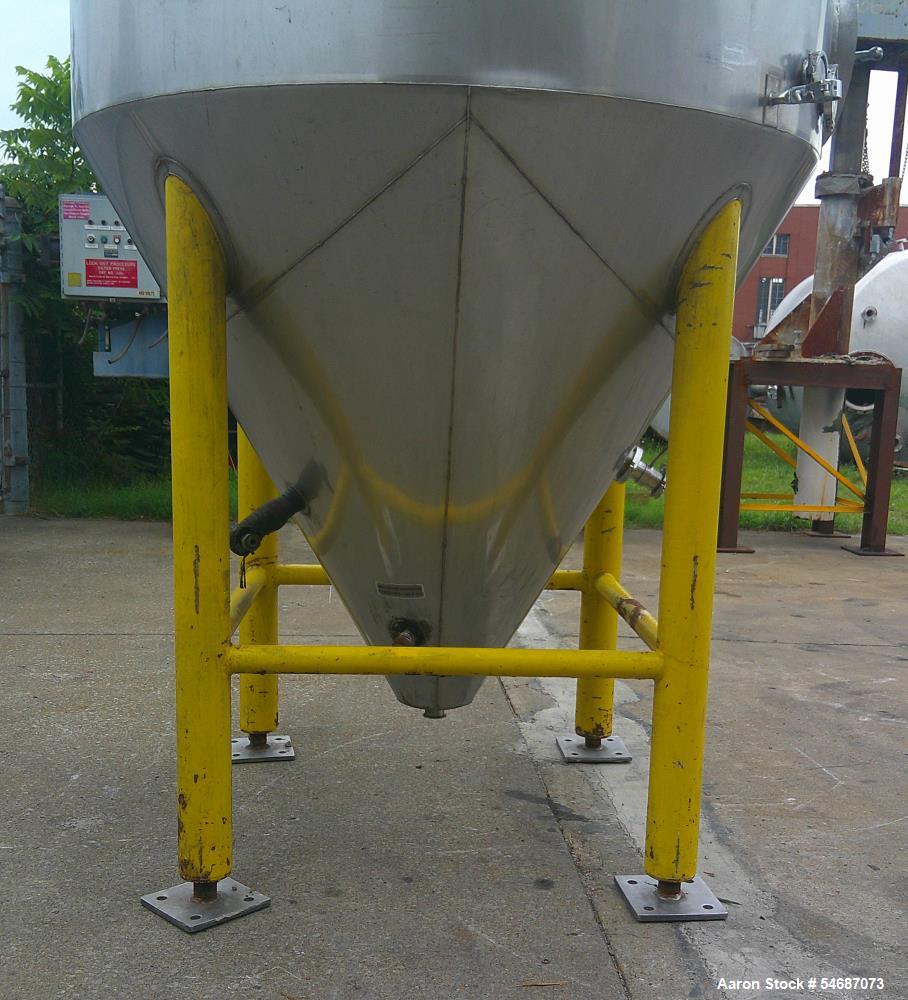

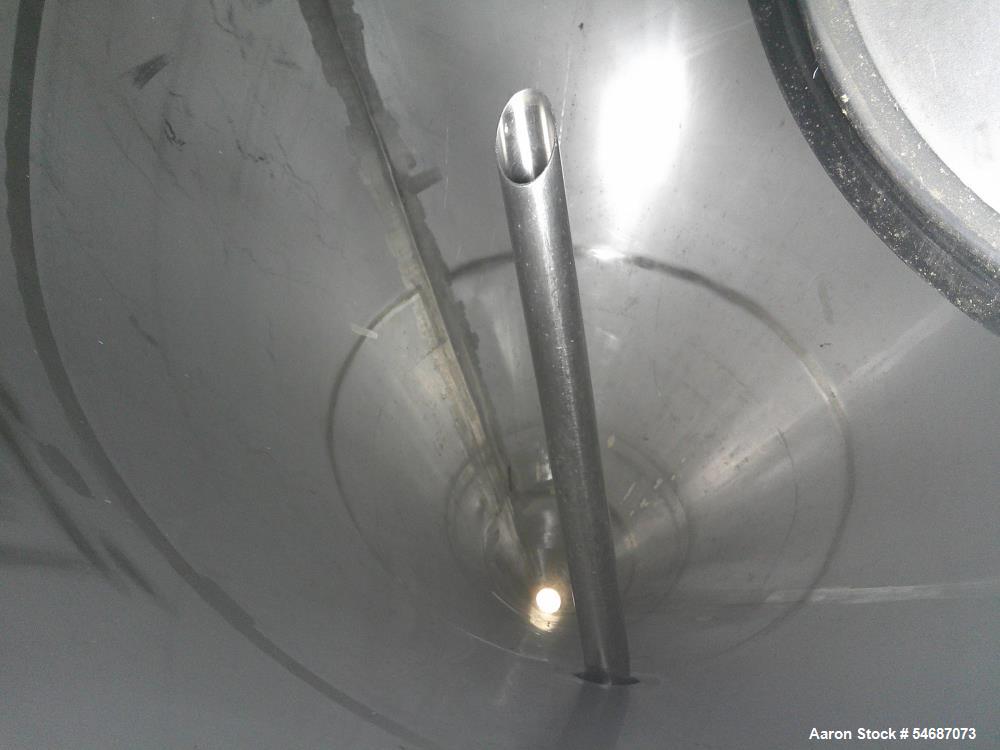

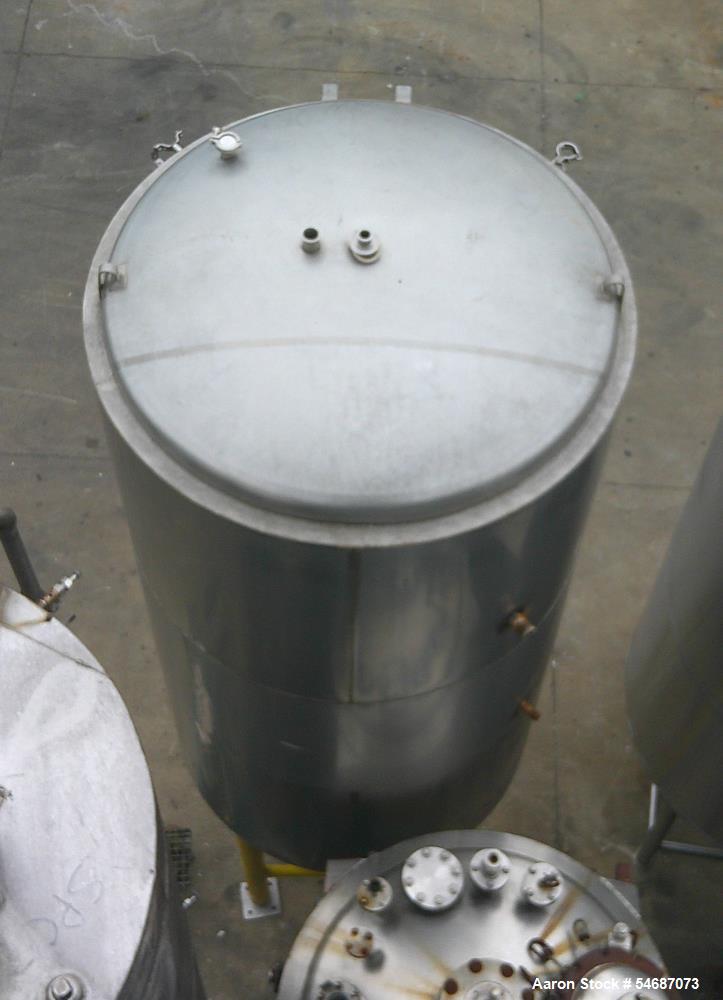

Used-2,000 gallon Santa Rosa Stainless Steel vertical tank with three zone 20 PSI MAWP jacket. Overall height is 240" tall on four legs. Main shell is 66" OD x 125" straight side. Long bottom cone has two 1" threaded jacket fittings and one 2" tri clamp bottom fitting. Side has four 1" threaded fittings for the jacket, one 3" tri clamp, one 2" tri clamp, one 16" x 20" elliptical manway and two 1" threded couplings for probes. Top has 3- 2" tri clamp fittings. Cone length 53" long.

Sell Us Yours

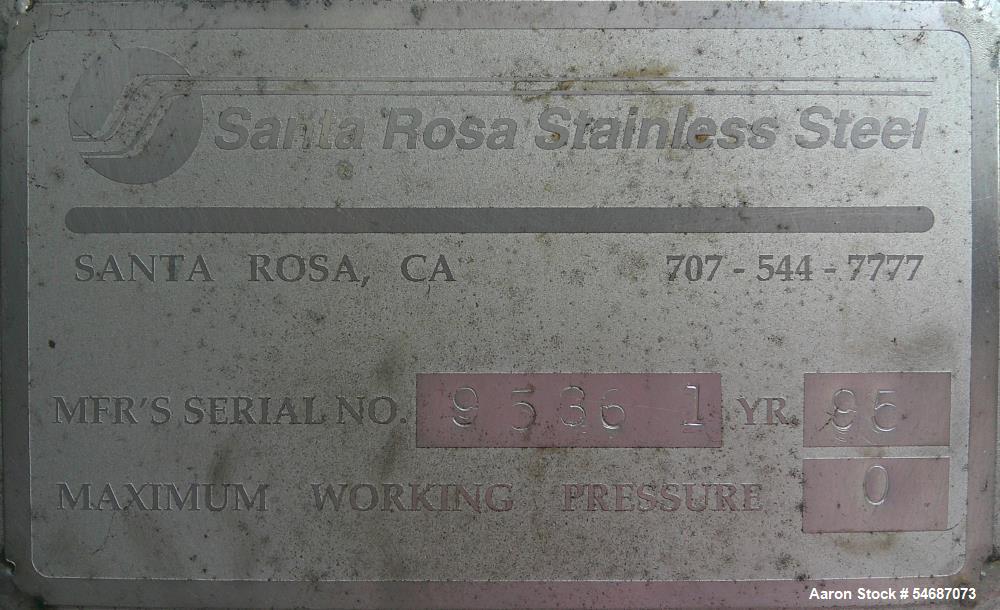

ManufacturerSanta Rosa
CategoryTanks
SubcategoryStainless 1000-4999 Gal
