Stock No.: 54687133

Used Caldwell tanks 2900 gallon stainless steel vertical tank. Serial # 5658-3. Tank is 90" in diameter with a 90" straight side height. 12" dome top has a 24" bolted man cover, (2) 2" threaded fit...

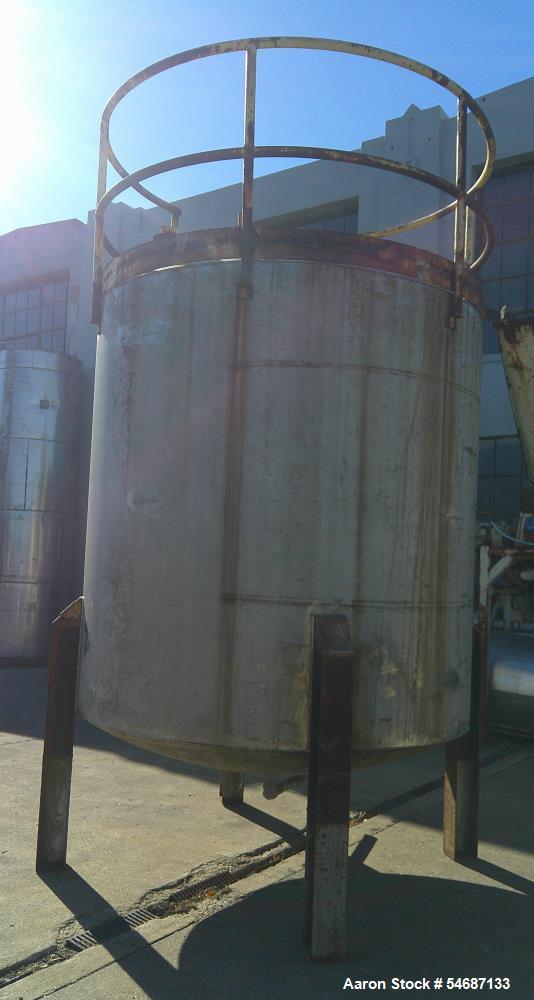

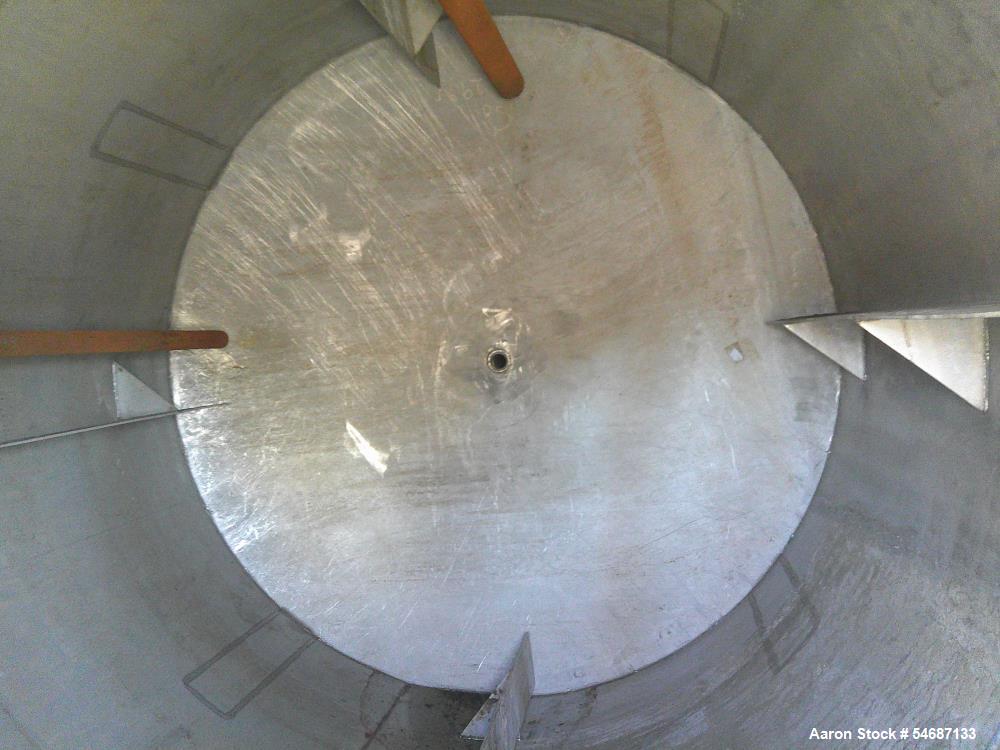

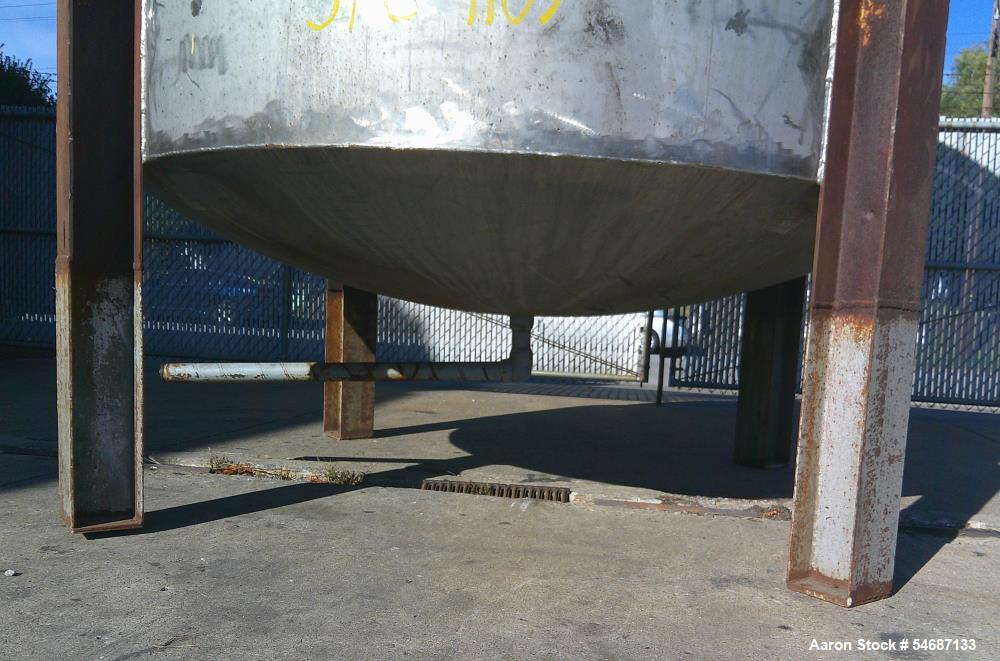

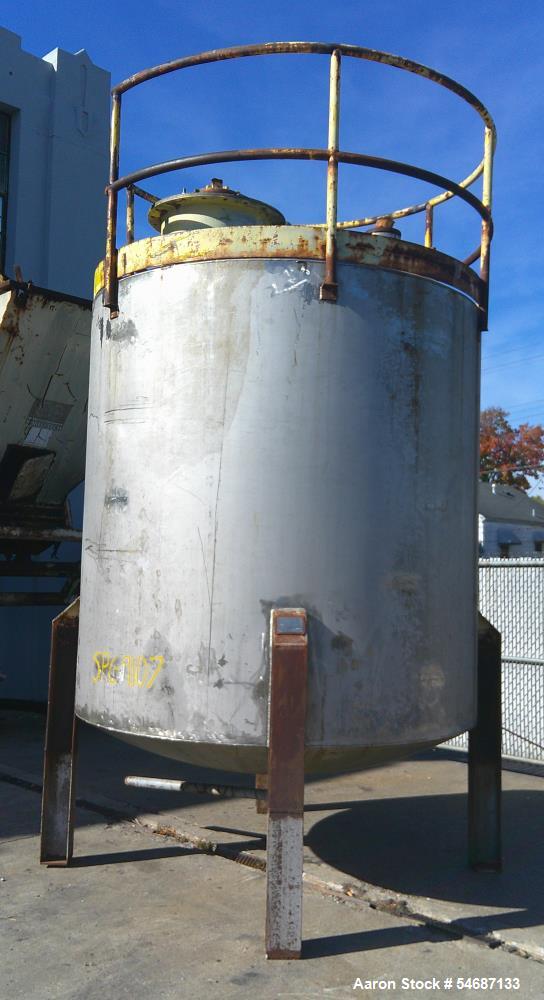

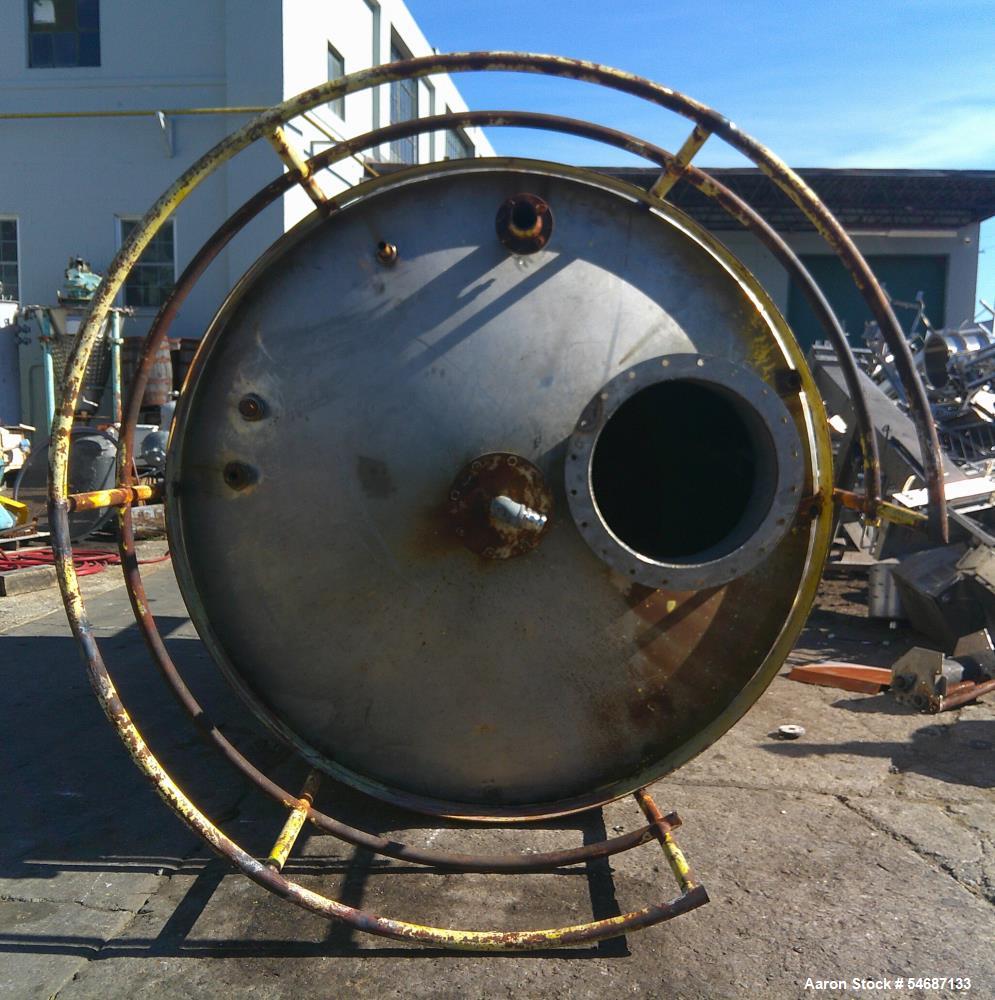

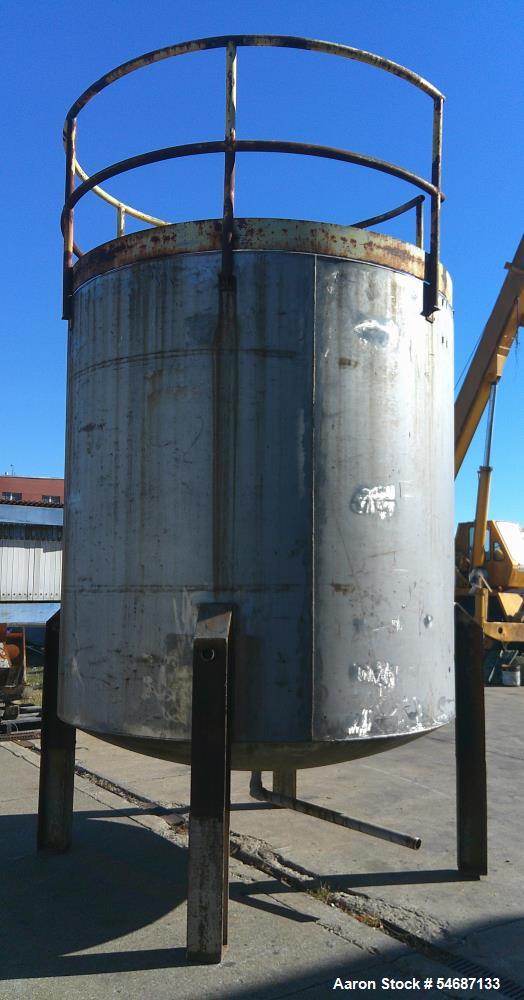

Used-Caldwell tanks 2900 gallon stainless steel vertical tank. Serial # 5658-3. Tank is 90" in diameter with a 90" straight side height. 12" dome top has a 24" bolted man cover, (2) 2" threaded fittings, an 1" threaded fitting, a 3" flanged fitting and an 8" flanged fitting. Top also has a 40" tall saftey railing around the tank. The 12" dish bottom has a 2" center discharge. Tank also has a 2" fill from bottom tube running from the top. Tank sits on 4 I-beam legs for a total height of 164". Good condition.

Sell Us Yours

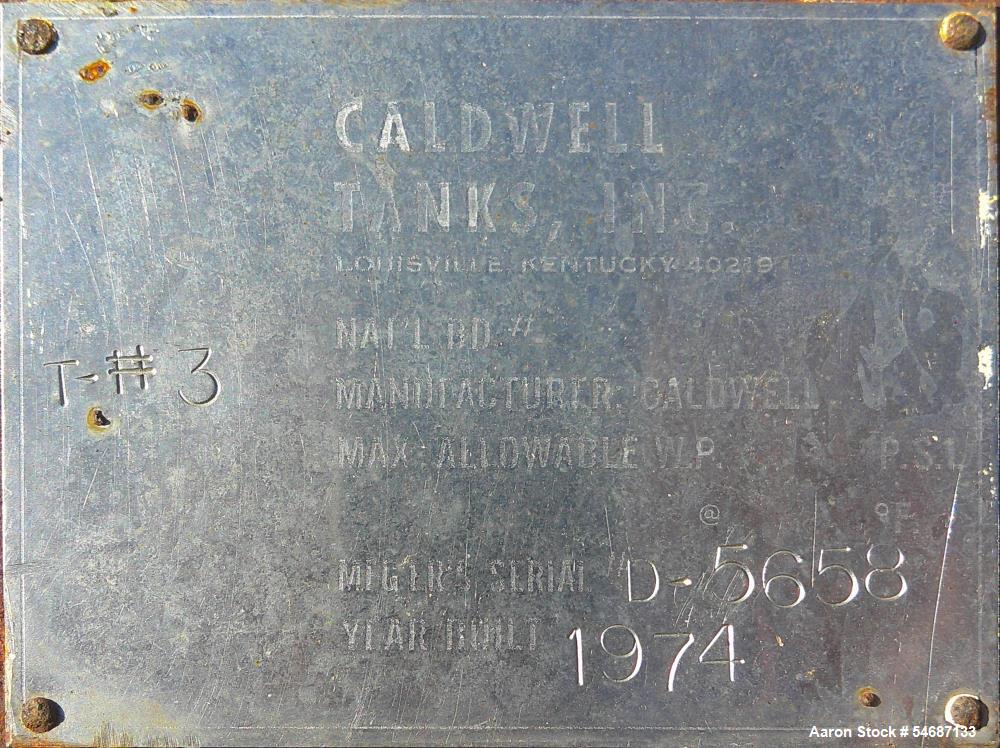

Serial #5658-3
CategoryTanks
SubcategoryStainless 1000-4999 Gal

We offer a variety of finance programs. Please contact your sales person for more information.
