Used MitterNight Boiler Works 1970 gallon 304ss mix tank. Tank has 2" internal coil that circles tank 4 times about 1/3 the way up the tank. The coil is rated at 100 psi @ 200 f. The internal tank...

Stock No.: 54687107

Used MitterNight Boiler Works 1970 gallon 304ss mix tank. Tank has 2" internal coil that circles tank 4 times about 1/3 the way up the tank. The coil is rated at 100 psi @ 200 f. The internal tank...

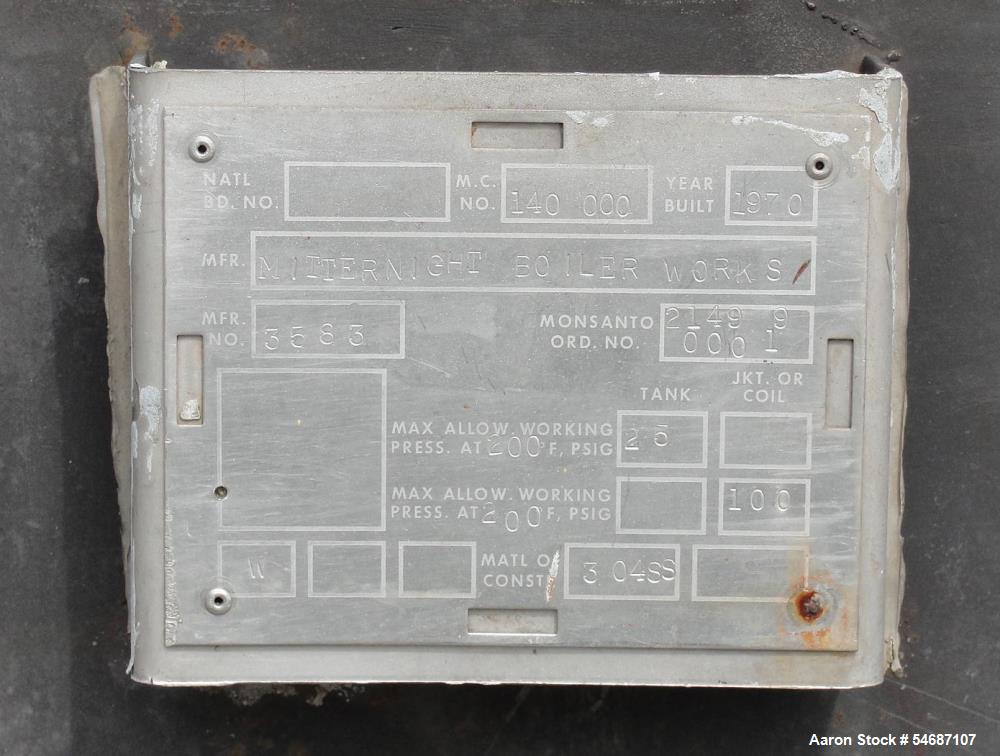

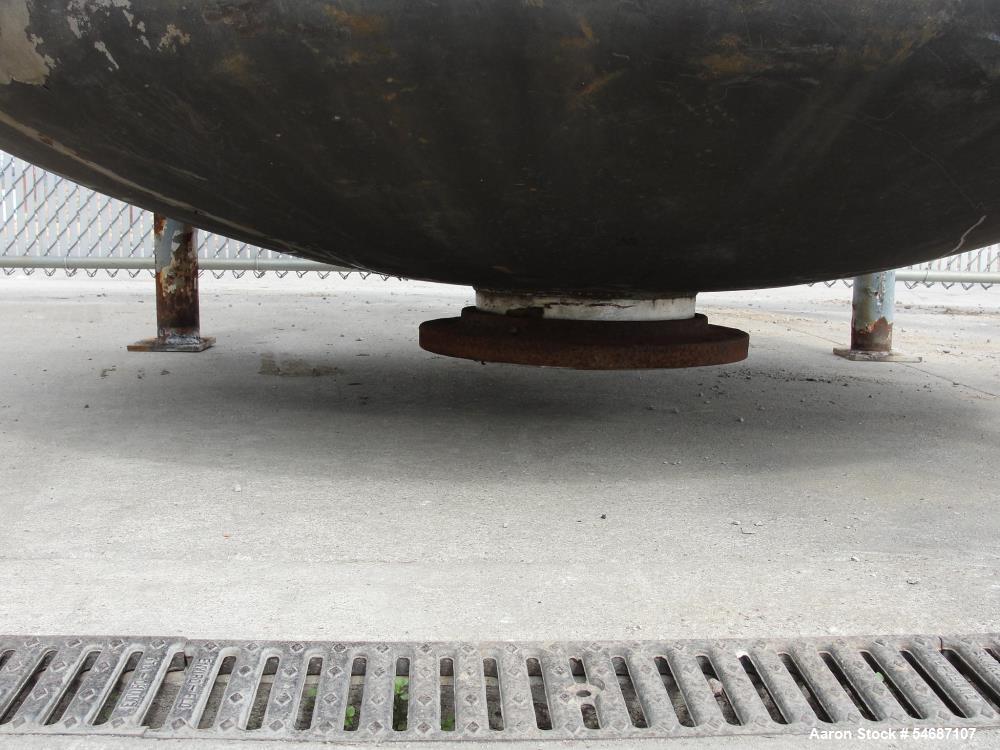

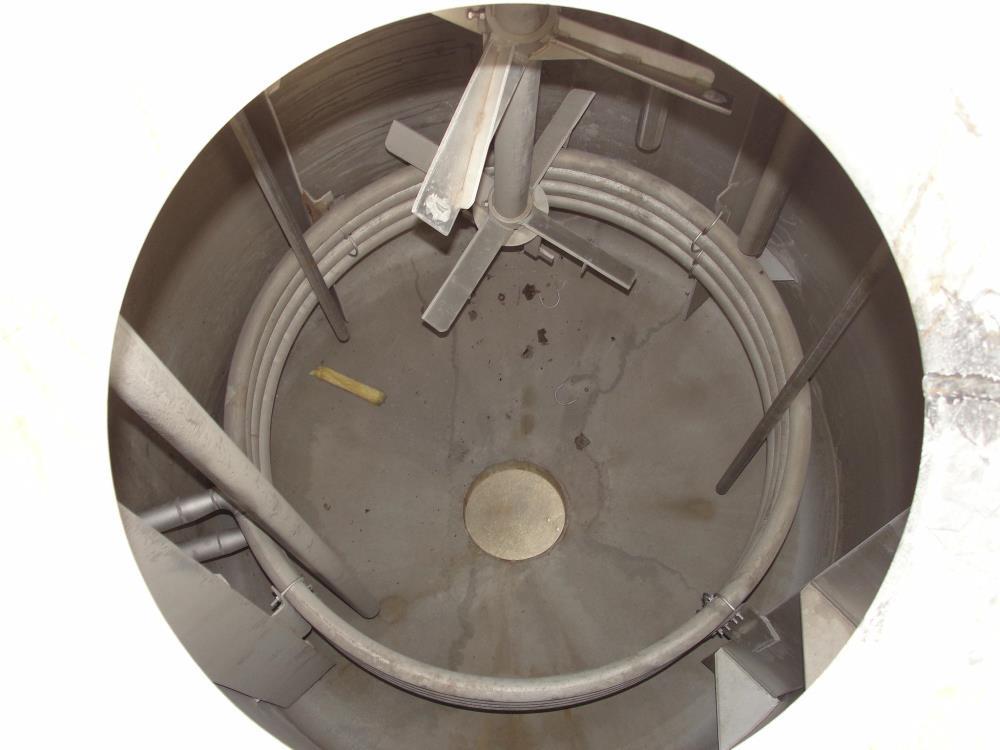

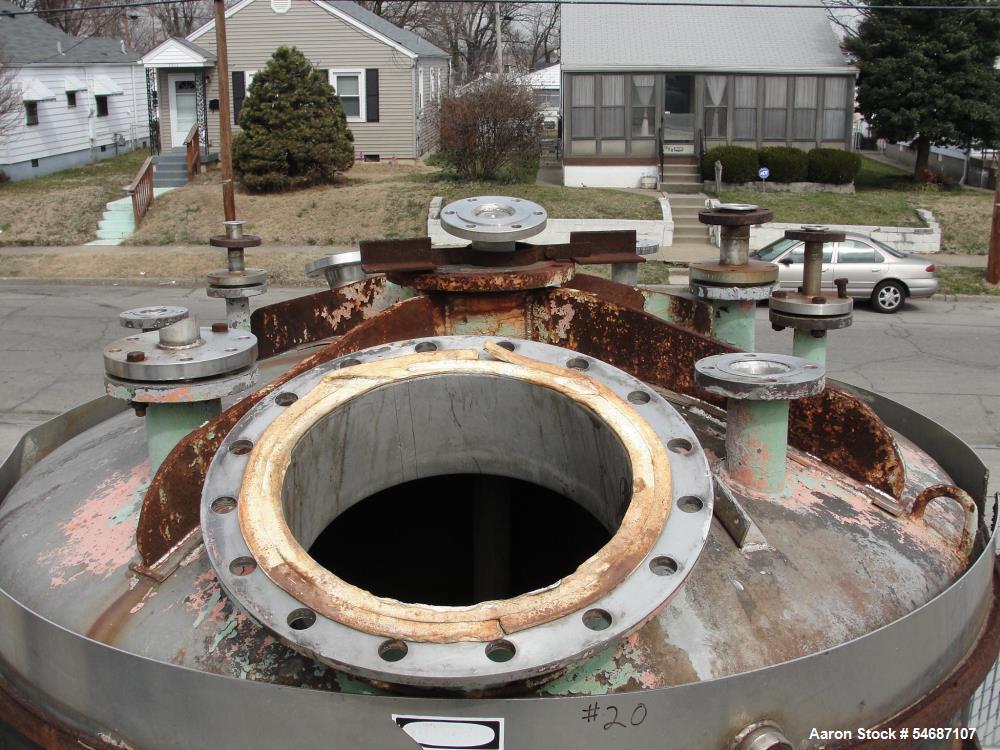

Used-MitterNight Boiler Works 1970 gallon 304ss mix tank. Tank has 2" internal coil that circles tank 4 times about 1/3 the way up the tank. The coil is rated at 100 psi @ 200 f. The internal tank is rated at 25 psi at 200 f (tank is missing manway cover). The tank has a 2" stainless steel agitator with two props but has no drive. The 12" dome top has (3) 1", (1) 2", (3) 3" and (1) 4" flanged fittings with 18" manway. The 12" dish bottom has a center 12" flanged discharge. Tank measures 72" diameter x 96" straight side with 12" dish bottom and top. The overall dimensions are 88" diameter x 158" tall.

Sell Us Yours

ManufacturerMitternight Boiler Works
CategoryTanks
SubcategoryStainless 1000-4999 Gal
