Stock No.: 54687140

Used 1188.77 gal (4500 L) Beer Barrel tank, serial # AKL16-A-10005 built by ABC- Kinglai Co, Ltd for Glacier Tanks LLC. Built 05/2016. This stainless steel tank is about 59" in diameter with a 81" st...

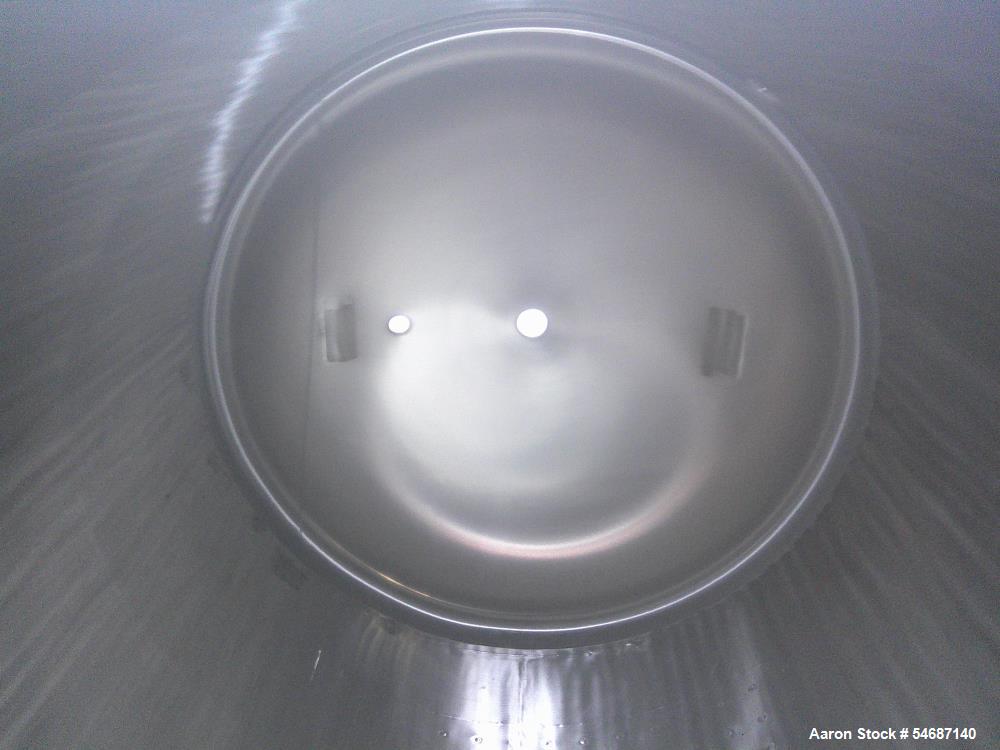

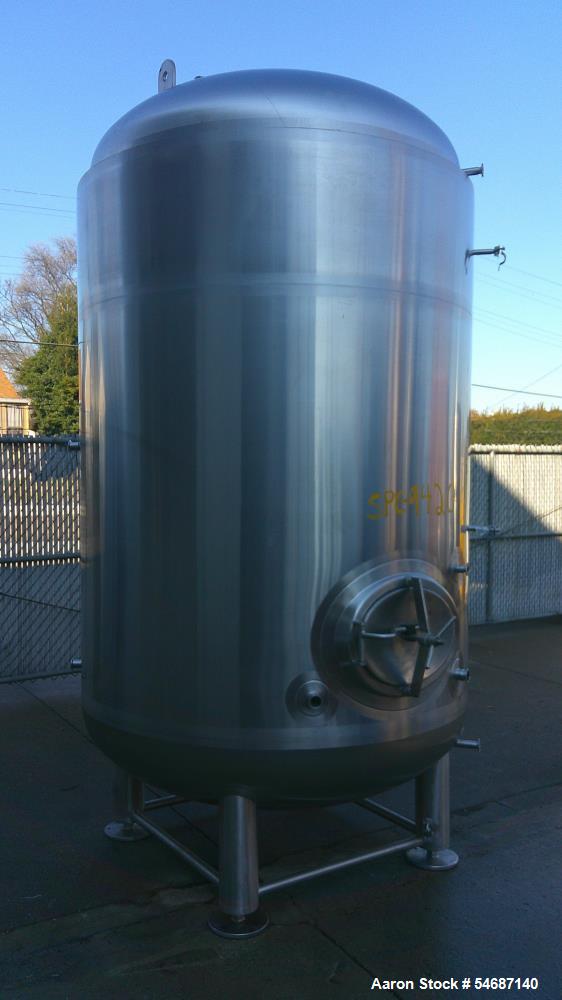

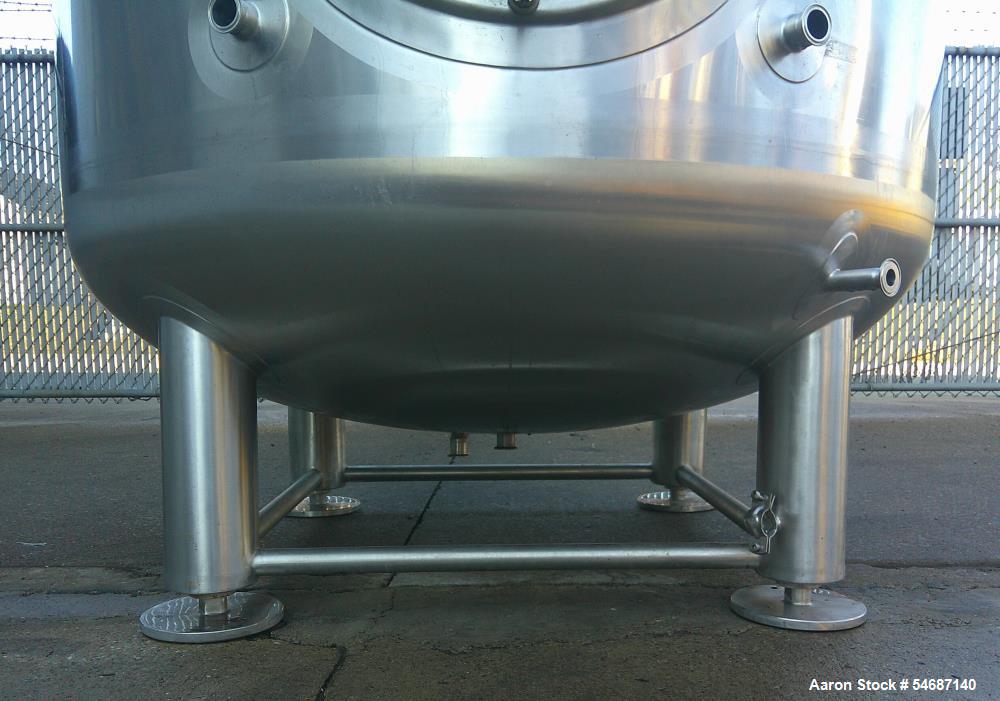

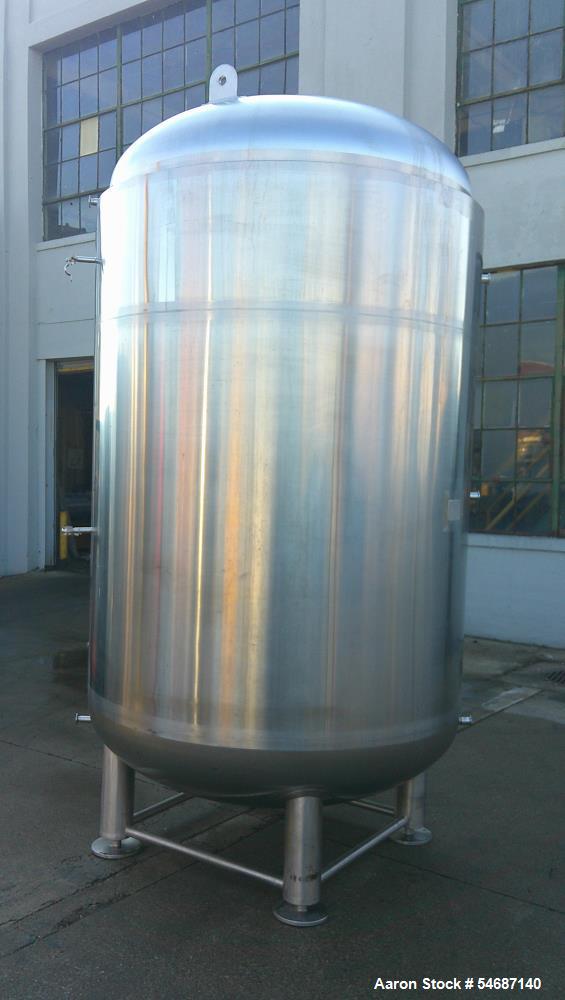

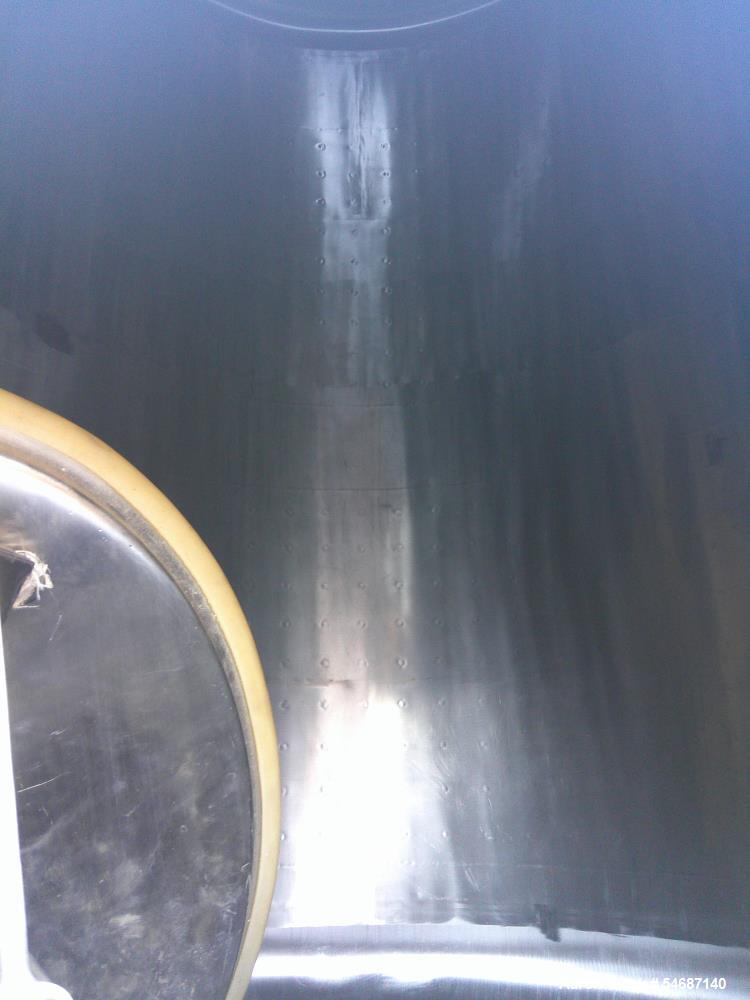

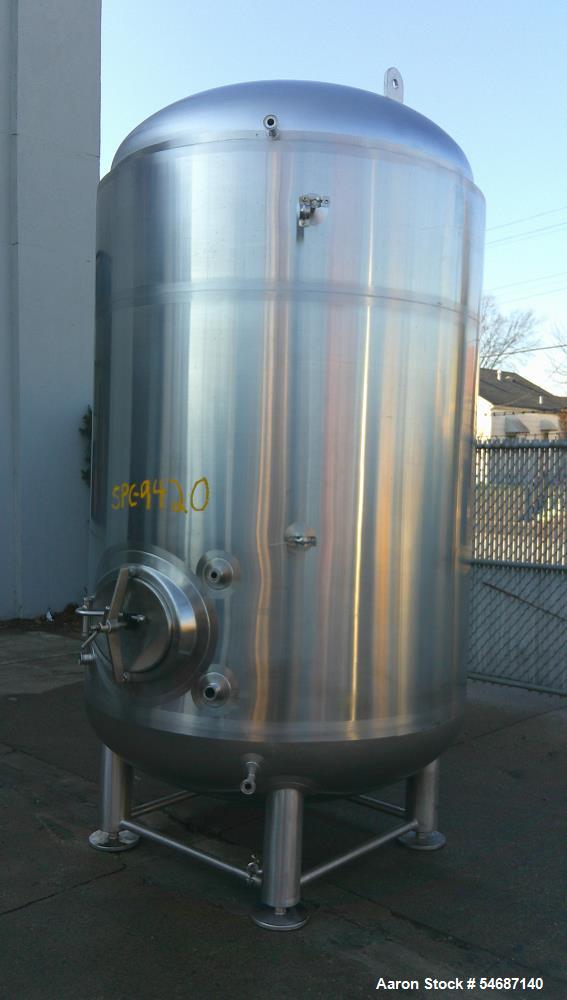

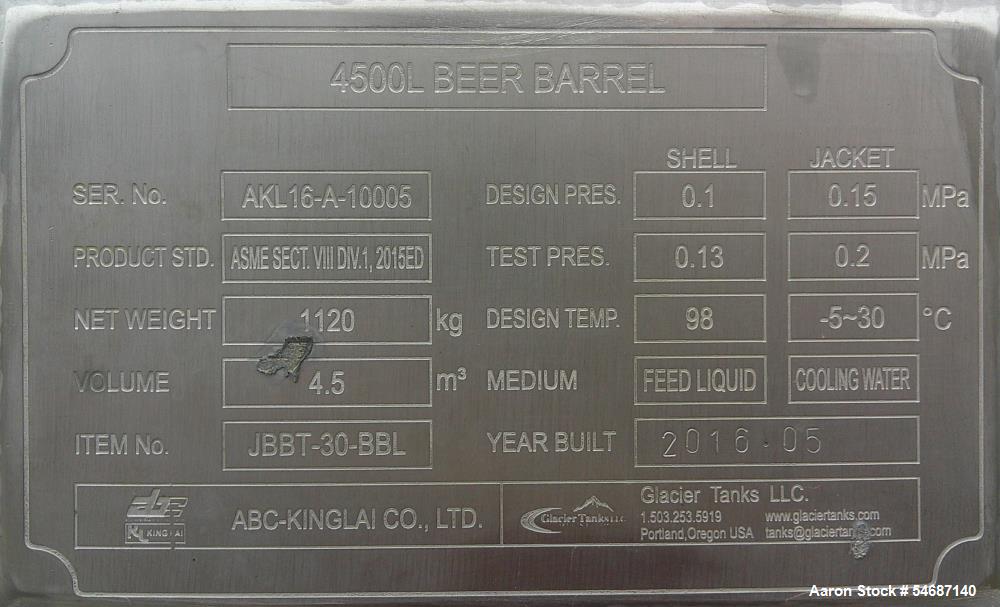

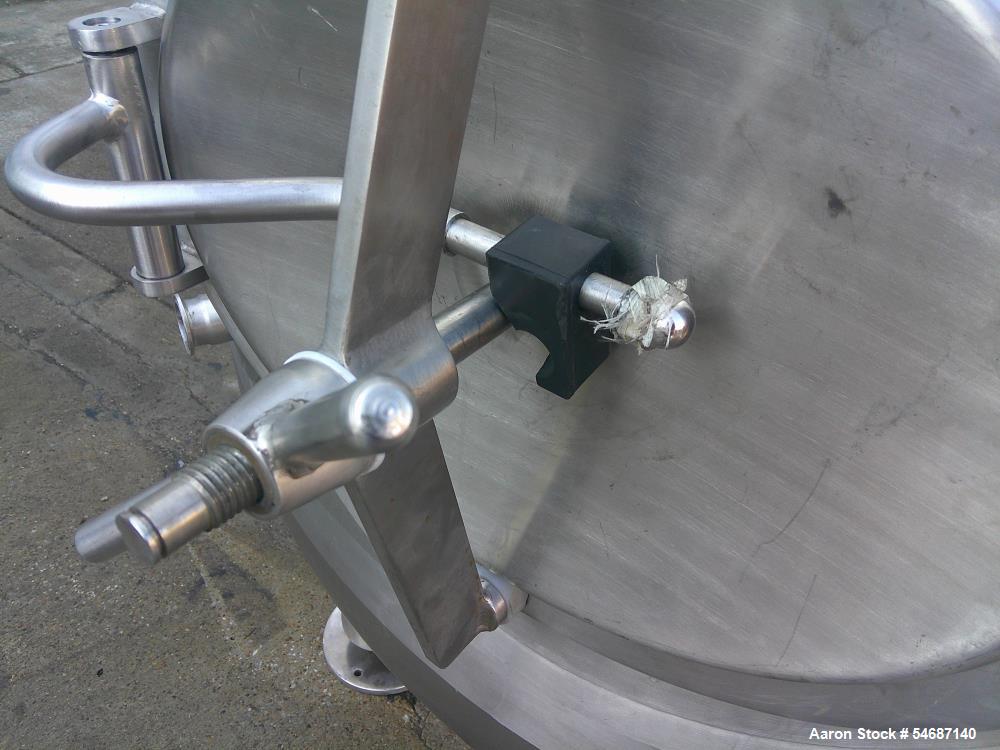

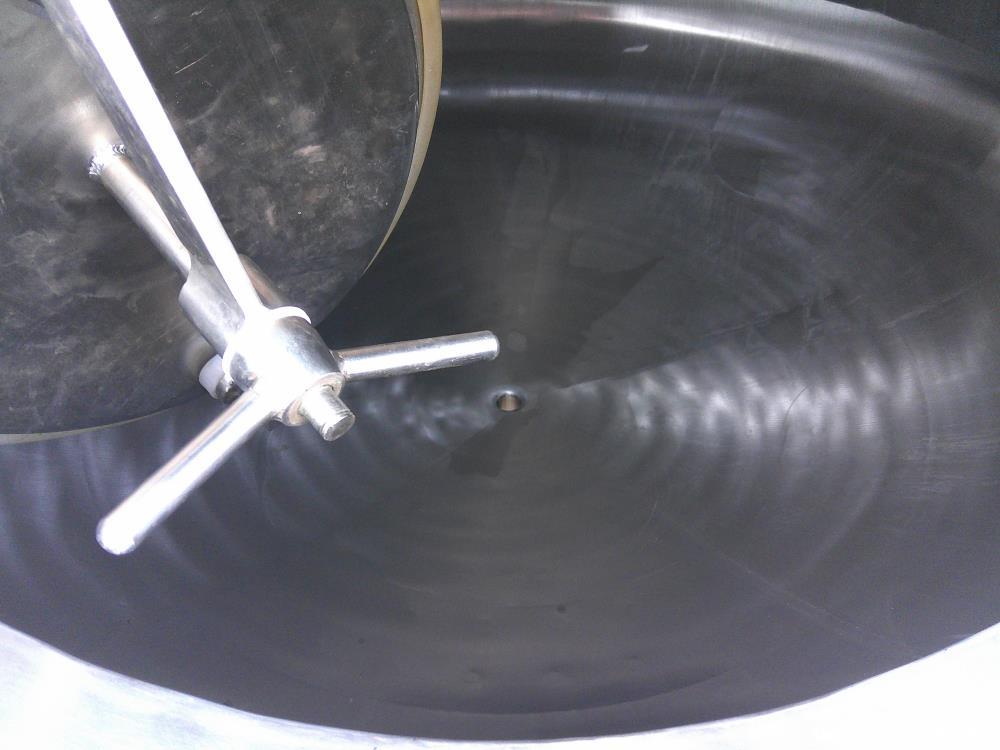

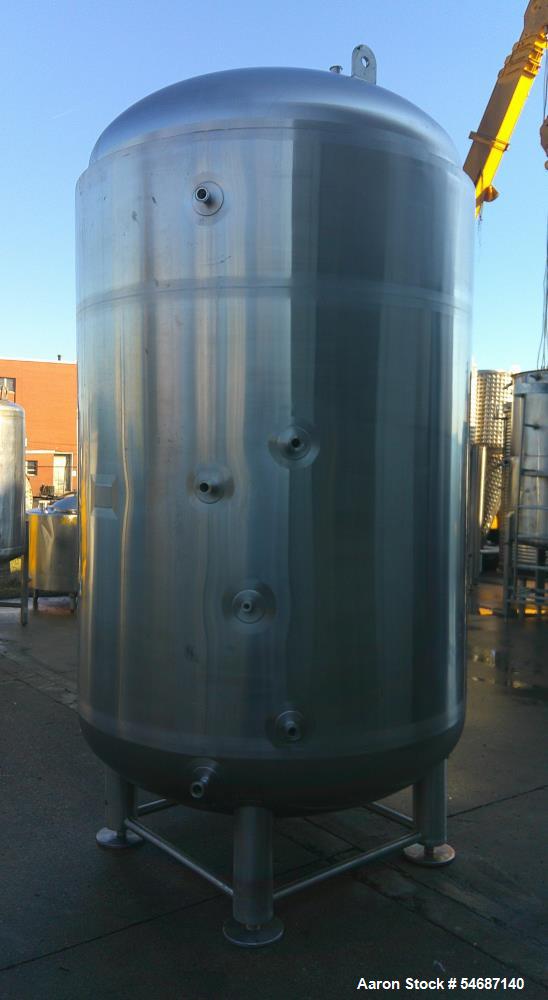

Used-1188.77 gal (4500 L) Beer Barrel tank, serial # AKL16-A-10005 built by ABC- Kinglai Co, Ltd for Glacier Tanks LLC. Built 05/2016. This stainless steel tank is about 59" in diameter with a 81" straight side and 12" dished heads. Volume 4.5 m3. Design pressure shell 0.1 MPa, jacket 0.15 Mpa. Design temperature 98 degrees C. jacket on the side of tank only. Dished heads. Two top lift lugs. Tank has four legs. Top has one 3" tri clamp nozzle and one 1.25" tri clamp nozzle. Bottom nozzles one 1.25" tri clamp and one 1.5" tri clamp. Side nozzles one 16" x 13" elliptical hinged lid manway, five 1.25" tri clamp nozzles for jackets, two 1.25" tri clamp, two .75" tri clamp nozzles, and one .75" coupling. Overall dimensions70" x 70" x 122" tall.

Sell Us Yours

Serial #AKL16-A-10005
CategoryTanks
SubcategoryStainless 1000-4999 Gal

We offer a variety of finance programs. Please contact your sales person for more information.
