Unused BCast BC-SSST100 1,000-Gallon 316L Stainless Steel Tank

Manufacturer Information

Manufacturer: BCast Stainless
Model: BC-SSST100
Equipment Type: Vertical single-wall stainless steel storage tank
Condition: Unused
Capacity: 1,000 gallons
Material: 316L stainless steel
Operation: Atmospheric

Main Product Description

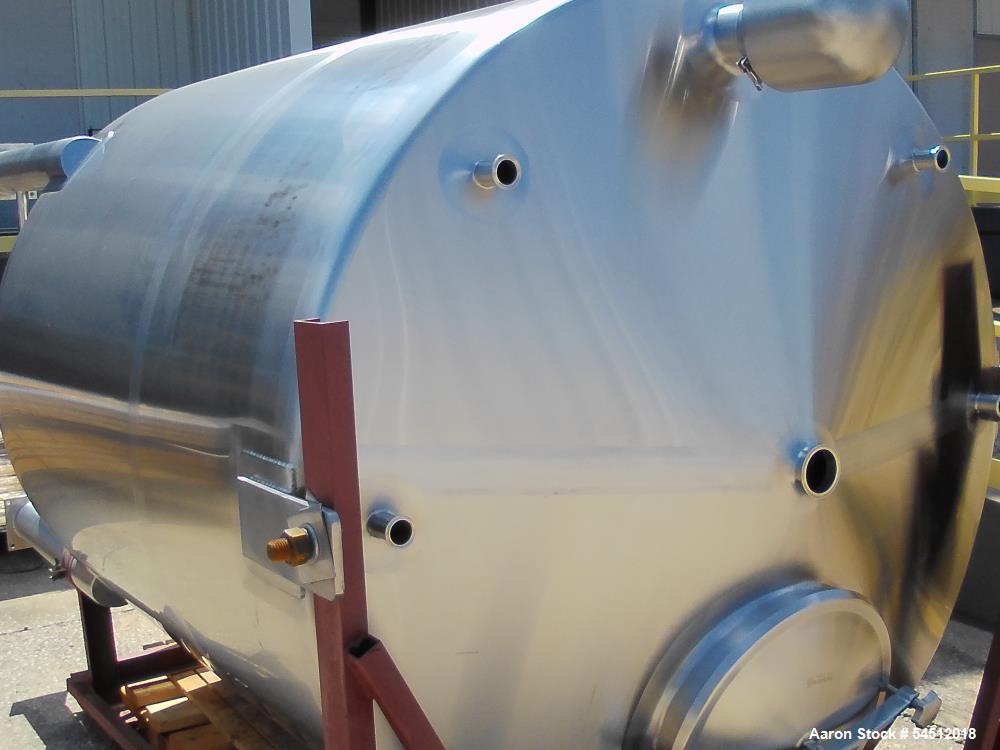

Unused BCast Stainless Model BC-SSST100 1,000-gallon vertical single-wall stainless steel tank constructed of 3 mm thick 316L stainless steel and designed for atmospheric storage of non-hazardous liquids. The tank features an inverted conical top with a 20" hinged and gasketed manway, cone bottom, five 1" tri-clamp sanitary fittings positioned around the tank head radius, and one 2" clamp center-bottom outlet with an approximate outlet height of 19-3/4". Additional features include a screened vent, sprayball, stainless steel support legs with drilled pad feet for anchoring, and engineered cross bracing for Seismic Zone 3 use. The vessel has a 2B exterior mill finish, #4 interior polish, and approximate dimensions of 65" diameter x 108" overall height.

Specifications

• Manufacturer: BCast Stainless
• Model: BC-SSST100
• Condition: Unused
• Tank type: Vertical single-wall storage tank
• Capacity: 1,000 gallons
• Material of construction: 316L stainless steel
• Material thickness: 3 mm per supplied information
• Operation: Atmospheric
• Intended material: Non-hazardous liquids
• Top configuration: Inverted conical top
• Bottom configuration: Cone bottom
• Manway: 20"
• Manway design: Hinged and gasketed

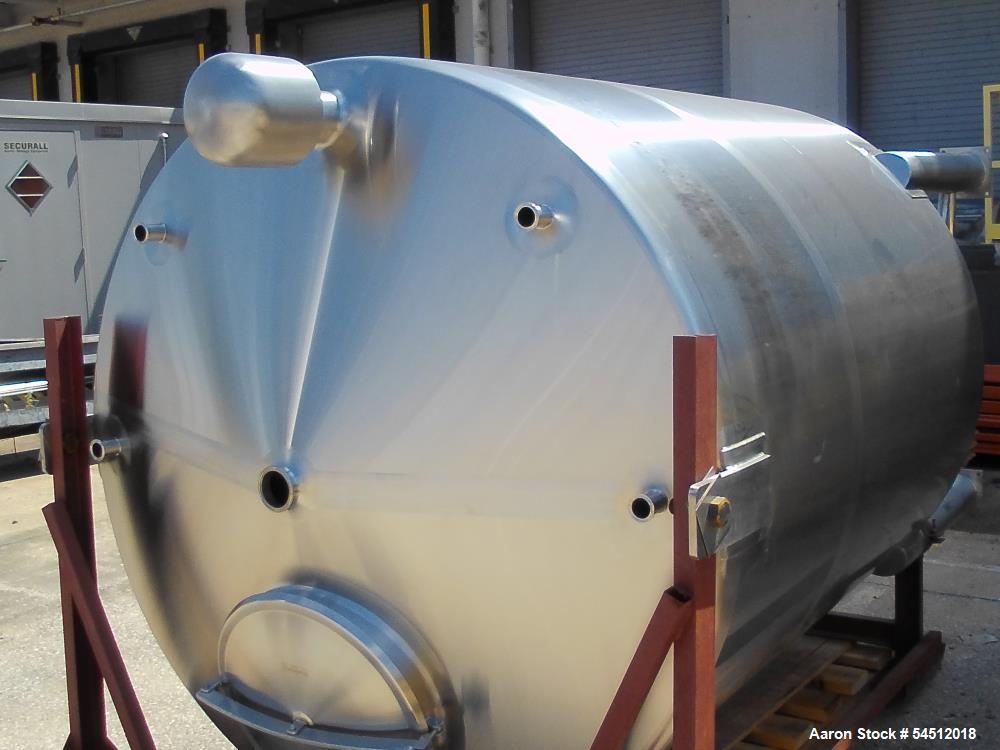

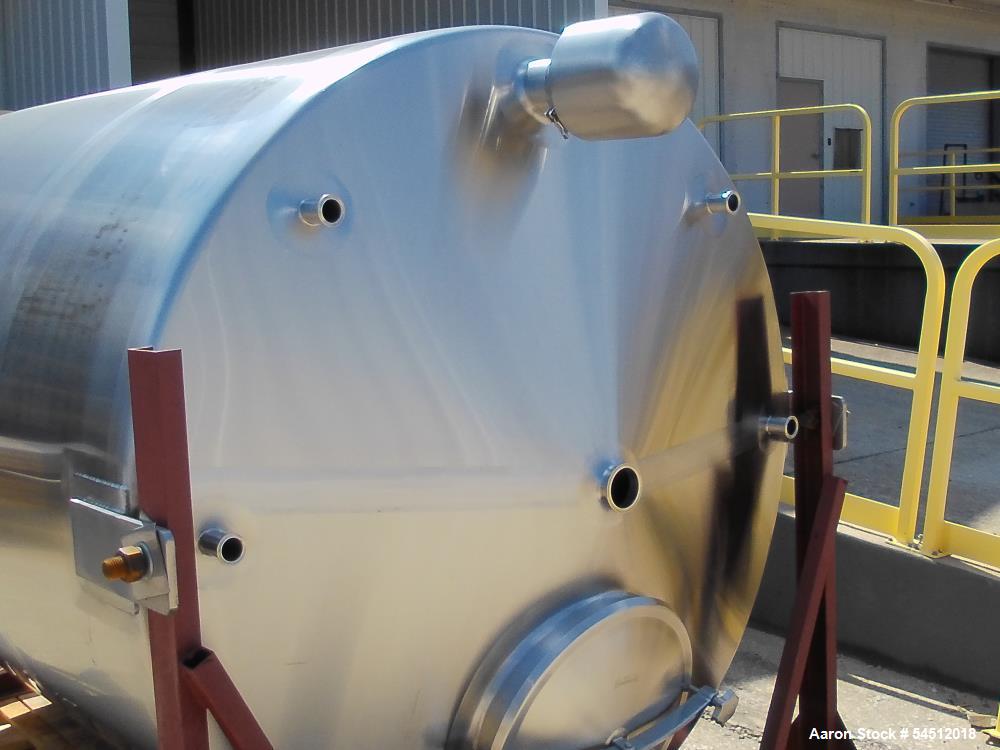

• Sanitary fittings: (5) 1" tri-clamp fittings
• Sanitary fitting location: Around tank head radius
• Bottom outlet: (1) 2" clamp center-bottom outlet
• Approximate outlet height: 19-3/4"
• Vent: Equipped with removable screen
• Sprayball: Included

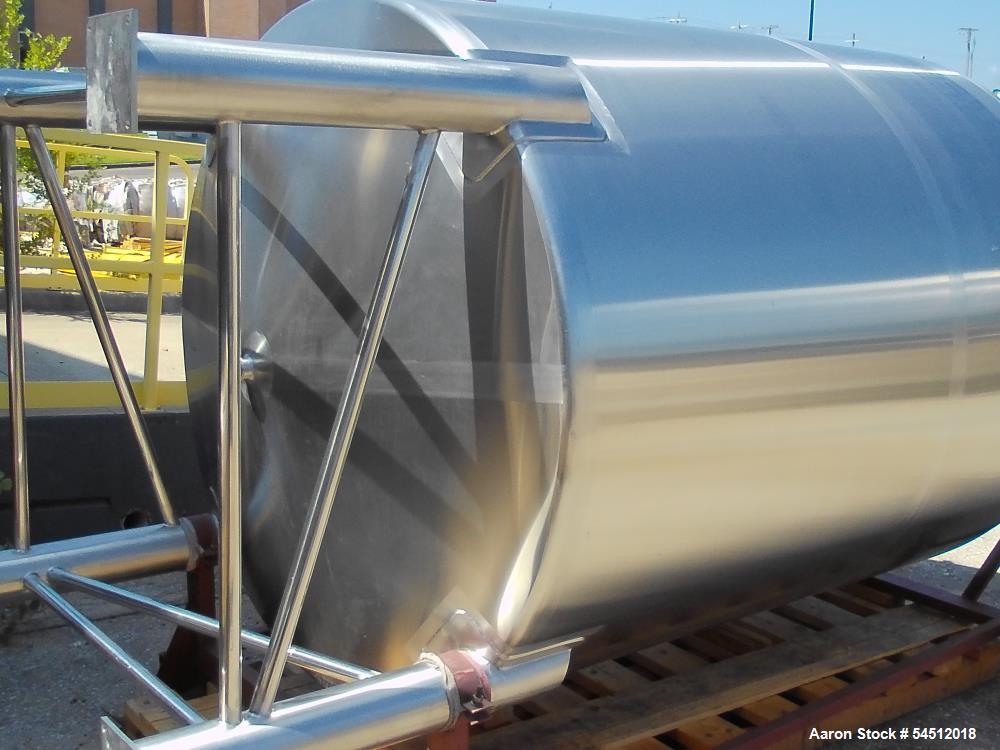

• Support: Stainless steel legs
• Leg feet: Pad feet drilled for anchoring

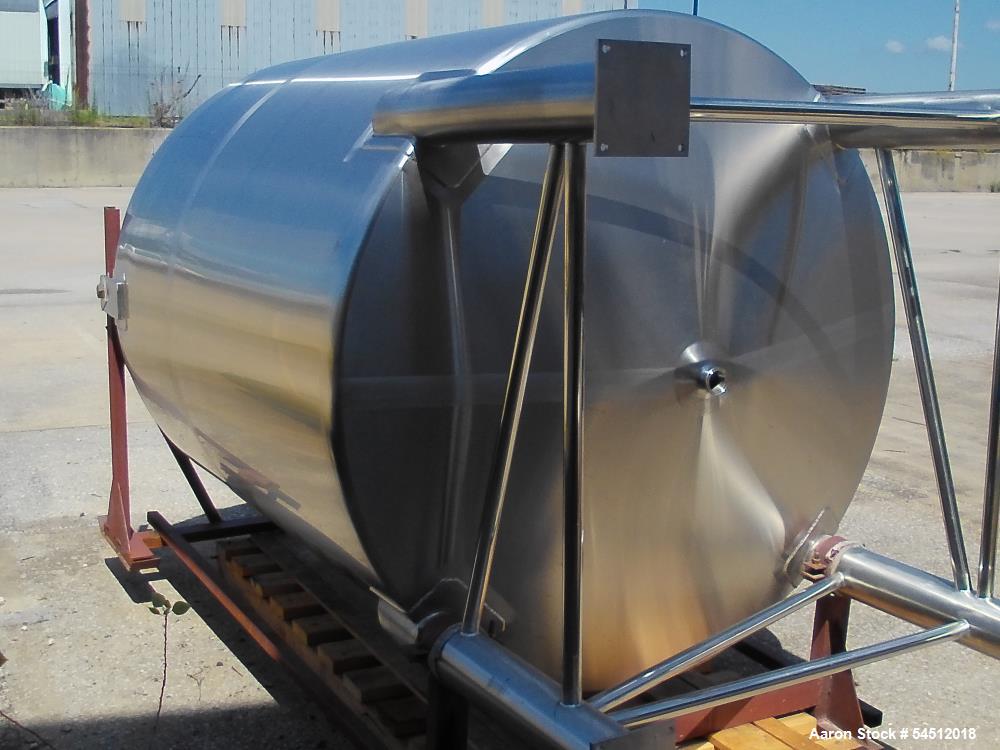

• Cross bracing: Included per engineering request
• Seismic design: Zone 3 per supplied information
• Exterior finish: 2B mill finish

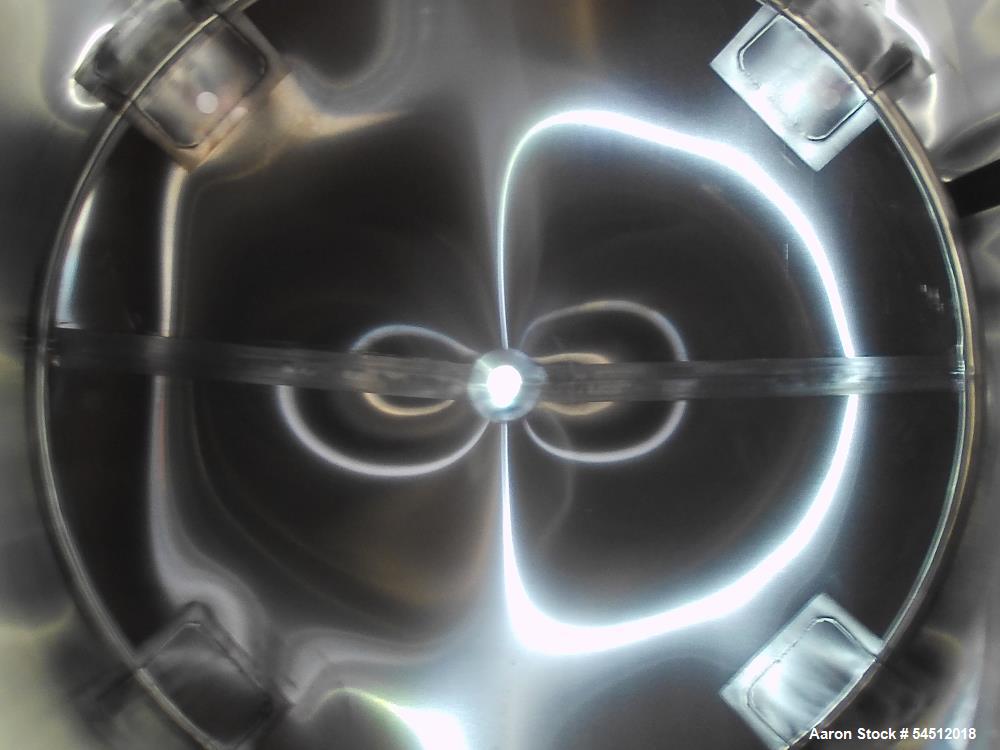

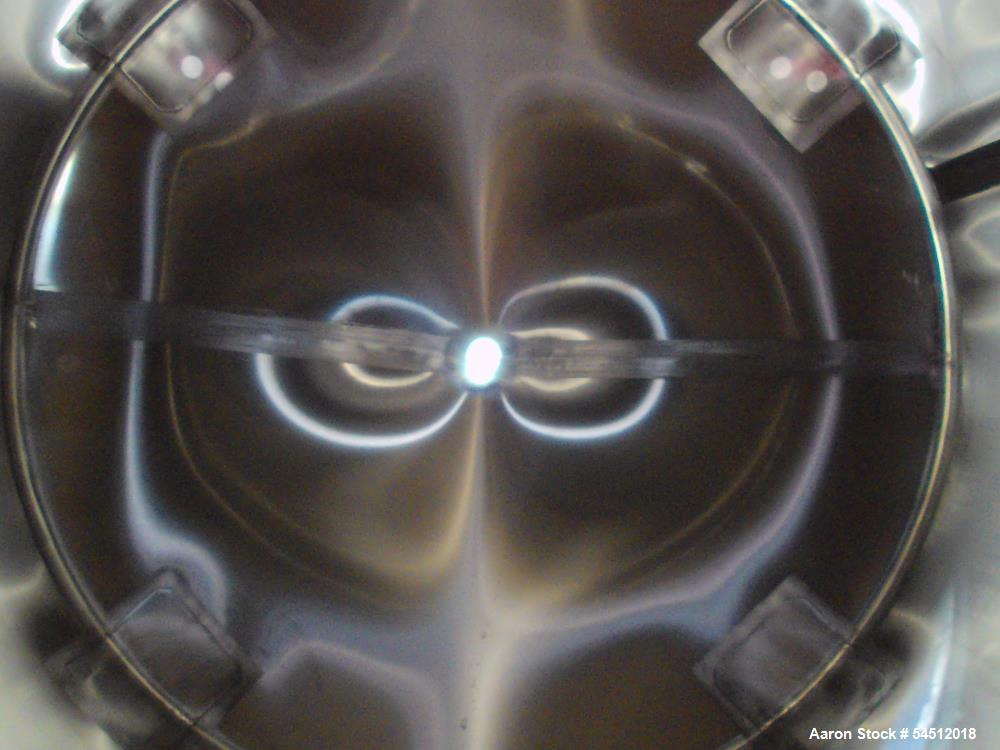

• Interior finish: #4 polish
• Diameter: Approximately 65"
• Overall height: Approximately 108"

Applications

• Atmospheric liquid storage
• Sanitary process liquid storage
• Batch holding
• Ingredient storage
• Intermediate product storage
• Cosmetics manufacturing
• Personal care manufacturing
• Food processing
• Beverage processing
• Pharmaceutical processing
• Chemical processing involving compatible non-hazardous materials
• Sanitary manufacturing operations
• Process liquid surge or holding applications

Suitable Products / Materials

Actual product suitability should be confirmed based on chemical compatibility with 316L stainless steel, operating temperature, sanitation requirements, and atmospheric tank design.

• Water
• Purified water
• Process water
• Liquid ingredients
• Cosmetic products
• Personal care liquids
• Food ingredients
• Beverage ingredients
• Sanitary process liquids
• Non-hazardous chemical solutions compatible with 316L stainless steel
• Cleaning solutions compatible with 316L stainless steel
• Other non-hazardous pumpable liquids suitable for atmospheric storage

FAQs

• What is the capacity of this BCast stainless steel tank?
  The tank has a nominal capacity of 1,000 gallons.
• What material is the tank constructed from?
  The supplied specifications identify the tank as constructed from 3 mm thick 316L stainless steel.
• Is this a pressure-rated tank?
  The supplied information states that the tank is designed for atmospheric operation. It should not be represented as a pressure vessel without separate documentation confirming a pressure rating.
• What type of bottom does the tank have?

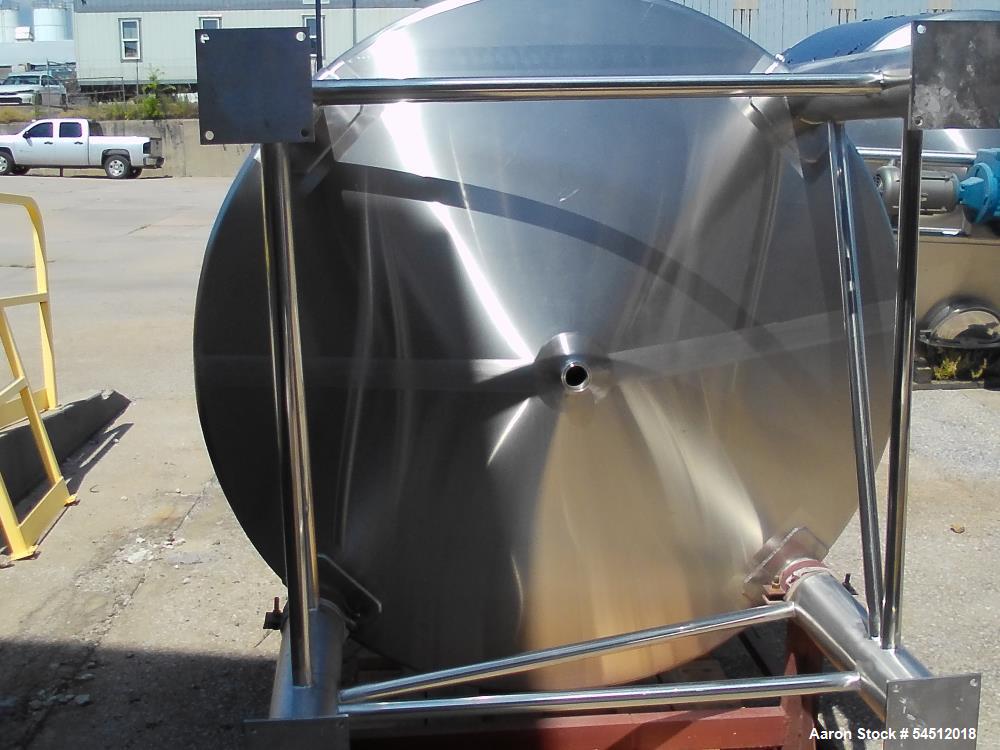

  The tank has a cone bottom with a 2" clamp center-bottom outlet.
• Does the tank have a sanitary manway?

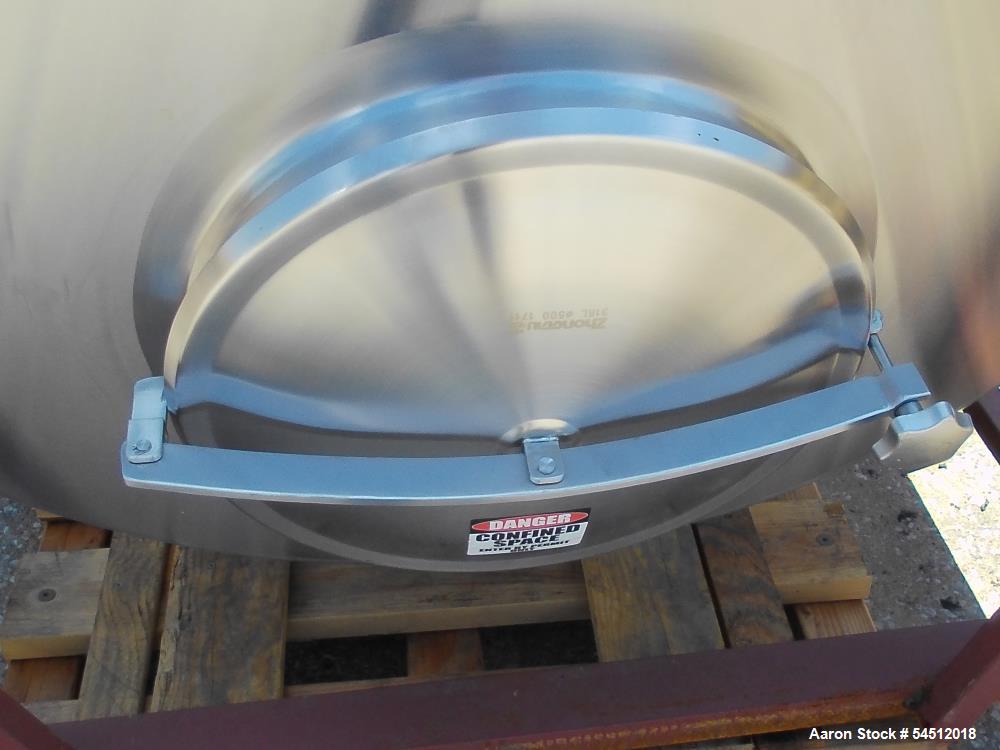

  Yes. It includes a 20" hinged and gasketed manway located in the inverted conical top.
• What sanitary connections are included?
  The tank has five 1" tri-clamp sanitary fittings positioned around the tank head radius and one 2" clamp center-bottom outlet.
• Does this BCast tank include a sprayball?
  Yes. A sprayball is included according to the supplied equipment information.
• What are the tank dimensions?
  The supplied dimensions are approximately 65" in diameter x 108" overall height.
• What is the interior finish?
  The interior is specified with a #4 polish, while the exterior has a 2B mill finish.
• Can this tank be anchored to the floor?
  Yes. The stainless steel legs have pad feet drilled for anchoring.
• Is this tank designed for seismic applications?
  The supplied information states that cross bracing was included per an engineer's request for Seismic Zone 3 use. Buyers requiring a specific seismic certification should confirm the applicable engineering documentation.
• What materials can be stored in this tank?
  The tank is described as being designed for atmospheric storage of non-hazardous liquids. Specific product compatibility should be confirmed against the 316L stainless steel construction and the process requirements.
• Can Aaron Equipment help determine if this tank is suitable for my application?
  Yes. Aaron Equipment can help review your product, required working capacity, materials compatibility, sanitary requirements, facility layout, connections, and operating conditions to help determine whether this BCast tank is appropriate for the application.
• Can Aaron Equipment help with shipping this 1,000-gallon tank?
  Yes. Aaron Equipment can assist with freight and logistics. Shipping requirements will depend on the tank's overall dimensions, weight, destination, and loading or receiving requirements.
