Used Sheet Dies

Stock# 43309005

Used- PTI Circular Foam Sheet Die. Includes a cooling mandrel, and a DT Industires/Sencorp foam distribution system, model DSM 564, serial# 12159615069, 115 volt, 6 amps. Last used with a 4-1/2" PTI extruder, 48 to 1 L/D ratio.

Stock# 62730

Used- Cloeren 3 Layer Sheet Die. 20" slot opening with (3) 1/2" back center entrances. Die exit gap appears fixed. Drawing #E-700-0101-02.

Stock# 88474

Used- Cloeren 20" Wide Manual Adjustable Flex Lip Die. 3 layer design.

Stock# 88457

Used- Cloeren 22" Wide Manual 3 Layer Flex Lip Extrusion Die With Co-Ex Block. Built 2002.

Stock# 45219006

Used- Extrusion Dies Inc. EDI Ultraflex U40 Sheet Die, 22" wide. Top center feed with hanging mount frame. Serial#94-16251.

Stock# 46471011

Used- Flex Lip Sheet Die, 29" wide, back center feed, dual R bars, removable lower lip, with manual decklling, serial# 89263/700/L5-CR.

Stock# 46471013

Used-29" wide flex lip sheet die, back center feed, dual R bars, removable lower lip, with manual decklling, serial# 89556/700/L5-CR.

Stock# 48907004

Used- 30" Wide Sheet Die, 45 Degree Restrictor Bar. Also Includes Adjustable Deckling Option.

Stock# 45593123

Used- EDI 30" Wide Restrictor Bar Sheet Die. Extended lip adjustment, back center feed. Serial# 82-7045, A.D.# 97-1114-01-R.W.

Stock# 86648

Used- 40" Flex Lip Sheet Die. Flexible lower lip, removable upper lip, with approx. .040" to .060" thickness range.

Stock# 71838

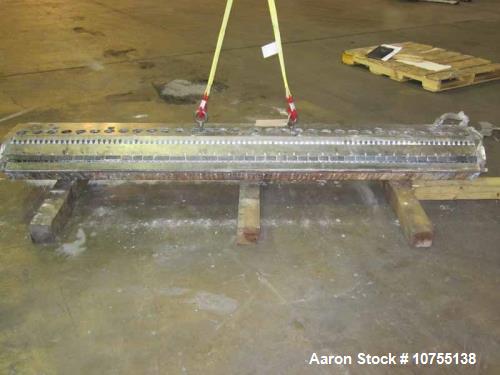

USED- EDI Autoflex 42" Sheet Die, Model H75. Coat hanger manifold, restrictor bar. Max adjustment range .040". 2" back center feed, 1/230 Volt.

Stock# 40094003

Used: 42" Cloeren Model Epoch V Sheet Die. .001"-.030" lip opening range, .03 neutral opening, 36-39-RC tool steel, hard chrome plated .002-.0025, five heat zones, 240 volt, 2002 vintage. REF: INVOICE # 7895

Stock# 43337002

Used- EDI Ultra Flex Sheet Die, 44'' Wide, Model R-100. Upper flexiable lip. Back center feed. 45 Degree restrictor bar, 0.100 of adjustment. Provision for fast gap on lower lip. Serial# 96-18781

Stock# 43752011

Used- EDI 44" Wide Ultraflex H75 Flex Lip Sheet Die. Back center feed, fixed bottom lip.

Stock# 43752013

Used- EDI 44" Flex Lip Sheet Die. Back center feed, no chocker bar, fixed bottom lip.

Stock# 43554001

Used- 46" EDI Flex Lip Sheet Die, Model H75. Fixed lower lip, back center feed, missing restrictor bar. Serial#72123723.

Stock# 43554004

Unused- 52" EDI Dual Entry Sheet Die, Model 52U/F R75. With restrictor bar and fast gap control, serial # 08-27852, built 2008.

Stock# 45593124

Used- Goulding 52" Wide Co-Extrusion Sheet Die. Slotted back center feed. Serial# 6097.

Stock# 40508012

Used- EDI 54" Wide Flex Lip Sheet Die, type Ultraflex 40. Flexible upper lip, 5 zone, back center feed.

Stock# 40617015

Used- EDI 55" Wide Ultraflex Film/Laminating Die, model H40. End feed design. Last used for polystyrene film onto polystyrene foam sheet.

Stock# 40094001

Used: 55" Cloeren, Model Epoch V, Sheet Die. Equipped with AutoGauge 5 Push/Pull adjustable lip, 0-.04" gap range, tool steel, .001 Electroless nickel plating, 5 zones, 240 volt, 1992 vintage, die.

Stock# 40094002

Used: 55" Cloeren Model Epoch V Sheet Die. Equipped with Auto Gauge 2 Push/Pull adjustable lip, 0-.04" gap range, 28-32RC high alloy tool steel, .0015 Electroless nickel plating, 5 zones, 240 volt, 1992 vintage.

Stock# 49296009

Used- EDI 56″ Wide Autoflex Sheet Extrusion Die, Model AF6R HM100, Serial #12-32061. Unit is equipped with Thermofisher Scientific Model S-SF thickness gauge, Serial #9778, with L220 scanner frame.

Stock# 43446026

Used- Extruder 6" Die Clamp On Stand.

Stock# 40453018

Used- EDI 3-manifold sheet die having a 78" slot opening with an upper adjustable lip, fixed removable lower lip and (2) restrictor bars. Presently installed is lower lip for gap range from .394 to 492.

Stock# 46017005

Used- 78" Wide Roller Sheet Die. Last used on 10" dump extruder. Unit prior use was in the barrier automobile industry.

Stock# 45856037

Used- Ribbon Slot Die 10". Fed from 1.5" heated feed throat, 8.5" diameter feed side.
