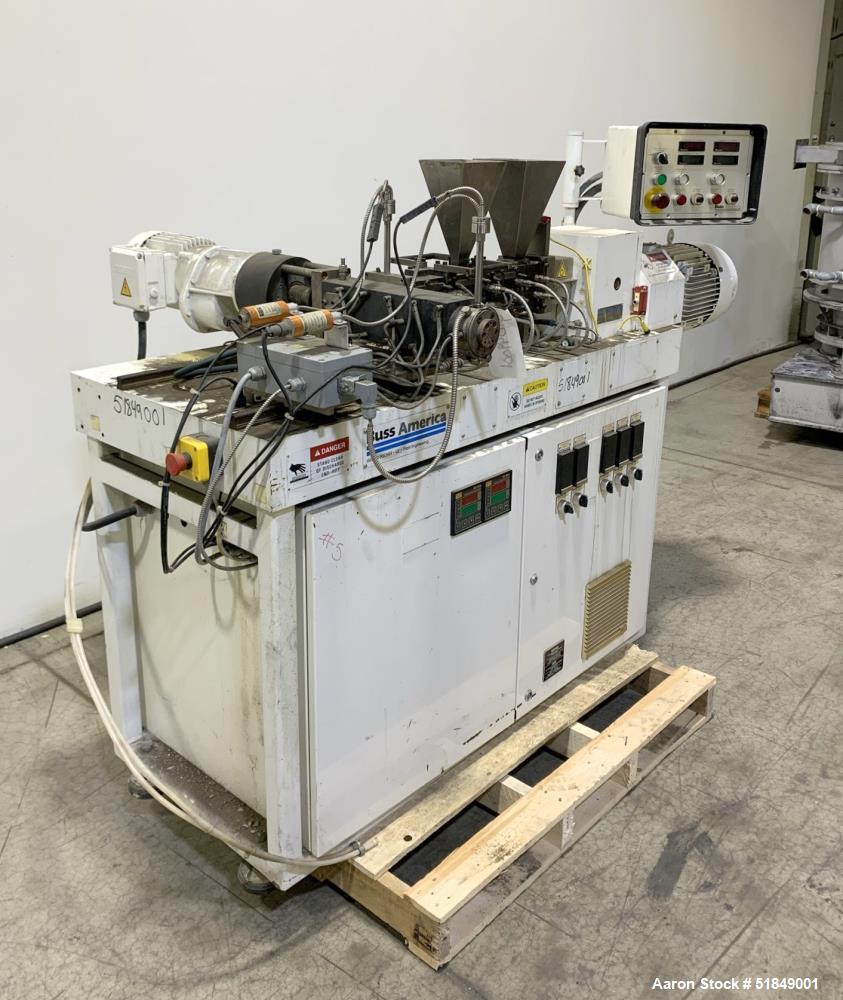

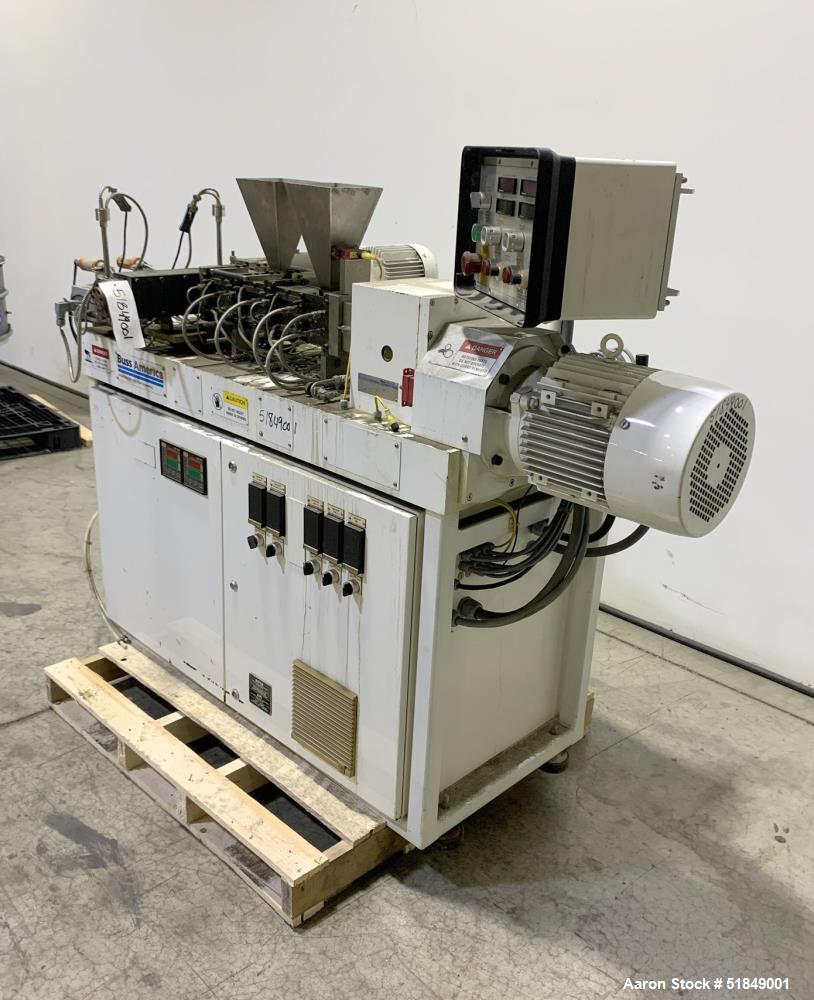

Buss Model MKS 30 Laboratory Ko-Kneader Extruder

Manufacturer: Buss
Model: MKS 30

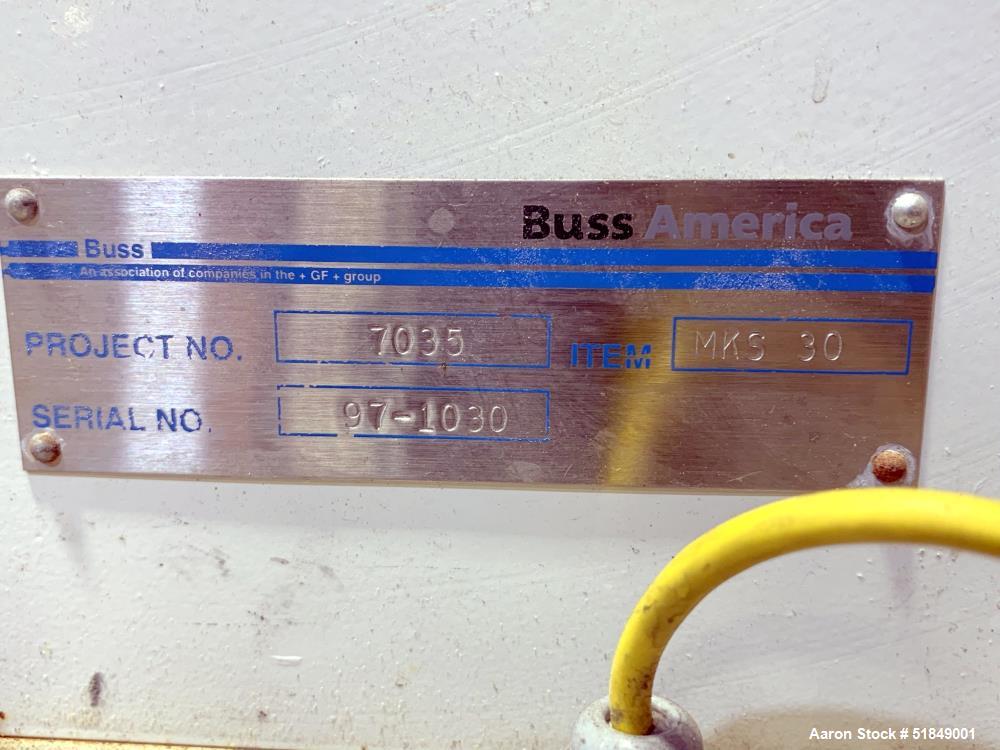

Serial #: 97-1030
Condition: Used

Description:

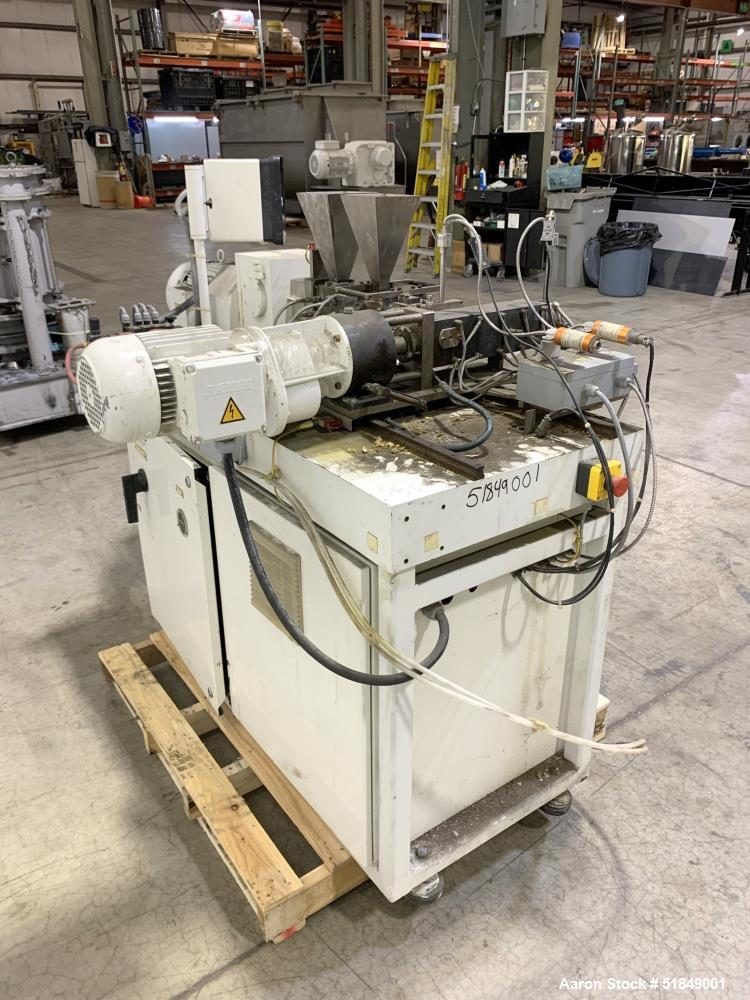

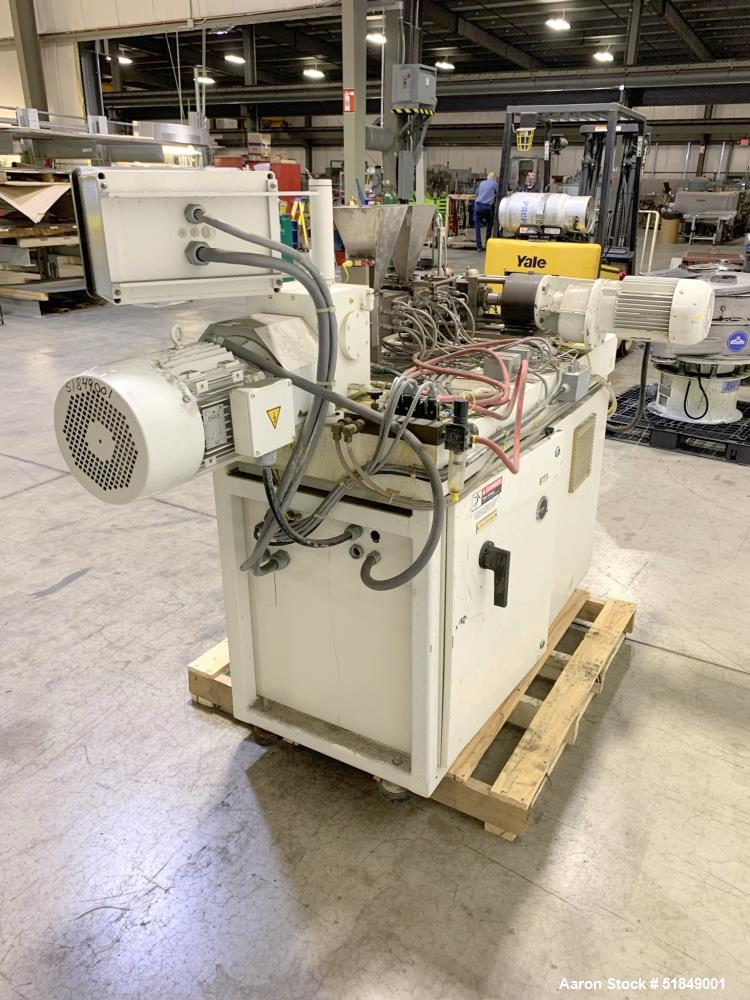

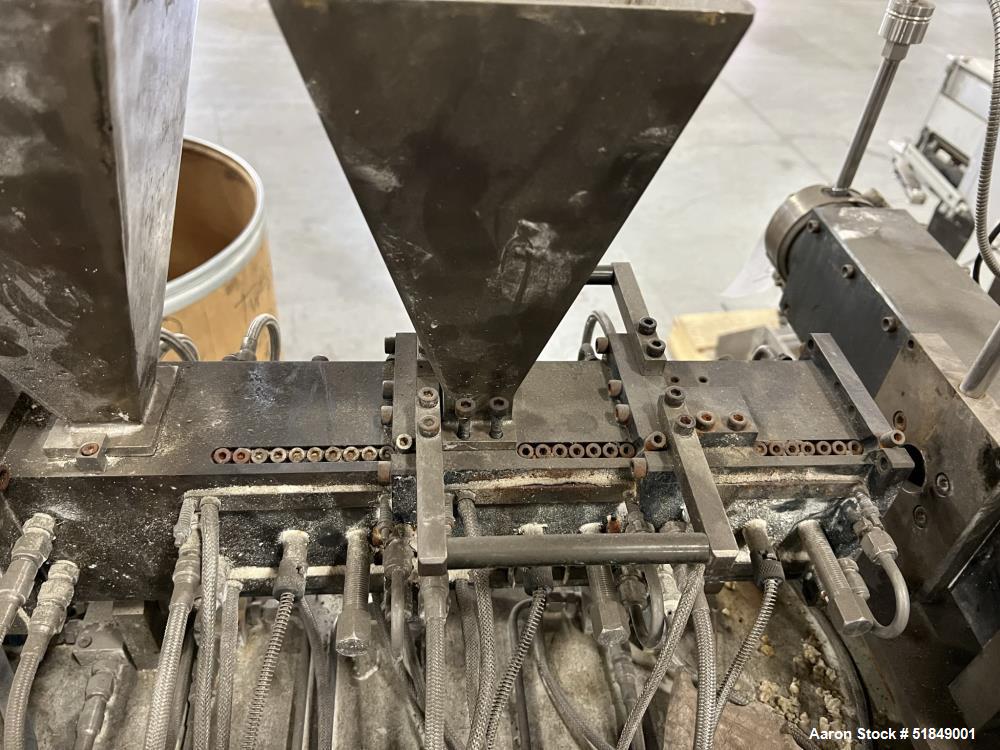

The Buss MKS 30 Laboratory Ko-Kneader Extruder is a precision-engineered system designed for small-scale compounding and material processing. This unit features a 30mm diameter, 17" long single screw with throughput rates of up to 30 kg per hour. The three-zone barrel is electrically heated and water-cooled, ensuring precise temperature regulation. The feed throat is water-cooled and includes a hopper for material input. The main extruder is powered by a 10 HP AC motor with a reducer, while the discharge screw extruder is driven by a 1.5 kW gear motor operating at 1710 RPM. The system includes a 2-hole strand die for shaping extruded materials. Additionally, the extruder is equipped with an operator panel, a control panel with Eurotherm controllers, and two ABB drive panels for efficient and precise control.

Specifications:

• Screw Diameter: 30mm
• Screw Length: Approx. 17"
• Throughput Capacity: Up to 30 kg/hour

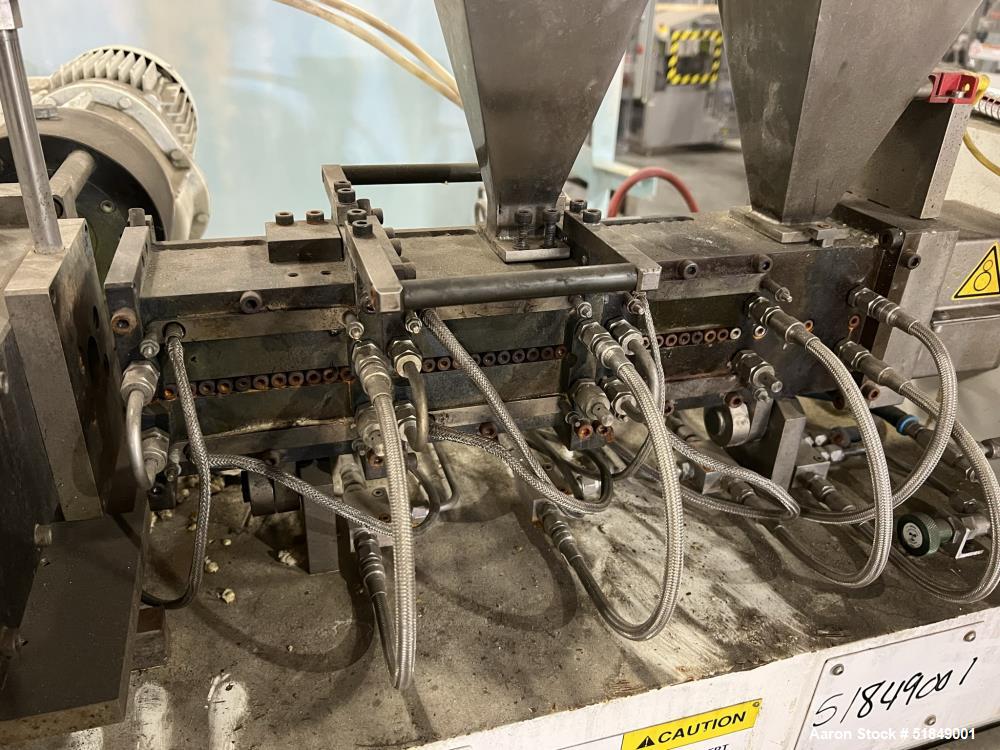

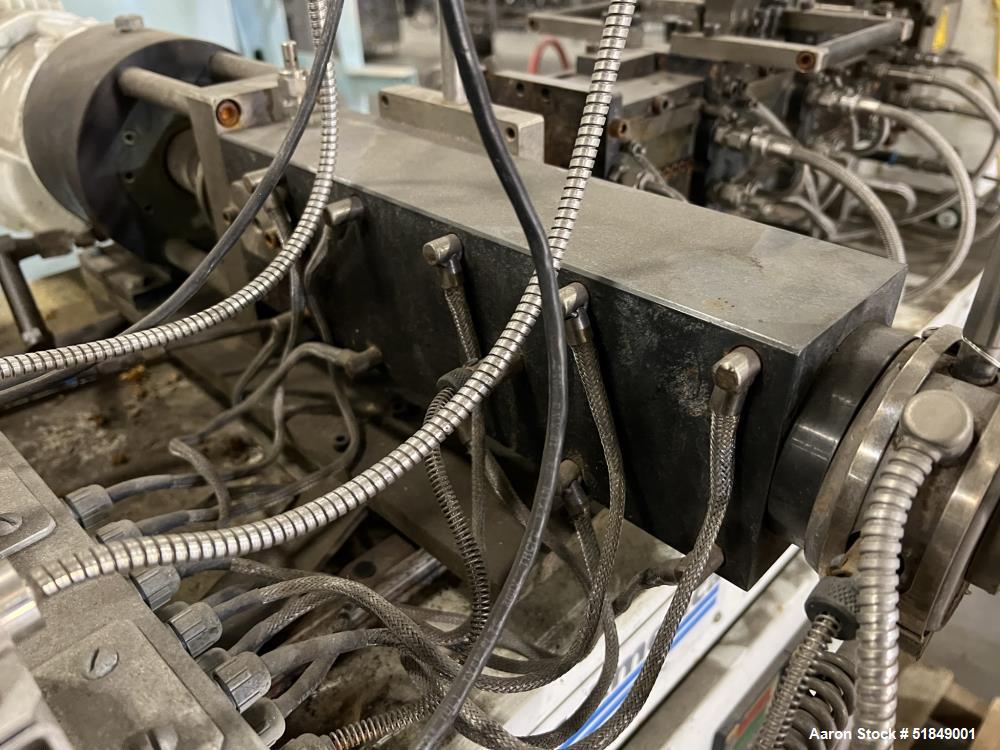

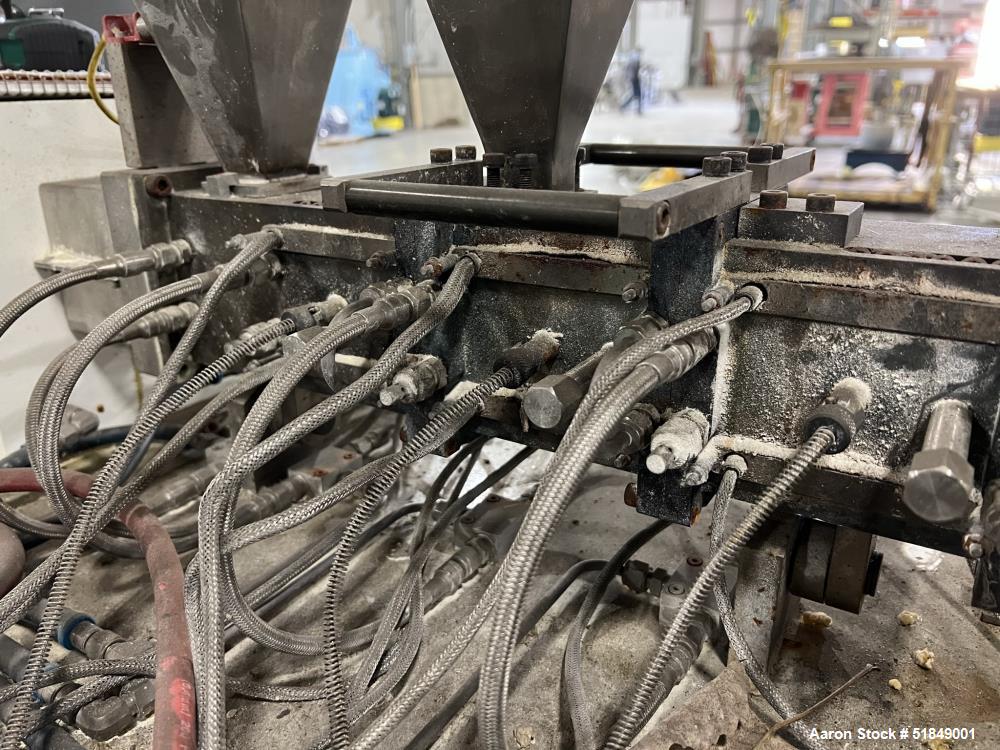

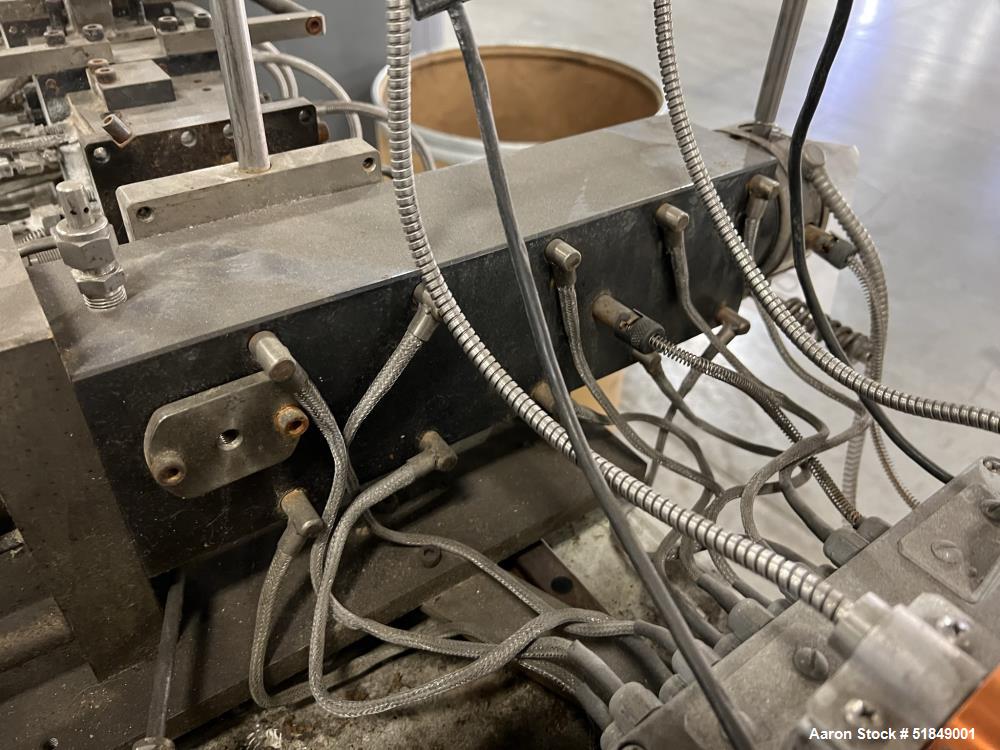

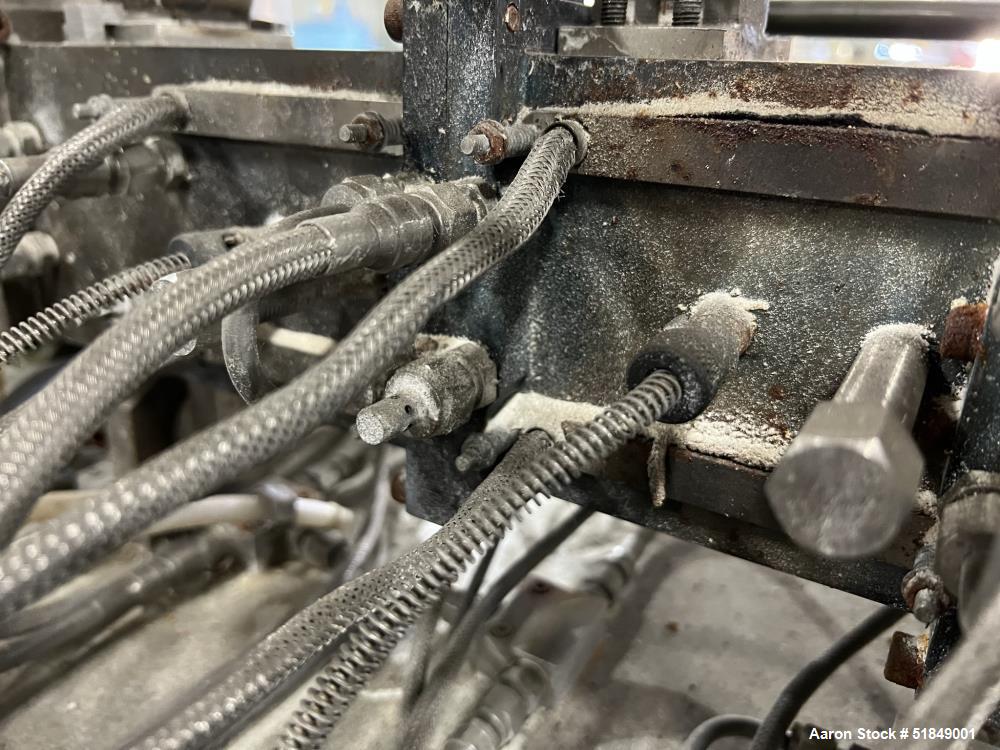

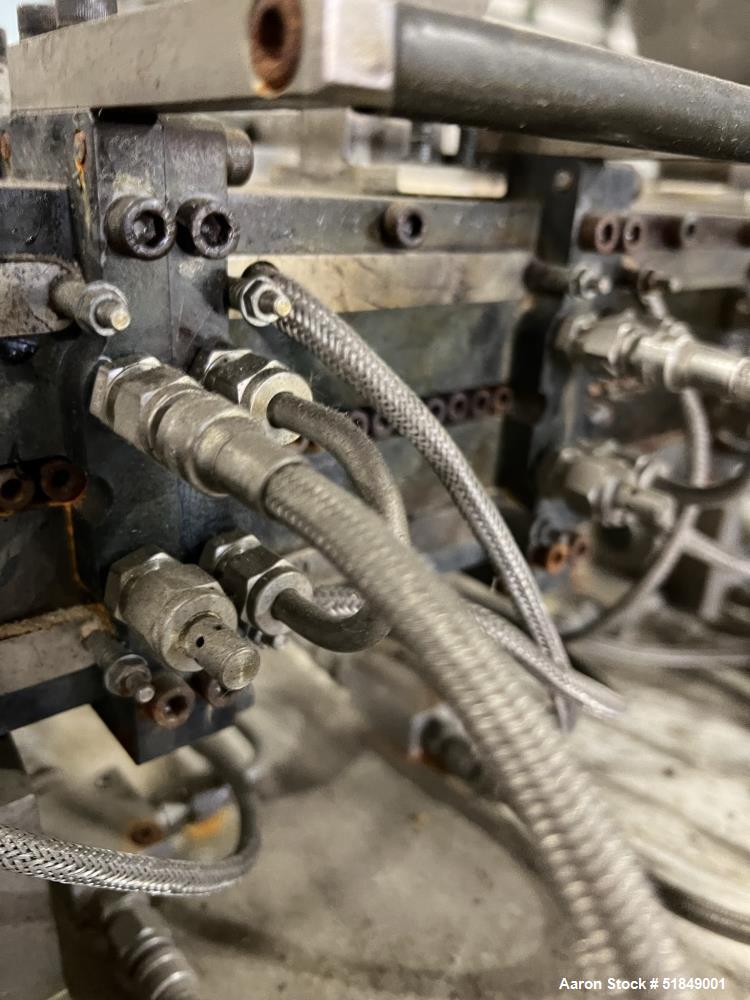

• Barrel Heating & Cooling:

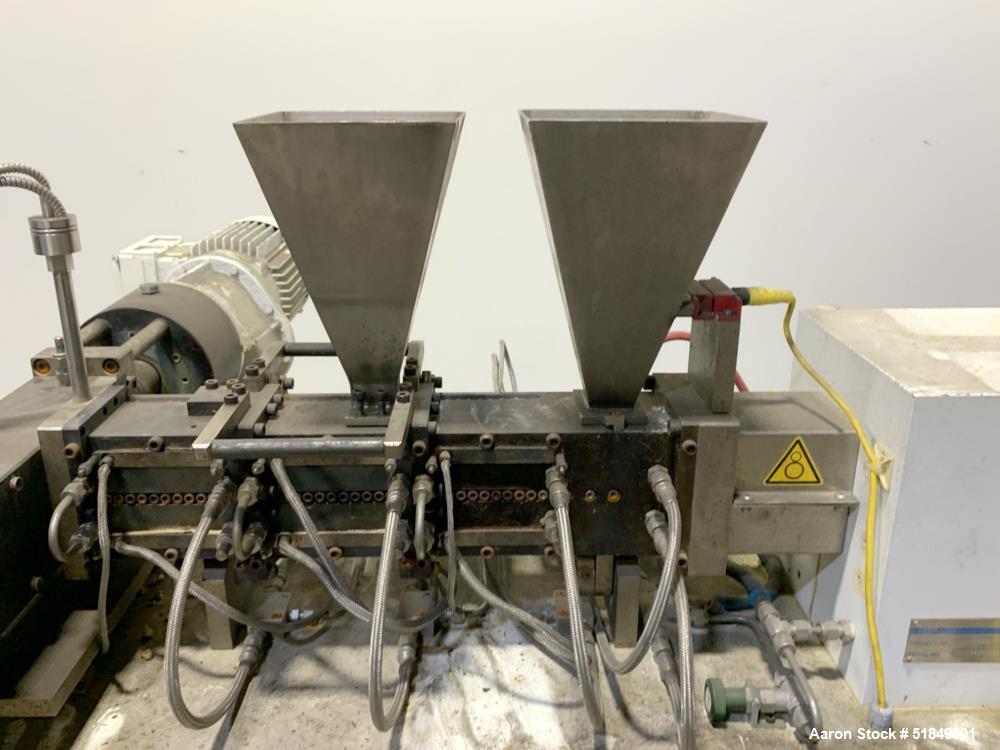

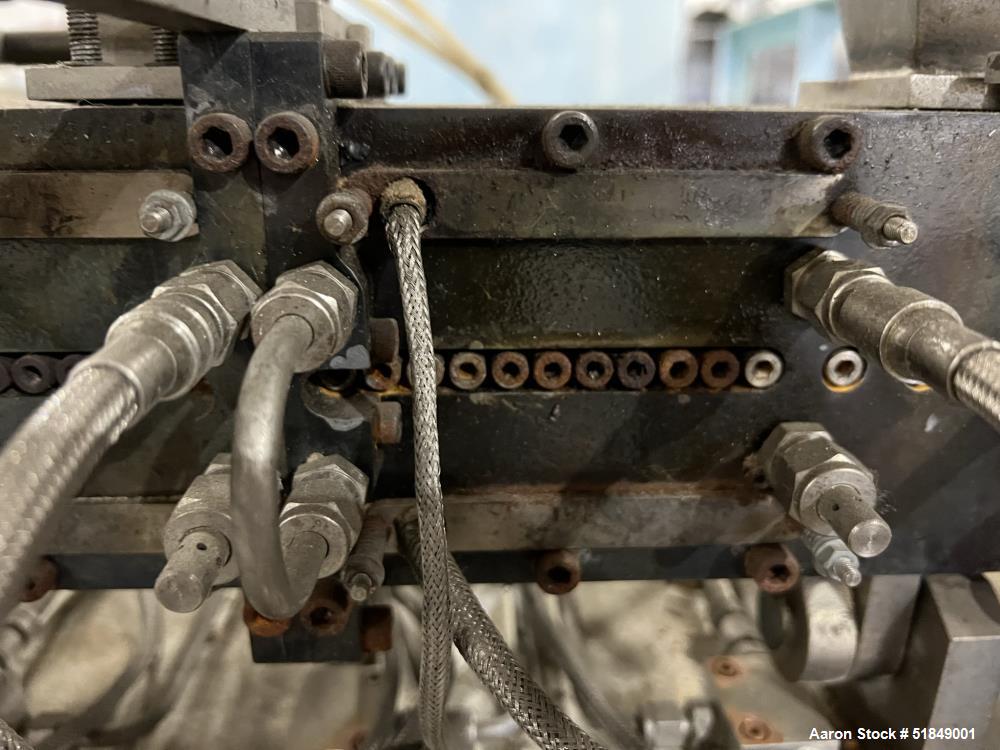

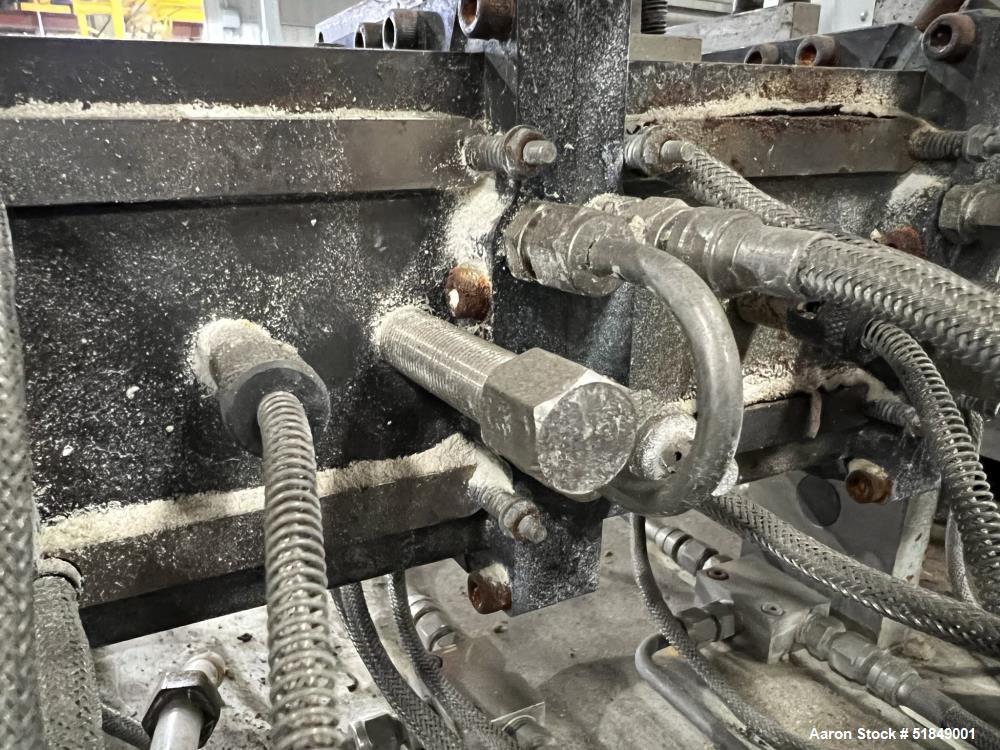

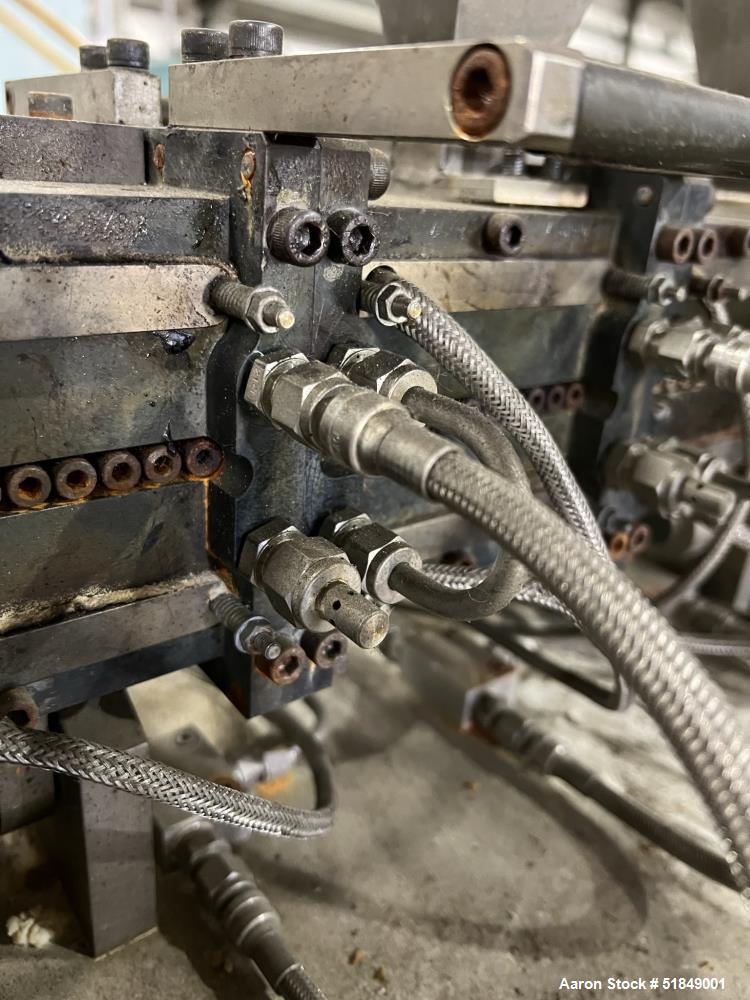

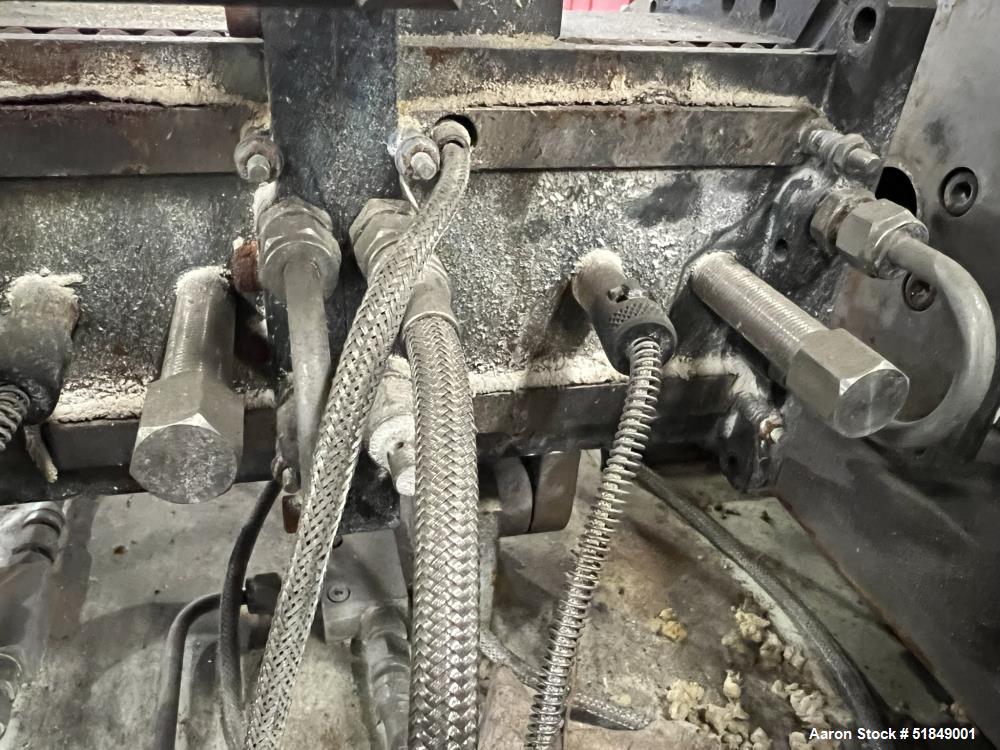

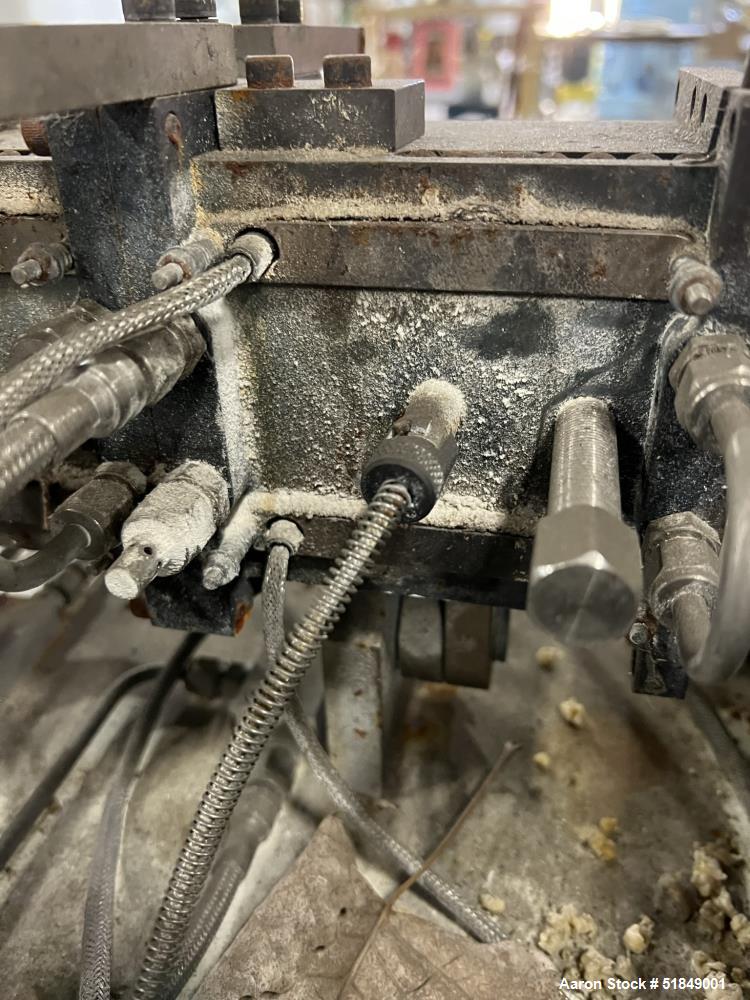

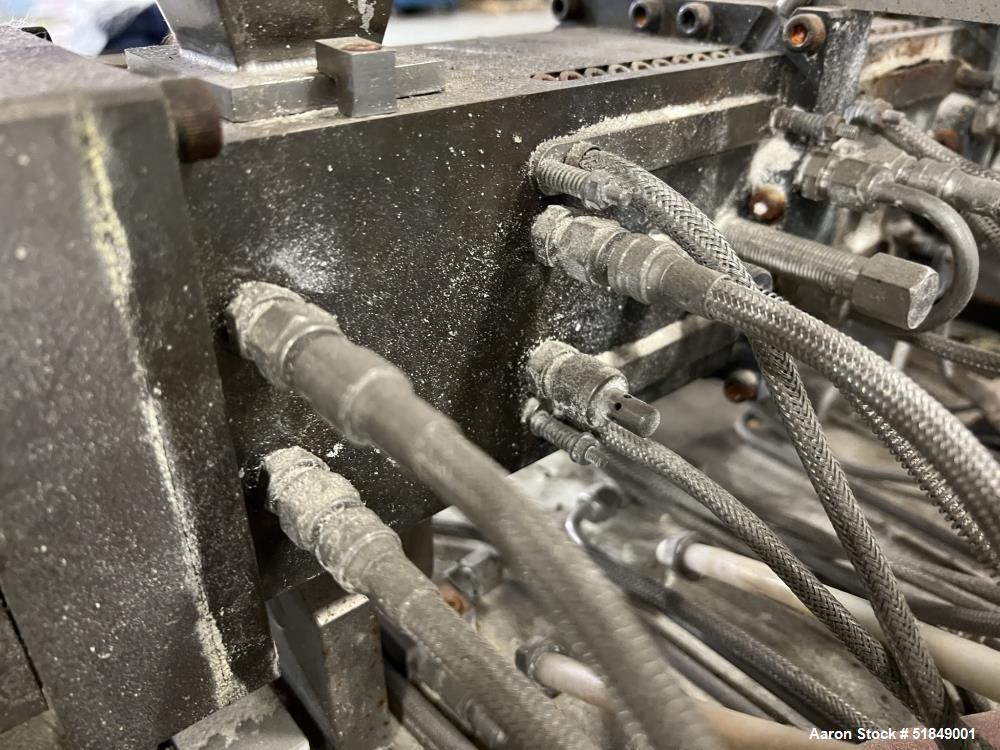

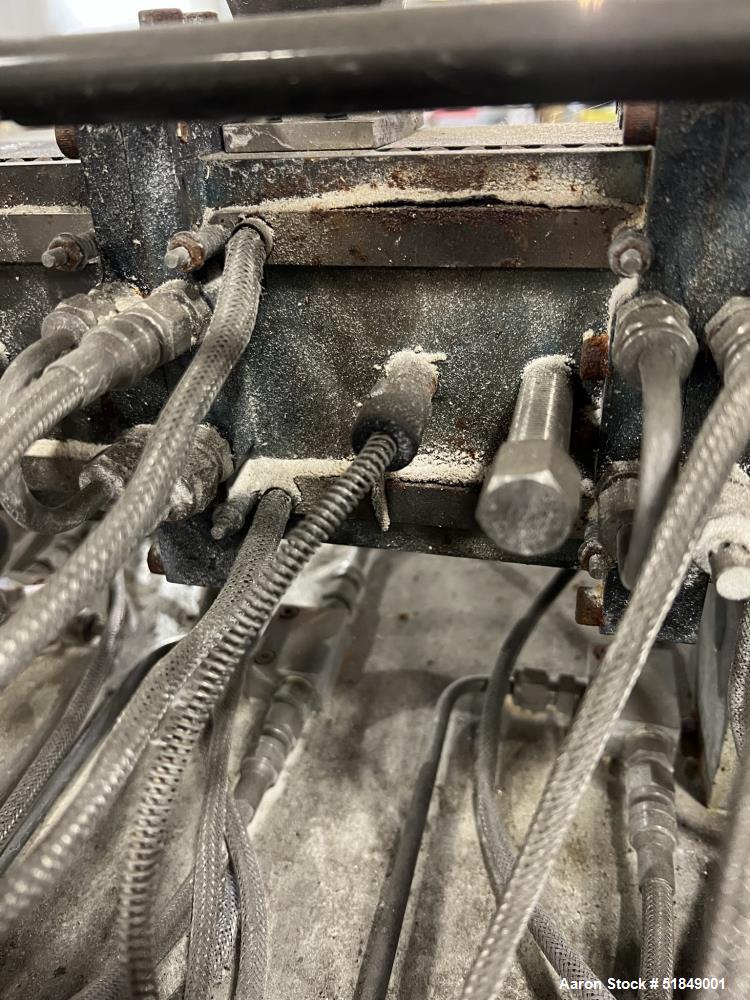

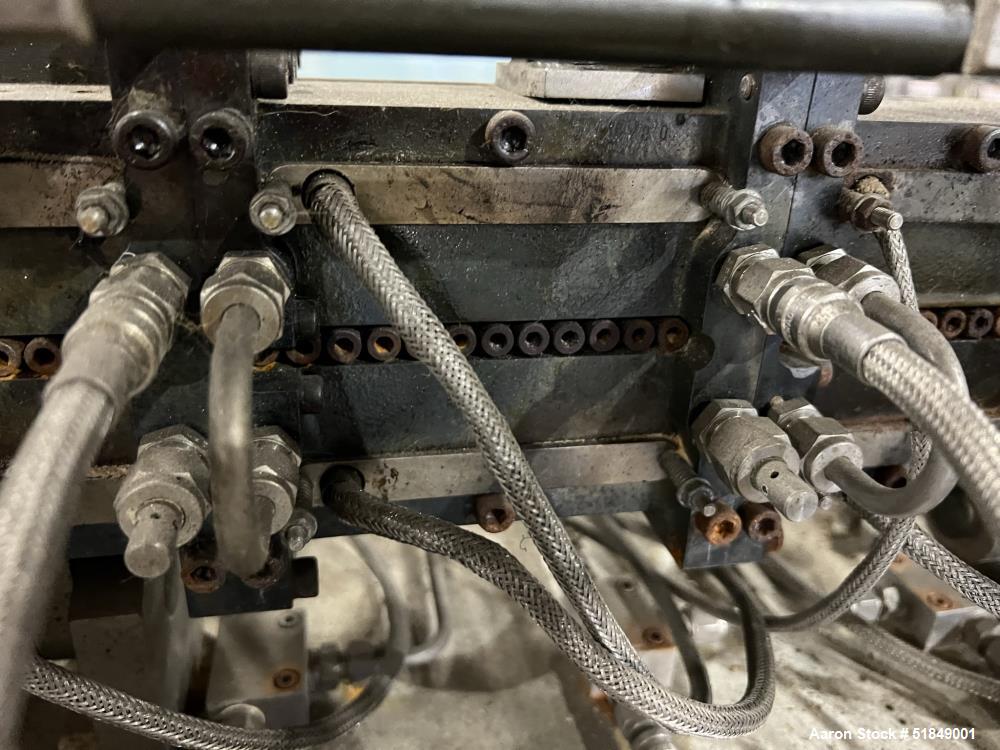

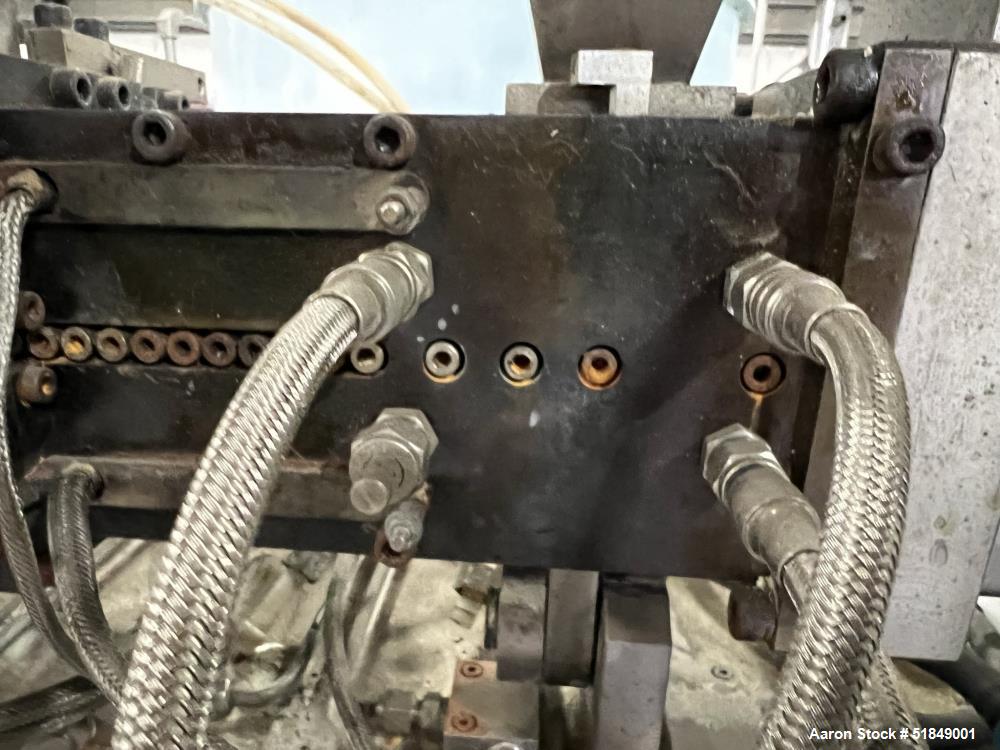

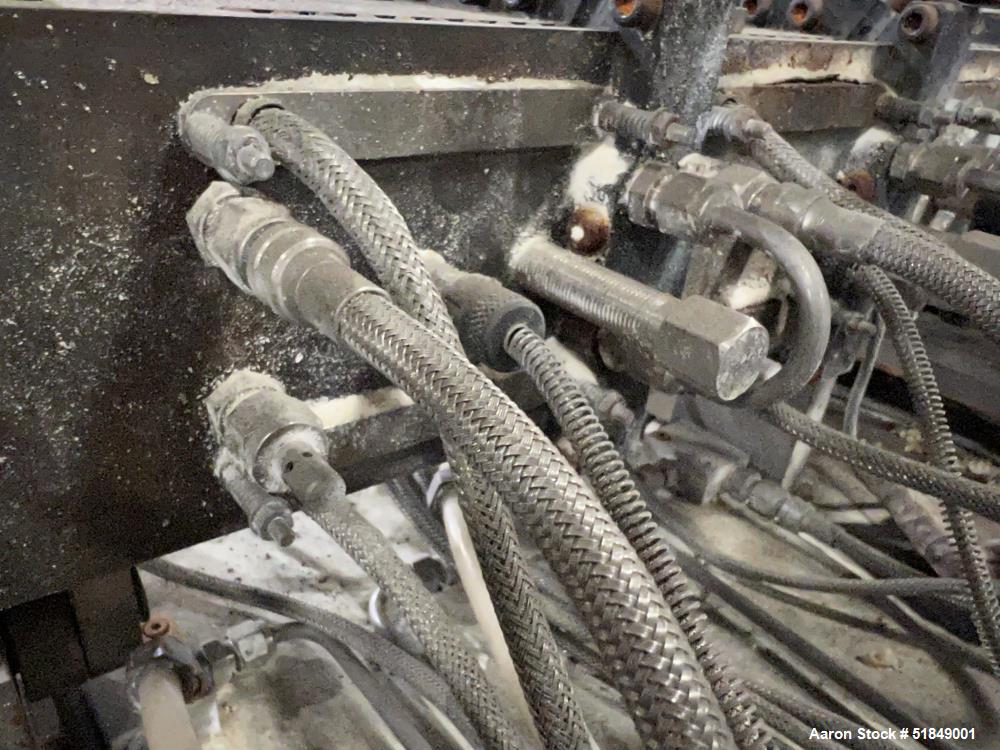

  • 3-zone barrel, electrically heated, water-cooled

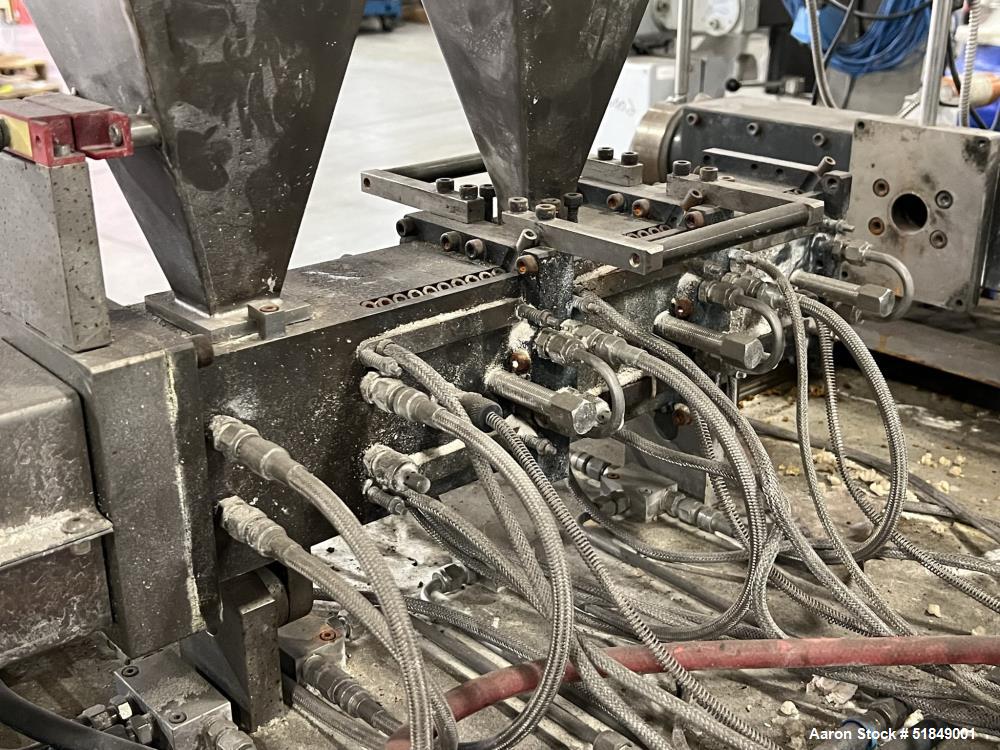

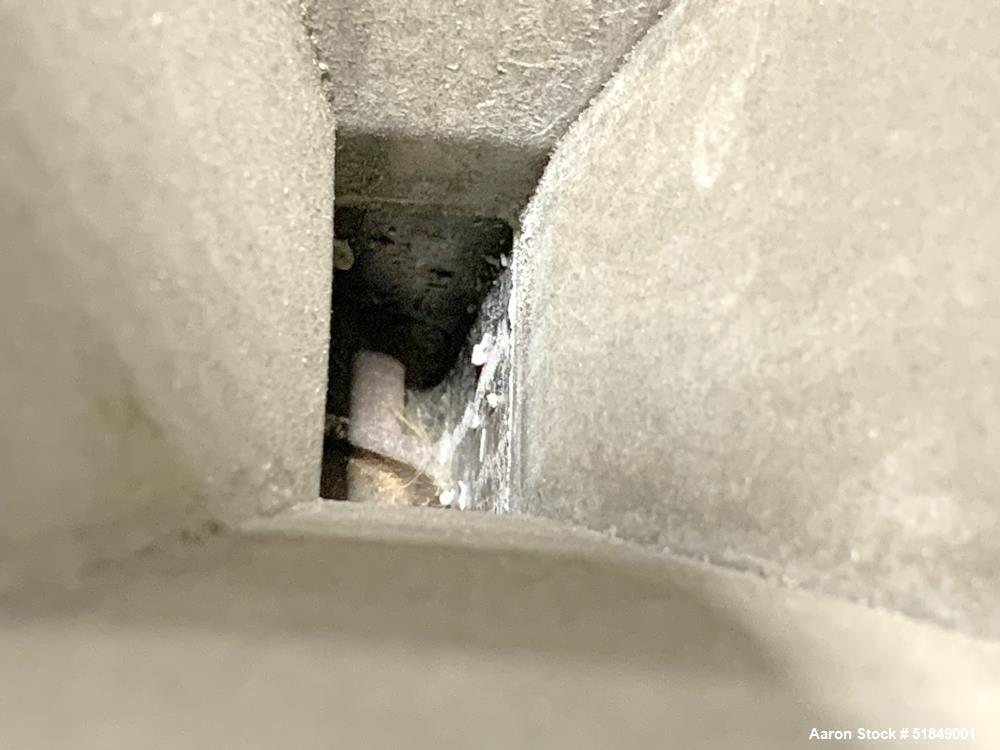

  • Water-cooled feed throat with hopper
• Main Drive:

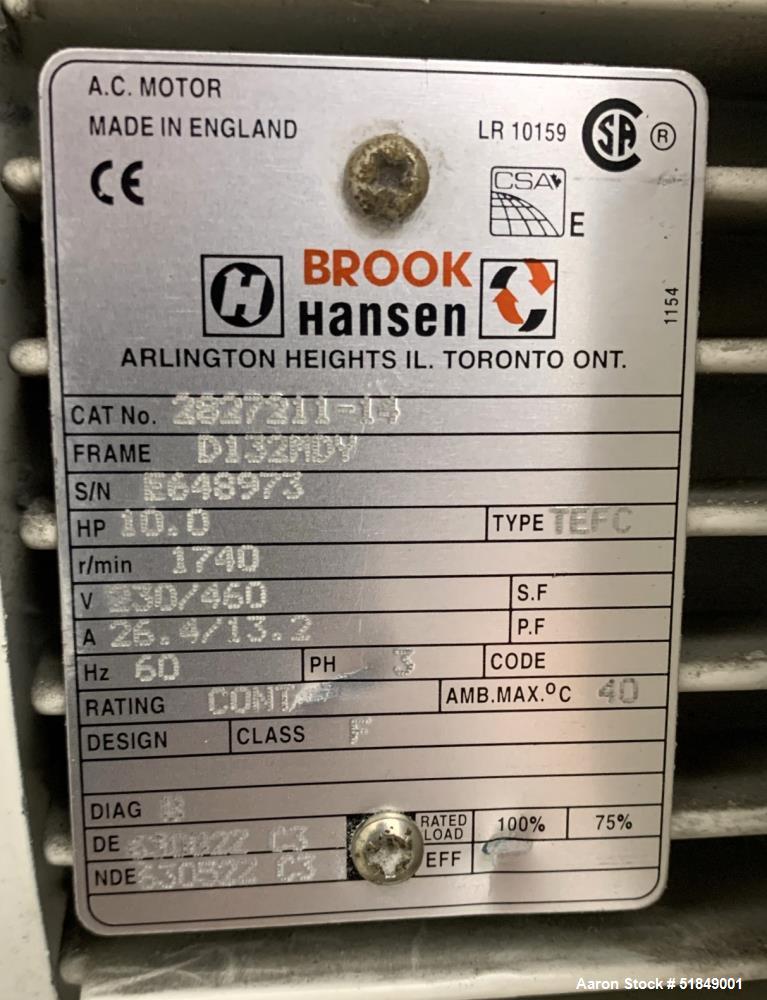

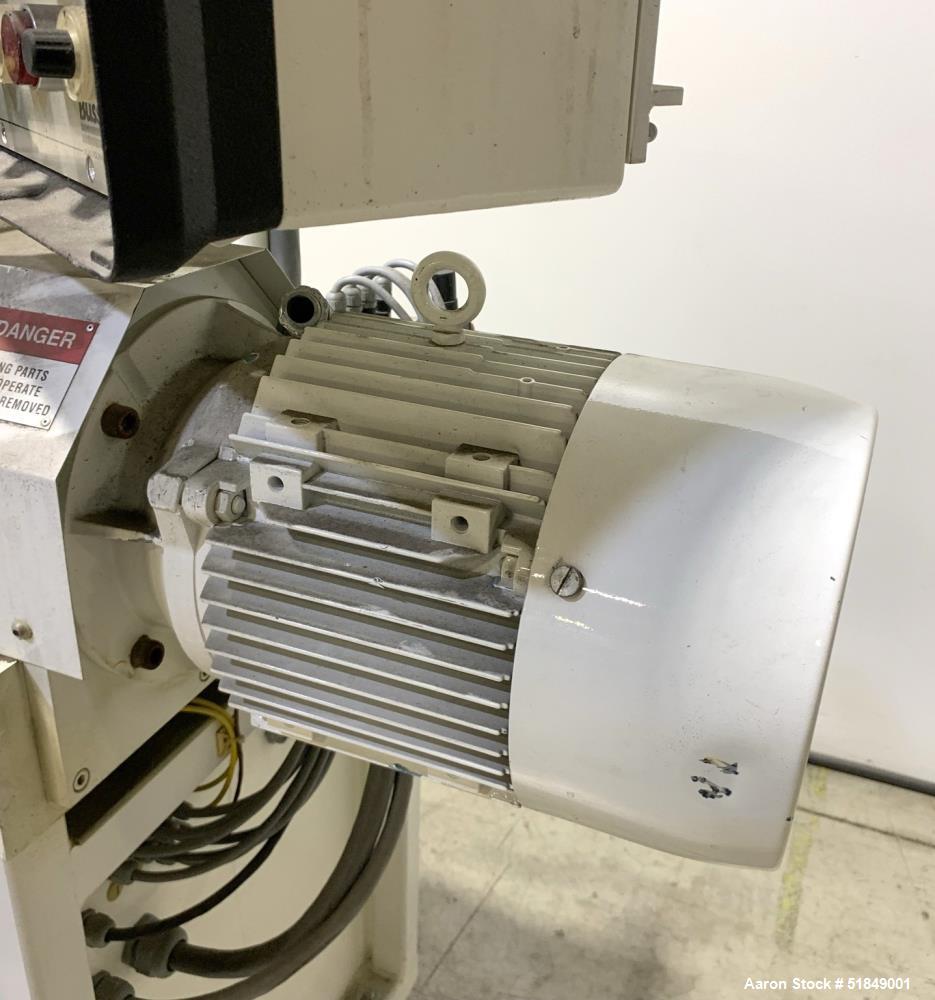

  • 10 HP AC motor, 3/60/230/460V, 1740 RPM
  • Gear reducer for controlled operation

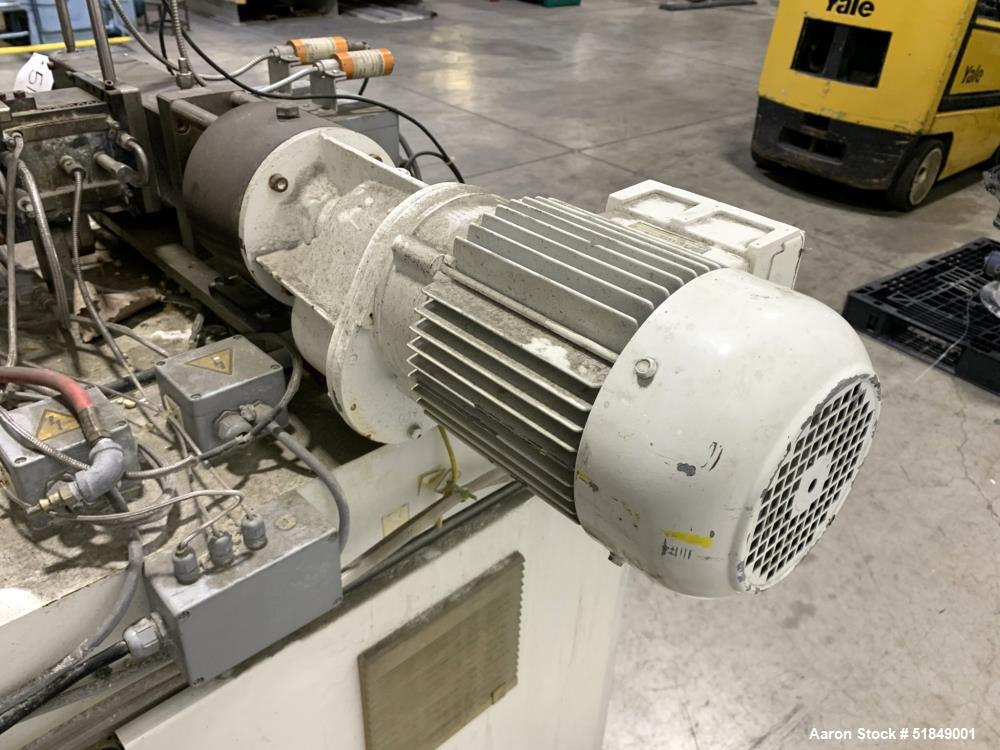

• Discharge Screw Extruder:

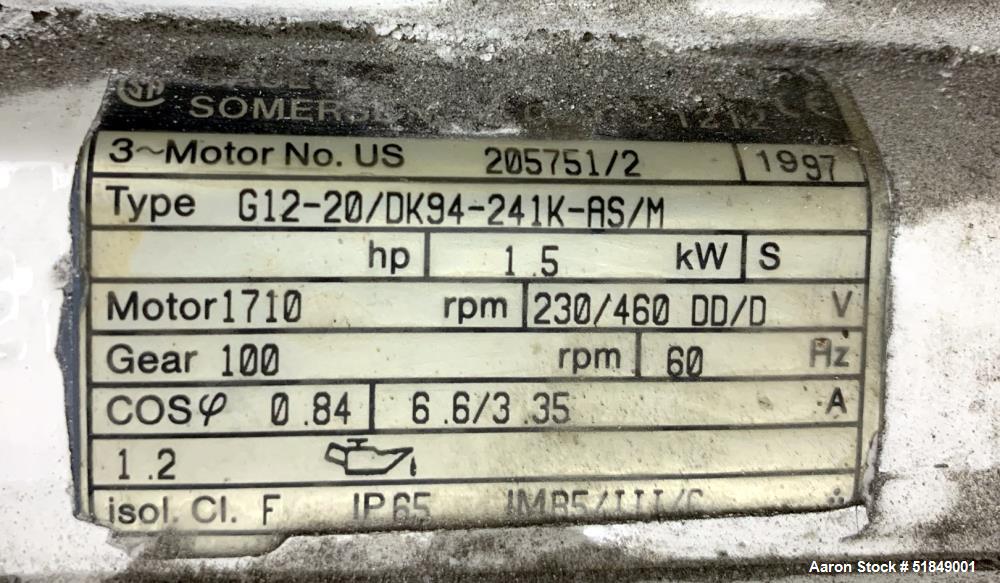

  • 1.5 kW, 3/60/230/460V, 1710 RPM gear motor

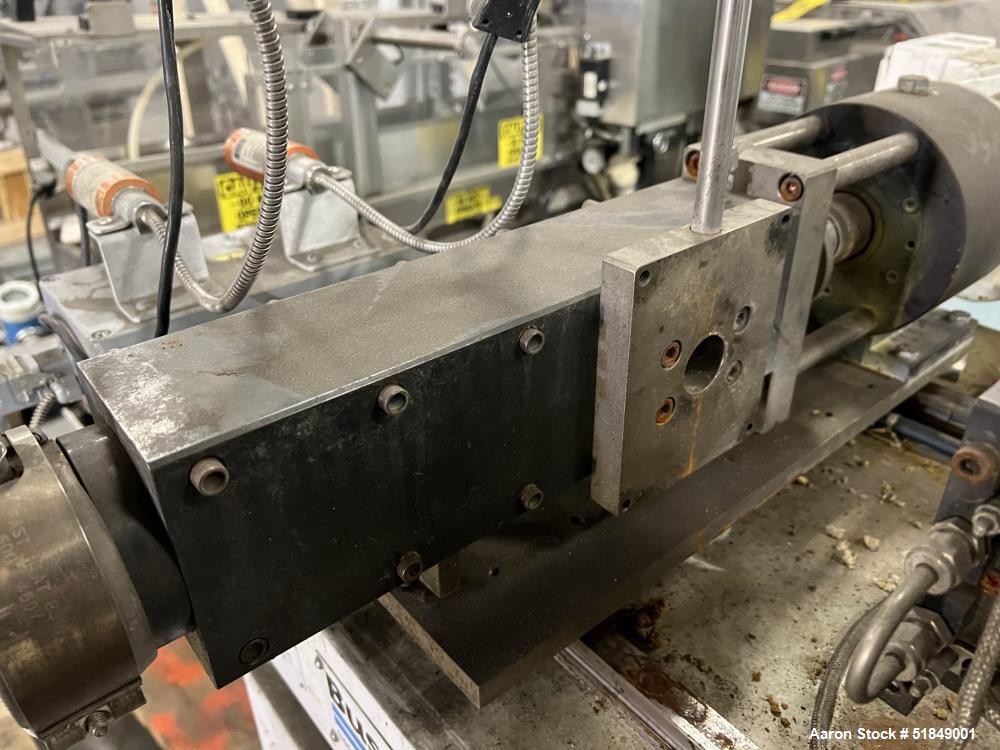

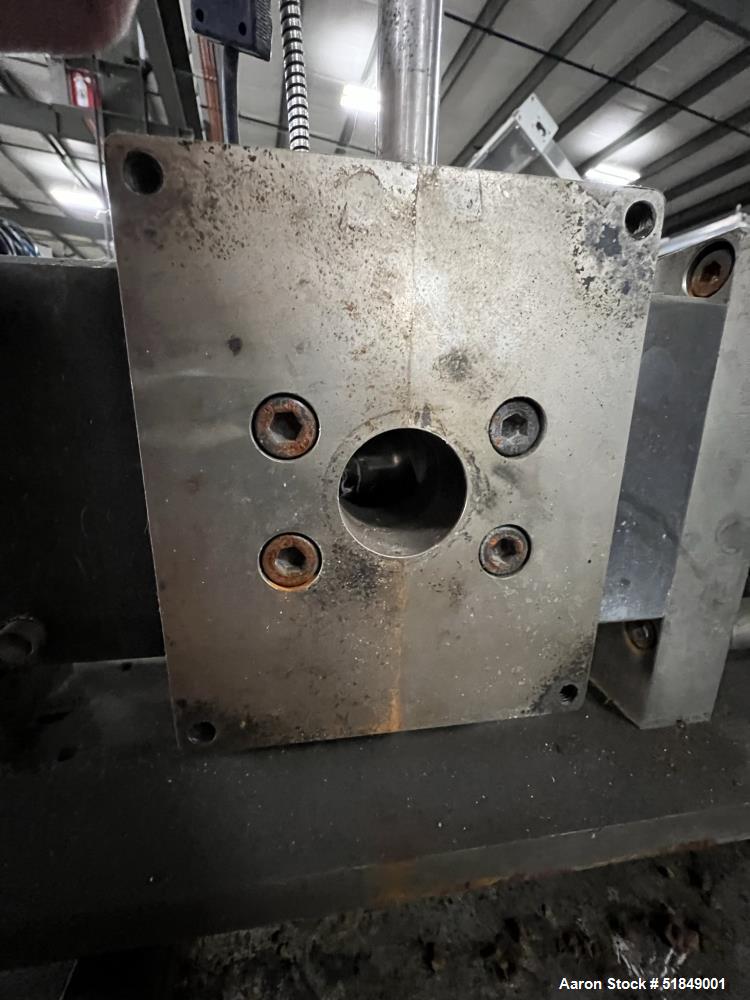

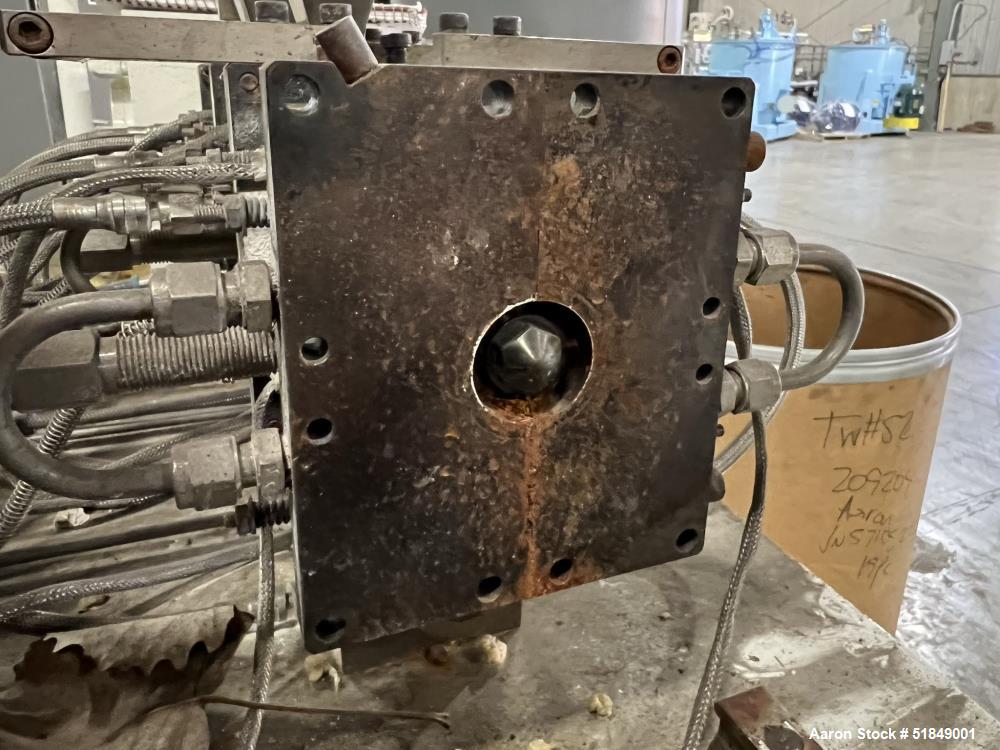

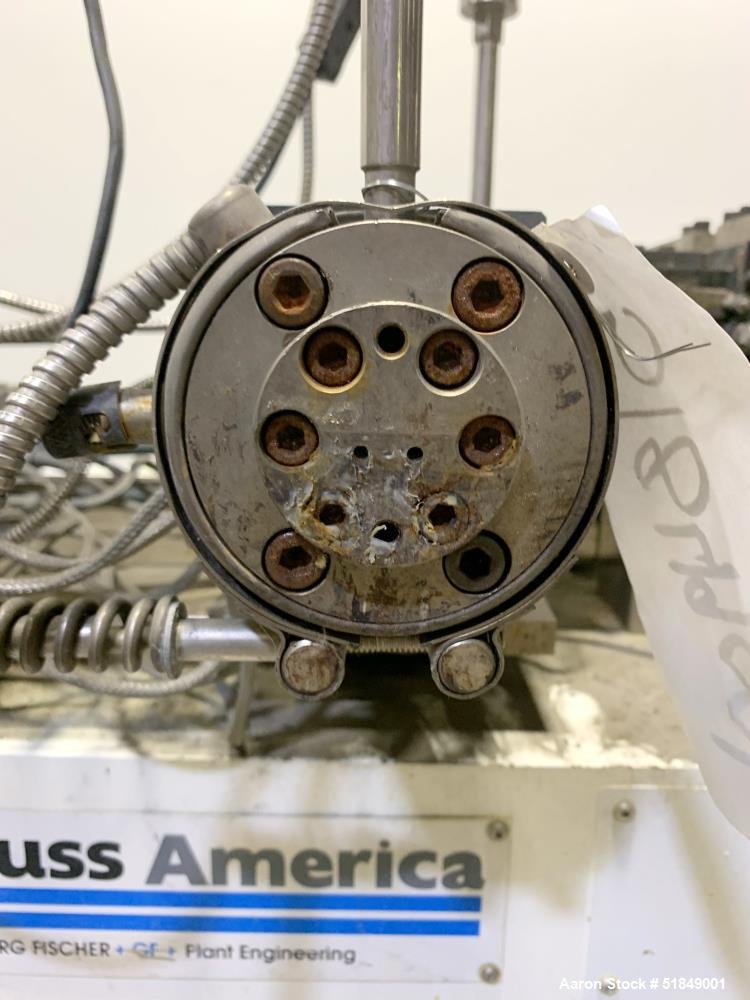

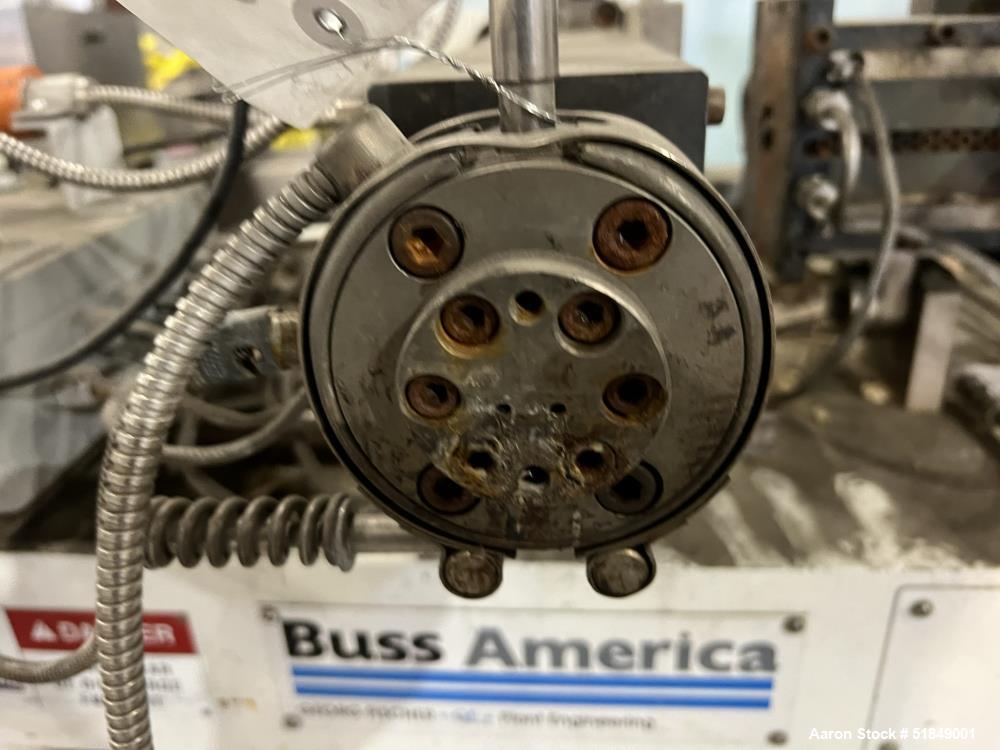

  • 2-hole strand die

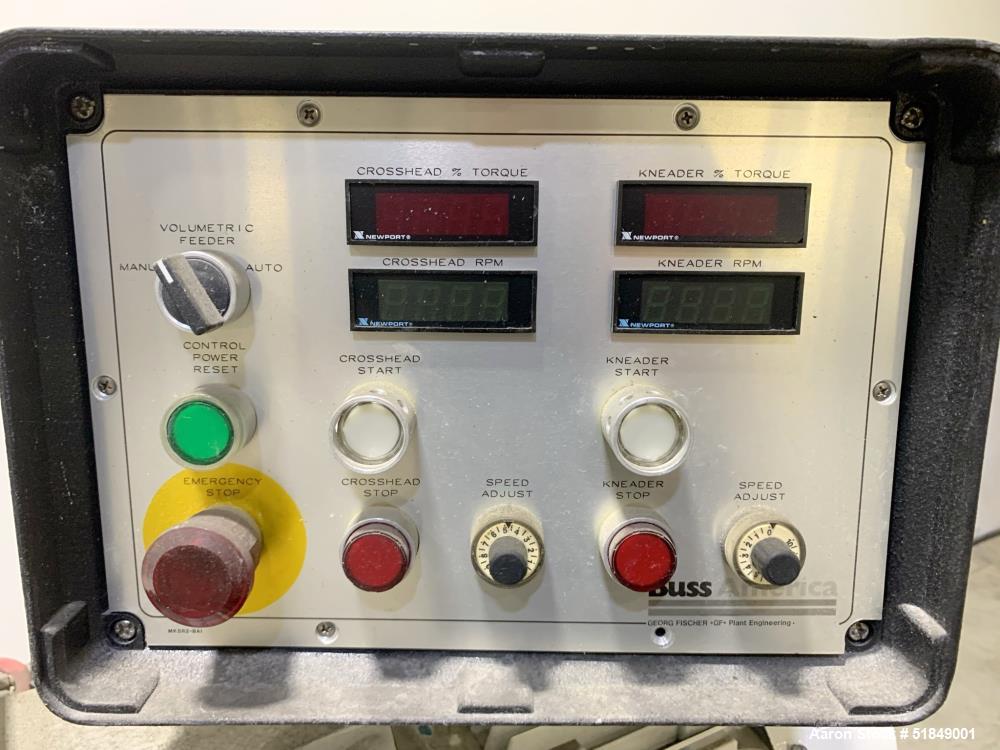

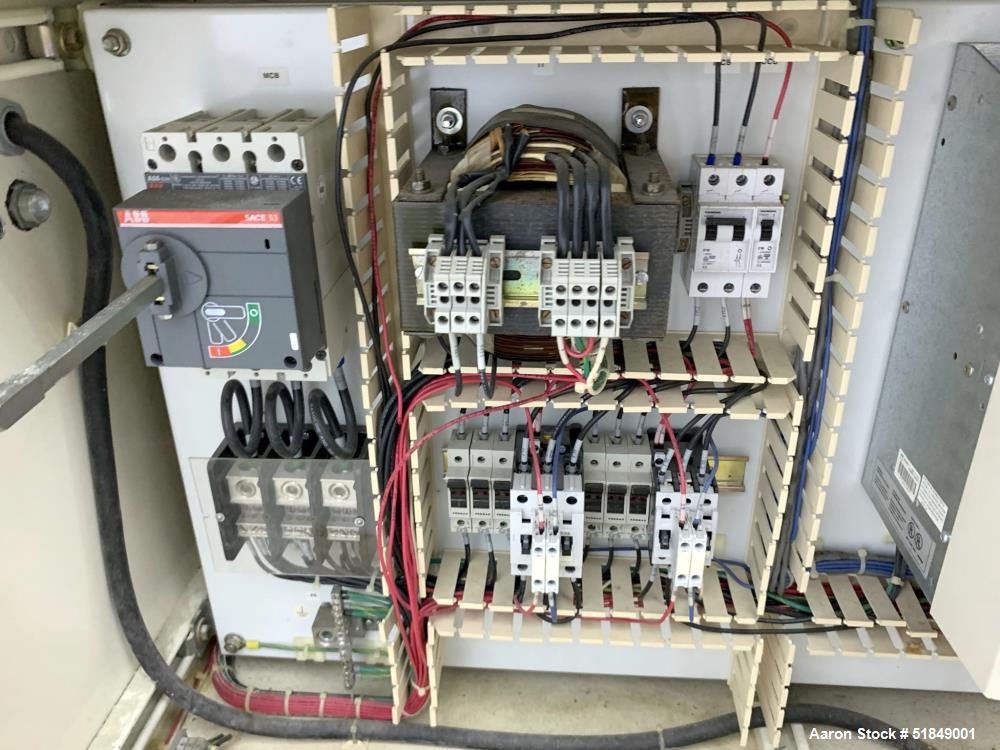

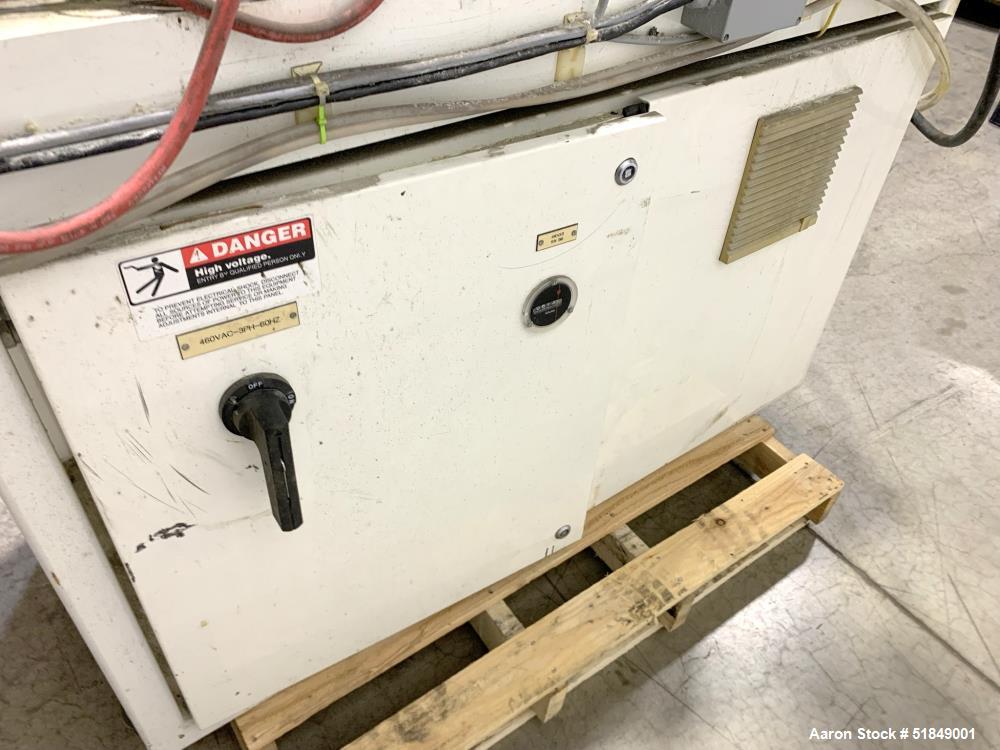

• Control System:
  • Operator panel

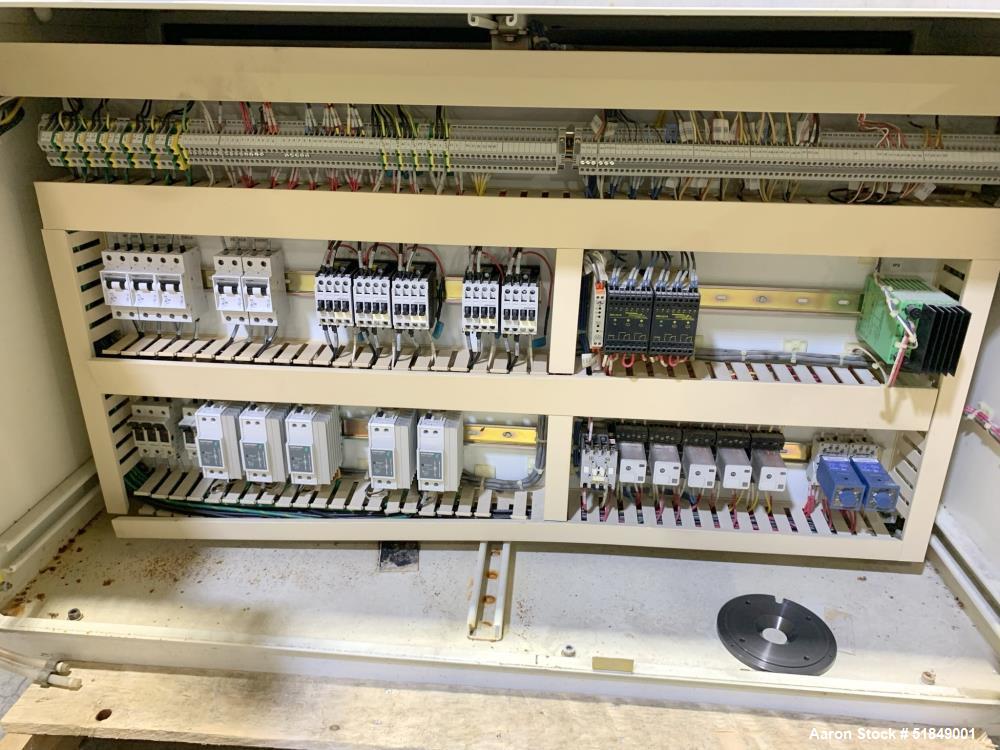

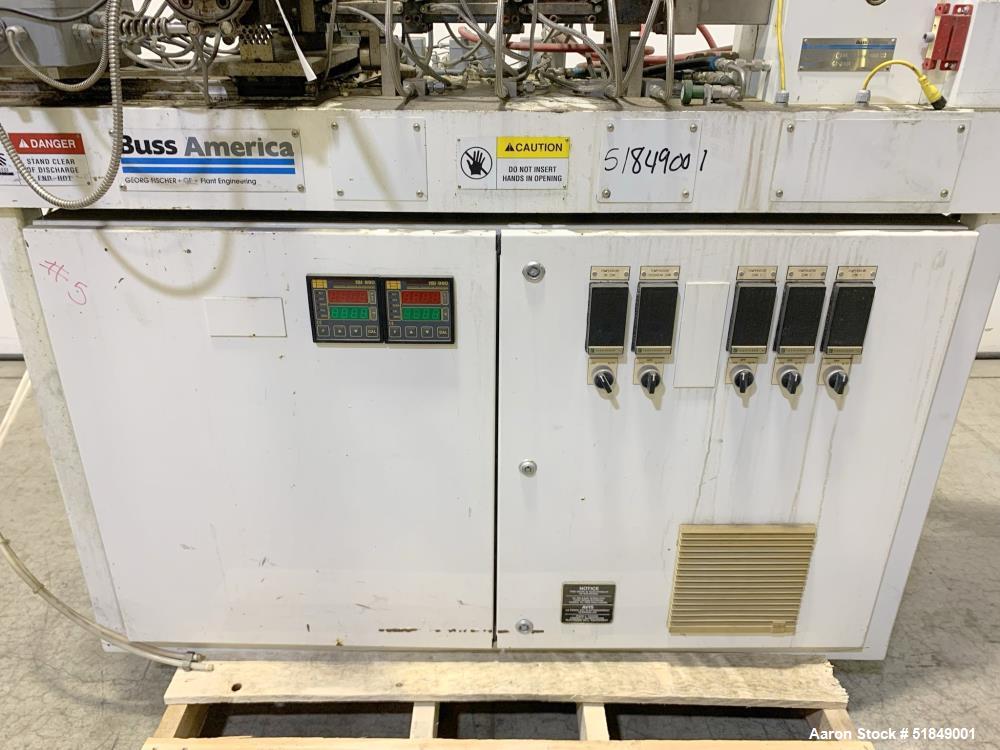

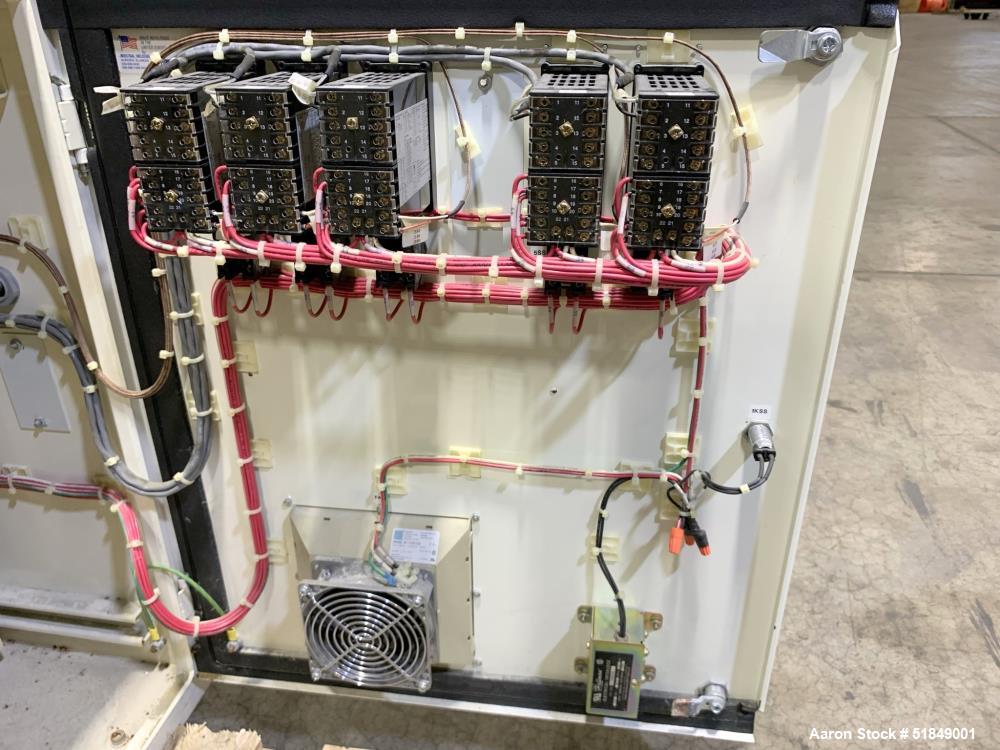

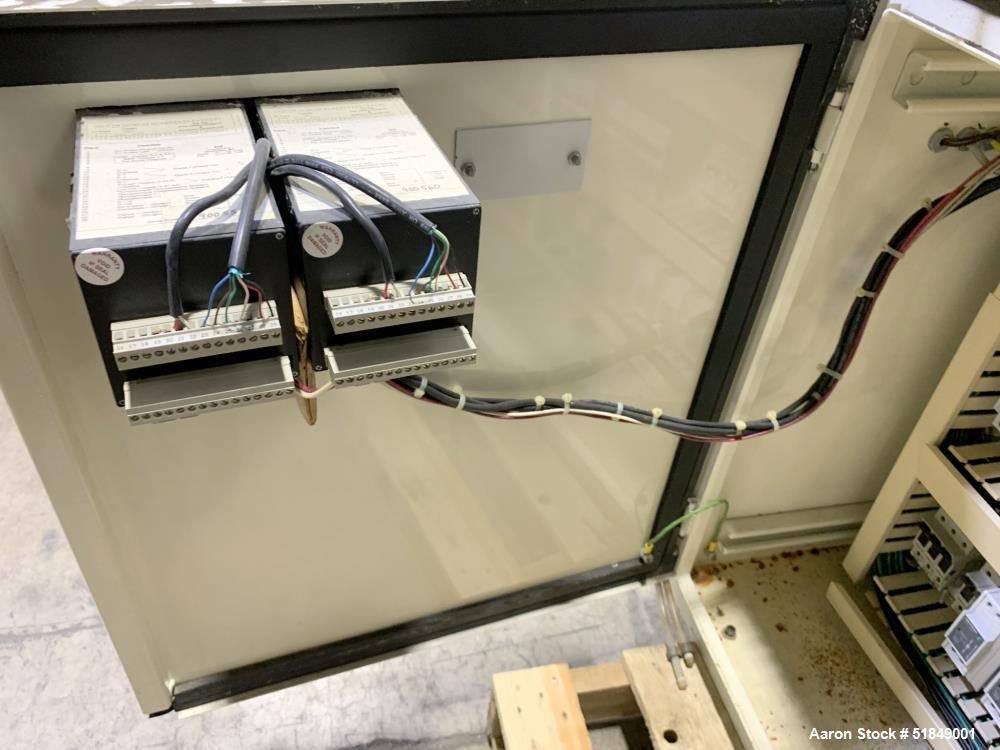

  • Control panel with Eurotherm controllers

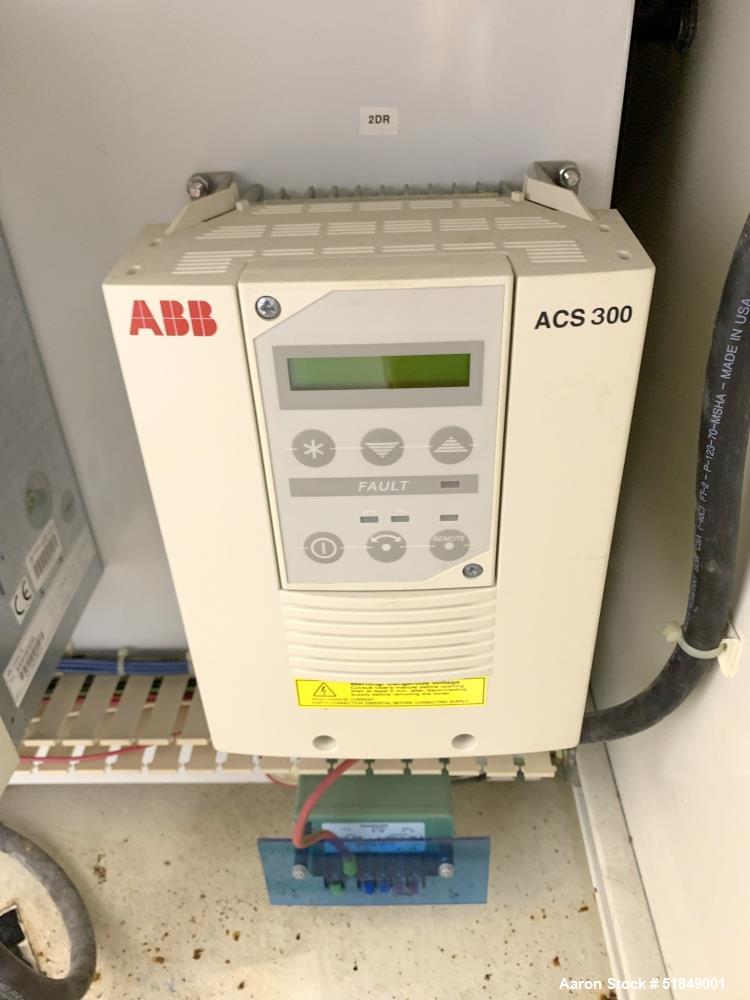

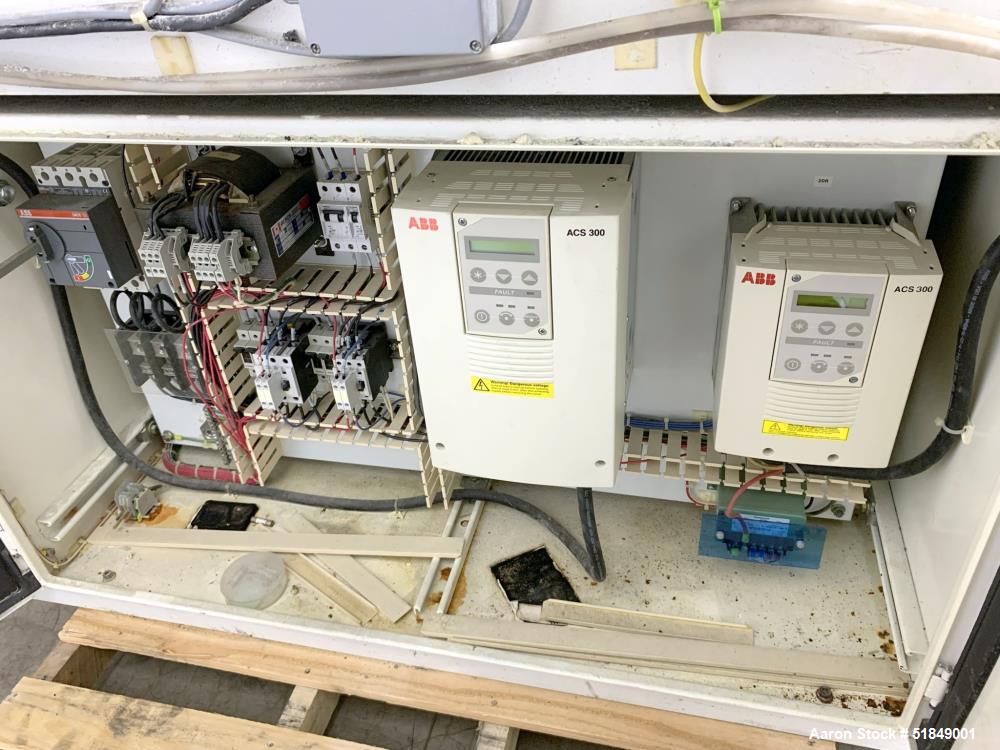

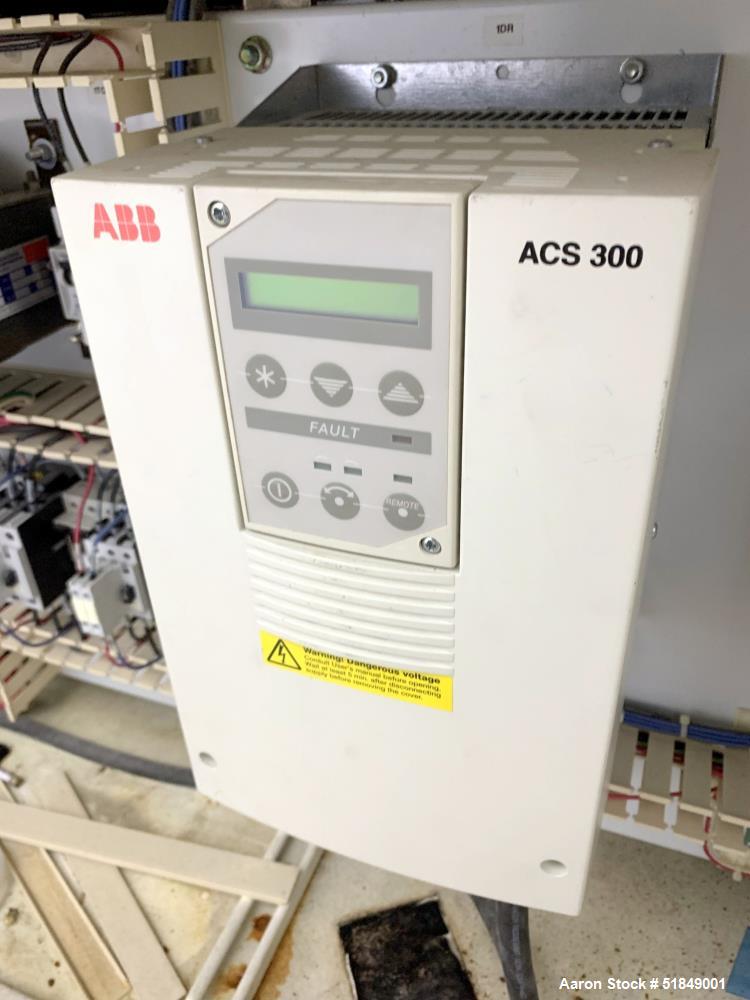

  • (2) ABB drive panels
• Condition: Used

Applications:

• Laboratory-scale polymer compounding
• Pharmaceutical material extrusion
• Specialty chemical processing
• Food and additive manufacturing
• Research and development of extrusion processes

Common Uses in Industries:

• Plastics & Polymers – pilot-scale compounding and formulation testing
• Pharmaceuticals – development of drug formulations using hot melt extrusion
• Chemical Processing – specialty material compounding
• Food Processing – extrusion of food-grade materials and ingredients
• Research & Development – small-scale testing of new material formulations
