Used Glass Lined Reactors

Stock# 42838005

Used- Wunderlich-Malec Mixed Bed Stirred Bioreactor, Model AMBIS 1. Originally designed for Oglionucleotides, glass reactor and receiver vessels, Delta V batch controls mounted in stainless steel enclosure with controls, 120 volt, serial# AC813030.

Stock# 42727024

Used- R & M Italia Glass Reactor Train, 70 Liter (18.4 Gallon). With 70 liter glass lined reactor, removable dish top, dish bottom, intermediate QVF glass mid section, rated 150 psi and full vacuum at 356 F internal, jacketed for 150 psi and full vacuum at 356 F, top mounted 1 hp, 230/460 volt, xp agitator drive, mechanical seal, 3 blade retreat curve agitator, tube baffle, 70 liter R & M Italia receiver, glass lined, removable dish top, dish bottom, intermediate QVF glass mid section, rated 150 psi and full vacuum at 356 F internal, jacketed for 150 psi and full vacuum at 356 F, primary and secondary shell and tube heat exchangers with tantalum tubes and tube sheets, glass bonnets, carbon steel shells, glass phase separator, with inter-connecting glass piping, reactor and receiver bottom lift/lower mechanisms, reactor serial #8033, National Board #429, receiver seria l#8038, National Board #432, new 1999.

Stock# 40037066

Used- Pfaudler Glass Lined Clamp Top Reactor, 20 gallon, 3315 glass, vertical. Approximately 16'' diameter x 16'' straight side, clamp dished top, dished bottom. Internal rated 150/fv psi at 650 deg F, jacket rated 120 psi at 350 deg F. SV428200AK air operated drive, 10 to 1 ratio. Provision for legs. Built 1977.

Stock# 44847018

Used- Pfaudler Clamp Top Glass Lined Reactor, 20 Gallon, 9115 Blue Glass, Vertical. Approximately 20" diameter x 14-1/2" straight side, dished clamp top, dish bottom. Internal rated 150/full vacuum psi at -20 to 450 degrees F, carbon steel jacket rated 125 psi at -20 to 450 degrees F. (1) Fin baffle, 3 blade retreat curve agitator driven by a Pfaudler drive, size 2.5 TWV, model SV-48270C-AKC, serial #24981X, ratio 5 to 1, set up for hydraulic drive, connection for drive broken off and missing, no power pack. Openings: top (2) 1-1/2", (2) 2", 4" hand hole with sight glass cover; 2" center bottom outlet. Provision for 3 legs. National Board #51396, serial #J062355, built 2005.

Stock# 73179

Used 20 gallon Pfaudler glass lined reactor. Internal rated 150 psi Full Vacuum @ 650 degrees F. Jacket rated 115 psi; 100 psi with Full vacuum internal @ 350 degrees F. Clamped top. Has 1 HP 3/60/1735 rpm Class I Group D, motor 2.5 DTW, 10:1 gear ratio drive, variable speed pulley with lubricator. Has a 3 blade retreat curve agitator, fin type baffle w/tantalum tip

Stock# 42727023

Used- R & M Italia Glass Reactor Train, 100 Liter (26.4 Gallon). With 100 liter glass lined reactor, removable dish top, dish bottom, intermediate QVF glass mid section, rated 150 psi and full vacuum at 356 F internal, jacketed for 150 psi and full vacuum at 356 F, top mounted 1 hp, 230/460 volt, xp agitator drive, mechanical seal, 3 blade retreat curve agitator, tube baffle, 70 liter R & M Italia receiver, glass lined, removable dish top, dish bottom, internediated QVF glass mid section, rated 150 psi and full vacuum at 356 F internal, jacketed for 150 psi and full vacuum at 356 F. Shell and tube heat exchanger with tantalum tubes and tube sheet, glass bonnet, carbon steel shell, glass phase separator, with inter-connecting glass piping, reactor and receiver bottom lift/lower mechanisms, reactor serial #8042, National Board #424, receiver serial #8036, National Board #426, new 1999. PRICE INCLUDES A 15% BUYERS PREMIUM.

Stock# 43473365

Used- Pfaudler Glass Lined Reactor, 30 Gallon, 5019 Glass. Internal rated 100 psi & Full Vacuum at 450 degrees F. Jacket rated 150 psi at 520 degrees F. DTW Pfaudler agitator drive. Serial# R190-0414, National Board# 45945, built 1990.

Stock# 44225010

Used- Pfaudler Glass Lined Reactor Body, 30 Gallons. Internal rated 30 psi and full vacuum at 650 degrees F, jacket rated 100 psi and full vacuum at 450 degrees F. Full clamp top, (1) 2", (2) 1-1/2" top openings, 4" hand hole/sight glass, 2" cover nozzle. Serial #E180-0596, National Board #39596, built 1980. 5015 Glass.

Stock# 44847020

Used- Pfaudler Clamp Top Glass Lined Reactor, 30 Gallon, 9115 Blue Glass, Vertical. Approximately 20" diameter x 20" straight side, dished clamp top, dish bottom. Internal rated 150/full vacuum psi at -20 to 450 degrees F, carbon steel jacket rated 125 psi at -20 to 450 degrees F. (1) Fin baffle (etched), 3 blade retreat curve agitator (no good) driven by a Pfaudler drive, size 2.5 DTW, Model DWV50210AKC, Serial #91149166-001, ratio 5 to 1, set up for hydraulic drive, no power pack. Openings: top (2) 1-1/2", (2) 2", 4" hand hole with sight glass cover; 2" center bottom outlet. Provision for 3 legs. National Board #51737, Serial #J069984, built 2006.

Stock# 42727027

Used- R & M Italia Glass Reactor Train, 160 Liter (42.2 Gallon). With 160 liter glass lined reactor, removable dish top, dish bottom, intermediate QVF glass mid section, rated 150 psi and full vacuum at +356/-112 F internal, jacketed for 150 psi and full vacuum at +356/-112 F, top mounted 1 hp, 230/460 volt, xp agitator drive, mechanical seal, 3 blade retreat curve agitator, tube baffle, 70 liter R & M Italia receiver, glass lined, removable dish top, dish bottom, internediated QVF glass mid section, rated 150 psi and full vacuum at 356 F internal, jacketed for 150 psi and full vacuum at 356 F, primary and secondary shell and tube heat exchangers with tantalum tubes and tube sheets, glass bonnets, carbon steel shells, glass phase separator, with inter-connecting glass piping, reactor and receiver bottom lift/lower mechanisms, reglass Tycon reactor bottom, serial #1109, National Board #650, receiver serial #8037, National Board #423, new 1999, reactor reglassed by Tycon in 2005. PRICE INCLUDES A 15% BUYERS PREMIUM. AS IS WHERE IS, LOADING & REMOVAL FEES EXTRA, COST TO BE DETERMINED.

Stock# 42727029

Used- R & M Italia Glass Reactor Train, 160 Liter (42.2 Gallon). With 160 liter glass lined reactor, removable dish top, dish bottom, intermediate QVF glass mid section, rated 150 psi and full vacuum at 356 F internal, jacketed for 150 psi and full vacuum at 356 F, top mounted 1 hp, 230/460 volt, xp agitator drive, mechanical seal, 3 blade retreat curve agitator, tube baffle, 70 liter R & M Italia receiver, glass lined, removable dish top, dish bottom, internediated QVF glass mid section, rated 150 psi and full vacuum at 356 F internal, jacketed for 150 psi and full vacuum at 356 F, primary and secondary shell and tube heat exchangers with tantalum tubes and tube sheets, glass bonnets, carbon steel shells, glass phase separator, with inter-connecting glass piping, reactor and receiver bottom lift/lower mechanisms, reactor serial #8047, National Board #425, receiver serial #8040, National Board #427, new 1999. PRICE INCLUDES A 15% BUYERS PREMIUM. AS IS WHERE IS, LOADING & REMOVAL FEES EXTRA, COST TO BE DETERMINED.

Stock# 41113004

Used- Pfaudler Glass Lined Reactor, 50 gallon, 5015 glass, vertical. Clamp top head. Internal rated 100 psi and full vacuum at 450 deg F, carbon steel jacket rated 100 psi at 350 deg F. 2.5DTW Pfaudler agitator drive with mechanical seal, 3 hp xp motor, retreat curve agitator, H style baffle. Side lug mounts. Serial #R-190-0433, National Board #46031 built 1990.

Stock# 44847026

Used- Pfaudler Clamp Top Glass Lined Reactor, 50 Gallons, 9115 Blue Glass, Vertical. Approximately 24" diameter x 24" straight side, dished clamp top, dish bottom. Internal rated 150/full vacuum psi at -20 to 450 degrees F, carbon steel jacket rated 125 psi at -20 to 450 degrees F. (1) "H" baffle, 3 blade retreat curve agitator (no good, has pin holes) driven by a Pfaudler drive, size 2.5 TWV, model SV-48270C-AKC, serial #24387X, ratio 10 to 1, set up for hydraulic drive, no power pack. Openings: top (2) 1-1/2", 2", 3", 4" hand hole with sight glass cover; 2" center bottom outlet. Provision for 3 legs. National Board #50534, serial #J047146, built 2001.

Stock# 44225045

Used- Tycon Glass Lined Reactor, 50 Gallon, Type 808 Glass. Internal rated 150 psi and full vacuum at 450 degrees F, jacket rated 110 psi and full vacuum at 450 degrees F. Full clamp top, 3 blade retreat curve agitator. 2 Hp, 460 volt, 1725 rpm motor. Lug mounted. Serial #8630, National Board #10, built 2002.

Stock# 13075024

Used- 200 Liter Pfaudler Glass-Lined Reactor. Interior pressure rated for 100 PSI at 450 degrees. Jacket rated for 95 PSI at 350 degrees. 2 HP plastic propellor agitation. Mfg. 1988.

Stock# 44847024

Used- Pfaudler Clamp Top Glass Lined Reactor, 100 Gallon, 5015 Blue Glass, Vertical. Approximately 30" diameter x 36" straight side, dished clamp top, dish bottom. Internal rated 25/full vacuum psi at 450 degrees F, carbon steel jacket rated 75 psi at 350 degrees F, 60 psi with internal vacuum. (1) H" baffle (no good), 3 blade retreat curve agitator (no good) driven by a Pfaudler 2.5 DTW drive, no tag, set up for hydraulic drive, no power pack. Openings: top (4) 2", (2) 3", 6" hand hole with sight glass cover: 2" center bottom outlet. Provision for 3 legs. National Board #44092, serial #R186-0504, built 1986.

Stock# 44847025

Used- Pfaudler Clamp Top Glass Lined Reactor, 100 Gallon, 5015 Blue Glass, Vertical. Approximately 30" diameter x 36" straight side, dished clamp top, dish bottom. Internal rated 25/full vacuum psi at 450 degrees F, carbon steel jacket rated 75 psi at 350 degrees F, 60 psi with internal vacuum. (1) H" baffle, 3 blade retreat curve agitator driven by a Pfaudler drive, size 2.5, model DWV50210AKC, serial #2.500-86069260-002, ratio 10 to 1, set up for hydraulic drive, no power pack. Openings: top (4) 2", (2) 3", 6" hand hole with sight glass cove; 2" venter bottom outlet. Provision for 3 legs. National Board #44093, serial #R186-0505, built 1986, repaired 1990.

Stock# 43567014

Used- De Dietrich Glass Lined Reactor, 670 Liter (177 Gallon), 3008 Glass, Horizontal. Approximate 28’’ diameter x 60’’ straight side. Dished ends, (1) removable. Internal rated -1 to 6 bar (-14.5 to 87 psi) at -10 to 200 degrees C. (14 to 392 F.), carbon steel jacket rated 6/8 bar (87 to 116 psi) at -10 to 200 degrees C. (14 to 392 F.). Openings top (3) 4’’, 10’’. 2’’ End bottom outlet. Mounted on removable wood saddles with a carbon steel cart with casters.

Stock# 43567013

Used- De Dietrich Glass Lined Reactor, 700 Liter (184.97 Gallon), 3008 Blue Glass, Vertical. Approximately 38" diameter x 32" straight side. Dished clamp on top, dished bottom. Internal rated -1/6 bar ( -14.5/87 psi) at –25 to 200 degrees C (-13 to 392 F). Carbon steel jacket rated -1/7 bar (-14.5/101.5 psi) at –25 to 200 degrees C (-13 to 392 F). Max Von Rohr AG agitator, type 60/60/G/-/4/E, rpm approximate 180-30. 2 Finger up baffle, 3 blade RCI, driven by a 2.5kw (3.25 hp), 3/50/500 volt, 1440 rpm variable speed motor. Openings top (4) 3’’, 6’’, 10’’ hand hole with a 3’’ sight glass in the cover. 4’’ Bottom outlet. Mounted on lugs and legs.

Stock# 44110048

Used- Pfaudler glass lined reactor, 200 gallon, with all stainless body, rated 100/Fv @ 450 internal, 90 @ 450 jacket. Serial # R192-05281, NB# 47148, Built 1993. RW drive. Conical bottom

Stock# 44635017

Used- Pfaudler Glass Lined Reactor, 300 Gallons. Rated 100psi & Full Vacuum at 450 degrees F. internal, jacketed for 100psi at 350 degrees F. DTW Pfaudler agitator drive with 3 hp motor, mechanical seal, 4 blade Cryolock agitator, H baffle, 9125 glass, serial #R192-0116, National Board #47039, new 1992.

Stock# 43567018

Used- De Dietrich Glass Lined Reactor, 1180 Liter (311.81 Gallon), 3009 Blue Glass, Vertical. Approximately 48" diameter x 40" straight side. Dished clamp on top, dished bottom. Internal rated -1/6 bar (-14.5/87 psi) at –10 to 200 degrees C (14 to 392 F). Carbon steel jacket rated -1/6 bar (-14.5/87 psi) at –10 to 200 degrees C (14 to 392 F). De Dietrich agitator, model 60. 3 Blade RCI, driven by a 3kw (4 hp), 3/50/380 volt, 1500 rpm variable hertz motor. Openings top (5) 4’’, (2) 8’’, 12’’ x 16’’ man way with cover. Bottom outlet. Mounts on side lugs.

Stock# 86617

Used- Pfaudler Closed Top Glass Lined Reactor, 500 Gallon, Vertical. 5025 white glass. Approximately 48" diameter x 65" straight side, dished top and bottom. Internal rated 100 PSI at 450 Degrees F. Carbon steel jacket rated 100 PSI at 350 Degrees F. Pfaudler 4RW drive with an approximate 5 HP motor. Bottom outlet. Mounts on side lug mounts.

Stock# 43567023

Used- De Dietrich Glass Lined Reactor, 2030 Liter (536.43 Gallon), 3009 Blue Glass, Vertical. Approximately 54" diameter x 44" straight side. Dished top and bottom. Internal rated -1/6 bar ( -14.5/87 psi) at –30 to 200 degrees C (-22 to 392 F). Carbon steel jacket rated -1/6 bar ( -14.5/87 psi) at –30 to 200 degrees C (-22 to 392 F). (1) Fin baffle. Openings top (1) approximate 30’’, (3) 4’’, (2) 8’’. 4’’ Bottom outlet. Side mounting ring.

Stock# 45392003

Used- Pfaudler-Balfour Glass Lined Reactor, 2500 Liter (660 gallon) Working Capacity, Model CE2500, Nucerite 8000 White Glass. Approximately 1600mm (63") diameter x 1300mm (51.18") straight side, welded dished top and bottom heads. Internal rated 6.9 bar/Full Vacuum design pressure at -40 to 200 degrees C., jacket rated 6.2 bar/full vacuum design pressure at -40 to 175 degrees C. Unit has top entry 3 blade retreat curve agitator with top mounted drive 11.5/5.5 kW, 3/50/415 volt, 1140/735 rpm motor with VSO 4 gearbox, ratio 5 to 1 with a mechanical seal. Includes a Schuf Hastelloy C4 discharge valve. Unit mounted on lugs.

Stock# 43567024

Used- Tycon Glass Lined Reactor, 2834 Liter (748.88 Gallon), Blue Glass, Vertical. Approximately 62" diameter x 48" straight side. Dished top and bottom. Internal rated -1/3.2 bar ( -14.5/46.4 psi) at 200 degrees C (392 F). Carbon steel jacket rated 6 bar (87 psi) at 200 degrees C (392 F). Openings top 12’’ x 16’’ oval manway with a 2’’ sight glass in the cover, (3) 4’’, (2) 10’’. Bottom outlet. Mounted on 4 legs.

Stock# 73036

Used- De Dietrich Glass Lined Reactor, 750 Gallon, SA Series. Internal rated 100 psi/fv at 500 deg F, jacket rated 90 psi at 500 deg F. Glass type 3009.

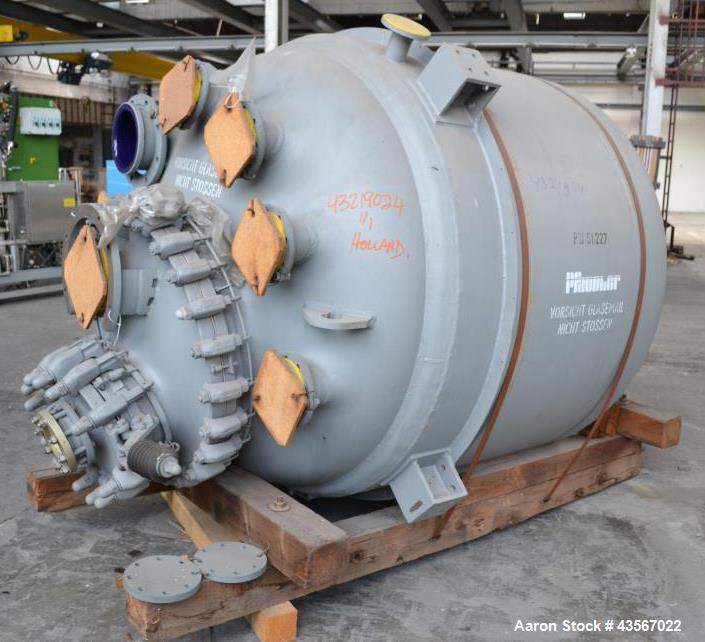

Stock# 43567022

Used- Pfaudler Type E3000 Glass Lined Reactor, 3000 Liter (792.75 Gallon), Blue Glass, Vertical. Approximately 64" diameter x 40" straight side. Dished top and bottom. Internal rated -1/6 bar (-14.5/87 psi) at 200 degrees C (392 F). Carbon steel jacket rated 6 bar (87 psi) at 200 degrees C (392 F). Openings top (5) 4’’, 8’’, 30’’ with a cover, and a 12’’ x 16’’ man way with a sight glass in the cover. 4’’ Bottom outlet. Mounts on side lugs.

Stock# 43473358

Used- Pfaudler Glass Lined Reactor, 1000 Gallon. Internal rated 100 psi & Full Vacuum at 450 degrees F. Jacket rated 90 psi at 500 degrees F. 5RW Pfaudler agitator drive with mechanical seal, 20hp, 460 volt XP motor, 3 blade retreat curve cryolock agitator, beavertail baffle. Serial# R184-0133, National Board# 43583, built 1985.

Stock# 85807

Used- Pfaudler 1000 Gallon Glass Lined Reactor. Internal rated 100 psi at 650 deg F. Jacket rated 90 psi at 350 deg F, 90 psi with internal vacuum. Top cover p/n 3105011 100 psi, manway hatch p/n 4016955R 100 psi. Glasteel and/or Nucerite 3325/7015. National Board #29989. Tank repaired by Pharaoh Corp 4/10/95. National Board #2493. Includes Pfaudler FDWV52500-7B, ratio 18:1. Rated HP 18.4 with Spartan motor, 38-230/77-460V, 26/13A, 3 ph, 10-60 hz, 250-1765 rpm, 1.66/10 hp. Also includes Pfaudler seal lubricator.

Stock# 47689005

Used- 1,500 Gallon Pfaudler Glass-Lined Jacketed Agitated Reactor. Type 9129 white glass lining. Pfaudler drive with mechanical seal, dead end lubricator, flush bottom glass-lined outlet valve. ASME code stamped 100 psi/FV internal at 450 deg f : 90 psi jacket with FV internal at 450 deg F. Built 1995

Stock# 11453302

Unused - 1500 Gallon Pfaudler Glass Lined Reactor Body. Rated 100 psi and full vacuum at 450 f. Jacketed for 90 psi at 450 f, 5015 glass, lug mounted.

Stock# 63027

Used- Pfaudler Glass Lined Reactor, Type E8000. Working capacity 2120 gallon (8000 liter). 6'5" diameter x 11'6" high (2000 mm dia x 3550 mm high). Jacketed, rated for 90 psi (6 bar) at 392 deg F (200 deg C) and vacuum. 120 rpm on agitator. No motor.

Stock# 49330007

Dedietrich Glass Lined Reactor, 5000 gallon, 3009 blue glass. Approximately 108" diameter x 90" straight side, dished top and bottom. Internal rated 90/fv psi at 400 deg F, jacket rated 90 psi at 400 deg F. Side entering Chemineer agitator, model 2HSN-5, 350 output rpm, 3 blade stainless steel turbine, driven by a 5 hp, 3/60/230/460 volt, 1750 rpm xp motor. 18" side bottom manway with a sight glass, 4" off center bottom outlet, 4" center bottom outlet. Mounted on 8 legs. Serial #2402, National Board #1298, built 2003.
