Used R&M Italia 160L Glass Lined Reactor Train with 70L Receiver – 150 PSI – XP Agitator – Tycon Reglass – QVF System

Manufacturer Info:

• Manufacturer: R&M Italia

• Reactor Capacity: 160 Liters

• Receiver Capacity: 70 Liters

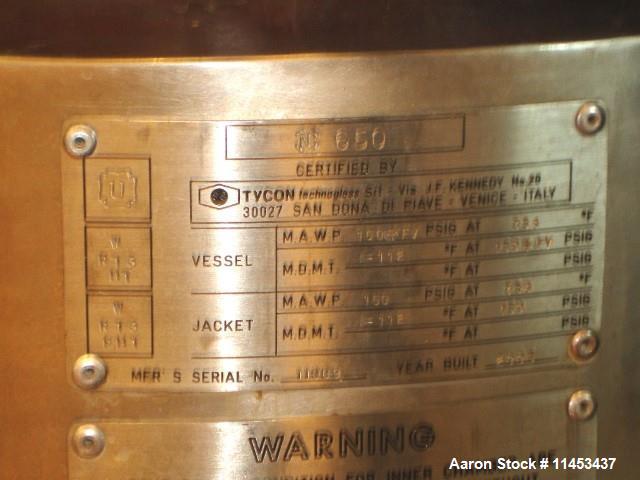

• Reactor Serial #: 1109 | National Board #: 650 (Re-glassed by Tycon in 2005)

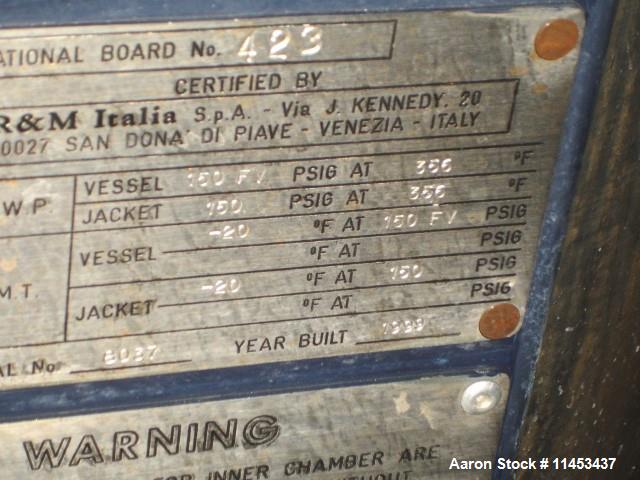

• Receiver Serial #: 8037 | National Board #: 423

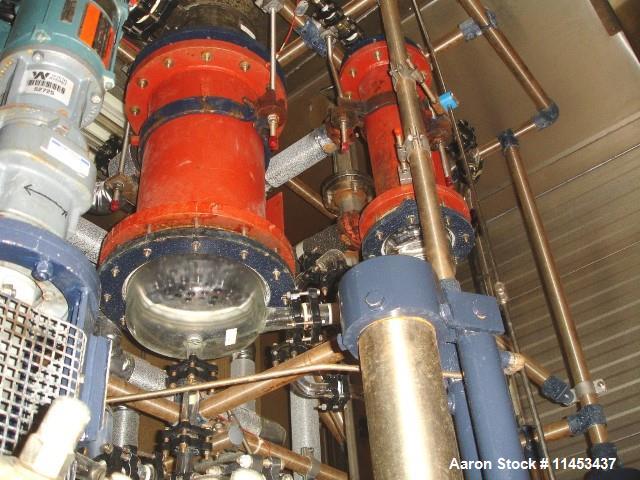

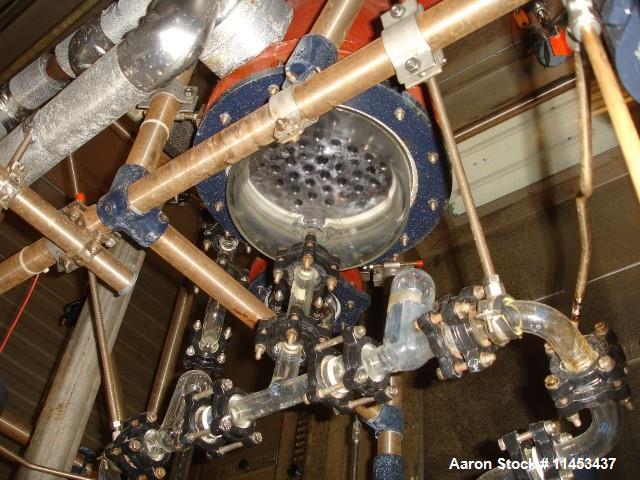

• Glass Sections: QVF borosilicate glass mid-sections

• Condition: Used

Description:

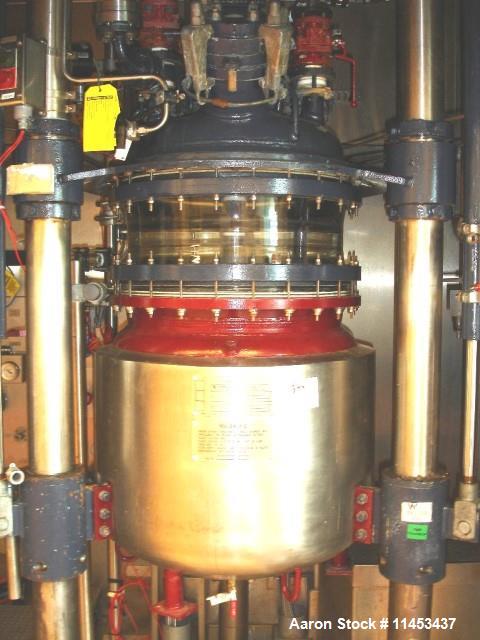

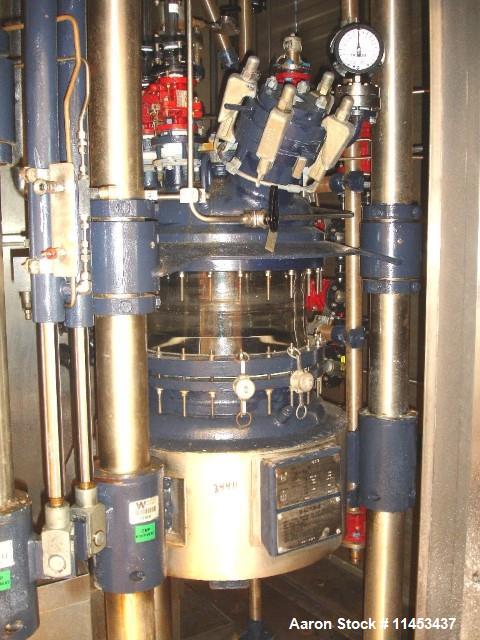

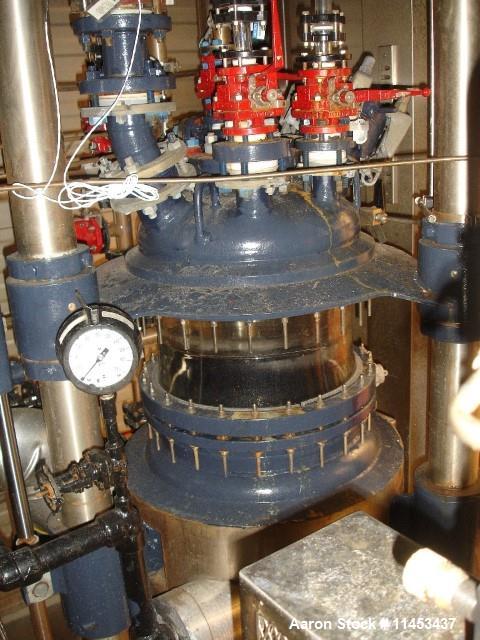

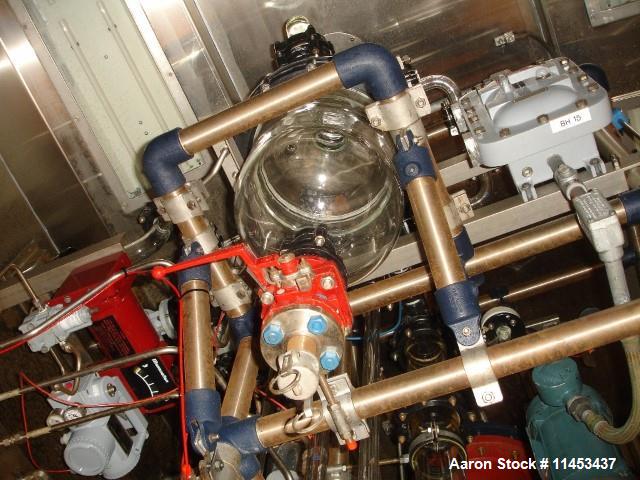

This is a used 160-liter glass-lined reactor train by R&M Italia, featuring a glass-lined 160L reactor and a 70L glass-lined receiver, both with removable dished tops and bottoms and connected via QVF borosilicate glass intermediate sections.

The reactor was re-glassed by Tycon in 2005, ensuring excellent surface integrity and corrosion resistance. Both vessels are rated for 150 PSI and full vacuum at +356°F / -112°F, internally and jacketed, making the system ideal for a wide range of thermal processing conditions.

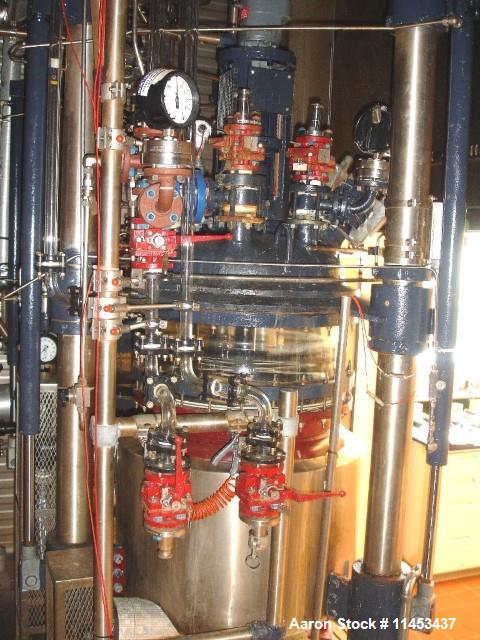

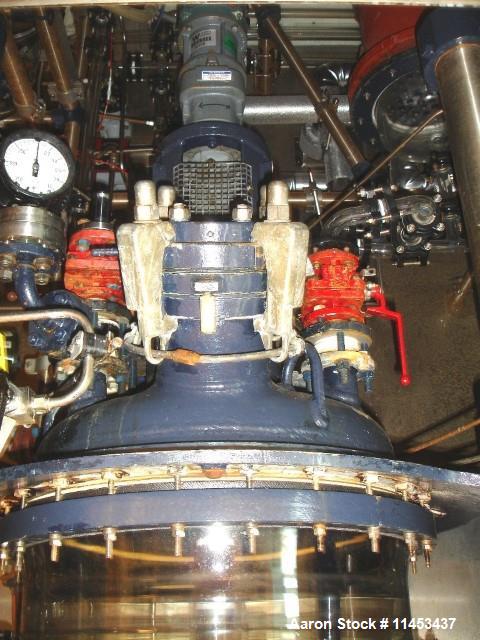

The setup includes a top-mounted 1 HP explosion-proof agitator (230/460V), mechanical seal, 3-blade retreat curve agitator, and internal tube baffle for optimized mixing and heat transfer. Both the reactor and receiver are mounted on bottom lift/lower mechanisms for easy handling, transfer, and cleaning.

Specifications:

• Reactor Capacity: 160 Liters

• Receiver Capacity: 70 Liters

• Material: Glass-lined steel with QVF glass mid-sections

• Reactor Ratings:

  • Internal: 150 PSI / Full Vacuum @ +356°F to -112°F

  • Jacket: 150 PSI / Full Vacuum @ +356°F to -112°F

• Receiver Ratings:

  • Internal & Jacket: 150 PSI / Full Vacuum @ 356°F

• Agitation System:

  • 1 HP Explosion-Proof Motor

  • 230/460 Volt, 3 Phase

  • Mechanical Seal

  • 3-Blade Retreat Curve Impeller

  • Internal Tube Baffle

• Mounting: Reactor and Receiver on Bottom Lift/Lower Mechanisms

• Serials / IDs:

  • Reactor SN: 1109 | NB #: 650 | Re-glassed by Tycon (2005)

  • Receiver SN: 8037 | NB #: 423

Applications:

• High-purity pharmaceutical synthesis

• Biotech intermediate formulation

• Specialty chemical reaction processes

• Solvent recovery and distillation

• Pilot plant and R&D operations

• Crystallization and separation

• Temperature-sensitive chemical synthesis

• Reflux and multiphase process reactions

• API formulation and testing

• Corrosive or vacuum-sensitive product processing

What might this be used for?:

This dual-vessel reactor train is ideal for high-purity, vacuum/pressure-based reactions and separation processes in biotech, pharma, and chemical industries. The combination of glass-lining, QVF visibility, Tycon-refurbished reactor, and lift mechanisms provides excellent performance for both production and pilot-scale processing environments.
