Used Monoblock Liquid Fillers

Stock# 70193046

Used-36 Station Elmar Filler Turret with Fowler Zalkin 16 Head Pick and Place" Capping Turret complete with Infeed Timing Screw, Infeed Starwheel, Intermediate Transfer Starwheel and Discharge Starwheel all mounted on a Monoblock Main Base with the following: 3-3/4" Diameter Super Extended Cylinders (max fill range 67 fluid ounces); 3-3/4" Diameter Stainless Steel "Dome Style" Pistons with PTFE Wear Rings and 0" Ring; Motorized Volume Adjustment; Ajustable Container Rails with Replaceable UHMW Wear Surface; Quick Change Feed Screw Toolless; Change Parts Toolless; Powered Bowl Height Adjustment (3-15/16" to 9-15/16"), for Instant Height Change-Over; Central Lubrication Cluster - Lincoln Automatic Lubrication System (manual pump); Complete Electronic Control System with A-B 5/05 PLC and Operator Station with Allen-Bradley InverterDrive System , 480V/3PH/60HZ; The Elmar Industries Inc. Filler Control system is a programmable logic controller (PLC) based control system. The basic unit controls filler speed, fill volume and the No Container No Filler (NCNF) trip mechanism. Fowler/Zalkin 16-head "Pick and Place" Capping Turret (PCD 498 mm) to mount on a Elmar filler Monoblock. This turret is equipped for the application of 63 mm, screw-on closures to PET bottles, at a rate of applied closures per minute. This machine is equipped as follows: Set of Sixteen (16) Zalkin BH-3 Hysteresis magnetic clutch heads for screw-on closures requiring an application torque of 12 to 36 inch pounds +-10%; Heads are equipped for use with quick change chucks for cap handling and application; Set of Sixteen (16) quick change chucks for the 63 mm screw-on closure. Quick change chucks use a ball and ring assembly for quick release from, and remounting to, the capping head; Telescoping cap chute suitable for the 63 mm closures and suitable for mating with "Nose Over' chute; Cap chute steam cloud box (15" x 3' x 4 long) and cap transfer steam manifold, supplied to heat cap prior to application; Quick Change "Peg & Ring" cap transfer system for smooth closure pick-off from the discharge of the cap chute and transfer to the capping heads. Transfer system is equipped with quick change quick release features to allow for no tools change-over. Transfer system includes sensors for no bottle/no cap control.; Self-contained elevating system for adjusting height of capping turret as required by differing heights of containers. Safeties are included to prevent travel beyond machine limits. Minimum 4", maximum 12" height of container.

Stock# 72671001

Used-Federal Model 21G Monoblock Rotary Filler and Snap Capper. Includes Model S2C Snap Capper with Bowl Feeder and Chute for 38 mm Caps. Last running 1 Gallon, 1/2 Gallon and Pint Plastic Apple Cider Containers.

Stock# 72910008

Used- Federal 18 Valve Filler With 5 Head Snap Cap Capper, Model GWS185L Last running 1 gallon water products with 38mm nap caps. 1" dia valves on 6.75" centers. Right to left counter clockwise direction. Manual filler and cap height adjustment. Container back up photo eye detection. Panle View operator interface, Allen Bradley MicroLogix 1200 PLC Controls. Elec: 1/60/220

Stock# 72910007

Used-Fillber Filling Technologies Model VOL 32-8 Rotary Volumetric Piston Dosing 2 oz. Energy Drink Bottle Filler Capper. Built 2020. Last Running 2 oz. Energy Drink Products, Speeds up to 200+ BPM; based upon product specifications, 8 Head Rotary Capper, set for 23 mm Screw Caps, Includes Stainless Cap Elevator Feeder Hopper, Stainless filling valves with Centering Bells, No Container / No Fill, 5" Valve Centers, 5 oz. Max Fill Capacity, 150 cc Dosing Pistons (adjustable), Filling Accuracy +/- 1%, Infeed Timing Screw Assembly, Existing Handling Parts, Stainless Bottle Conveyor with Drive System, Left to Right, Clockwise Direction, Stainless Construction Frame and Base Stainless Cap Feed Elevator, Cap Sorter with Cap Chute and Pick-Off, Container back up photo eye detection, Low Cap Detection in Chute and Sorter, Down and Missing Bottle Detection, Filler Bowl Height Adjustment, Capper Height Adjustment, Speed Controls, Existing Handling Parts, Stainless Legs, Stainless Floor Levelers, E- Stop(s), Stainless Electrical Panel, Allen Bradley HMI Operators Interface Controls, Allen Bradley 2080LC50 PLC Controls, Electrical 230 Volt / 50/60 HZ. / 3 Phase. Air Requirements 90 psi, Filler Overall Dimensions: 170" Long x 84" Wide x 116" High.

Stock# 72910003

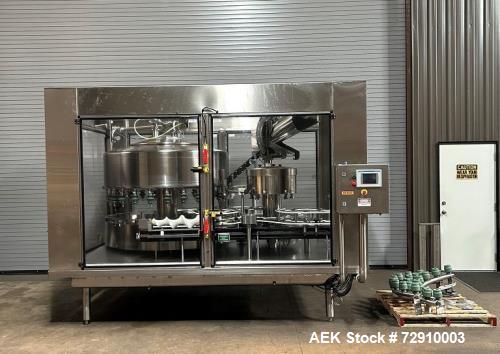

Used- Filler Specialties Model GWFS248RH, 24 Valve Gallon Bottle Filler With 8 Head Screw Capper, 38 mm Screw Cap. Capable of speeds up to 140 Gallons Per Minute; Based Upon Product specifications. 8" Valve Centers (Capable of running up to 5 Liters), 3/4" dia stainless steel filling valves. HEPA Filtration Unit For Surround Guarding. 1 Gallon Square Dairy Existing Handling Parts, Rotary Cap Sorter Cap Chute and Cap Pick-Off. Stainless Enclosure. Left to Right Clockwise Direction, 4.5" pass-through Bottle Conveyor, Variable Speed Controls, Product Level Float, Pneumatic Product Inlet Valve, CIP Ring, Upgraded Bottle Lift Cylinders, Upgraded Capping Lift Cylinders, Adjustable Height Product Bowl, Adjustable Height Capping Turret, Interlock Safety Door Sensors, Operator interface controls. Allen Bradley Panel View PLUS 700, Allen Bradley CompactLogix L32E PLC Controls. Electrical 480 Volt / 60 HZ / 3 Phase.

Stock# 70226003

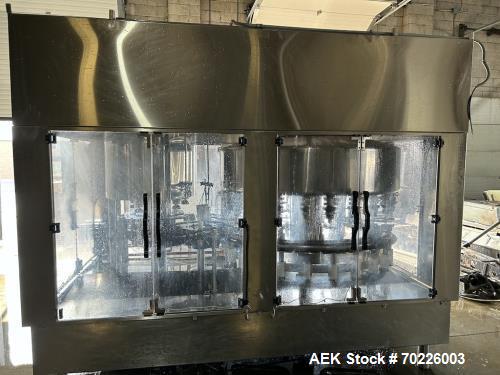

Used- Filler Specialties Model GWDS248R Filler/Capper. 24 head filler, 8 head capper. Last running fruit juice beverages in various sizes, 38mm caps, 1" dia. stainless filling valves. Gallon pitch (7.85" Valve Centers). CIP manifold, cap hopper feeder, stainless pass-through bottle conveyor. Left to right -clockwise direction. Stainless construction with safety guarding. Cap sorter with cap chute and pick-n-place. Filler bowl height adjustable, capper height adjustable. Variable speed controls. Handling parts for 1 gallon (3.8 ltr.), 2.63 ltr., 2.84 ltr., 1.75 ltr. PanelView operator interface controls, Allen Bradley MicroLogix 1200 PLC controls. Electrical: 1/60/230V.

Stock# 72682001

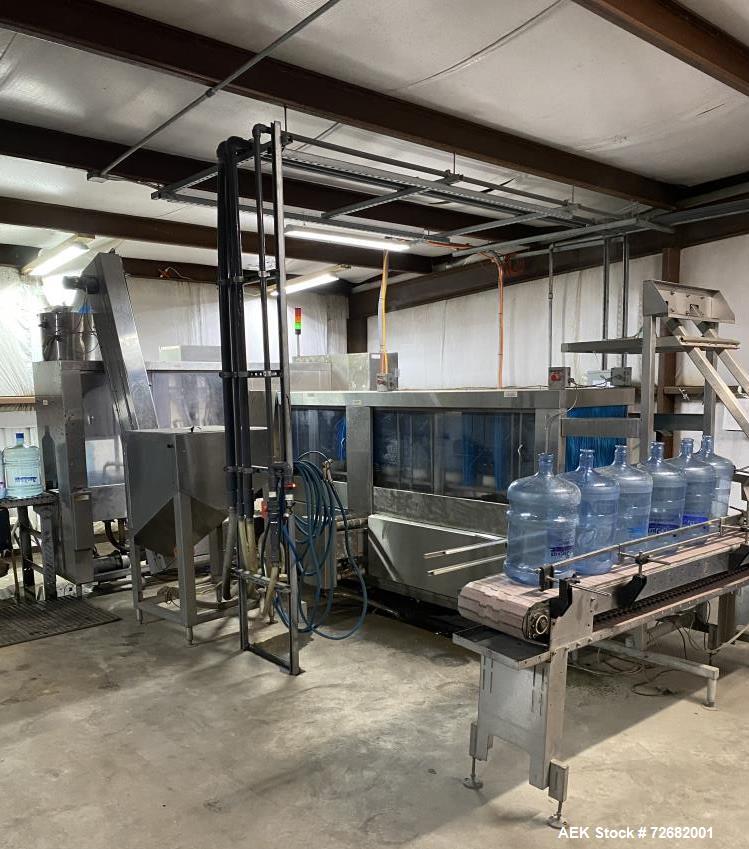

Used-Norland Water Bottle Filler and Capper; Model BF450 for Three and Five Gallon Bottles; Includes infeed and capper for both sizes. Built in 2005.

Stock# 72654012

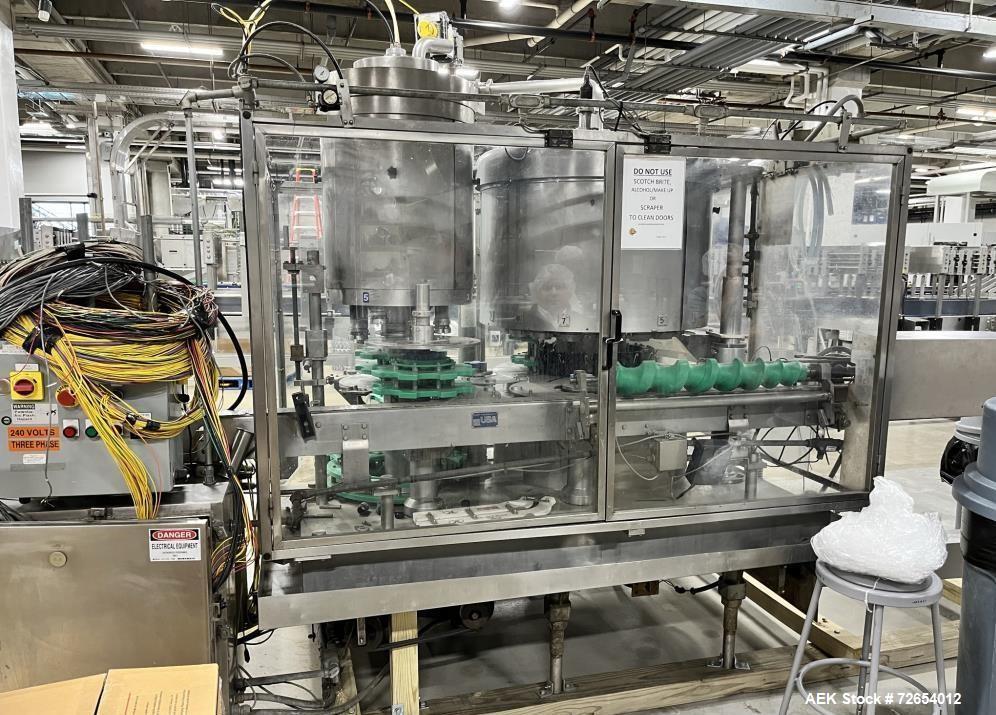

Used-Serac Model R16V8/720 Monoblock Net Weigh Filler and Capper. Unit was last running 12 oz condiments at 110 deg F. Capper is set up on 38mm caps and includes Hoppmann cap sorter and elevator. Has worm screw container handling. 16 Head filler with integrated 8 head rotary chuck capper. Has Allen Bradley HMI with Allen Bradley PLC controls.

Stock# 70342025

Used-6-Head Inline Bottle Filling Line, manufactured by Wild Goose-Meheen, set up to run 22-ounce bottles at approximately 25-35 bottles per minute. Previously used at craft brewery. Manufactured in 2008, Reported to be reconditioned, replacing digital controls and filling heads.

Stock# 70342026

Used-6-Head Inline Bottle Filling Line, manufactured by Wild Goose-Meheen, set up to run 12-ounce bottles at approximately 35-40 bottles per minute. Previously used at craft brewery. Manufactured in 2014. Reported to be recondtioned, replacing digital controls and filling heads

Stock# 72899001

Used- Worldtec Model 60-15 Rotary Monoblock Filler and Screw Capper. Capable of speeds up to 360 BPM (depending on fill size and cap diameter). 60 Valve unit with Arol 15 head rotary chuck capper. Last running protein drinks in plastic and glass containers. Rand container sizes: 8.5 oz, 16oz, 18oz, 20 oz and 22 oz. with 34mm neck finish and 38mm diameter screw cap.
