Stock No.: 72910008

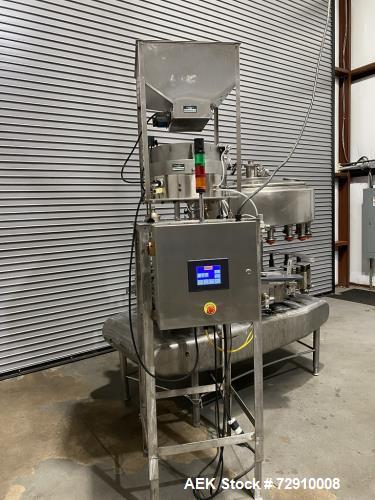

2. Pre-Owned Federal GWS185L Rotary Filler Capper – For 1-Gallon Water Bottles
Used- Federal 18 Valve Filler With 5 Head Snap Cap Capper, Model GWS185L Last running 1 gallon water products with 38mm nap caps. 1" dia valves on 6.75" centers. Right to left counter clockwise direction. Manual filler and cap height adjustment. Container back up photo eye detection. Panel View operator interface, Allen Bradley MicroLogix 1200 PLC Controls. Elec: 1/60/220 Volt.
-
ManufacturerFederal
-
ModelGWS185L
-
Serial #964G185LA437
-
CategoryPackaging Equipment
-
SubcategoryFillers Liquid - Monoblock
Used equipment facts about this machine
Manufacturer Information
🔹 Manufacturer Information
-
Manufacturer: Federal Mfg. Company
-
Model: GWS185L
-

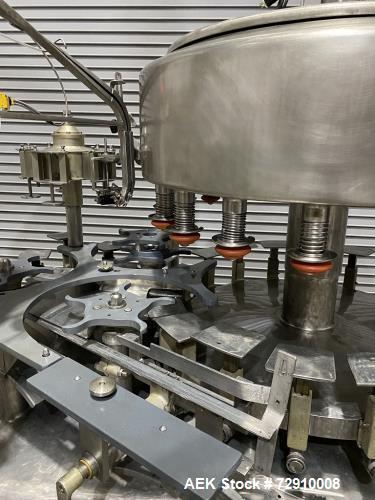

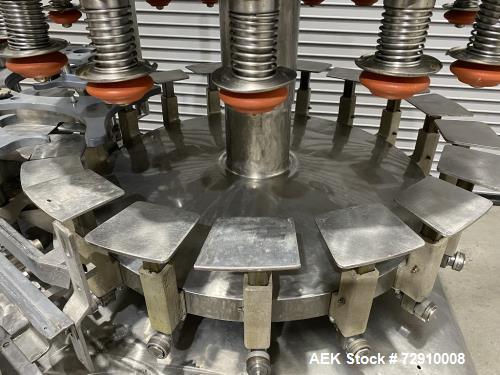

Filler Type: 18-Valve Rotary Liquid Filler
-

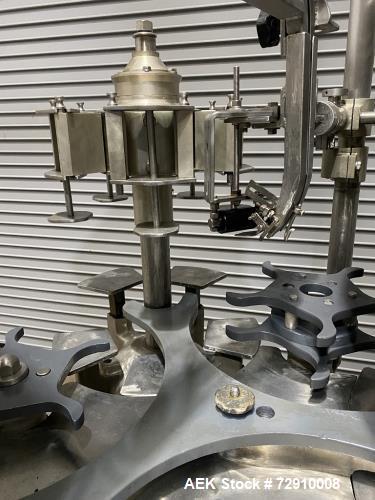

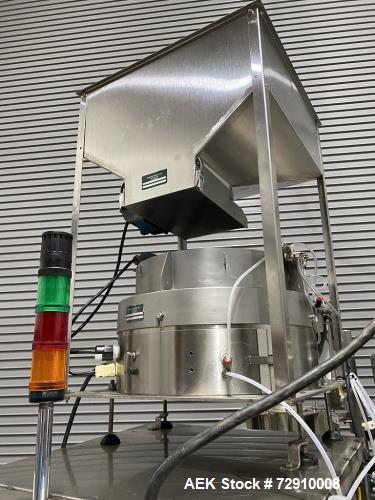

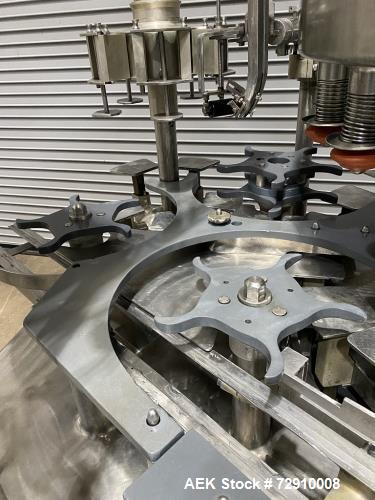

Capper Type: 5-Head Snap Cap Capper
-

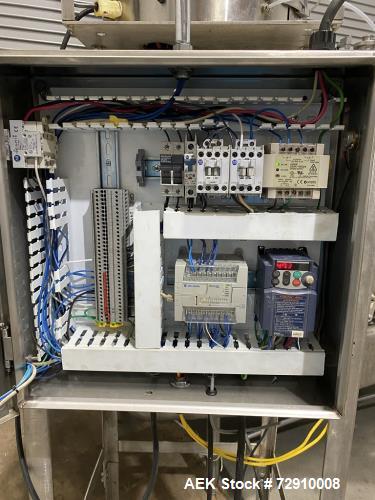

Control System: Allen-Bradley MicroLogix 1200 PLC
-

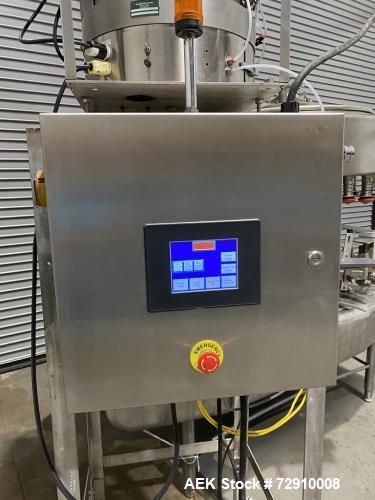

Operator Interface: PanelView HMI
-
Electrical Requirements: 1 Phase / 60 Hz / 220 Volt
🔹 Product Description
The Used Federal Model GWS185L Filler and Snap Cap Capper is a robust rotary filling system designed for high-speed 1-gallon water bottling lines. It features 18 stainless steel 1” diameter filling valves spaced on 6.75” centers and a 5-head snap cap capper designed for 38mm neck-finish containers. The unit operates in a right-to-left, counter-clockwise rotation and includes a manual height-adjustment system for both the filler and capper. Integrated with a backup photo-eye sensor for container detection and a PanelView operator interface powered by Allen-Bradley MicroLogix 1200 PLC, this machine is ideal for efficient and consistent water or similar liquid product filling.
🔹 Specifications
-
Model: GWS185L
-
Filler Valves: 18
-
Valve Diameter: 1"
-
Valve Spacing (Centers): 6.75"
-
Capper Heads: 5
-
Cap Type: Snap cap
-
Neck Finish (Cap Size): 38mm
-
Last Product Run: 1-gallon bottled water
-
Rotation Direction: Right to left (counter-clockwise)
-
Height Adjustment: Manual (filler and capper)
-
Container Detection: Photo eye sensor (backup detection)
-
Controls: Allen-Bradley MicroLogix 1200 PLC
-
HMI: Allen-Bradley PanelView
-
Power Supply: 1 Phase / 60 Hz / 220V
🔹 Applications
Perfect for large-format liquid bottling, this Federal filler and capper system is ideal for:
-
Bottled water production
-
Non-carbonated beverages
-
Liquid cleaning chemicals
-
Liquid food products (non-viscous)
-
Household products
-
Nutraceutical liquids in bulk formats
🔹 Products It Can Be Used For (Bulleted)
-
1-gallon bottled water
-
Distilled or purified water
-
Liquid detergents
-
Liquid fertilizers
-
Cleaning solutions
-
Iced tea or juice (non-carbonated)
-
Non-viscous food-grade oils
-
Bulk-sized beverage containers
-
Nutritional liquids in gallon jugs
-
Rinse solutions or sanitizers
