Kettles

Commercial Stainless Steel Groen TDH-40 Kettle – 40 Qt, Self-Contained Steam

Used- Groen Stainless Steel Table Top Kettle, Model TDH/40-SP, 40 Quart Capacity. Approximate 16-1/2" diameter x 14" deep. Self-contained steam jacketed unit with natural gas heated steam source contained within unit. Input rated 52,000 btu / hr. 2/3 bottom jacket rate 50 psi at 300 degrees F. Manual tilting with pour lip. Mounted on a base. National Board# 32385, Serial# 32385. 1/60/110 Volt.

MFR: Groen

Used Groen TDH-40 Table Top Kettle – 40 Quart, Gas-Heated, Steam Jacketed

Used- Groen Table Top Kettle, Model TDH-40, 40 Quart Capacity, Stainless Steel. Approximate 16-1/2" diameter x 14" deep. Self-contained steam jacketed unit with natural gas heated steam source contained within unit. Input rated 52,000 btu / hr. 2/3 bottom jacket rate 50 psi at 300 degrees F. Manual tilting with pour lip. Mounted on a base. National Board# 12100, Serial# 1988-10.

MFR: Groen

Commercial Tabletop Kettle for Sale – Groen TDH-40, Natural Gas Heated

Used- Groen Model TDH-40 Table Top Kettle, 40 Quart Capacity, Stainless Steel. Approximate 16-1/2" diameter x 14" deep. Self-contained steam jacketed unit with natural gas heated steam source contained within unit. Input rated 52,000 btu / hr. 2/3 bottom jacket rate 50 psi at 300 degrees F. Manual tilting with pour lip. Mounted on a base. National Board# 13816, Serial# 1989-4. 1/60/110 Volt.

MFR: Groen

Industrial Groen TDH-40 Tabletop Steam Kettle – 40-Quart, Tilting, Natural Gas

Used- Groen 40 Quart Capacity Table Top Kettle, Model TDH-40, Stainless Steel. Approximate 16-1/2" diameter x 14" deep. Self-contained steam jacketed unit with natural gas heated steam source contained within unit. Input rated 52,000 btu / hr. 2/3 bottom jacket rate 50 psi at 300 degrees F. Manual tilting with pour lip. Mounted on a base. National Board# 29964, Serial# 29964. 1/60/110 Volt.

MFR: Groen

Groen 100 Gal Steam Jacketed Kettle – 125 PSI | Radicon Drive | TA100 SP

Used Groen Kettle, Model TA100 SP, 100 Gallon, Stainless Steel. Approximately 36" diameter x 30" deep. Open top, hemispherical bottom. Jacket rated 125 psi. Bridge Mounted Radicon Drive with Anchor Agitator. Provision for Teflon Wipers (Wipers not Included). Driven by a 2hp 3/60/230/460 volt, 1755 rpm gear motor 63:1 ratio. Openings top: (2) 4", 2", 1-1/2", 2-1/2" center bottom outlet with 10-1/2" discharge height. Serial# 88772. Mounted on 3 legs.

Used Lee 100 Gallon Stainless Steel Steam Jacketed Kettle

Used Lee 100 gallon stainless steel jacketed cooking and mixing kettle, Model #100D7, Serial # 31854-1, built in 2003, with stainless steel construction, 90 psi steam jacket, National Board number 9660, single-action agitator with scrapers, and bottom-center discharge. Suitable for batch cooking, heating, and mixing applications and products requiring agitation and surface scraping.

MFR: Lee Ind

Used 1,000 gallon Vendome stainless steel processor with dual agitation. The bottom and the sides are jacketed. The dimple jackets are rated at 100 psi @ 338F. This unit is equipped with side scrape ...

Used-1,000 gallon Vendome stainless steel processor with dual agitation. The bottom and the sides are jacketed. The dimple jackets are rated at 100 psi @ 338F. This unit is equipped with side scrape agitation (5 hp) and a 50 hp top entering homogenizing mixer. 230/460 vac 3 ph electric power required. There is one adjustable baffel inside. The vessel is 72" diameter x 60" straight side with a dished top and bottom. Bottom jacket nozzles are two- 2" RFSO flanges. Side jacket has four-2" RFSO flanges as in/out flanges. Bottom has one 3" tri-clamp nozzle. Top has one- 18" hinged lid manway, one 6" x 18" rectangular inlet, one 6" tri-clamp nozzle, one- 4" sightglass, three-3" nozzles, five- 2" nozzles, and one 1" nozzle. This unit stands on 4 stainless steel pipe legs. National board #299. The skin over the jacket has some dents and repairs. The jackets passed our hydro tests. Built in March 2004.

MFR: Vendome Copper & Brass

Used 1,000 gallon stainless steel jacketed processor with scrape agitation manufactured by Vendome Copper & Brass. It has a dished bottom and a domed top. The jacket is rated for100 psi @ 338F and th...

Used-1,000 gallon stainless steel jacketed processor with scrape agitation manufactured by Vendome Copper & Brass. It has a dished bottom and a domed top. The jacket is rated for100 psi @ 338F and the shell is rated for atmospheric pressure. National board # 898. Vendome serial number 2004-01Z-1. Vessel is 72" OD x 63" straight side. Jacket has two heating zones with 2" inlet and outlet on each zone. Bottom has 3" bent tri- clamp nozzle. Top nozzles are: 18" hinged manway, 6" wide x 18" long nozzle, 14" flanged nozzle, three 3" tri clamp, six 2" tri clamp and one 1" tri clamp. Tank has a spray ball inside. The side scraping agitator is driven by a 5 hp gear reduced drive. 230/460 vac 3 ph electric power required. Tank stands on four legs. Some cosmetic denting to the insulation skin otherwise it appears to be in good shape.

MFR: Vendome Copper & Brass

13 Gallon (50 Liter) Agi-Mixer Triple Motion Greerco Jacketed Vacuum Kettle

13 Gallon (50 Liter) Agi-Mixer Triple Motion Greerco Jacketed Vacuum Kettle. 316 Stainless Steel. Has counter rotating sweep mixer with scrapers and high shear mixer. Internal rated Full Vacuum. Jacket rated 40 PSI @ 300 Deg.F..Top Drive motor Disconnected for removal. Test results: The previous owner reports that all components of the homogenizer are fully functional. Fully tested with H2O. The homogenizer and inner and outer paddles work as do their RPM meters. The cover lifting hydraulics is fully functional. The cover lift mechanism is functional as well as the homogenizer and the two blades. The jacket was pressure tested and vessel was vacuum tested - no leaks. The chart recorder is out of service as well as the hour meter. The light bulb that gave me trouble in the video was replaced.Note: The outer paddles must be jogged to index, (amber light), before the cover will open. The limit switch with long arm to contact tank, must be in the correct position for lifting and for paddle operation. Last used in sanitary cosmetics facility. Video of unit running available.

MFR: J C Pardo & Sons

Used Hamilton 200-Gallon Stainless Steel Agitated Kettle – 120 PSI Jacket

Used- Hamilton 200 Gallon Agitated Kettle, stainless steel construction with 3/4 jacket, rated for 120 PSI at 342 degrees F. Features top mounted full sweep agitator, currently less drive. Hinged lid top covers. Hemispherical bottom with 2-1/2" diameter center bottom outlet.

MFR: Hamilton

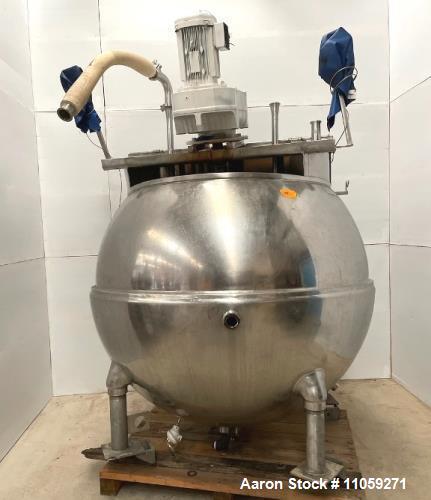

Used Groen Inclined Agitated Kettle, 250 Gallon | Model INA-250 | 316 SS | Jacketed | 5 HP Agitator

Used Groen Inclined Agitated Kettle, 250 Gallon | Model INA-250 | 316 SS | Jacketed | 5 HP Agitator, Vertical. Approximately 54" middle diameter x 45" deep. Full jacket, upper jacket rated 40 PSI, lower jacket rated 100 PSI at 338F. Agitator driven by a 5hp 3/60/208-230/460v 1740 rpm motor. Mounted on 4 carbon steel legs. National Board #104598. Serial #104598.

MFR: Groen

Used Cherry-Burrell 200 Gallon Stainless Steel Jacketed Processor Tank – Scrape Surface Agitation

Used- Cherry-Burrell 200 Gallon Cone-Bottom Stainless Steel Jacketed Processor Tank with Scrape Surface Agitation. Vessel measures 48" diameter x 30" deep with bridge mount agitation, hinged lids, and 2-1/2" center bottom outlet with tri-clamp connection. Agitator is driven by 3 HP, 230/460V, 3/60 Hz, 1700 RPM motor thru right-angle gearbox with 85.65:1 ratio, resulting in 20 output RPM. Vessel includes self contained heating system for jacket with an electrically heated inline heater and small centrifugal circulation pump. Unitized on stainless steel frame with (4) legs. Serial number E-524-9. Previously used at dairy processing facility.

MFR: Cherry Burrell
