Used Lee 100 Gallon Stainless Steel Steam Jacketed Kettle

Manufacturer Information

Manufacturer: Lee
Model: 100D7
Serial Number: 31854-1
Year: 2003
Equipment Type: Jacketed cooking and mixing kettle
Capacity: 100 gallons
Condition: Used

Main Product Description

Used Lee Model 100D7 100-gallon stainless steel jacketed cooking and mixing kettle, serial number 31854-1, built in 2003. The kettle is equipped with a 90 psi steam jacket, single-action agitator with scrapers, and bottom-center discharge for batch processing applications requiring heating, agitation, and surface scraping. National Board number 9660 is provided for the jacketed vessel. This stainless steel kettle is suitable for compatible food, cosmetic, pharmaceutical, chemical, and other process products that require controlled steam heating and mixing.

Specifications

• Manufacturer: Lee
• Model: 100D7
• Serial number: 31854-1
• Year: 2003
• Condition: Used
• Equipment type: Cooking and mixing kettle
• Capacity: 100 gallons
• Construction: Stainless steel
• Heating method: Steam jacket
• Steam jacket pressure rating: 90 psi

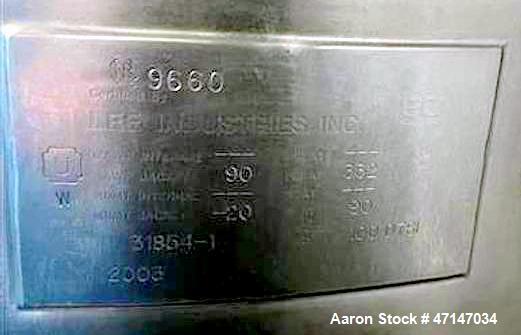

• National Board number: 9660

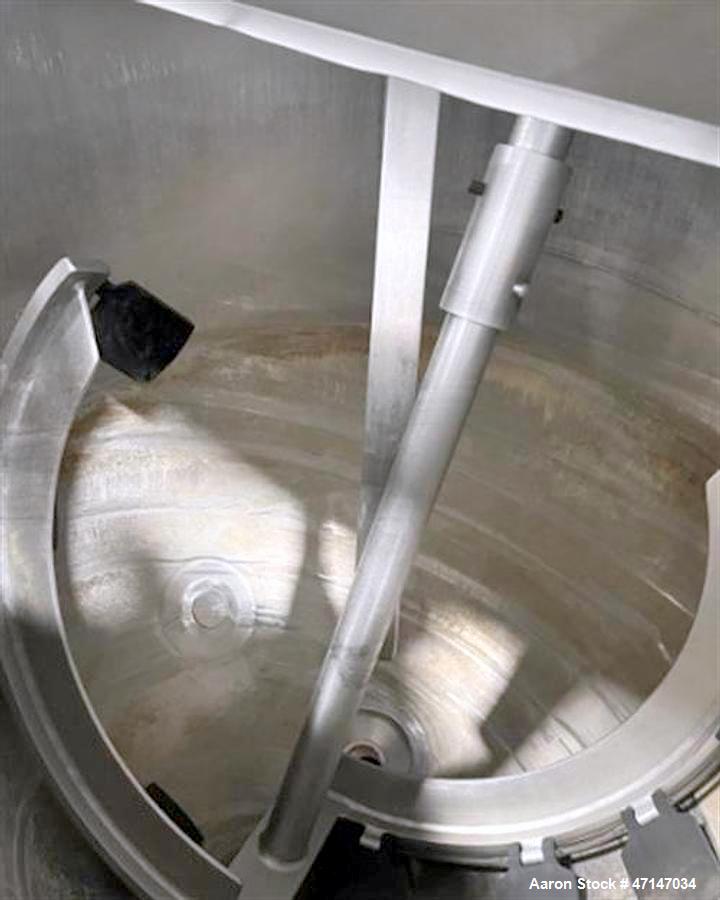

• Agitator type: Single-action
• Scrapers: Included
• Discharge location: Bottom center
• Maximum jacket temperature: Not specified
• Outlet size: Not specified
• Discharge valve type: Not specified
• Agitator horsepower: Not specified
• Agitator speed: Not specified
• Electrical requirements: Not specified
• Interior finish: Not specified
• Overall dimensions: Not specified
• Shipping weight: Not specified

Applications

• Batch cooking
• Product heating
• Mixing
• Scraped-surface processing
• Heated blending
• Product tempering
• Batch formulation
• Food processing
• Cosmetic processing
• Personal care manufacturing
• Pharmaceutical processing
• Chemical processing
• Sanitary liquid processing

Suitable Products / Materials

Actual suitability depends on viscosity, temperature, sanitary requirements, and compatibility with the kettle construction.

• Sauces
• Soups
• Syrups
• Creams
• Lotions
• Gels
• Liquid food products
• Viscous food products
• Cosmetic formulations
• Personal care products
• Pharmaceutical preparations
• Compatible chemical formulations
• Products requiring wall scraping during heating
• Other compatible products requiring steam-jacketed agitation

FAQs

• What is the capacity of this Lee kettle?
  The kettle has a 100-gallon capacity.
• What model is this unit?
  The kettle is a Lee Model 100D7.
• What year was it built?
  The unit was built in 2003.
• What is the steam jacket rated for?
  The steam jacket is rated for 90 psi.
• Does the kettle have a National Board number?
  Yes. The supplied National Board number is 9660.
• What type of agitator is installed?
  The kettle has a single-action agitator equipped with scrapers.
• Are the scrapers included?
  Yes. Scrapers are included according to the supplied equipment information.
• Where is the discharge located?
  The kettle has a bottom-center discharge.
• Why are scrapers useful in a cooking kettle?
  Scrapers help move product along the heated vessel surface, which can improve heat transfer and reduce product buildup in compatible applications.
• What products can be processed in this kettle?
  The unit is suitable for compatible products requiring batch heating, agitation, and surface scraping, subject to temperature, viscosity, sanitation, and material compatibility requirements.
• Can Aaron Equipment help determine whether this kettle is right for my process?
  Yes. Aaron Equipment can help review batch size, product viscosity, heating requirements, steam availability, agitation needs, discharge requirements, and facility layout to help determine whether this Lee kettle is suitable.
• Can Aaron Equipment help with shipping?
  Yes. Aaron Equipment can assist with freight and logistics. Shipping requirements will depend on the kettle dimensions, weight, destination, and receiving requirements.
