Used Lee 60 Gallon Stainless Steel Steam Jacketed Kettle Model 60D7S

Manufacturer Information

Manufacturer: Lee
Model: 60D7S
Serial Number: 32675-1
Year: 2004
Equipment Type: Steam-jacketed cooking and mixing kettle
Capacity: 60 gallons
Condition: Used

Main Product Description

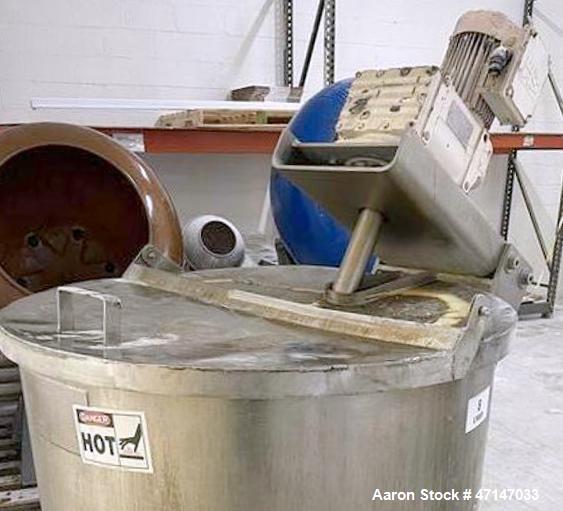

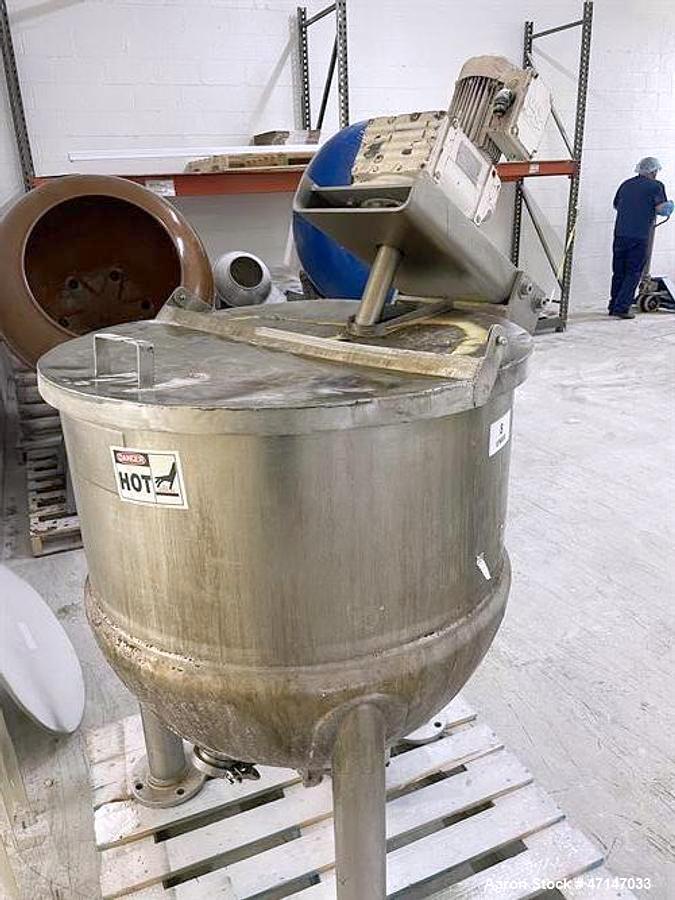

Used Lee Model 60D7S 60-gallon stainless steel cooking and mixing kettle, serial number 32675-1, built in 2004. The kettle is equipped with a single-action scraped-surface agitator, although the scrapers are currently missing, and is designed for steam-jacketed heating, cooking, and mixing applications. The steam jacket is rated for 90 psi at temperatures up to 332°F and carries National Board number 9758. The kettle includes a 1.5" diameter outlet with pneumatic discharge valve and is driven by a 1 HP, 3-phase, 60 Hz, 230/460V motor. This unit is suitable for compatible products requiring controlled heating and agitation in a stainless steel batch kettle.

Specifications

• Manufacturer: Lee
• Model: 60D7S
• Serial number: 32675-1
• Year: 2004
• Condition: Used
• Equipment type: Cooking and mixing kettle
• Capacity: 60 gallons
• Construction: Stainless steel
• Heating method: Steam jacket
• Steam jacket pressure rating: 90 psi
• Maximum jacket temperature: 332°F

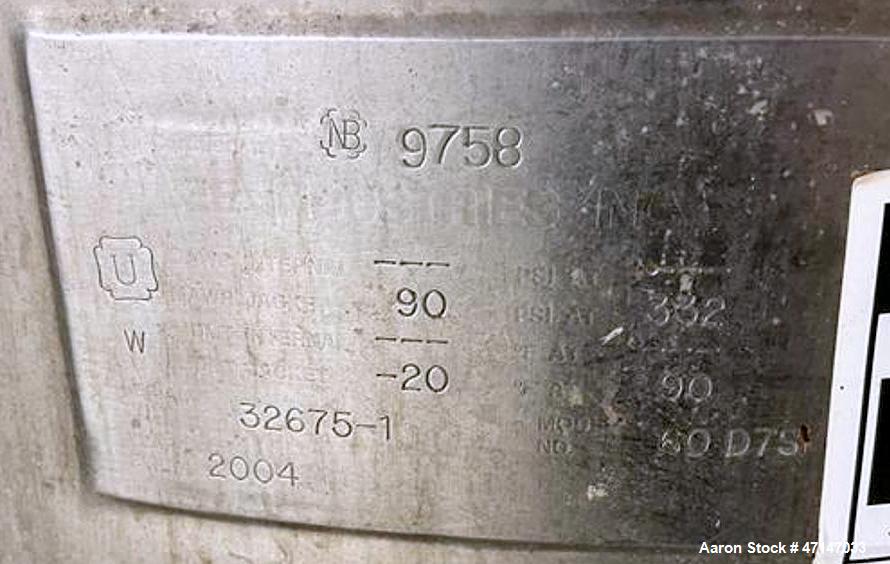

• National Board number: 9758

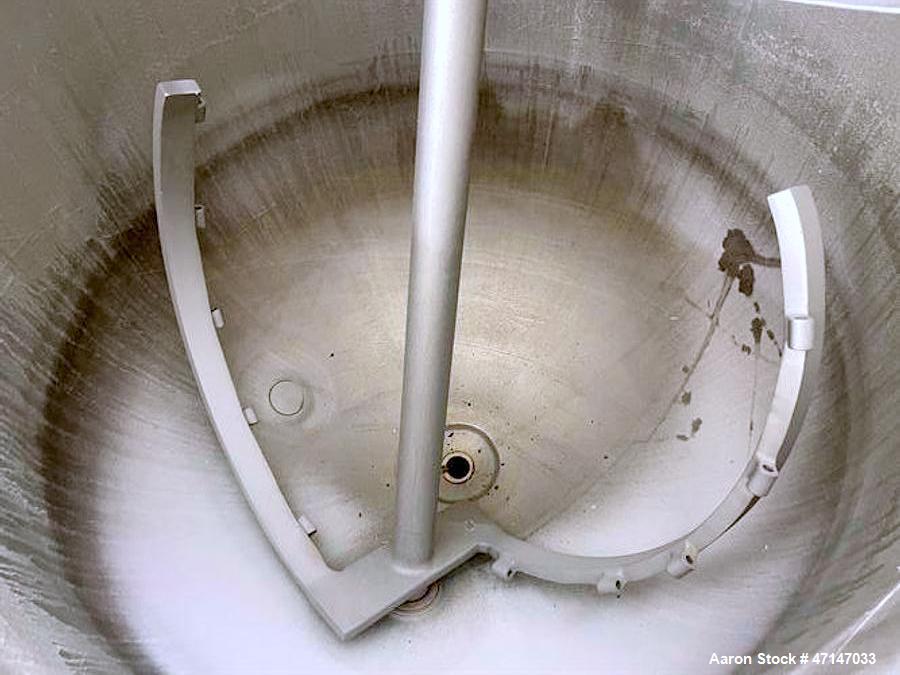

• Agitator type: Single-action scraped-surface
• Scrapers: Missing

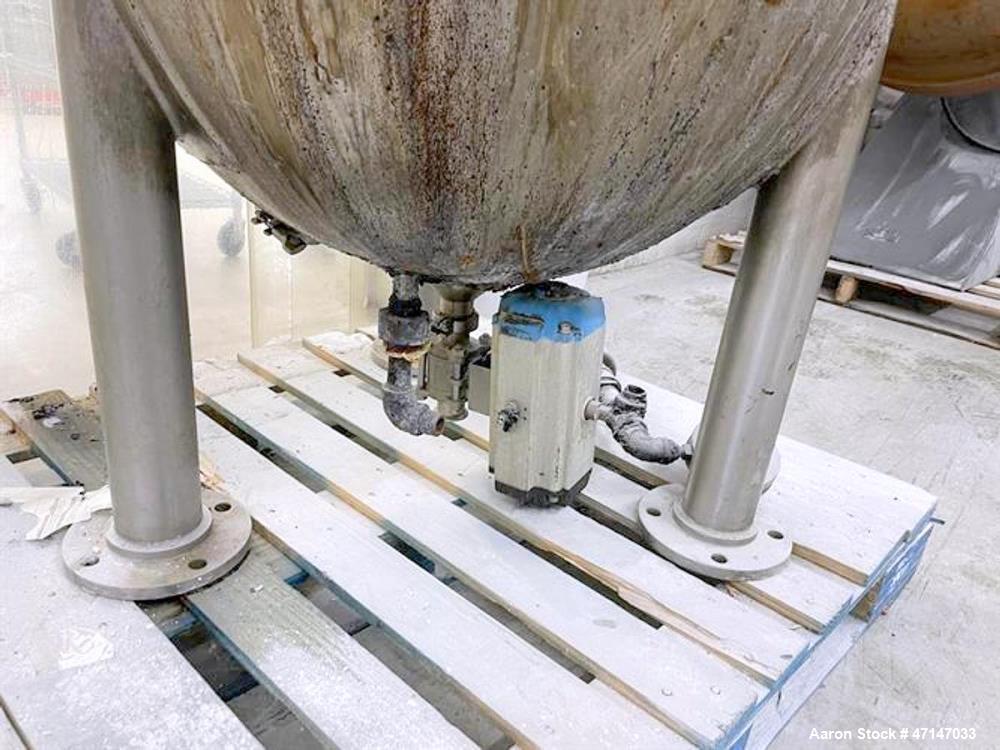

• Outlet diameter: 1.5"

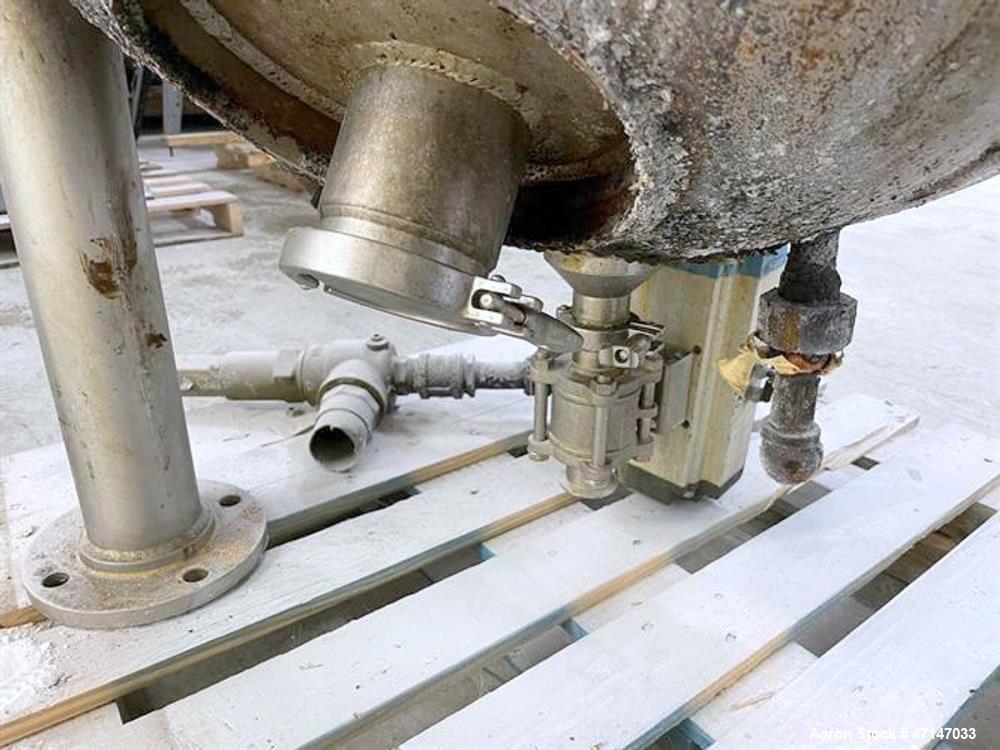

• Discharge valve: Pneumatic

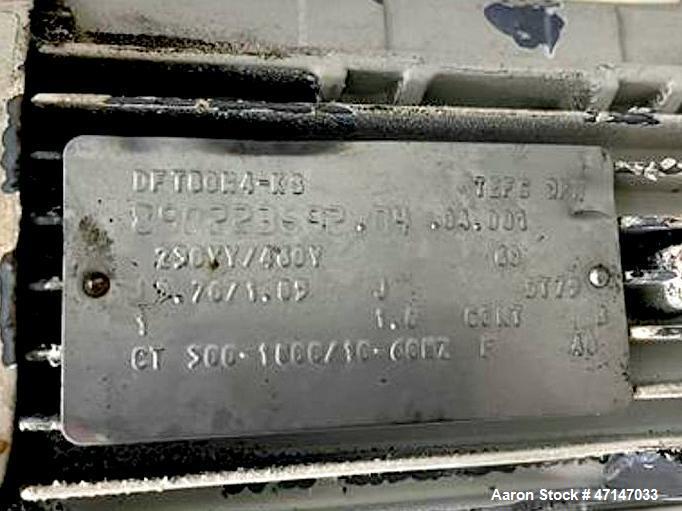

• Motor horsepower: 1 HP
• Electrical phase: 3-phase
• Frequency: 60 Hz
• Voltage: 230/460V

Applications

• Cooking
• Heating
• Mixing
• Batch processing
• Heated blending
• Product tempering
• Sauce preparation
• Food processing
• Cosmetic processing
• Personal care manufacturing
• Pharmaceutical processing
• Chemical batching
• Sanitary liquid processing

Suitable Products / Materials

Actual suitability depends on viscosity, temperature, product characteristics, sanitation requirements, and compatibility with the kettle construction.

• Sauces
• Syrups
• Creams
• Lotions
• Gels
• Liquid food products
• Viscous food products
• Cosmetic formulations
• Personal care products
• Pharmaceutical preparations
• Compatible chemical formulations
• Other products requiring steam-jacketed heating and agitation

FAQs

• What is the capacity of this Lee kettle?
  The kettle has a 60-gallon capacity.
• What model is this kettle?
  The unit is a Lee Model 60D7S.
• What year was it built?
  The kettle was built in 2004.
• Does the kettle have a steam jacket?
  Yes. It is equipped with a steam jacket rated for 90 psi at temperatures up to 332°F.
• Does it have a National Board number?
  Yes. The supplied National Board number is 9758.
• What type of agitator is installed?
  The kettle has a single-action scraped-surface agitator.
• Are the scrapers included?
  No. The supplied information states that the scrapers are missing.
• What size is the product outlet?
  The kettle has a 1.5" diameter outlet.
• Does the outlet have a valve?
  Yes. The outlet is equipped with a pneumatic discharge valve.
• What motor is included?
  The kettle is driven by a 1 HP motor rated for 3-phase, 60 Hz, 230/460V electrical service.
• What products can be processed in this kettle?
  The unit can be used for compatible products requiring steam-jacketed heating and agitation, subject to viscosity, temperature, sanitation, and product compatibility requirements.
