Used Lee 400 Gallon 316 Stainless Steel Jacketed Double-Action Kettle

Manufacturer Information

Manufacturer: Lee
Model: 400 D9MT

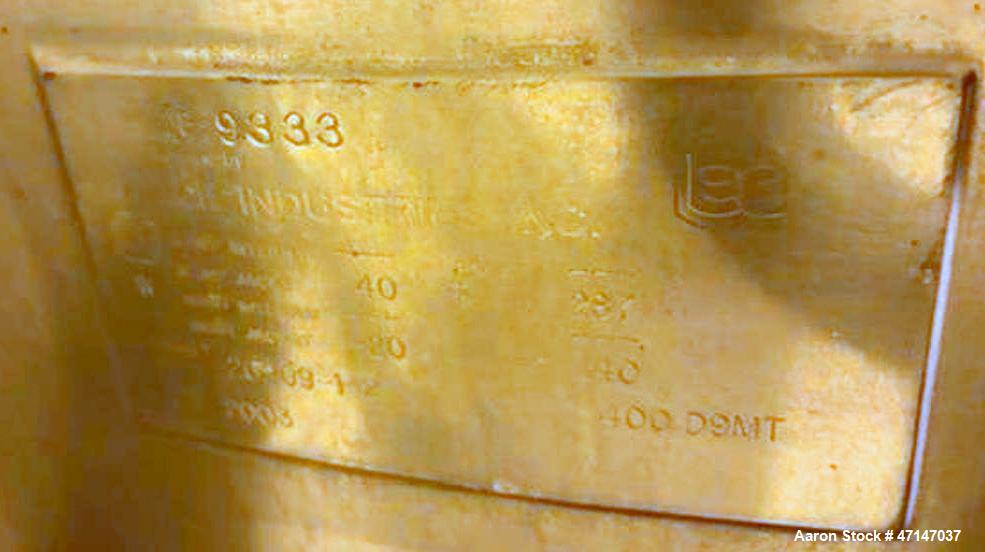

Serial Number: 26909-1-2

Main Product Description

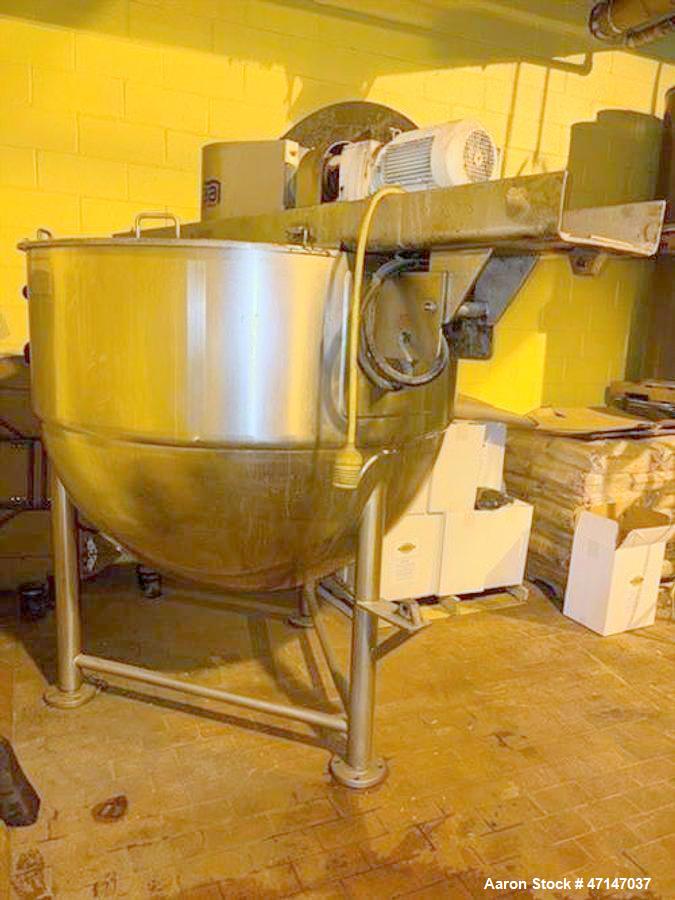

Used Lee Model 400 D9MT 400 gallon stainless steel jacketed double-action kettle constructed of 316 stainless steel for large-batch cooking, heating, blending, and mixing applications. The vessel features a full jacket rated for 40 psi, double-action agitation with provisions for scrapers, with scrapers not included, a 2-1/2-inch diameter bottom outlet, and a split cover. The kettle measures approximately 54 inches in diameter by 48 inches high and is suited for processes requiring large-capacity batch handling and double-action mixing.

Specifications

• Manufacturer: Lee
• Model: 400 D9MT
• Capacity: 400 gallons
• Construction: 316 stainless steel
• Equipment type: Jacketed double-action kettle
• Serial number: 26909-1-2
• Jacket type: Full jacket
• Jacket pressure rating: 40 psi

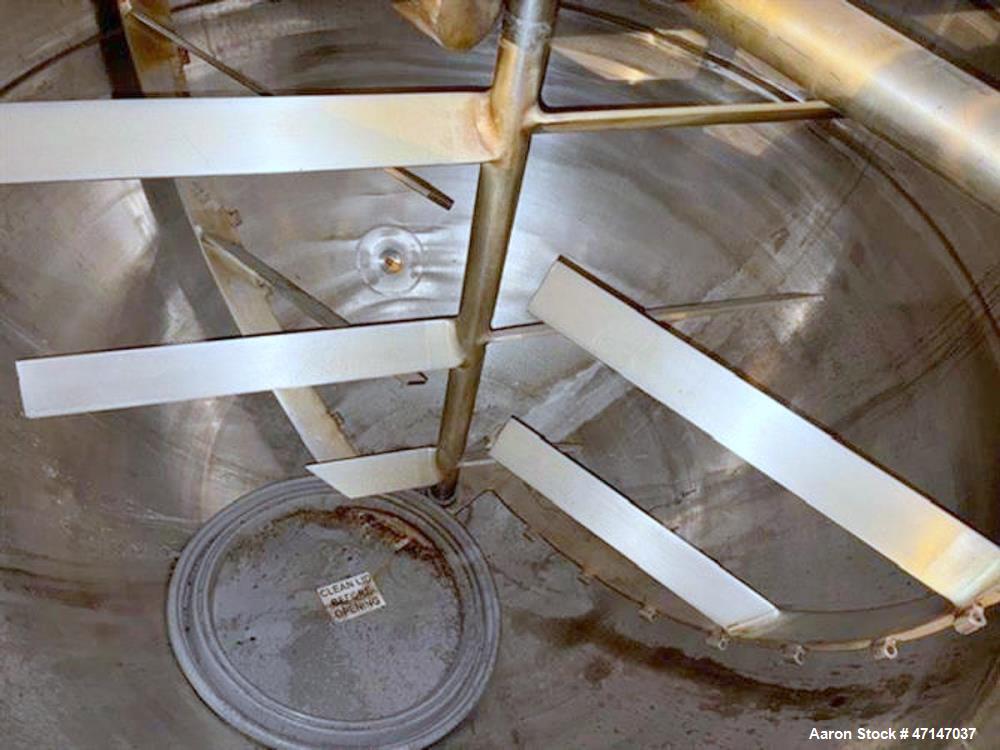

• Agitation type: Double-action
• Scraper provisions: Yes
• Scrapers: Not included

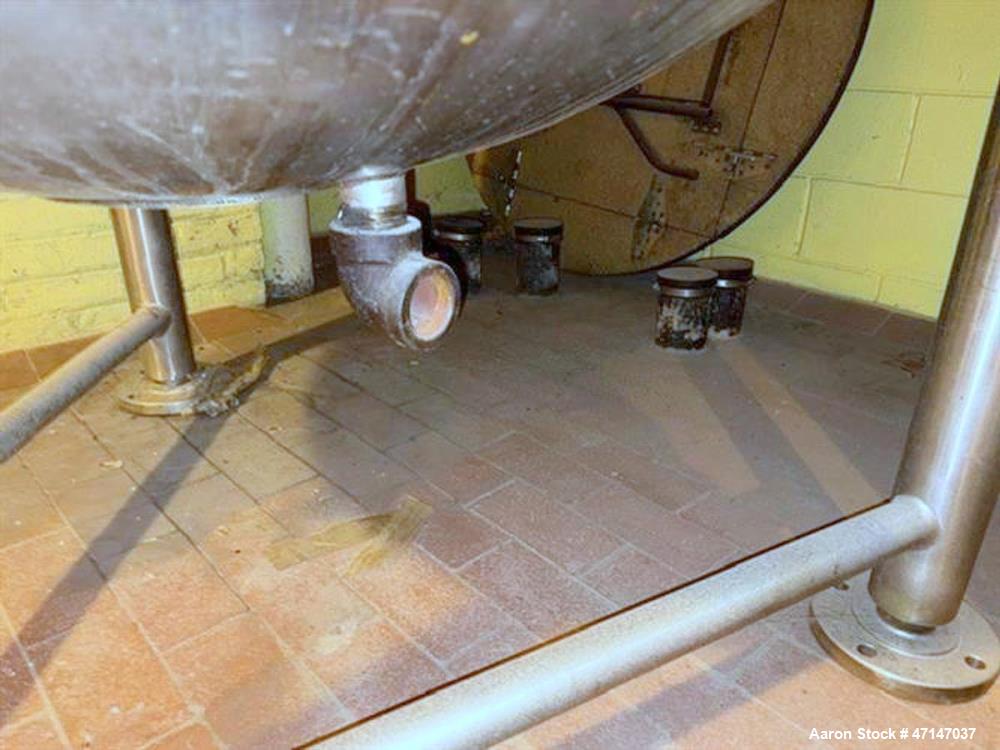

• Bottom outlet diameter: 2-1/2 inches
• Cover: Split cover
• Vessel diameter: 54 inches
• Vessel height: 48 inches

Applications

• Large-batch cooking
• Product heating
• Blending
• Mixing
• Batch processing
• Double-action agitation
• Jacketed thermal processing
• Large-volume product preparation

Suitable Products / Materials

This Lee 400 gallon kettle may be suitable for products that can be processed with jacketed heating and double-action agitation, including:

• Sauces
• Soups
• Gravies
• Dressings
• Syrups
• Food mixtures
• Liquid products
• Semi-liquid products
• Blended formulations
• Heated process products

FAQs

• What is the capacity of this Lee kettle?
  This Lee Model 400 D9MT has a 400 gallon capacity.
• What material is the kettle constructed from?
  The kettle is constructed of 316 stainless steel.
• What type of agitation does the kettle have?
  It is equipped with double-action agitation and has provisions for scrapers. The scrapers are not included.
• What is the jacket pressure rating?
  The full jacket is rated for 40 psi.
• What size is the bottom outlet?
  The vessel has a 2-1/2-inch diameter bottom outlet.
• What are the vessel dimensions?
  The vessel measures approximately 54 inches in diameter by 48 inches high.
• Does the kettle have a cover?
  Yes. The kettle is equipped with a split cover.
• What applications is this kettle suitable for?
  It is suitable for large-batch cooking, heating, blending, mixing, and processes requiring double-action agitation.
