Used Alloy Shell & Tube Heat Exchangers

Stock# 49232001

Unused: Officine Luigi Resta Heat Exhanger (Cooler). Tube side specifications: Tube design pressure : 369/FV barg. Tube design temperature : -40/120C. Tube hydro test pressure : 479.8 barg (Shop & Field). Corrosion all : 1 mm. Tube dimension : Outside diameter: 19 mm. Schedule 3,2 mm. Number of tubes : 2x 200 tubes (hairpin). Tube material : HASTC76 MN: 0.9 (by PMI). Shell side specifications: design pressure : 24/FV barg. Design temperature : -5/120C. Hydrostatic test pressure : 31.2 barg Shop/Field. Corrosion all : 0 mm. Shell material : Ti Gr1 Exact / Ti Gr 2 and 3 Exact (by PMI). Mfg. 2005.

Stock# 10749073

Used-Southern Heat Heat Exchanger, shell and tube. WFS after-condenser, with expansion joint. 46 Square feet, carbon steel body. (29) .75" Diameter x 8'0" long Hastelloy C tubes. Tube pitch is 15/16 TRI. Tube wall is 16 BWG. Single pass shell and tube. Shell rated 100 psi, 150 deg F. Tube rated 50 psi, 210 deg F. Shell nozzles (2) 2"; tube nozzles 1.5", 2", 3". 20 Baffles. Overall length is 10'5". 6" Shell diameter. Built 1992.

Stock# 86414

Used Carbone 60 sq. ft. Carbone shell and tube graphite heat exchanger, model PTY10-31-6, with (31) 7/8" x 1.25" x 6' long graphite tubes rated 100 PSI and full vacuum @ 365 degrees F, carbon steel shell rated 100 PSI and full vacuum @ 250 degrees F, 10" diameter x 6' long tube bundle, 6" tubes inlet/outlet, 2" shell inlet/outlet, serial# 8584, national board# 11, built 1992.

Stock# 50420003

Used- Ellett Industries Shell & Tube Heat Exchanger, 85 Square Foot, Vertical. (118) Titanium (SB-338) 3/4" diameter x 4' long tubes rated 125 psi/FV at 400 degrees F. Shell rated 200 psi/FV at 400 degrees F. Openings shell: (2) 1-1/2", (2) 2". No Heads. National board# 733, Serial# 43984, Built 2009. Primary Tail Gas Pre-eater. For use in Nitric Acid.

Stock# 45392023

Used- Atlas Shell & Tube Heat Exchanger, Approximate 255 Square Feet (23.7 Square Meter). Carbon steel shell approximate 400mm diameter x 3200mm long rated 6.9 bar(100 psi) at 149 degrees C (300 F.). (118) 20mm (3/4") Diameter x 3200mm long Hastelloy C22 tubes rated 6.9 bar(100psi)/Full Vacuum at 149 degrees C (300 F.). Serial# 8331, National Board# 7004, Built 1993.

Stock# 45392025

Used- Atlas Single Pass Shell & Tube Heat Exchanger, Approximate 278 Square Feet. Carbon steel shell with expansion joint approximate 400mm diameter x 3500mm long rated 100psi at -20 to 300 degrees F. (118) 20mm Diameter x 3500mm long Hastelloy C22 tubes rated Full Vacuum/100 psi at -20 to 300 degrees F. Bolted Hastelloy C22 heads. Mounted on (2) carbon steel saddles. Serial# 8332, National Board# 7107.

Stock# 43473502

Used- National Heat Transfer Shell & Tube Heat Exchanger, 289 Square Feet. Hastelloy tubes, 316L tube sheet. (134) 0.75" Diameter x 11' long tubes rated 150 psi at 350 degrees F. Carbon steel shell rated 150 psi at 350 degree F. 14", 8" tubes inlet & outlet, 2" shell inlet & outlet. Serial# 850159-01, National Board# 111, built 1985.

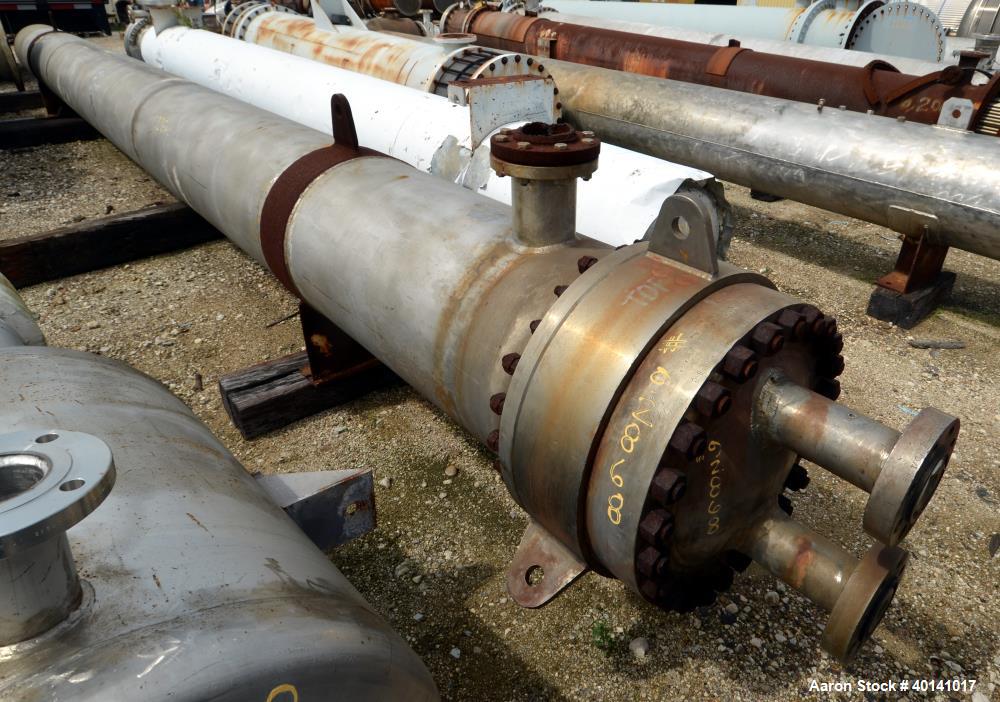

Stock# 40141017

Used- Enerquip 2 Pass Shell And Tube Heat Exchanger, 350 Square Feet, Horizontal. 316L Stainless steel shell rated 75 psi at 212 degrees F, (48) 1'' diameter x 28' long grade 2 titanium tubes rated 1350 psi at 540 degrees F. 316L Stainless steel titanium clad head. Openings: shell (2) 4'', head (2) 2''. Mounted on saddles. Serial# 1496, National Board# 655, built 1992.

Stock# 43473503

Used- National Heat Transfer Shell & Tube Heat Exchanger, 353 Square Feet. Hastelloy C276 tubes and bonnets with 316L tube sheet. (180) 0.75" Diameter x 10' long tubes rated 150 psi at 350 degrees F. Carbon steel shell rated 150 psi at 350 degrees F. 12", 8" Tubes inlet & outlet, 2" shell inlet & outlet. Serial# 850158-01, National Board# 110, built 1985.

Stock# 46075065

Used- J.F.D. Tube & Coil Products U Tube Shell & Tube Heat Exchanger, Approximate 909 Square Feet, Horizontal. SB-434-825 Incoloy 825 shell rated 75 psi at 350 degrees F, (232) 3/4" diameter x 120" long SB-163-825 Incoloy 825 tubes rated Full Vacuum & 125 psi 350 degrees F. Carbon steel head, SB-434-825 Incoloy 825 tubesheets. Openings shell 3", 12", 16", openings head (2) 8". Serial# 8923, National Board# 6, built 1990.

Stock# 50420004

Used- Ellett Industries Shell & Tube Heat Exchanger, 930 Square Foot, Horizontal. Single pass. (237) Zirconium (SB-523) 3/4" diameter x 20' long tubes rated 165 psi/FV at -20 to 550 degrees F. 304L Stainless steel shell rated 75 psi at -20 to 200 degrees F. Openings shell: (2) 8", tubes: (2) 8". Saddle mounted. National Board# 719, Serial# 43890, Built 2008. Previous use Nitric Acid cooler condenser.

Stock# 48727001

Used- Graham Shell & Tube Heat Exchanger. Approximately 1,250 Square Feet, Horizontal. Carbon steel shell rated 20 psi at 300 degrees F. (321) Brass 3/4" diameter x 20' long tubes rated 75 psi at 200 degrees F. Openings shell: 12", (2) 1-1/2", tube: (2) 6". 3 Pass design. Saddle mounted. National Board # 39567, Serial # 10-77424-T. Built 2010.

Stock# 49584001

Unused- Southern Heat Exchanger Corp. Shell & Tube Heat Exchanger, 2393 Square Feet, Horizontal, Alloy 2205 Stainless Steel. Shell rated 165/FV psi at -20 to 500 Degrees F. (1296) 3/4" x 120" Alloy 2205 Stainless Steel Tubes rated 460 psi at -20 to 375 Degrees F. Top Lug Mounted. Built 2010.

Stock# 50420001

Used- Ellett Industries Shell & Tube Heat Exchanger, 2890 Square Foot, Vertical. Single pass. (1125) Zirconium (SB-523) 3/4" diameter x 13' 2" long tubes rated 50 psi at 400 degrees F. 304 Stainless steel shell rated 75 psi at 100 degrees F. Side lug mounted. Buddle: National board# 659, Serial# 43624, built 2006. Shell & heads: National board# 49114, Serial# 4901035, built 1989.

Stock# 50773001

Unused- OLMI S.p.A Shell & Tube Heat Exchanger (Cooler), Type Section VIII DIV.I ED 2007/TEMA Class R-RED. Approximate 3161.68 Square Feet (293.73 Square meter). 224 pieces of 0.47" (12 mm) diameter. U-Shape internal tubes. Material of construction is titanium (F12) on product contact parts and Duplex steel on shell. 43.6" (1118 mm) diameter x 216.45" (5550 mm) straight side. Total capacity shell 978.8 gallon (3700 liter), Total capacity tubes 873 gallon (3300 liter). Design pressure shell 155.1 psi (10.34 Bar), Design pressure tubes 1464 PSI (97.6 bar). Test pressure shell 222 psi (14.8 bar), Test pressure tubes 2094 (139.6). Operating pressure shell 57 psi (3.8 bar), Operating pressure tubes 838.5 psi (55.9 bar) at 179.9 degree F (82.2 degree C.). Shell barrel welded with joint permanent to one head and main flange includes relevant nozzles. Mounted on saddles. Overall dimensions: 362" (11137 mm) long x 49" (1500 mm) width x 65" (2000 mm) high. Weight 12.1 tons. Mfg. 2009

Stock# 50773002

Unused- OLMI S.p.A Shell & Tube Heat Exchanger (Cooler), Type Section VIII DIV.I ED 2007/TEMA Class R-RED. Approximate 3161.68 Square Feet (293.73 Square meter). 224 pieces of 0.47" (12 mm) diameter. U-Shape internal tubes. Material of construction is titanium (F12) on product contact parts and Duplex steel on shell. 43.6" (1118 mm) diameter x 216.45" (5550 mm) straight side. Total capacity shell 978.8 gallon (3700 liter), Total capacity tubes 873 gallon (3300 liter). Design pressure shell 155.1 psi (10.34 Bar), Design pressure tubes 1464 psi (97.6 bar). Test pressure shell 222 psi (14.8 bar), Test pressure tubes 2094 (139.6). Operating pressure shell 57 psi (3.8 bar), Operating pressure tubes 838.5 psi (55.9 bar) at 179.9 degree F (82.2 degree C.). Shell barrel welded with joint permanent to one head and main flange includes relevant nozzles. Mounted on saddles. Overall dimensions: 362" (11137 mm) long x 49" (1500 mm) width x 65" (2000 mm) high. Weight 12.1 tons. Mfg, 2009
